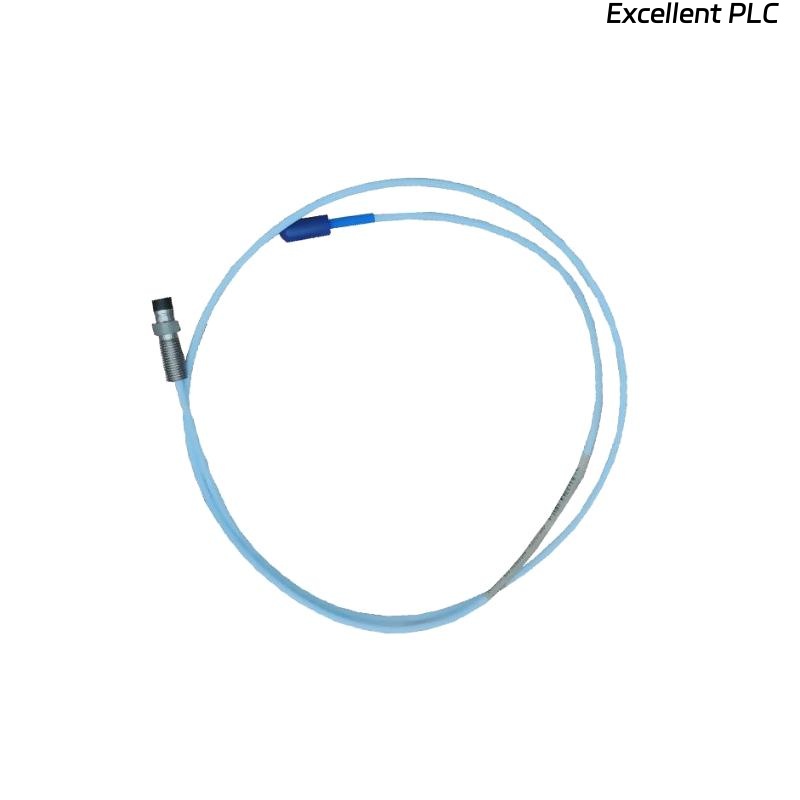

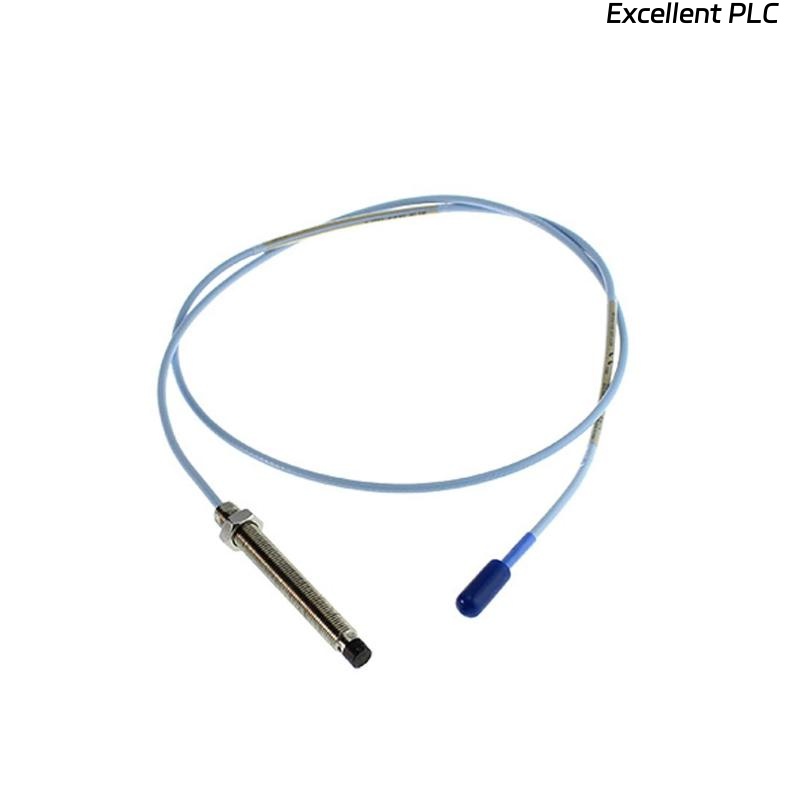

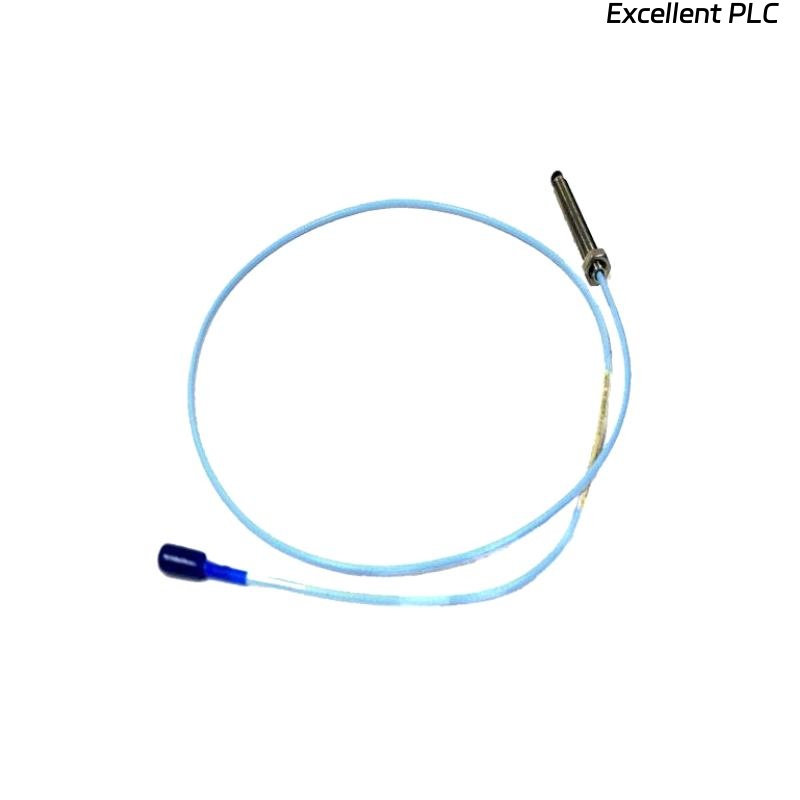

Bently Nevada 330909-00-28-10-02-00 3300 NSv Proximity Probe

Product Introduction

The Bently Nevada 330909-00-28-10-02-00 3300 NSv Proximity Probe is a high-precision, non-contact eddy current sensor specifically engineered for shaft vibration and radial position measurement in confined industrial environments. Part of the Bently Nevada 3300 NSv (Narrow Side-view) series, this probe offers exceptional performance in situations where space limitations prevent the use of standard 8 mm proximity probes. With robust materials, reliable signal integrity, and seamless integration with 3300 monitoring systems, it ensures accurate and continuous vibration monitoring for critical rotating equipment.

---

Product Specifications

---

Applications

• Gas and Steam Turbines – Continuous shaft vibration monitoring to prevent catastrophic failures.

• Compressors and Pumps – Detects imbalance, rotor bow, and bearing degradation.

• Motors and Generators – Provides precise rotor position data for condition-based maintenance.

• Gearboxes and Industrial Fans – Captures early-stage misalignment or looseness.

• Petrochemical Equipment – Withstands harsh, corrosive plant environments.

• Compact Installations – Designed for machinery with limited mounting clearance.

---

Advantages

• Compact 8 mm Design – Ideal for narrow or hard-to-reach machine surfaces.

• High Measurement Accuracy – Ensures reliable vibration and displacement data.

• Wide Temperature Tolerance – Operates from –35 °C to +177 °C without loss of sensitivity.

• Stainless-Steel Housing – Offers excellent corrosion resistance and mechanical durability.

• Excellent EMI/RFI Shielding – Maintains signal integrity in high-electrical-noise environments.

• Seamless System Compatibility – Works perfectly with Bently Nevada 3300 NSv Proximitor and monitoring systems.

• Fast Dynamic Response – 0–10 kHz bandwidth for detailed vibration diagnostics.

• Stable Long-Term Performance – Designed for continuous industrial operation with minimal drift.

---

FAQ

1. What sensing principle does this probe use?
   It employs eddy current technology to measure shaft vibration and radial displacement with high precision.

2. What is the typical output sensitivity?
   Approximately 7.87 V/mm (200 mV/mil), ensuring accurate vibration-to-voltage conversion.

3. Which monitoring systems are compatible with this probe?
   It integrates seamlessly with Bently Nevada 3300 NSv Proximitor drivers and the entire 3300 monitoring platform.

4. How should the probe be installed for optimal accuracy?
   Mount it using a 1/4–28 UNF threaded hole or a compatible clamp, maintaining the recommended probe-to-target gap.

5. What is the linear measurement range?
   ±1.0 mm around the nominal gap to guarantee precise displacement measurement.

6. What is the maximum frequency response of this probe?
   Up to 10 kHz, suitable for high-speed rotating equipment analysis.

7. Is recalibration required during regular operation?
   Only initial calibration with the Proximitor driver is required; minimal recalibration is needed afterward.

8. Can the probe handle strong electromagnetic interference?
   Yes, it includes robust EMI/RFI shielding to protect against electrical noise.

9. Is it suitable for dynamic as well as static measurements?
   Absolutely, it provides accurate static shaft position and dynamic vibration data.

10. What kind of cable insulation is used?
    It uses PTFE shielded insulation for durability and signal integrity in industrial environments.

---

Recommended Related Models (Same Series)

---

Popular Bently Nevada Models

常问问题

1. 该探头采用什么传感原理？
   它采用涡流技术，可高精度测量轴振动和径向位移。

2. 典型的输出灵敏​​度是多少？
   约为 7.87 V/mm (200 mV/mil)，确保精确的振动到电压转换。

3. 哪些监测系统与此探头兼容？
   它与 Bently Nevada 3300 NSv Proximitor 驱动器以及整个 3300 监测平台无缝集成。

4. 如何安装探头才能获得最佳精度？
   使用 1/4–28 UNF 螺纹孔或兼容夹具进行安装，并保持探头与目标之间的建议间隙。

5. 线性测量范围是多少？
   标称间隙周围±1.0毫米，以保证精确的位移测量。

6. 该探头的最大频率响应是多少？
   高达 10 kHz，适合高速旋转设备分析。

7. 正常运行期间是否需要重新校准？
   仅需使用前置器驱动器进行初始校准；之后只需进行少量重新校准。

8. 探头能承受强电磁干扰吗？
   是的，它包含强大的EMI/RFI屏蔽功能，可以防止电气噪声。

9. 它适用于动态和静态测量吗？
   当然，它可以提供精确的静态轴位置和动态振动数据。

10. 使用哪种电缆绝缘？
    它采用 PTFE 屏蔽绝缘，以确保工业环境中的耐用性和信号完整性。
