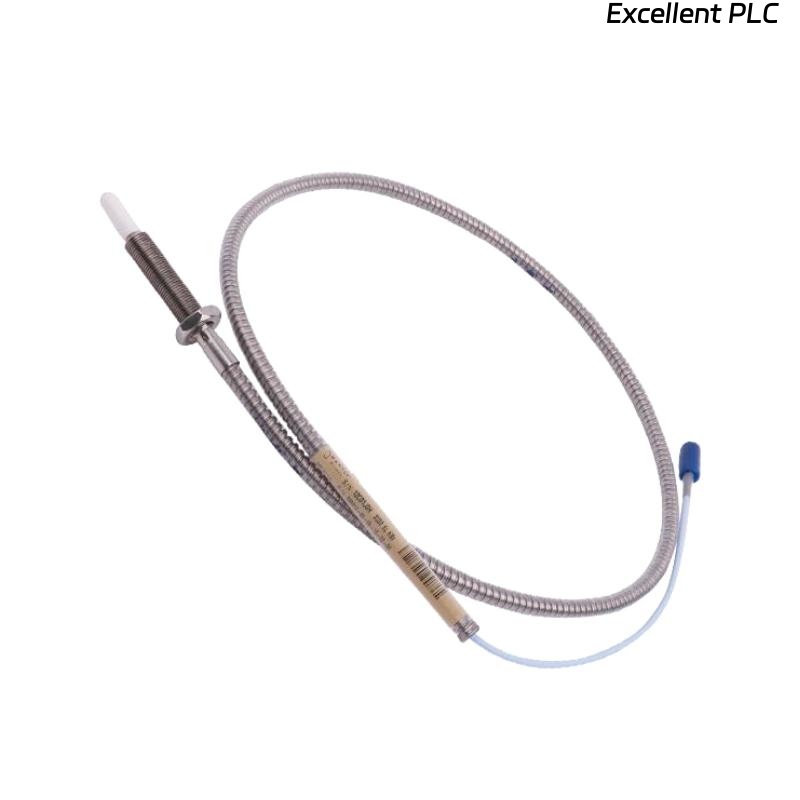

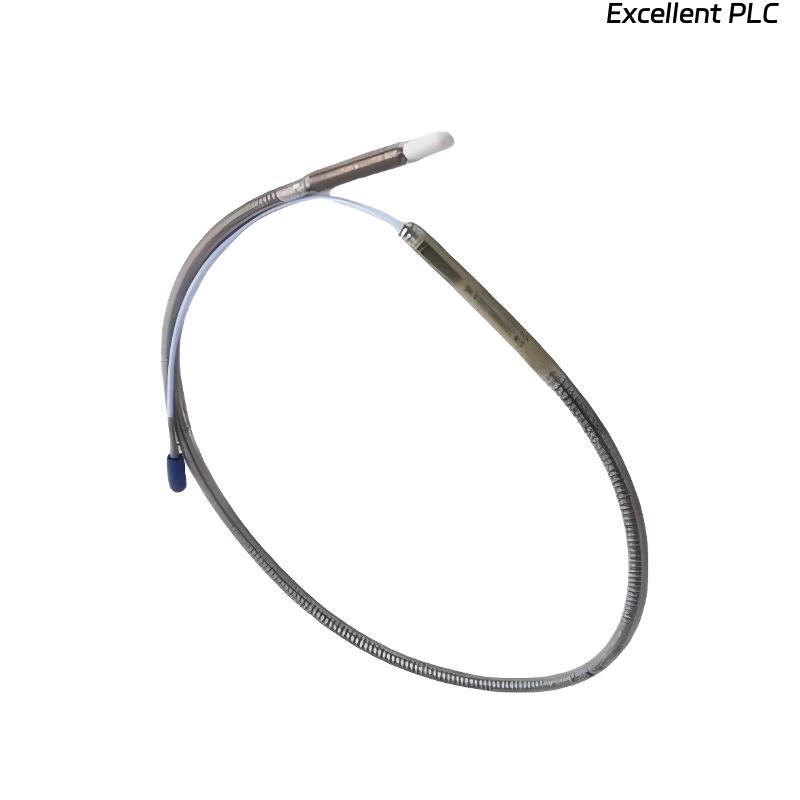

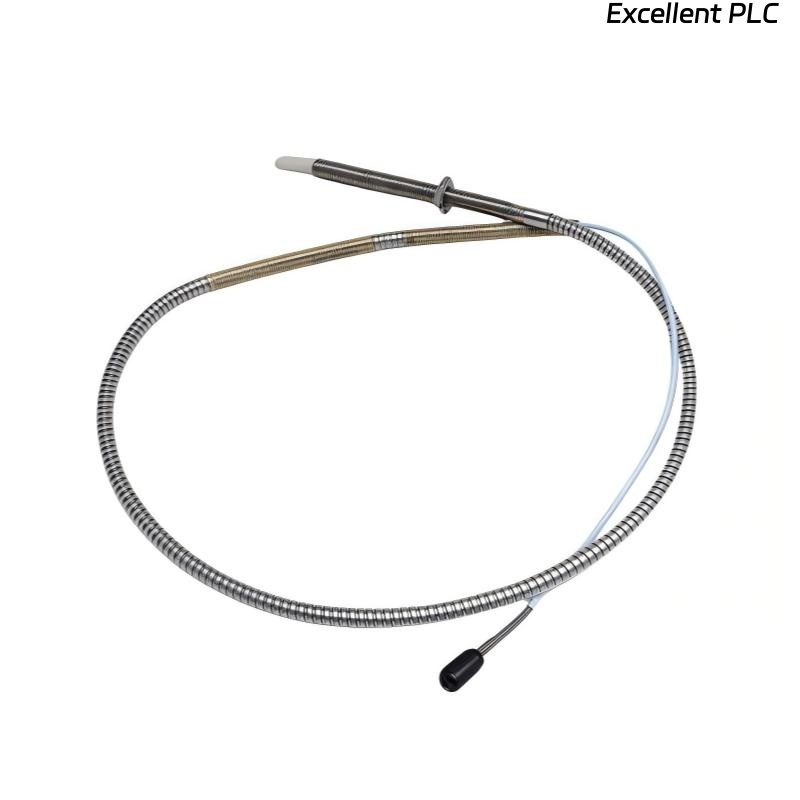

The Bently Nevada 330910-00-05-05-02-CN 3300 NSv Proximity Probe is a high-performance, non-contact eddy current sensor designed for precise vibration and shaft position monitoring in small, high-speed rotating machinery. As part of the 3300 NSv (Narrow Side View) Proximity Transducer System, this model provides exceptional accuracy, stability, and linearity, making it ideal for applications where conventional probes cannot be installed due to space constraints.

This proximity probe is engineered for critical condition monitoring and protection systems in industrial equipment, particularly where machinery operates at high speed or under tight space conditions. The 330910-00-05-05-02-CN integrates seamlessly with the 3300 NSv Proximitor Sensor, forming a complete transducer system for displacement and vibration measurement.

Constructed from high-grade stainless steel, this probe offers outstanding resistance to corrosion, oil, and electromagnetic interference. The design adheres to API 670 standards, ensuring compatibility with international machinery protection systems and long-term reliability in demanding industrial environments.

---

Technical Specifications

---

Product Applications

The Bently Nevada 330910-00-05-05-02-CN Proximity Probe is specifically developed for vibration, shaft displacement, and position monitoring in compact machinery where space and mounting flexibility are critical. It ensures highly accurate and stable measurements even in challenging operational environments.

Typical Applications Include:

• Steam and Gas Turbines: For detecting shaft vibration, eccentricity, and thermal bowing.

• Compressors: For monitoring rotor dynamics, detecting imbalance, and ensuring bearing integrity.

• Pumps: For identifying mechanical looseness, cavitation, and misalignment issues.

• Electric Motors and Generators: For continuous shaft vibration monitoring and early fault detection.

• Gearboxes: For observing gear mesh conditions, shaft behavior, and vibration trends.

• Fans and Blowers: For early detection of rotor imbalance and mechanical misalignment.

This model is widely used in oil and gas facilities, power plants, chemical refineries, pulp and paper mills, and heavy-duty manufacturing plants, where predictive maintenance and real-time monitoring are essential for machinery health and operational safety.

---

Product Advantages

• High Precision Measurement: Offers accurate, linear, and repeatable readings over the entire operating range.

• Compact Form Factor: Designed for narrow-space installations and smaller rotating machines.

• Non-Contact Measurement: Eliminates wear and friction, enhancing system longevity.

• Wide Temperature Capability: Functions reliably in harsh thermal environments from –35°C to +180°C.

• Excellent Resistance to EMI/RFI: Shielded against electromagnetic and radio-frequency interference for stable operation.

• API 670 Compliance: Fully meets global standards for industrial machinery protection.

• Durable Stainless-Steel Construction: Ensures corrosion resistance and long operational life.

• Stable Output Signal: Maintains consistent sensitivity even under varying environmental conditions.

• Hermetically Sealed Design: Offers superior protection against oil, dust, and moisture.

• Simple Integration: Easily connects with Bently Nevada 3300 NSv Proximitor systems for seamless monitoring.

---

FAQ

1. What measurement technology does the 330910-00-05-05-02-CN probe use?
   It utilizes eddy current technology to detect changes in the electromagnetic field caused by variations in the distance between the probe tip and the metallic target surface.

2. Is this probe compatible with all 3300 NSv Proximitor Sensors?
   Yes, it is fully compatible with 3300 NSv Proximitor Sensors, ensuring correct calibration and accurate signal output.

3. What type of output signal does this probe generate?
   The probe provides an analog voltage output, proportional to the displacement of the target within its calibrated range.

4. Can this probe measure both dynamic and static shaft movement?
   Yes, it is capable of measuring both dynamic vibration and static shaft position, offering a complete picture of machine performance.

5. How does the probe maintain accuracy in environments with strong electromagnetic fields?
   The probe features robust shielding and electromagnetic compatibility (EMC) compliance to minimize interference from nearby equipment.

6. What is the recommended target material for calibration and measurement?
   The probe is factory-calibrated for AISI 4140 steel, ensuring standardized accuracy across applications.

7. Can the probe operate under high-frequency vibration conditions?
   Yes, it offers a frequency response up to 10 kHz, making it suitable for high-speed machinery monitoring.

8. How does temperature variation affect the probe’s performance?
   The probe maintains thermal stability within its rated operating range, ensuring consistent readings even under fluctuating temperatures.

9. Does the probe require periodic recalibration?
   Under normal operating conditions, the probe maintains calibration long-term, though periodic system verification is recommended for critical installations.

10. Is the probe suitable for continuous real-time monitoring?
    Absolutely. It is designed for 24/7 continuous monitoring, providing precise and stable performance in long-term condition monitoring systems.

---
