Product Introduction

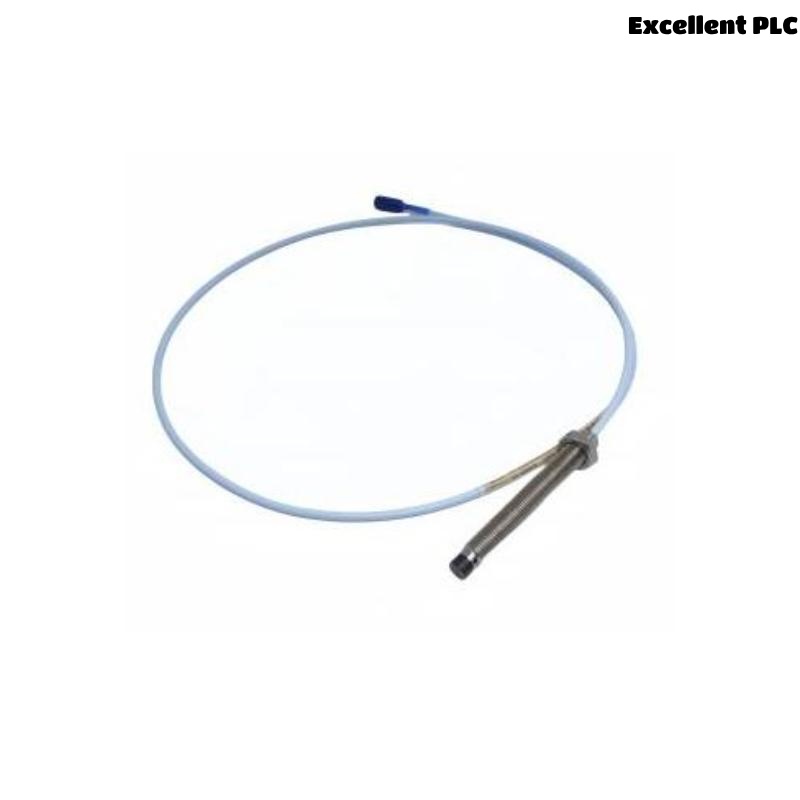

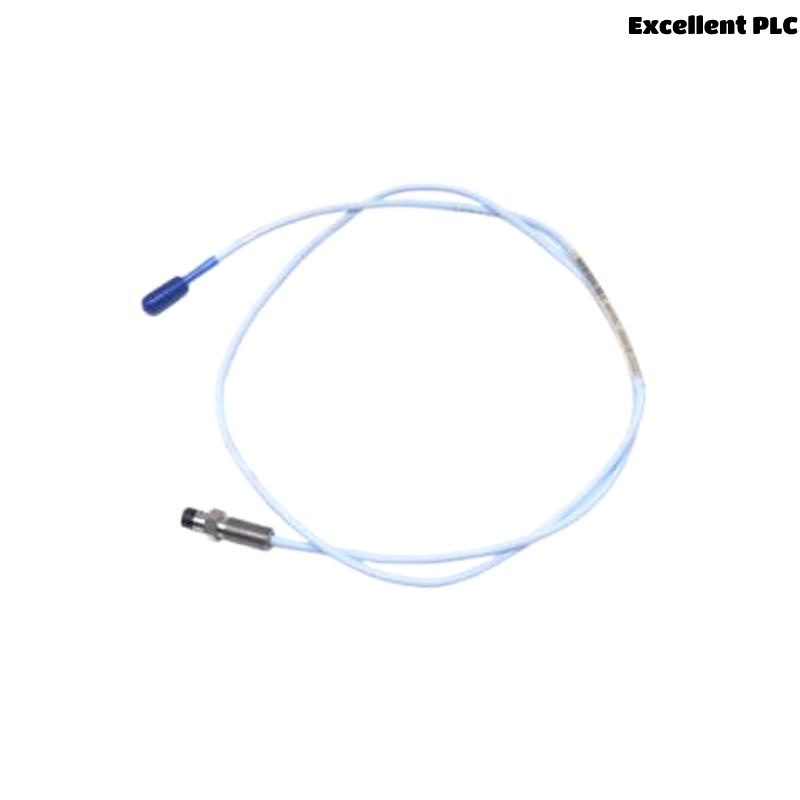

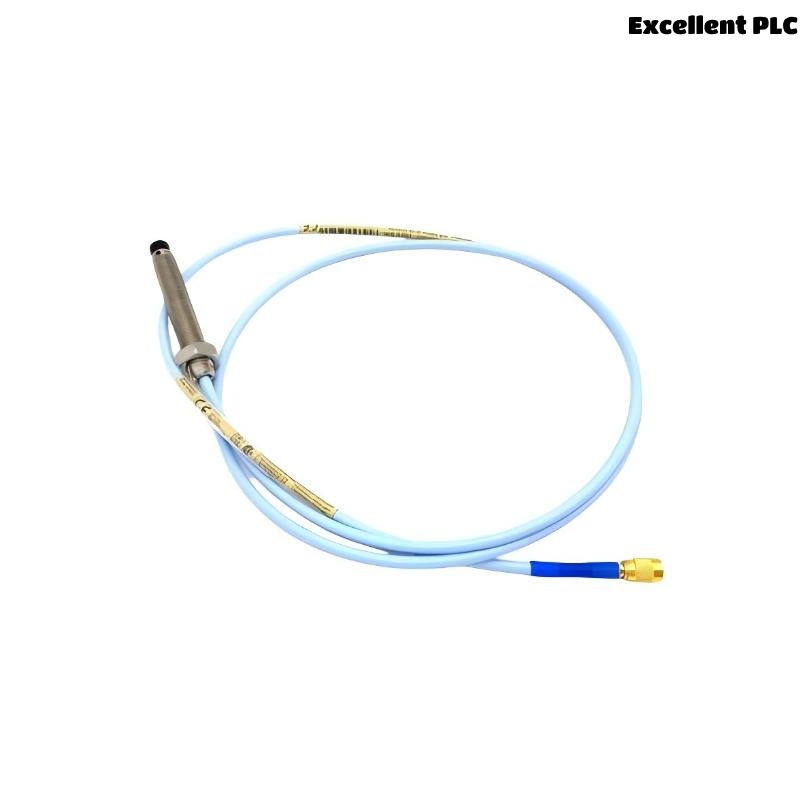

The Bently Nevada 330910-00-05-10-02-00 3300 NSv Proximity Probe is an advanced sensor designed to measure the displacement between a shaft and its surrounding casing in industrial rotating machinery. This sensor, part of the renowned 3300 NSv series, is essential for vibration monitoring and predictive maintenance in machinery. Its precision and reliability make it indispensable in industries where equipment performance is critical, including power generation, oil and gas, and manufacturing.
The 3300 NSv probe provides real-time data on shaft position, offering high-resolution measurements that allow for early detection of alignment issues, shaft displacement, and potential mechanical failures. By using this probe, operators can optimize machine health monitoring, reduce downtime, and improve the lifespan of industrial machinery.
Built for harsh industrial environments, the 3300 NSv probe is designed to operate under extreme conditions and provides a reliable, high-accuracy measurement of machine vibrations. It’s a must-have tool for any industrial system where precision monitoring of rotating equipment is required.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 330910-00-05-10-02-00 |
| Total Length | 1 meter |
| Shipping Weight | 2 kg |
| Probe Diameter | 6.35 mm (1/4 inch) |
| Temperature Range | -40°C to +120°C |
| Output Type | 4-20 mA, linear output |
| Maximum Vibration | 0.254 mm (0.010 in.) |
| Cable Length | 1 meter (standard) |
| Operating Pressure | 10 MPa (1450 psi) |
| Protection Rating | IP67 |
| Compliance | CE, UL |
Product Applications
The 3300 NSv Proximity Probe is designed for use in a variety of industrial applications where precise monitoring of rotating machinery is essential. It is typically used in:
-
Turbines and Compressors: Ensures accurate displacement measurement to detect shaft misalignment, vibration, and wear.
-
Generators: Helps monitor rotor and shaft positioning, providing essential data for maintaining efficient operation.
-
Pumps: Critical for detecting imbalance or misalignment in rotating pumps, preventing potential mechanical failures.
-
Motors: Provides real-time monitoring for large electric motors, helping to identify early warning signs of failure.
-
Industrial Manufacturing: Used for high-speed machinery and conveyors, ensuring that operational faults are identified early for better maintenance planning.
-
Oil and Gas Industry: Ensures that critical machinery, such as blowers and drilling equipment, is operating within safe parameters.
Product Advantages
-
Precision Measurement: The 3300 NSv probe offers high-accuracy displacement measurements, allowing operators to detect even the smallest discrepancies in machine movement.
-
Durable Construction: Built to withstand extreme temperatures and harsh industrial environments, the probe features a high IP67 protection rating, making it resistant to dust, moisture, and debris.
-
Extended Operating Range: The wide temperature range of -40°C to +120°C ensures that the 3300 NSv probe can function in a variety of environments without degradation in performance.
-
Reliable Output: The probe uses a 4-20 mA linear output, which is widely compatible with many industrial monitoring systems, ensuring reliable and consistent data transmission.
-
Early Fault Detection: By accurately measuring shaft displacement, the probe helps in identifying early signs of mechanical wear, misalignment, or imbalance, thus preventing major failures.
-
Easy Integration: With a standard cable length of 1 meter and simple installation, this probe integrates seamlessly into existing monitoring systems for quick setup.
-
Long-Lasting Performance: With a shipping weight of just 2 kg and the robust design, this proximity probe is built to last, minimizing downtime and reducing maintenance costs.
Frequently Asked Questions (FAQs)
Q1: What is the total length of the 3300 NSv probe?
A1: The total length of the Bently Nevada 3300 NSv probe is 1 meter.
Q2: What is the shipping weight of the 3300 NSv probe?
A2: The shipping weight of the probe is 2 kg.
Q3: What is the output type of the 3300 NSv probe?
A3: The probe provides a 4-20 mA linear output.
Q4: What is the operating temperature range for the 3300 NSv probe?
A4: The probe operates within a temperature range of -40°C to +120°C.
Q5: What is the protection rating of the 3300 NSv probe?
A5: The 3300 NSv probe has an IP67 protection rating, meaning it is resistant to dust and can withstand immersion in water up to 1 meter.
Q6: Can the 3300 NSv probe be used in hazardous environments?
A6: Yes, the 3300 NSv probe is designed for use in harsh industrial environments and can operate in environments with high levels of vibration, temperature extremes, and pressure.
Q7: What is the maximum vibration the 3300 NSv probe can measure?
A7: The probe can measure up to 0.254 mm (0.010 inches) of vibration.
Q8: How do I integrate the 3300 NSv probe into my system?
A8: The probe has a standard 1-meter cable length and is compatible with most industrial monitoring systems that support a 4-20 mA linear output.
Q9: What industries use the 3300 NSv probe?
A9: The 3300 NSv probe is used across various industries, including power generation, oil and gas, manufacturing, water treatment, and more.
Q10: What makes the 3300 NSv probe reliable?
A10: The 3300 NSv probe offers high-precision measurements, robust construction, and a wide temperature range, ensuring reliable operation in demanding industrial environments.
Recommended Models
| Model | Description | Total Length |
|---|---|---|
| 330910-00-10-10-02-00 | Proximity Probe with extended cable length | 2 meters |
| 330910-00-05-20-02-00 | High-accuracy proximity probe for turbines | 1 meter |
| 330910-00-05-15-02-00 | Shorter probe for tight spaces | 0.5 meters |
| 330910-00-05-10-03-00 | Proximity probe with enhanced vibration measurement | 1 meter |
| 330910-00-05-25-02-00 | High-pressure rated proximity probe | 1 meter |
| 330910-00-06-10-02-00 | High-temperature proximity probe for extreme environments | 1 meter |
