Product Overview

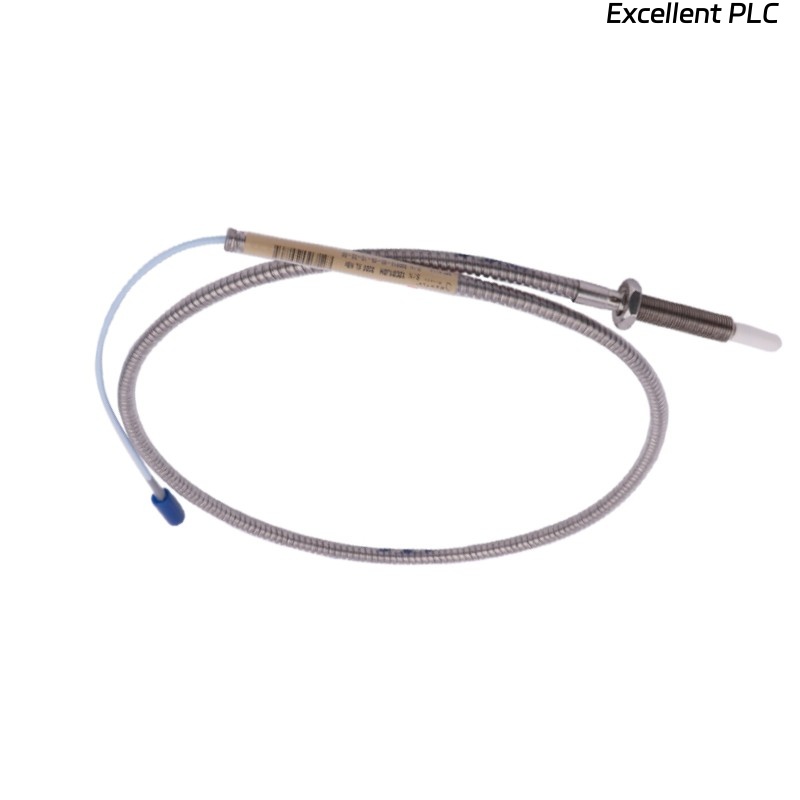

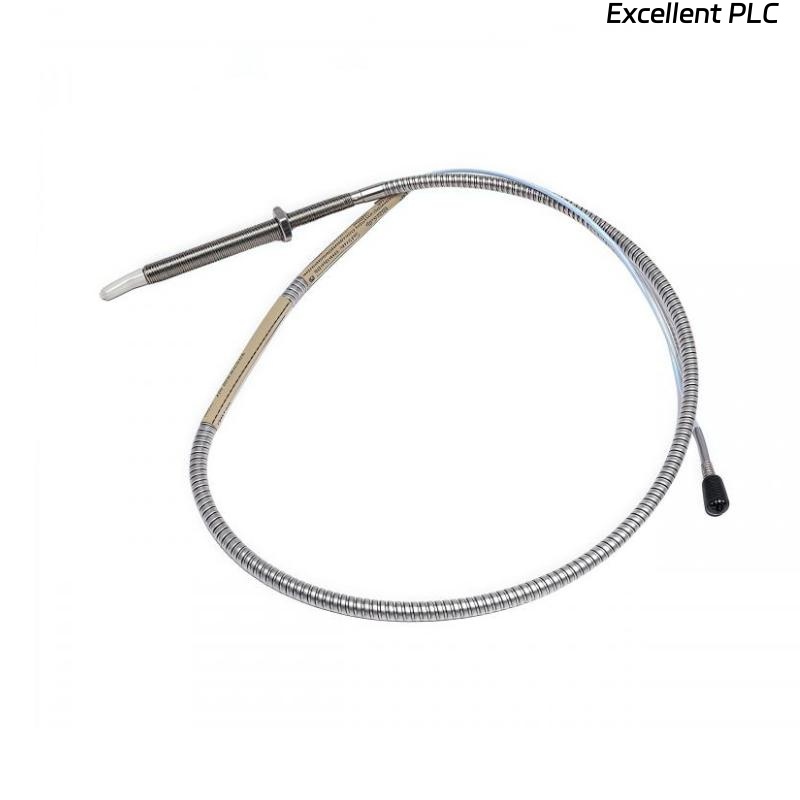

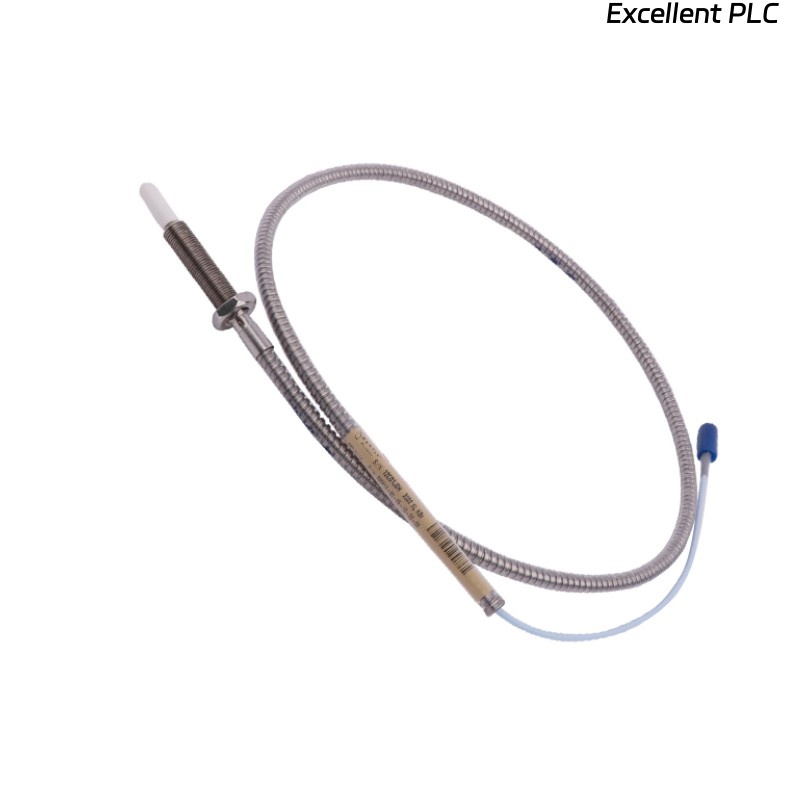

The Bently Nevada 330910-01-07-10-01-00 is an 8 mm eddy current proximity probe from the 3300 NSv series, engineered for high-precision vibration and shaft displacement monitoring in industrial machinery. It ensures reliable and accurate measurements, which are essential for effective condition monitoring and predictive maintenance. The probe features a side-view design suitable for constrained installation spaces and is fully compatible with prior 3300 NSv and RAM probe models.
Key Features
-
High Sensitivity: Provides accurate displacement measurements over a 1.5 mm linear range
-
Side-View Capability: Optimized for tight installation environments
-
Interchangeability: Mechanically and electrically compatible with previous 3300 NSv and RAM probes
-
Eddy Current Sensing: High-resolution eddy-current technology ensures precise vibration detection
-
ClickLoc Connector: Miniature coaxial connector provides secure and reliable connections
Technical Specifications
| Specification | Details |
|---|---|
| Model | 330910-01-07-10-01-00 |
| Series | 3300 NSv |
| Thread Size | M8x1 |
| Unthreaded Length | 0 mm |
| Overall Case Length | 50 mm |
| Cable Length | 7.0 meters |
| Connector Type | ClickLoc miniature coaxial |
| Linear Range | 1.5 mm |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Temperature Range | -52°C to +177°C (-62°F to +351°F) |
| Frequency Response | 0–10 kHz |
| Resistance | 4.0Ω ±0.5Ω |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.15 kg |
Frequently Asked Questions (FAQ)
1. What is the main function of the 330910-01-07-10-01-00 probe?
It provides precise vibration and shaft displacement monitoring for industrial machinery, supporting predictive maintenance and equipment protection.
2. What is the linear range of this probe?
The linear range is 1.5 mm for accurate displacement measurement.
3. What is the scale factor of the probe?
The scale factor is 7.87 V/mm (200 mV/mil).
4. What is the operating temperature range?
The probe operates between -52°C and +177°C (-62°F to +351°F).
5. What type of connector does the probe use?
It uses a ClickLoc miniature coaxial connector for secure and reliable connections.
6. Is the probe compatible with previous 3300 NSv or RAM probes?
Yes, it is mechanically and electrically interchangeable with prior 3300 NSv and RAM probes.
7. What are the dimensions of the probe?
Total Length : 1.0 meter.
8. What is the weight of the probe?
The probe weighs approximately 0.15 kg.
