Product Introduction

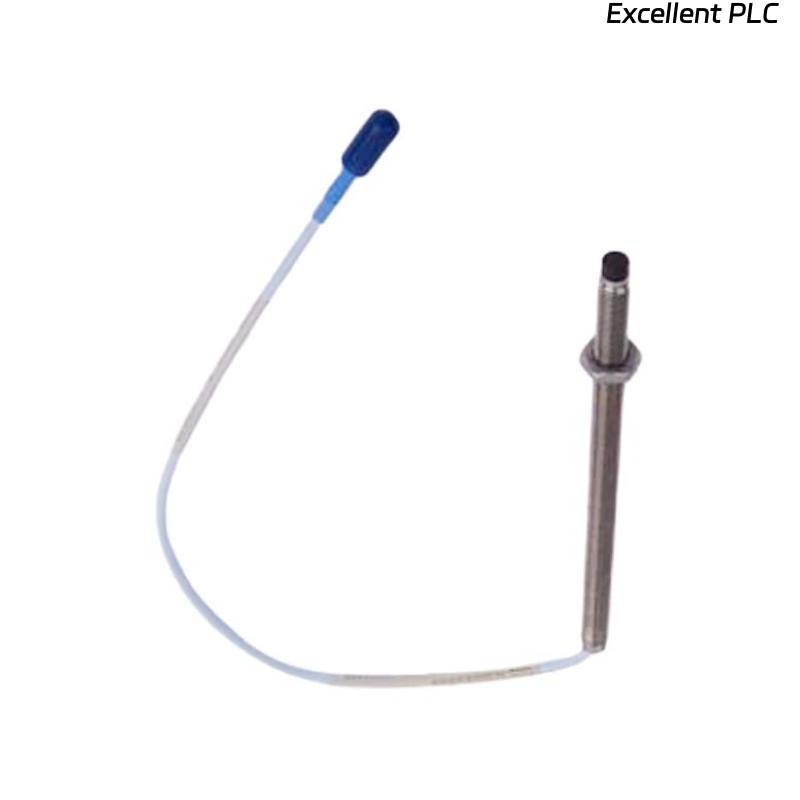

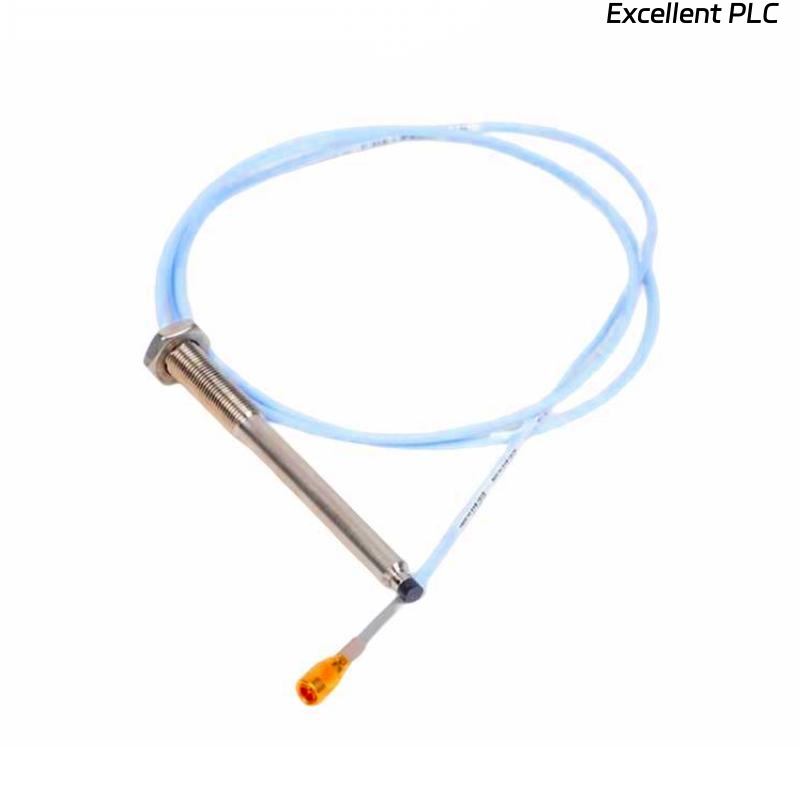

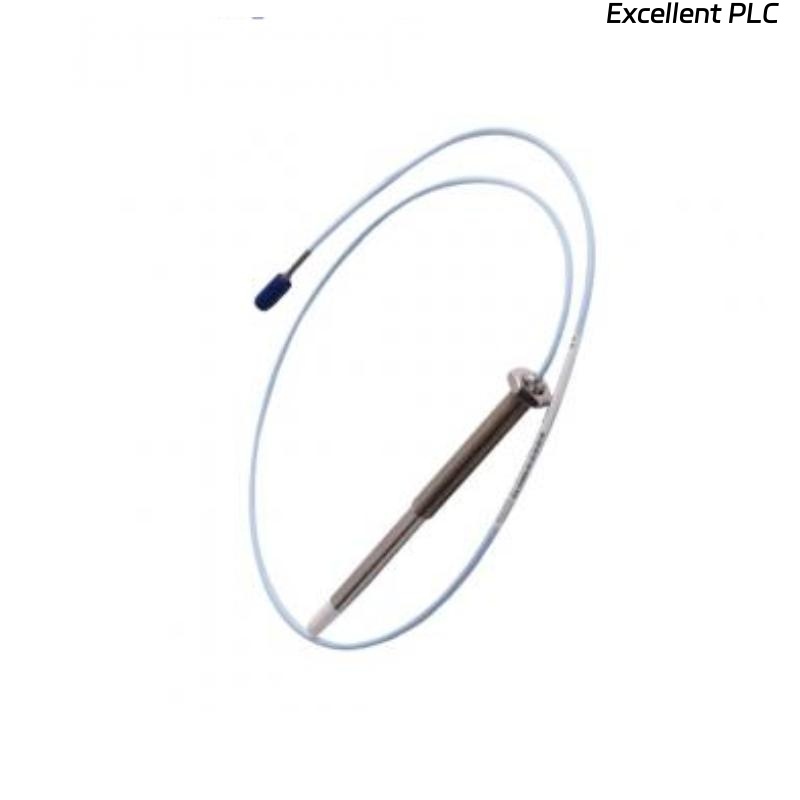

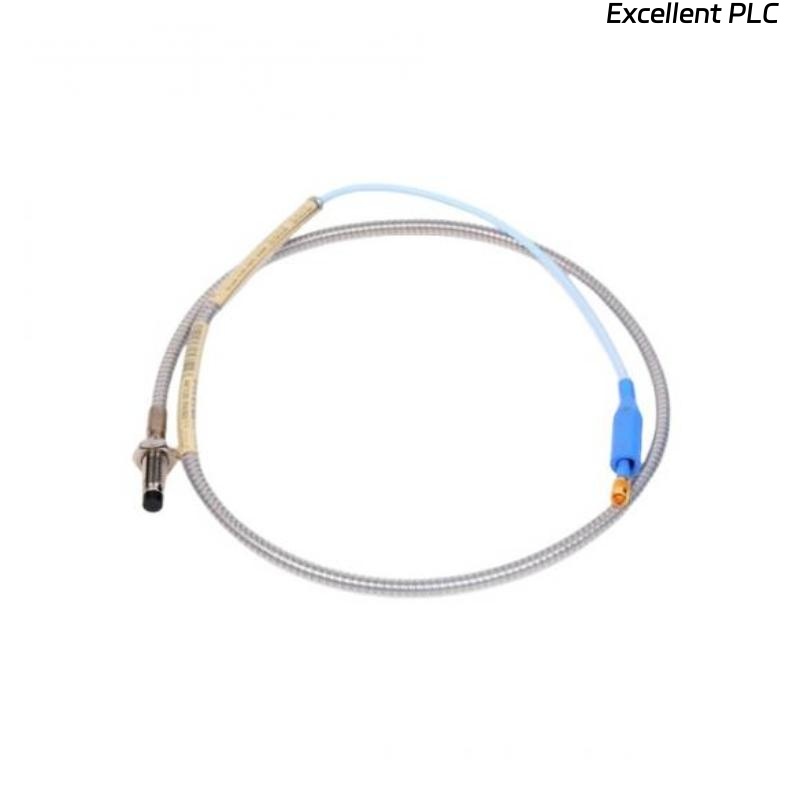

The Bently Nevada 330910-04-13-10-02-00 3300 NSv Proximity Probe is a high-precision eddy-current sensor designed for industrial machinery monitoring. It provides reliable measurement of shaft displacement, vibration, and position in rotating equipment, helping prevent mechanical failures and improve operational safety. This probe is part of the 3300 NSv series, renowned for its durability and performance in harsh environments.
The sensor offers robust signal stability and compatibility with Bently Nevada’s 3300 XL and 3500 monitoring systems, making it suitable for critical applications across power generation, oil and gas, and manufacturing sectors.
Product Advantages
-
High accuracy and repeatability in displacement measurement.
-
Wide frequency response for vibration analysis.
-
Compatible with standard 3300 XL and 3500 monitoring systems.
-
Rugged design for harsh industrial environments, resistant to temperature fluctuations and contamination.
-
Easy installation with standard mounting accessories.
-
Supports predictive maintenance by providing early warning of shaft and bearing issues.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Type | Eddy-current proximity sensor |
| Sensing Range | 0-13 mm |
| Tip Style | Standard flat tip |
| Total Length | 1 m |
| Weight | 0.15 kg |
| Output Impedance | 100 Ω nominal |
| Frequency Response | 0-10 kHz |
| Operating Temperature | -40°C to 120°C |
| Compatible Systems | 3300 XL, 3500 monitoring systems |
| Mounting Style | Threaded / standard probe holder |
| Electrical Connector | Coaxial BNC or equivalent |
Product Applications
-
Vibration monitoring of rotating machinery such as turbines, compressors, and pumps.
-
Shaft displacement measurement in critical industrial equipment.
-
Predictive maintenance programs for bearings, rotors, and other rotating components.
-
Condition monitoring in power plants, oil and gas facilities, and heavy manufacturing plants.
-
Integration with Bently Nevada 3300 XL and 3500 monitoring systems for overall plant safety.
FAQ
Q1: What is the maximum sensing range of this probe?
The 330910-04-13-10-02-00 probe supports a sensing range up to 13 mm.
Q2: Can this probe operate in high-temperature environments?
Yes, it can operate reliably between -40°C and 120°C.
Q3: Is the probe compatible with the 3500 monitoring system?
Yes, it is fully compatible with 3500 series and 3300 XL monitoring systems.
Q4: What type of electrical connector does the probe use?
It uses a coaxial BNC connector or an equivalent standard connection.
Q5: What is the frequency response range?
The probe has a frequency response from 0 Hz up to 10 kHz.
Q6: What is the output impedance of the probe?
The nominal output impedance is 100 Ω.
Q7: Can this probe be used in explosive environments?
It is compatible with intrinsically safe systems if used with appropriate Bently Nevada barrier devices.
Q8: How is the probe mounted on machinery?
It can be mounted using standard threaded probe holders compatible with the 3300 NSv system.
Q9: Does the probe require calibration before use?
While pre-calibrated, a system-level verification is recommended during installation.
Q10: Is this probe suitable for high-speed rotating machinery?
Yes, it is designed to handle high-speed machinery vibrations and displacement measurements accurately.
Related / Same Series Models
| Model Number | Sensing Range | Cable Length | Weight |
|---|---|---|---|
| 330910-04-10-10-02-00 | 10 mm | 1 m | 0.14 kg |
| 330910-04-12-10-02-00 | 12 mm | 1 m | 0.15 kg |
| 330910-04-15-10-02-00 | 15 mm | 1 m | 0.16 kg |
| 330910-04-08-10-02-00 | 8 mm | 1 m | 0.13 kg |
| 330910-04-20-10-02-00 | 20 mm | 1 m | 0.18 kg |
| 330910-04-06-10-02-00 | 6 mm | 1 m | 0.12 kg |
Popular Models from Bently Nevada
| Model Number | Sensing Range | Cable Length | Weight |
|---|---|---|---|
| 330910-00-08-50-01-05 | 8 mm | 1 m | 0.15 kg |
| 330910-00-06-50-02-00 | 6 mm | 1 m | 0.12 kg |
| 330910-00-10-50-02-05 | 10 mm | 1 m | 0.14 kg |
| 330910-00-18-10-12-05 | 18 mm | 1 m | 0.17 kg |
| 330910-04-13-10-02-00 | 13 mm | 1 m | 0.15 kg |
| 330910-00-06-70-02-00 | 6 mm | 1 m | 0.12 kg |
