Product Overview

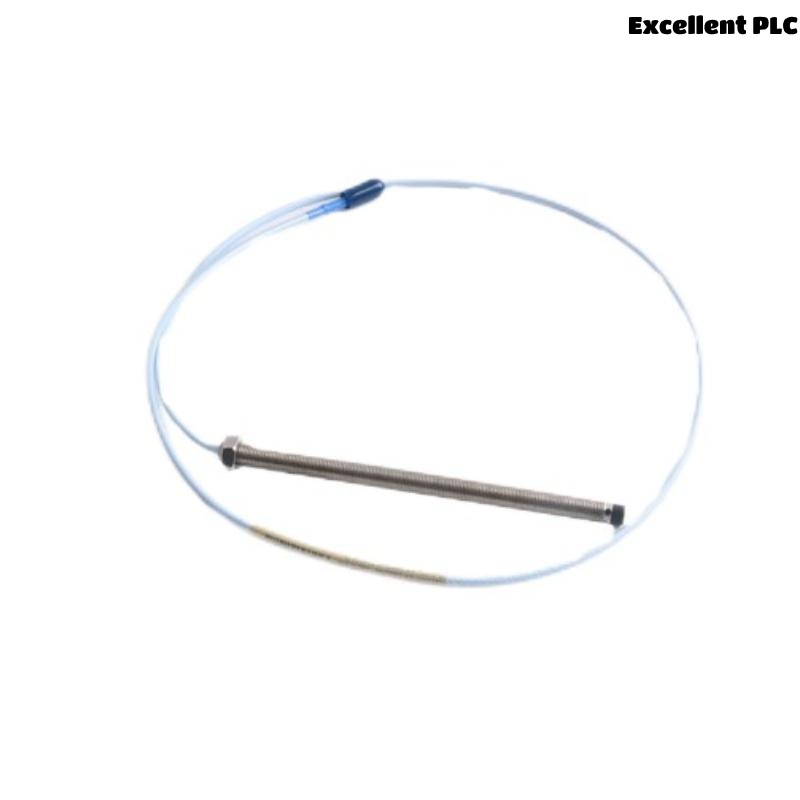

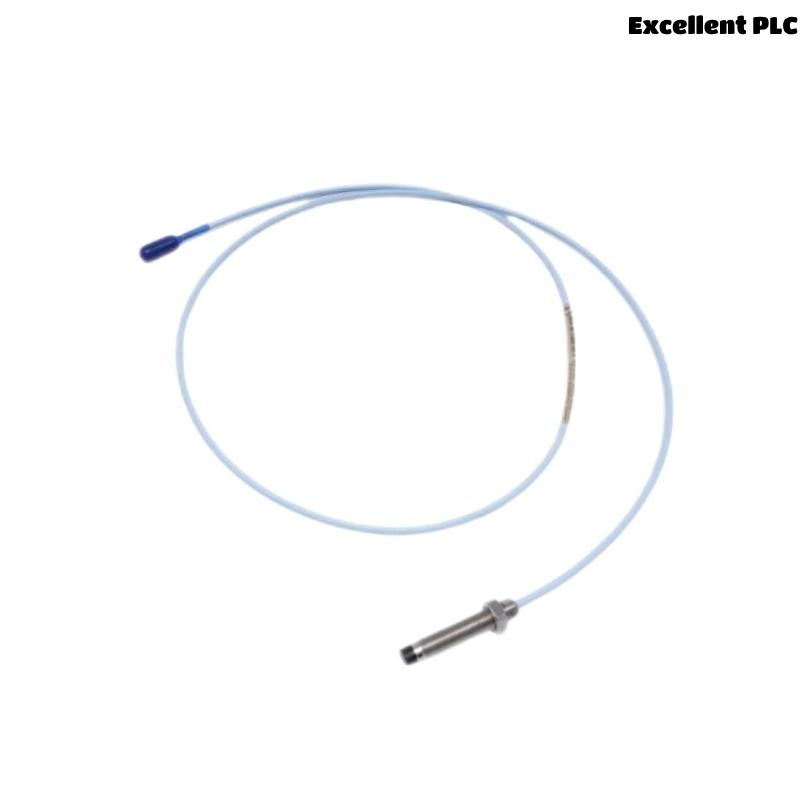

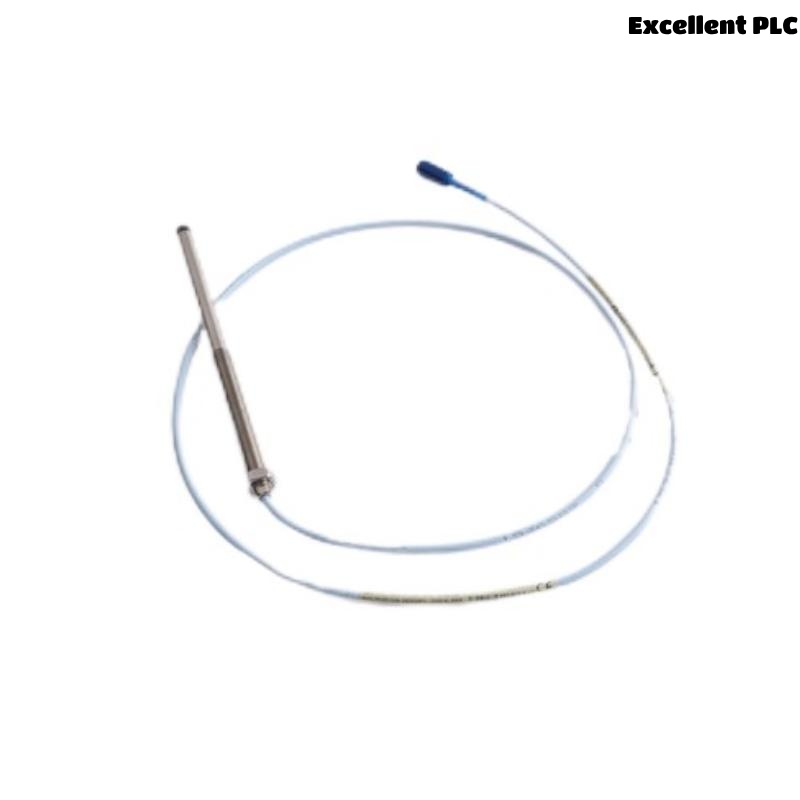

The Bently Nevada 330910-05-10-02-00 3300 NSv Proximity Probe is a compact, high-performance proximity sensor designed specifically for small, high-speed machinery where conventional proximity probes cannot be installed due to space limitations.
Part of the trusted Bently Nevada 3300 NSv (Narrow Side-view) Series, this probe delivers accurate, non-contact measurement of shaft vibration, displacement, and position in smaller rotating equipment such as gearboxes, small compressors, pumps, and motors. The 330910-05-10-02-00 model combines space-saving design with the proven reliability of Bently Nevada’s proximity measurement technology, ensuring early detection of mechanical issues that could lead to equipment damage or unplanned downtime.
Key Features
-
Compact, Narrow Design: Ideal for applications with limited radial space
-
Non-Contact Vibration & Displacement Measurement: Ensures precise, reliable monitoring without physical contact with the shaft
-
Industry-Standard 3300 Series Compatibility: Fully integrates with Bently Nevada Proximitor® Sensors and monitoring systems
-
Enhanced Frequency Response: Suitable for high-speed, small-diameter shafts
-
Robust Construction for Harsh Environments: Withstands industrial conditions including oil, dust, and temperature variations
-
Factory-Installed Cable and Connector: Simplifies installation and ensures signal integrity
-
Proven Eddy Current Technology: Delivers stable, accurate measurement of shaft movement
-
Ideal for Small Machines: Supports condition monitoring of compact machinery where larger probes are impractical
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | 3300 NSv Proximity Probe |
| Model Number | 330910-05-10-02-00 |
| System Compatibility | Bently Nevada 3300 NSv Proximitor® Sensor and monitoring systems |
| Sensing Principle | Non-contact Eddy Current Displacement/Vibration measurement |
| Shaft Material Compatibility | Typically 4140 Steel or similar conductive materials |
| Linear Range | 0.25 mm to 2.0 mm (0.010 to 0.080 in) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) typical |
| Frequency Response | Up to 10 kHz suitable for high-speed shaft applications |
| Probe Tip Diameter | 5 mm (compact design) |
| Probe Thread Size | M8 x 1.0 (metric thread) |
| Cable Length | 5 meters (factory installed, model-specific) |
| Connector Type | Molded, environmental-resistant connector |
| Operating Temperature Range | -35°C to +177°C |
| Storage Temperature Range | -51°C to +200°C |
| Environmental Protection | Resistant to oil, moisture, chemicals, and mechanical wear |
| Dimensions | Unthreaded Length : 50mm |
| Weight | 0.064 kg |
| Certifications | CE, RoHS, ATEX, IECEx (installation dependent) |
Product Advantages
-
Space-Saving Design for Compact Machines: Narrow probe body enables installation where standard proximity probes cannot fit
-
Accurate Shaft Vibration and Displacement Measurement: Provides early detection of mechanical faults
-
High-Speed Machinery Compatibility: Frequency response supports monitoring of small, fast-rotating shafts
-
Durable for Industrial Environments: Operates reliably in oil, chemical, and high-temperature conditions
-
Reliable Non-Contact Technology: Prevents probe wear and reduces maintenance needs
-
Seamless System Integration: Compatible with Bently Nevada Proximitor® Sensors and protection systems
-
Reduced Downtime and Maintenance Costs: Supports predictive maintenance by detecting developing faults
-
Trusted Bently Nevada Quality: Backed by industry-leading proximity measurement expertise
Industry Applications
The 330910-05-10-02-00 3300 NSv Proximity Probe is ideal for industries where space-constrained, high-speed machinery requires accurate vibration and displacement monitoring:
-
Oil & Gas Production: Compact compressors, pumps, and auxiliary rotating equipment
-
Petrochemical and Chemical Processing: Monitoring small, high-speed equipment in hazardous environments
-
Power Generation: Small motors, pumps, and turbine auxiliary systems
-
Metals, Mining, and Minerals: Vibrating screens, crushers, conveyors with small shafts
-
Marine and Offshore: Space-constrained machinery on vessels and offshore platforms
-
Pulp and Paper Industry: Compact equipment operating at high rotational speeds
-
General Industrial Machinery: OEM applications requiring compact proximity measurement
Frequently Asked Questions (FAQ)
Q1: What is the 330910-05-10-02-00 proximity probe used for?
It provides non-contact measurement of shaft vibration, position, and displacement on small, high-speed machinery.
Q2: How is it different from standard proximity probes?
It features a narrow, compact design specifically for installations where space is limited.
Q3: What size shafts is it suitable for?
It is ideal for small-diameter, high-speed shafts typically found in compact machinery.
Q4: Can it be used in high-temperature environments?
Yes, it operates reliably in temperatures up to +177°C.
Q5: What is the typical measurement range?
The linear measurement range is approximately 0.25 mm to 2.0 mm.
Q6: Is it compatible with standard Bently Nevada Proximitor® Sensors?
Yes, it integrates with the 3300 NSv Proximitor® Sensor system.
Q7: Does it require regular calibration?
It requires minimal maintenance, with periodic checks recommended for optimal performance.
Q8: Is the cable pre-installed?
Yes, a factory-installed, molded 5-meter cable is included for easy connection.
Q9: What environmental conditions can it withstand?
It resists oil, chemicals, moisture, and mechanical stresses typical in industrial settings.
Q10: Is it certified for hazardous environments?
Yes, when properly installed, it meets ATEX, IECEx, and other industrial safety standards.
Recommended Related Models
| Model Number | Description |
|---|---|
| 330910-00-05-01-00 | 3300 NSv Proximity Probe with alternative cable length |
| 330910-00-05-02-00 | 3300 NSv Proximity Probe for short-cable applications |
| 330910-05-10-01-00 | 3300 NSv Proximity Probe with standard connector configuration |
| 330101-00-14-10-02-05 | 3300 XL 8 mm Proximity Probe for general industrial use |
| 330180-91-05 | 3300 XL 8 mm Proximitor® Sensor for displacement systems |
| 330130-040-00-05 | 3300 XL Extension Cable for proximity transducer systems |
