Product Introduction

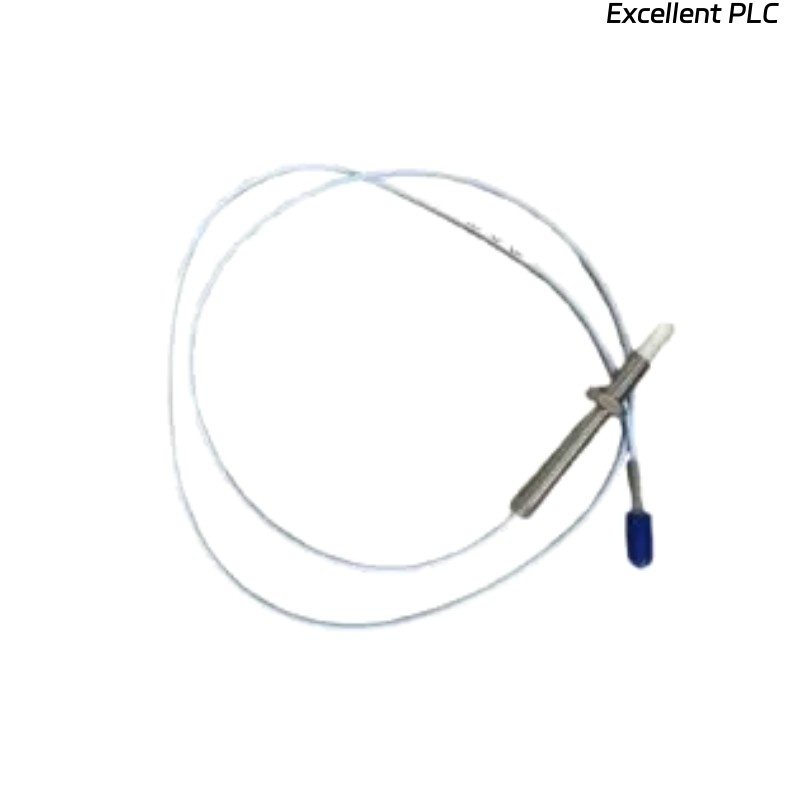

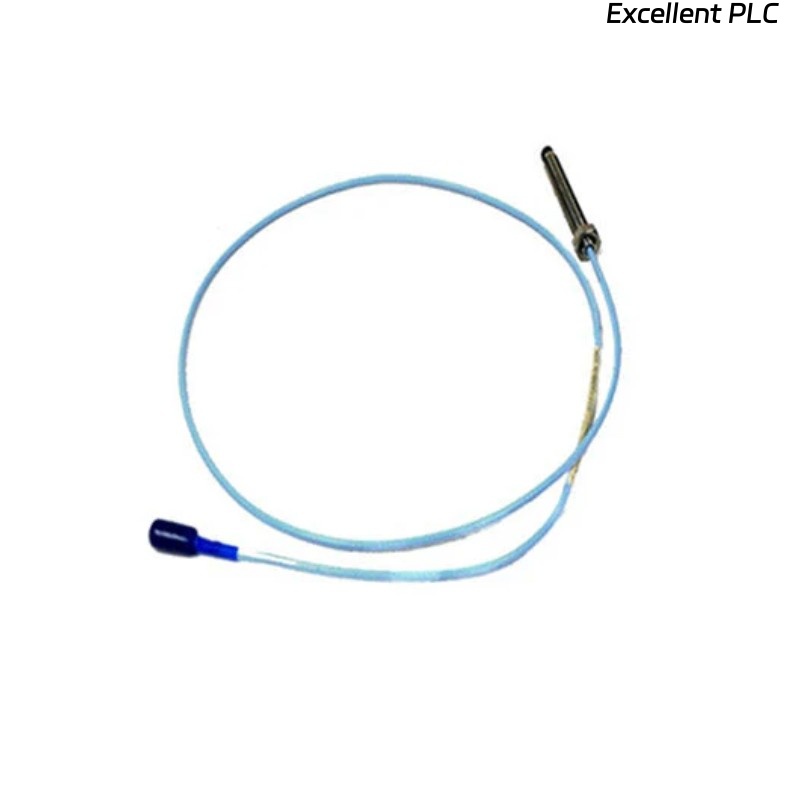

The Bently Nevada 330910-05-15-10-02-00 3300 NSv Proximity Probe is a high-performance eddy-current displacement sensor designed for continuous monitoring of rotating machinery. It provides precise measurements of shaft vibration and position, enabling early detection of mechanical issues in critical industrial equipment. This probe is widely used in turbines, compressors, pumps, and motors to enhance reliability, optimize performance, and reduce unplanned downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy-Current Proximity Probe |
| Model Number | 330910-05-15-10-02-00 |
| Tip Style | Standard, Flat Tip |
| Measurement Range | 0-50 mils (0-1.27 mm) |
| Operating Temperature | -40°C to 120°C (-40°F to 248°F) |
| Total Length | 1 m |
| Weight | 0.15 kg |
| Output Signal | Differential voltage proportional to displacement |
| Probe Diameter | 8 mm |
| Connector Type | PT02E-10-6P (MIL-C-5015) |
| Frequency Response | Up to 50 kHz |
| Housing Material | Stainless Steel |
Applications
-
Steam and gas turbines for vibration monitoring.
-
Centrifugal and reciprocating compressors.
-
Electric motors and generators.
-
Pumps and other rotating machinery in petrochemical and power plants.
-
Monitoring equipment in critical industrial processes to prevent catastrophic failures.
Product Advantages
-
High Precision: Accurate measurement of shaft vibration and displacement to detect early signs of mechanical issues.
-
Reliable in Harsh Environments: Resistant to temperature extremes, moisture, and industrial contaminants.
-
Compatibility: Designed to integrate seamlessly with 3300 Series monitors and protection systems.
-
Robust Construction: Stainless steel housing ensures durability and long-term operation.
-
Fast Response Time: High-frequency response for dynamic monitoring of rotating machinery.
-
Ease of Installation: Standardized connector and cable options for flexible deployment.
FAQ
Q1: What is the maximum sensing range of this probe?
A1: The probe has a maximum measurement range of 0-50 mils (0-1.27 mm).
Q2: Can this probe operate in high-temperature environments?
A2: Yes, the operating temperature range is -40°C to 120°C (-40°F to 248°F).
Q3: What type of output signal does the probe provide?
A3: It provides a differential voltage output proportional to the displacement of the shaft.
Q4: Is this probe compatible with standard 3300 Series monitoring systems?
A4: Yes, it is fully compatible with all 3300 Series proximity monitoring and protection systems.
Q5: What connector type is used for this probe?
A5: The probe uses a PT02E-10-6P MIL-C-5015 style connector.
Q6: What is the frequency response of the probe?
A6: The probe can accurately respond to signals up to 50 kHz.
Q7: Is the probe suitable for use in high-vibration industrial machinery?
A7: Yes, the probe is designed for dynamic applications and can reliably operate in high-vibration environments.
Q8: What material is the probe housing made from?
A8: The housing is made from stainless steel for durability and resistance to environmental conditions.
Q9: Can the probe be used for both shaft vibration and displacement monitoring?
A9: Yes, it provides precise measurements for both vibration and displacement.
Q10: Is the probe affected by electromagnetic interference (EMI)?
A10: The differential signal output design minimizes susceptibility to EMI in industrial environments.
Recommended Same-Series or Related Models
| Model Number | Measurement Range | Cable Length | Tip Style |
|---|---|---|---|
| 330910-05-15-10-01-00 | 0-50 mils | 1 m | Standard Flat |
| 330910-05-15-10-03-00 | 0-50 mils | 2 m | Standard Flat |
| 330910-00-15-10-02-00 | 0-50 mils | 1 m | Extended Tip |
| 330910-05-20-10-02-00 | 0-80 mils | 1 m | Standard Flat |
| 330910-05-10-10-02-00 | 0-30 mils | 1 m | Standard Flat |
| 330910-05-15-15-02-00 | 0-50 mils | 1.5 m | Standard Flat |
