Product Overview

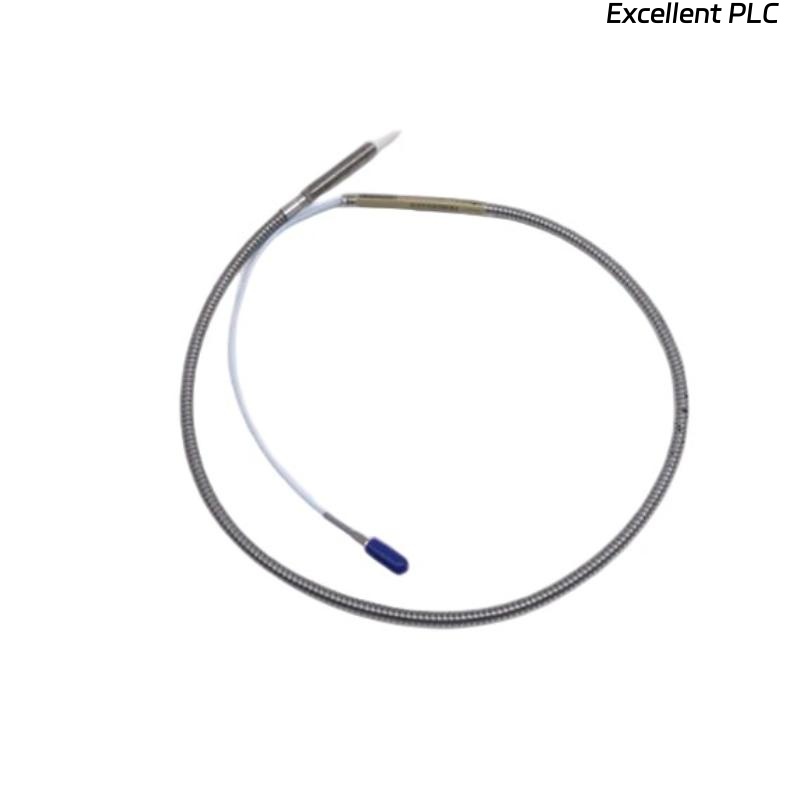

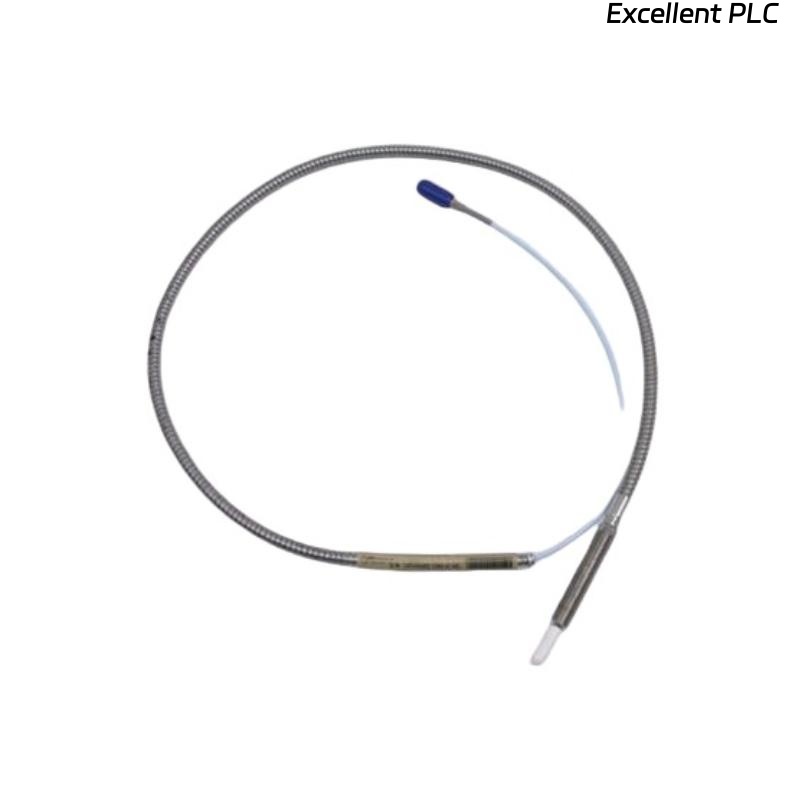

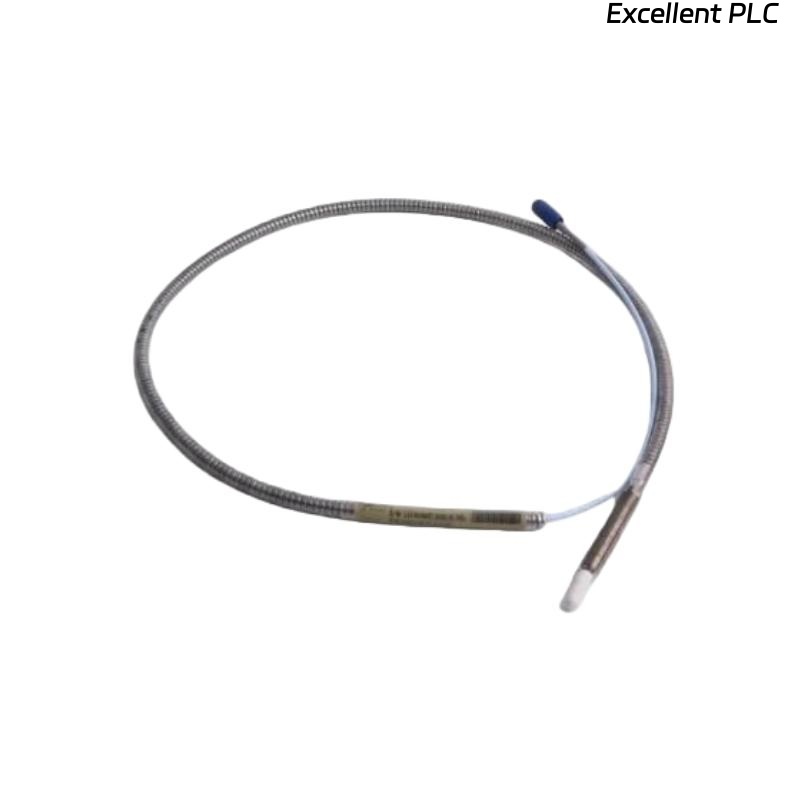

The Bently Nevada 330910-09-20-10-02-00 3300 NSv Proximity Probe is a high-precision device designed for measuring shaft displacement and vibration in high-speed rotating machinery. As part of the 3300 NSv series, it provides accurate and reliable data for predictive maintenance and condition monitoring of turbines, compressors, and other critical rotating equipment.
Key Features
-
High-precision 3300 NSv proximity probe for rotating machinery
-
Measures shaft displacement and vibration accurately
-
Compatible with 3300 NSv and PROXPAC XL monitoring systems
-
Durable and compact design for industrial environments
-
Fast response with low-noise signal output
-
Supports predictive maintenance to minimize unplanned downtime
-
Standard mounting compatible with 3300 NSv probe holders
Technical Specifications
| Specification | Details |
|---|---|
| Model | 330910-09-20-10-02-00 |
| Type | 3300 NSv Proximity Probe |
| Measurement Range | ±1.27 mm (±0.050 in) typical |
| Probe Diameter | 11 mm |
| Probe Cable Type | Shielded coaxial |
| Probe Cable Length | 6.10 m (20 ft) standard |
| Output Signal | Differential AC voltage |
| Sensitivity | 50 mV/mil typical |
| Operating Temperature | –40 °C to +121 °C |
| Storage Temperature | –54 °C to +125 °C |
| Mounting | Threaded or standard 3300 NSv probe holder |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.15 kg |
Frequently Asked Questions (FAQ)
1. What is the primary function of this probe?
It measures shaft displacement and vibration in high-speed rotating machinery.
2. Which monitoring systems is it compatible with?
It is compatible with Bently Nevada 3300 NSv and PROXPAC XL monitoring systems.
3. What is the measurement range?
The typical measurement range is ±1.27 mm (±0.050 in).
4. What is the probe diameter?
The probe diameter is 11 mm.
5. How is the probe mounted?
It mounts using standard 3300 NSv threaded holders or compatible probe mounts.
6. What type of cable does it use?
It uses a shielded coaxial cable for reliable signal transmission.
7. What is the operating temperature range?
It operates between –40 °C and +121 °C.
8. What type of output signal does it provide?
It provides a differential AC voltage output proportional to shaft displacement.
