Product Introduction

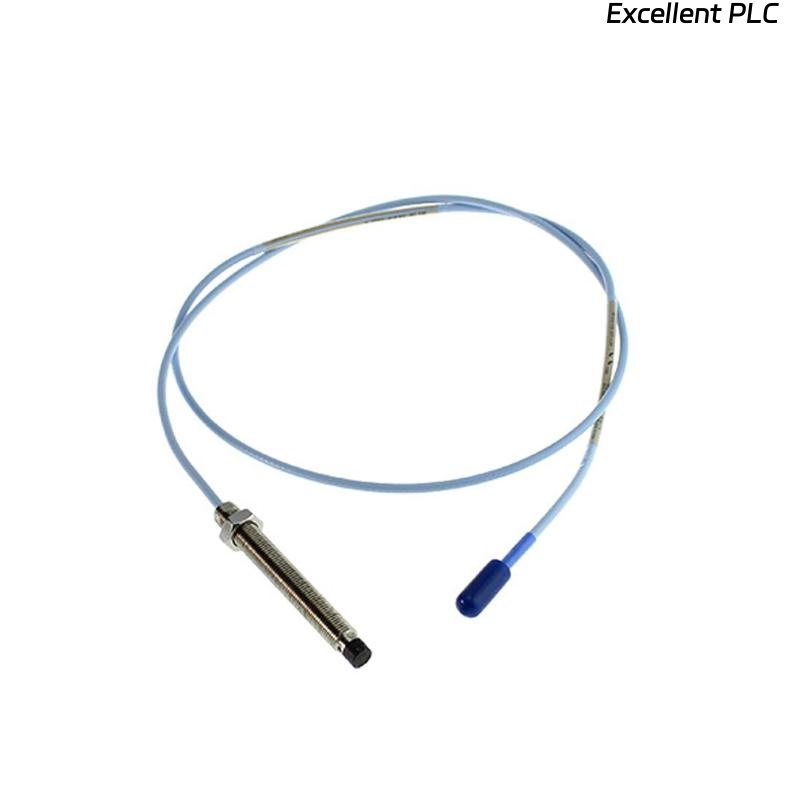

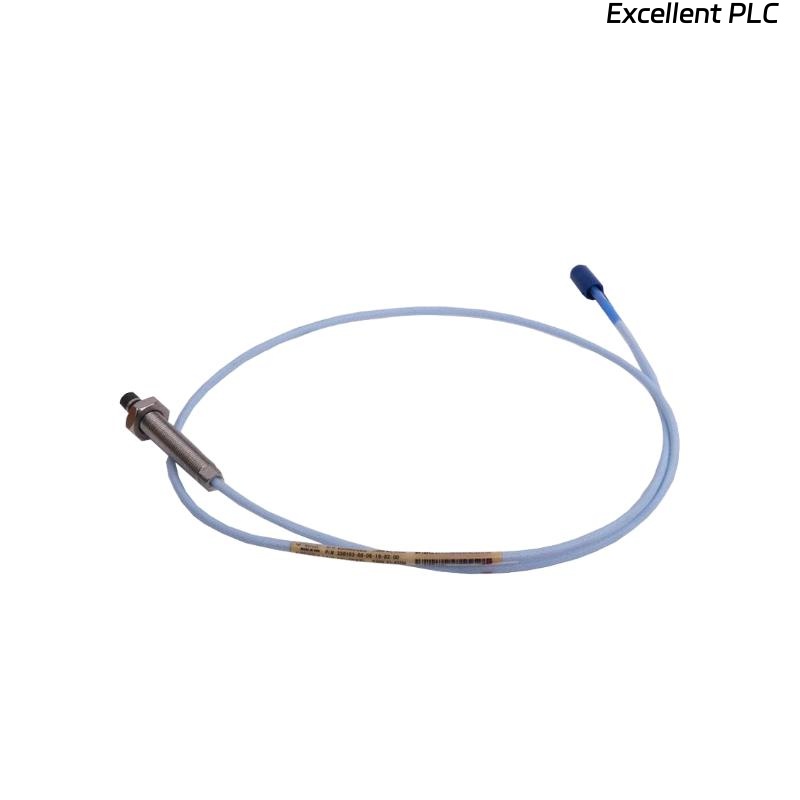

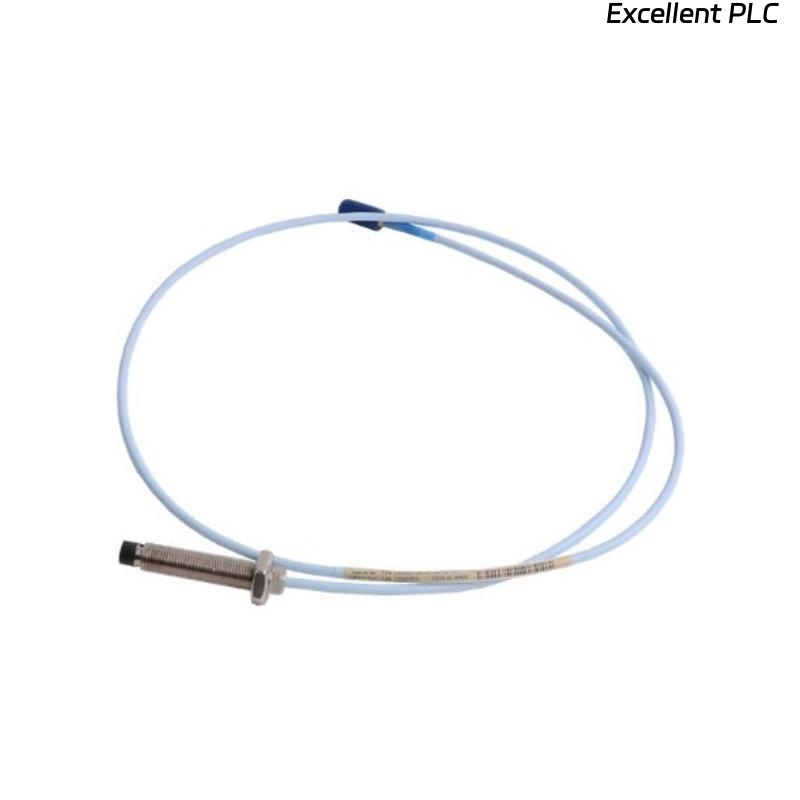

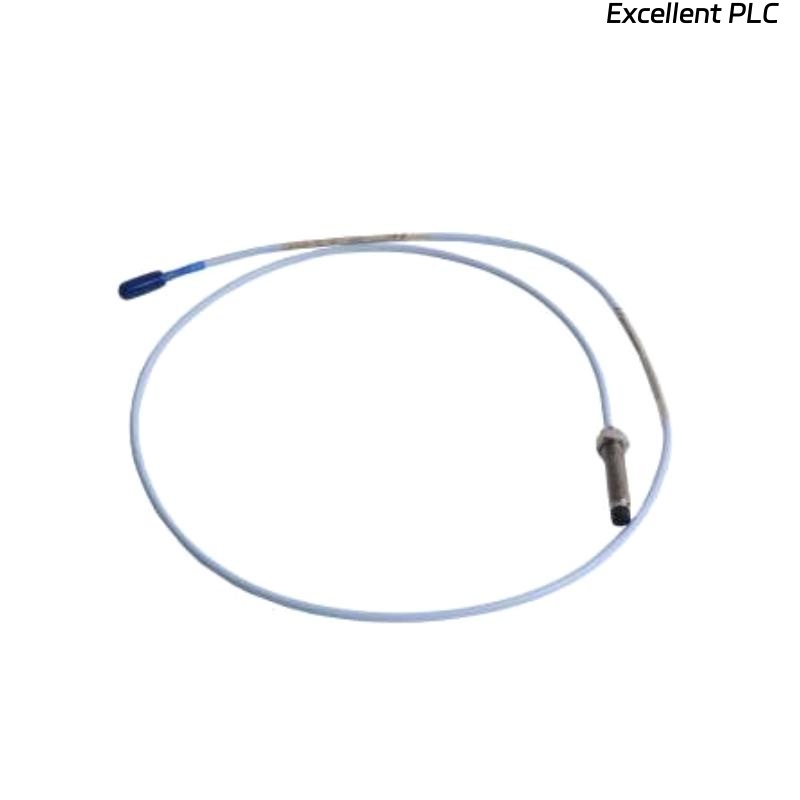

The Bently Nevada 330910-14-19-10-02-00 3300 NSv Proximity Probe is a high-performance, non-contact vibration and displacement sensor designed for precision monitoring of rotating and reciprocating machinery. As part of the Bently Nevada 3300 NSv (Narrow Signal Version) family, this probe delivers exceptional measurement accuracy in applications where compactness and signal fidelity are crucial.
Utilizing advanced eddy current technology, the 330910-14-19-10-02-00 probe measures the distance between its tip and a conductive target surface such as a turbine shaft, compressor rotor, or motor spindle. When paired with a 3300 NSv Proximitor Sensor, it provides a linear voltage output proportional to the vibration amplitude or shaft displacement, enabling continuous condition monitoring and early fault detection.
This model is specifically engineered for small-frame industrial machinery, including compact turbines, centrifugal compressors, pumps, and gear-driven systems. Its robust stainless-steel design, enhanced environmental sealing, and stable electrical performance make it highly reliable in harsh industrial environments involving oil, moisture, and high vibration levels.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330910-14-19-10-02-00 |
| Product Type | 3300 NSv Proximity Probe |
| System Compatibility | Compatible with 3300 NSv Proximitor Sensor |
| Measurement Technology | Eddy Current (non-contact displacement measurement) |
| Typical Applications | Shaft vibration and position monitoring |
| Linear Range | 0.25 mm to 2.0 mm (10–80 mils) |
| Nominal Gap | 1.0 mm (40 mils) |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Frequency Response | DC to 10 kHz (–3 dB) |
| Probe Tip Diameter | 5 mm |
| Thread Type | M8 × 1 |
| Body Material | Stainless Steel |
| Cable Type | Low-noise, PTFE-insulated coaxial |
| Operating Temperature | –35°C to +180°C |
| Storage Temperature | –40°C to +200°C |
| Output Voltage Range | –2 VDC to –18 VDC proportional to gap |
| Power Supply (via Proximitor) | –24 VDC nominal |
| Insulation Resistance | >100 MΩ at 500 VDC |
| Shock Resistance | 100 g for 11 ms |
| Vibration Resistance | 20 g peak, 10–2000 Hz |
| Moisture Protection | IP67 rated (oil and water resistant) |
| Electrical Isolation | Probe tip isolated from probe case |
| Weight | 0.15 kg |
| Total Length | 1.0 meter |
Product Applications
The Bently Nevada 330910-14-19-10-02-00 Proximity Probe is ideal for machinery health monitoring systems that demand high accuracy in confined installation environments. Its compact form factor, combined with robust environmental protection, makes it well-suited for industrial applications where stable performance and long-term durability are essential.
Typical Applications Include:
-
Turbomachinery: Continuous monitoring of shaft vibration and axial movement in small turbines.
-
Compressors: Early detection of imbalance, misalignment, and bearing wear.
-
Pumps: Measurement of dynamic shaft displacement for predictive maintenance.
-
Motors and Generators: Monitoring of rotor eccentricity and vibration behavior.
-
Gearboxes: Detection of gear wear and misalignment through vibration profiling.
-
Process Equipment: Integration into machinery protection systems to ensure reliability and uptime.
This model is compatible with Bently Nevada 3300 monitoring systems, providing an integral part of the vibration and position measurement chain for high-performance machinery protection and diagnostics.
Product Advantages
-
Compact Size for Tight Installations: Optimized for small machines and limited mounting spaces.
-
High Sensitivity and Linearity: Provides accurate and stable voltage output across the full measurement range.
-
Excellent Environmental Resistance: IP67 protection ensures performance even in oily and humid conditions.
-
Durable Construction: Stainless steel body and PTFE insulation resist corrosion and abrasion.
-
Broad Operating Temperature Range: Ensures reliability from –35°C up to +180°C.
-
Superior Noise Immunity: Shielded cable minimizes electrical interference for precise readings.
-
Wide Frequency Response: Detects both slow displacement and high-speed vibration signals.
-
Long-Term Stability: Factory-calibrated for consistent performance with minimal drift.
-
Strong Mechanical Endurance: Tolerates high shock and vibration levels common in industrial machinery.
-
Seamless Integration: Designed for easy connection with 3300 NSv Proximitor Sensors and compatible Bently Nevada systems.
FAQ
-
What type of sensing technology does the 330910-14-19-10-02-00 use?
It operates using eddy current technology to measure the gap between the probe tip and a conductive target surface. -
Can this probe be used with a standard 3300 XL Proximitor?
No, it is specifically designed for use with the 3300 NSv Proximitor Sensor to ensure proper calibration and signal integrity. -
What is the sensitivity value of this probe?
The sensitivity is precisely calibrated at 7.87 mV/µm (200 mV/mil) for accurate displacement measurement. -
How does the probe output its measurement signal?
It generates a voltage signal proportional to the target displacement, typically ranging from –2 VDC to –18 VDC. -
Is this probe suitable for both radial and axial vibration monitoring?
Yes, it can effectively measure both radial shaft vibration and axial displacement when properly installed. -
What is the maximum vibration level it can tolerate without damage?
The probe can withstand up to 20 g peak vibration between 10–2000 Hz. -
Does the probe require any field calibration after installation?
It comes factory-calibrated; however, system calibration may be done to match proximitor and target materials. -
Can the probe operate in oil-contaminated or moist environments?
Yes, its IP67 rating provides full protection against oil and moisture ingress. -
What is the probe’s electrical isolation specification?
The probe tip is fully isolated from the body to prevent grounding issues and signal interference. -
What is the typical frequency response range of the probe?
It supports a frequency response from DC to 10 kHz, ideal for detecting dynamic vibrations.
