Product Introduction

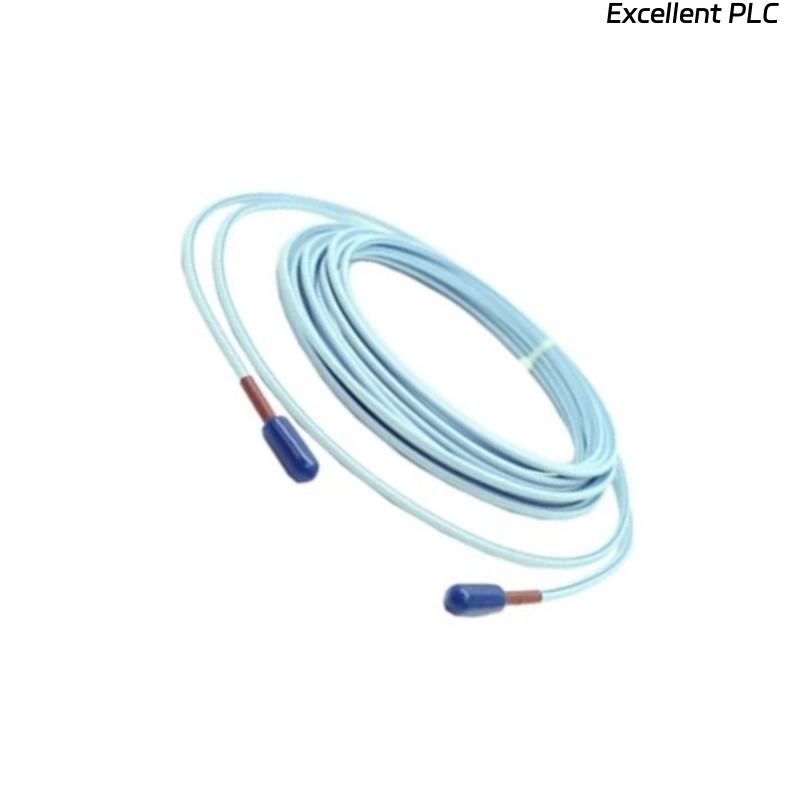

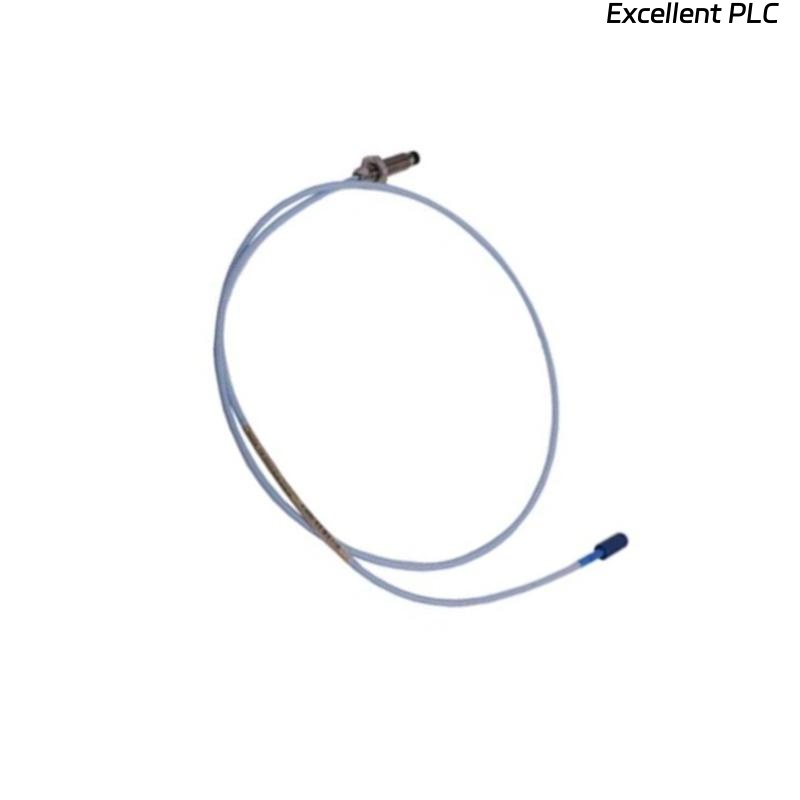

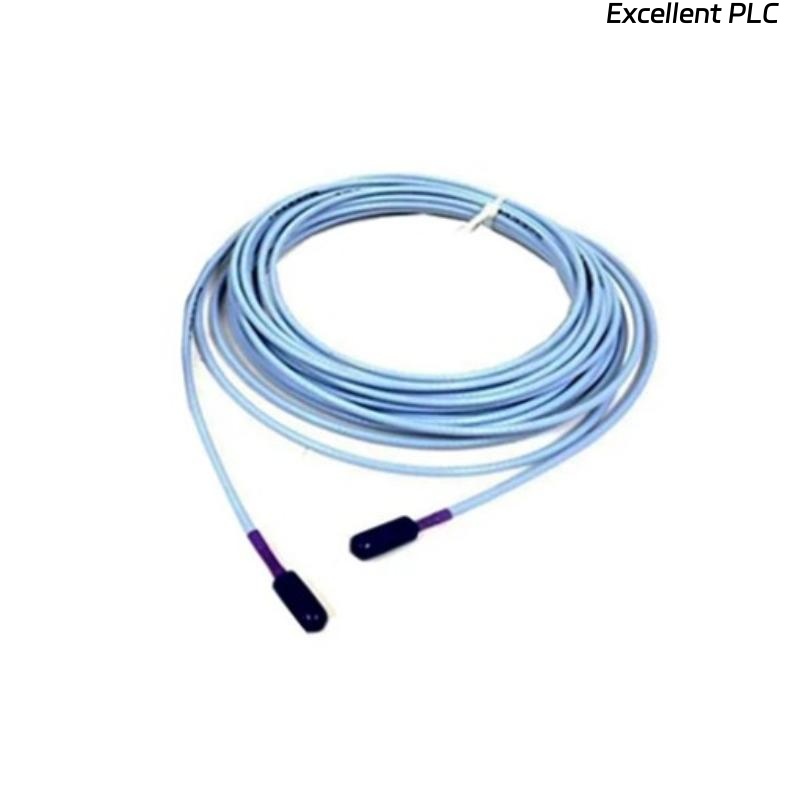

The Bently Nevada 330930-040-04-CN 3300 NSv Extension Cable is an integral component designed to extend the connection between the proximity probe and the proximitor sensor within the 3300 NSv (Narrow Side View) system. It ensures reliable signal transmission with minimal noise interference, maintaining measurement accuracy for shaft vibration and position monitoring in industrial rotating machinery.
This extension cable is manufactured to meet stringent industrial standards, providing excellent shielding and durability. It is widely adopted in industries such as power generation, oil and gas, and manufacturing where precise vibration monitoring is critical.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Extension Cable for 3300 NSv System |
| Model Number | 330930-040-04-CN |
| Cable Length | 4 m |
| Weight | 0.256 kg |
| Connector Type | Special Bently Nevada coaxial connectors |
| Shielding | Double-shielded for EMI protection |
| Operating Temperature | -30 °C to +90 °C |
| Compatibility | 3300 NSv Proximity Transducer System |
| Insulation Material | High-durability industrial-grade polymer |
Product Applications
-
Connect proximity probes to proximitor sensors in the 3300 NSv system.
-
Extend signal reach in vibration and displacement monitoring applications.
-
Support turbomachinery monitoring including compressors, turbines, and pumps.
-
Ensure accurate data transmission for condition monitoring and predictive maintenance systems.
-
Provide flexibility in sensor positioning where direct probe-to-proximitor connection is not possible.
Product Advantages
-
High Signal Integrity: Maintains accuracy in vibration and position measurements over extended lengths.
-
Durable Construction: Resistant to industrial environmental stress, including temperature variations and mechanical stress.
-
Enhanced EMI Protection: Double shielding ensures minimal electromagnetic interference.
-
Reliable Connectivity: Designed with high-quality connectors for long-term stable performance.
-
System Compatibility: Fully compatible with the Bently Nevada 3300 NSv system.
-
Ease of Installation: Flexible design allows convenient routing in constrained spaces.
FAQ
Q1: What type of signal does the 330930-040-04-CN cable transmit?
A1: It transmits proximity probe signals (displacement/vibration) from the probe to the proximitor sensor.
Q2: Is the cable shielded to reduce electromagnetic interference?
A2: Yes, it features double shielding to ensure low-noise signal transmission in industrial environments.
Q3: Can this extension cable be used with standard 3300 series probes?
A3: It is specifically designed for the 3300 NSv system but maintains backward compatibility within certain 3300 configurations.
Q4: How does the extension cable affect signal accuracy?
A4: The cable is engineered to minimize attenuation and distortion, preserving the integrity of the original probe signal.
Q5: Does the cable support continuous monitoring applications?
A5: Yes, it is suitable for 24/7 monitoring in critical machinery protection systems.
Q6: What type of connectors are used on this cable?
A6: It uses specialized Bently Nevada coaxial connectors to ensure reliable mating with NSv probes and proximitor sensors.
Q7: Can multiple extension cables be connected together?
A7: Yes, but it is recommended to adhere to system guidelines to avoid exceeding maximum total cable length.
Q8: Does the cable require special grounding for noise protection?
A8: The built-in shielding provides EMI protection, but proper grounding practices are recommended during installation.
Q9: Is the cable suitable for high-vibration environments?
A9: Yes, its robust construction allows reliable performance even in areas with strong vibration.
Q10: Can the cable be used interchangeably with other Bently Nevada extension cables?
A10: It can be used with other cables in the same 3300 NSv family, but cross-compatibility with unrelated series is not guaranteed.
Related Models
| Model Number | Description |
|---|---|
| 330930-040-01-CN | 3300 NSv Extension Cable, 1 m |
| 330930-040-02-CN | 3300 NSv Extension Cable, 2 m |
| 330930-040-03-CN | 3300 NSv Extension Cable, 3 m |
| 330930-040-05-CN | 3300 NSv Extension Cable, 5 m |
| 330930-040-10-CN | 3300 NSv Extension Cable, 10 m |
| 330930-040-15-CN | 3300 NSv Extension Cable, 15 m |
