Product Introduction

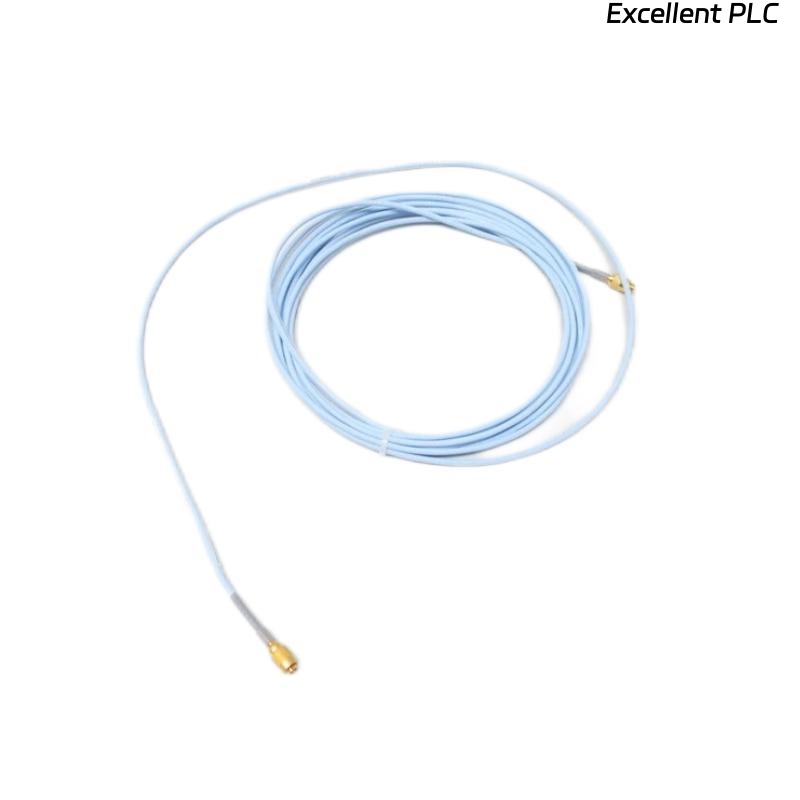

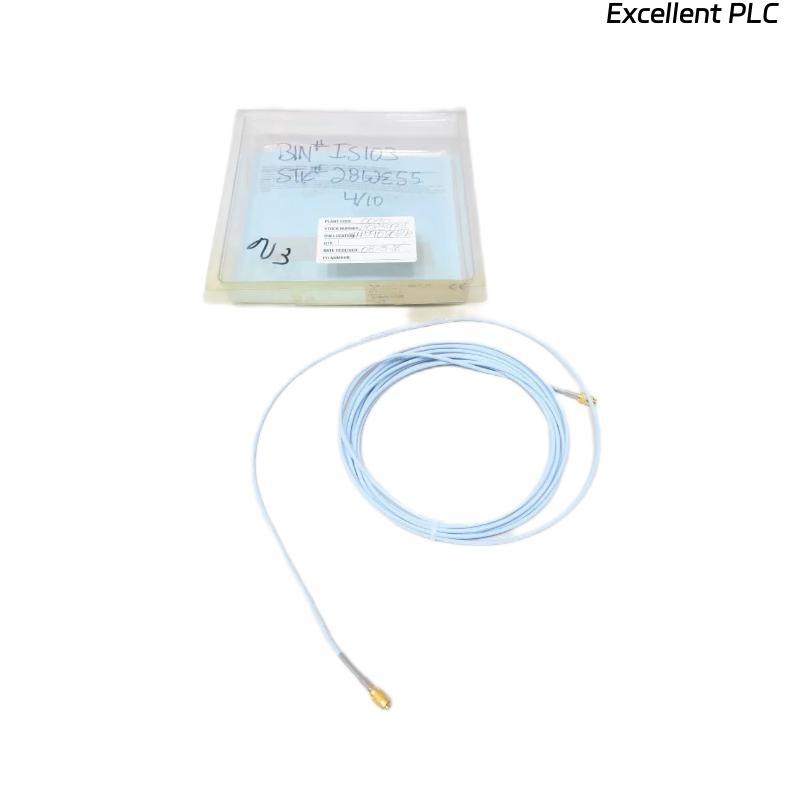

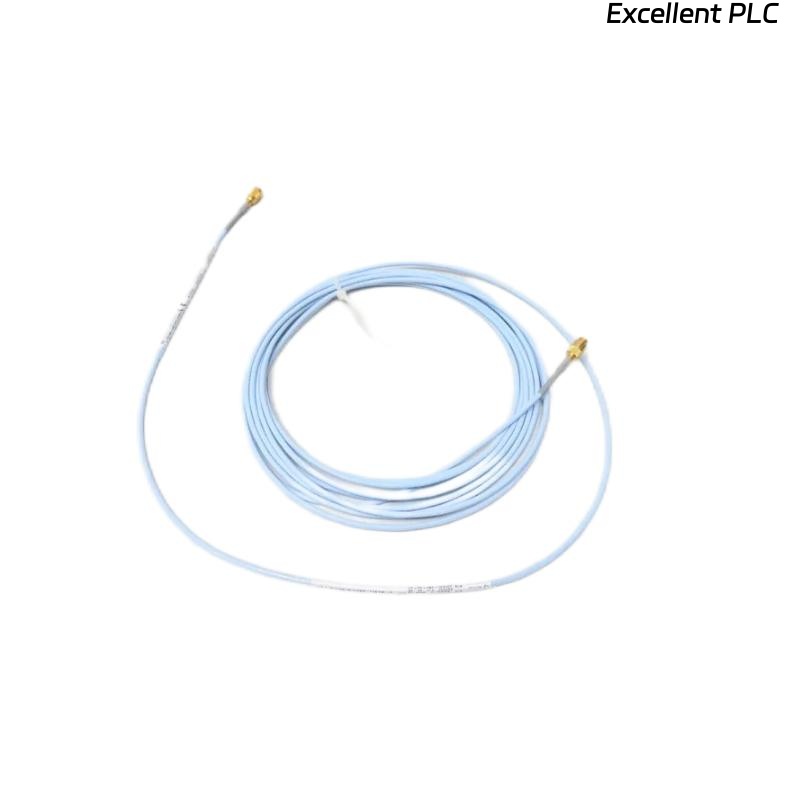

The Bently Nevada 330930-040-05-00 3300 NSv Extension Cable is designed as part of the 3300 NSv (Narrow Signal Velocity) proximity transducer system. It provides a reliable connection between the probe and the monitoring system, ensuring accurate signal transmission over extended distances. Engineered to deliver low-noise, high-integrity signals, this cable is suitable for demanding industrial environments where machinery protection and vibration monitoring are critical.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 330930-040-05-00 |
| Series | 3300 NSv |
| Cable Type | Extension Cable |
| Cable Length | 4 m |
| Weight | 0.256 kg |
| Connector Type | Standard Bently Nevada Connectors |
| Operating Temperature | -35 °C to +120 °C |
| Insulation | High-quality, industrial-grade PVC |
| Signal Integrity | Low-noise, shielded transmission |
| Compatibility | 3300 NSv Proximity Transducer System |
Product Applications
-
Rotating machinery monitoring, including turbines, compressors, and motors.
-
Industrial vibration and position measurement systems where extended cable length is required.
-
Oil & gas, power generation, and chemical industries for continuous machine protection.
-
Integration with Bently Nevada monitoring systems such as 3300 NSv Proximity Transducers and vibration monitoring platforms.
Product Advantages
-
High Signal Reliability – Ensures accurate transmission of vibration and position signals with minimal interference.
-
Durable Construction – Withstands harsh industrial environments, including temperature extremes and electrical noise.
-
System Compatibility – Specifically designed for seamless operation with the 3300 NSv system.
-
Ease of Installation – Standard connectors allow quick and secure setup.
-
Long-Term Performance – Engineered to maintain performance stability over extended operational life.
FAQ
Q1: What system is the 330930-040-05-00 extension cable designed to work with?
A1: It is designed for use with the Bently Nevada 3300 NSv Proximity Transducer System.
Q2: How does this extension cable affect signal integrity?
A2: It is shielded to minimize electrical noise, ensuring precise signal transmission.
Q3: Can this extension cable be used with other Bently Nevada series?
A3: It is primarily intended for the 3300 NSv system but may be compatible with other 3300 systems if specified.
Q4: What is the maximum operating temperature range for this cable?
A4: The cable can operate reliably from -35 °C to +120 °C.
Q5: Does the cable require special termination?
A5: No, it comes with pre-configured standard Bently Nevada connectors for plug-and-play use.
Q6: Is the cable shielded against electromagnetic interference (EMI)?
A6: Yes, it is designed with shielding to protect against EMI in industrial environments.
Q7: Can multiple extension cables be joined together for longer distances?
A7: Yes, but system performance should be validated to ensure signal accuracy is not compromised.
Q8: What type of insulation is used in this cable?
A8: Industrial-grade PVC insulation is used for durability and environmental resistance.
Q9: How does the cable contribute to machine protection systems?
A9: It ensures the transducer system delivers accurate vibration and position signals to the monitoring unit, supporting machinery protection.
Q10: Is the extension cable compatible with hazardous area applications?
A10: Yes, when used as part of a certified 3300 NSv system in compliance with relevant safety standards.
Related Models
| Model Number | Description |
|---|---|
| 330930-040-00-00 | 3300 NSv Extension Cable, standard version |
| 330930-080-05-00 | 3300 NSv Extension Cable, 8 m length |
| 330930-120-05-00 | 3300 NSv Extension Cable, 12 m length |
| 330130-040-00-00 | 3300 NSv Proximity Probe, 4 m |
| 330180-050-00-00 | 3300 NSv Proximitor Sensor, 5 m |
| 330850-50-05-00 | 3300 NSv Standard Extension Cable |
