Product Introduction

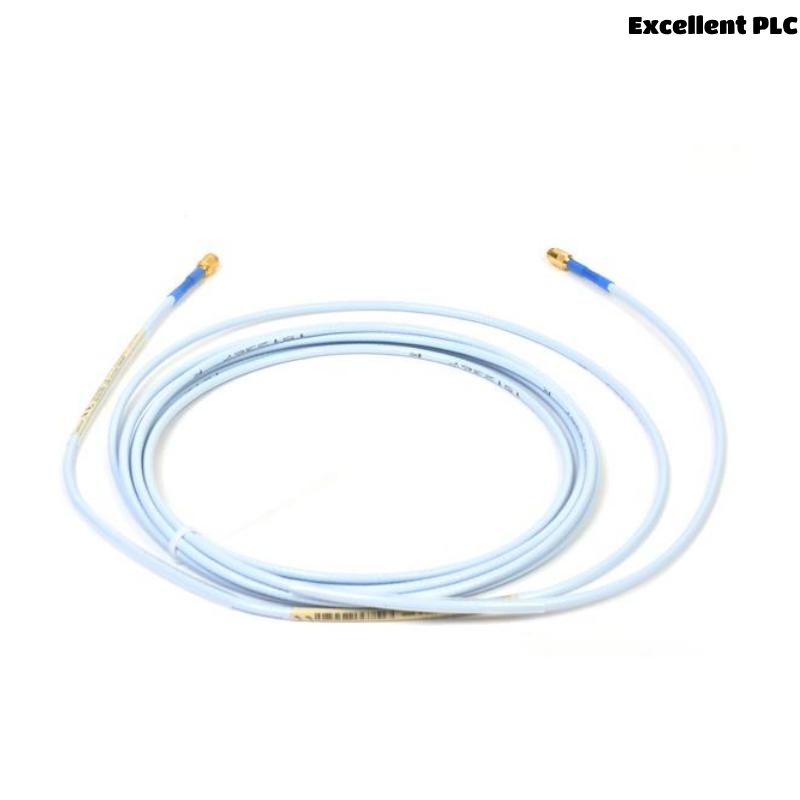

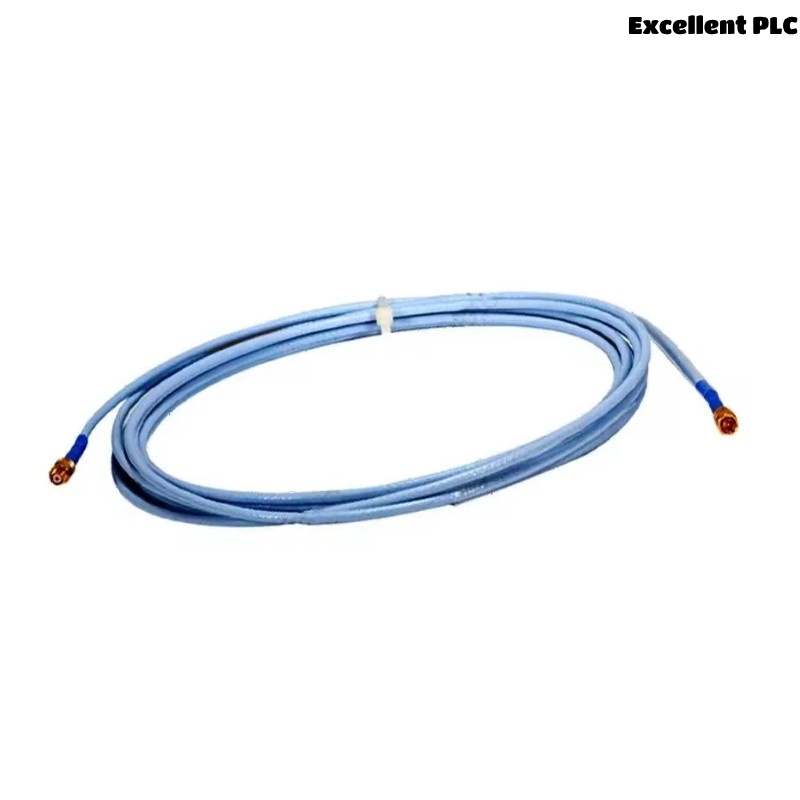

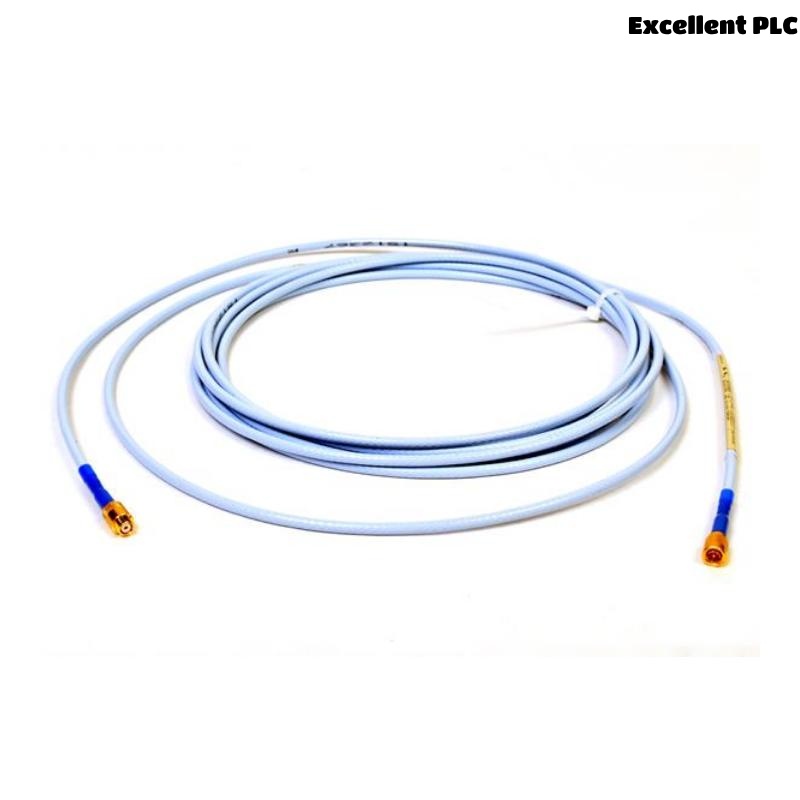

The Bently Nevada 330930-045-00-CN is a high-performance extension cable designed for use with the 3300 NSv proximity probes. This extension cable allows for the extension of the probe’s reach, making it suitable for installations where the probe cannot be directly mounted to the monitoring equipment. The 3300 NSv series is known for its precision and reliability, and the extension cable complements the probe by providing flexibility in system installations, making it an essential part of the machinery monitoring setup.
With a cable length of 4.5 meters and a lightweight design (0.21 kg), the cable is both easy to handle and durable enough to withstand harsh industrial environments. It is specifically designed to maintain the integrity of the signal transmission over extended distances, ensuring that the data from the proximity probe reaches the monitoring system with high accuracy. This extension cable is ideal for a wide range of industries, including power generation, oil and gas, manufacturing, and water treatment, where precise machinery health monitoring is critical.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 330930-045-00-CN |
| Cable Length | 4.5 meters |
| Weight | 0.21 kg |
| Connector Type | Standard 3300 NSv Probe Connector |
| Shielding | Yes, for noise reduction |
| Temperature Range | -40°C to +120°C |
| Maximum Vibration | Compatible with 3300 NSv Probes |
| Compatibility | 3300 NSv Proximity Probes |
| Protection Rating | IP67 |
| Compliance | CE, UL, UL60950 |
Product Applications
The 3300 NSv Extension Cable is an essential accessory for various industrial applications where the proximity probe needs to be positioned away from the monitoring system. Some common applications include:
-
Turbines and Compressors: The extension cable is used to connect proximity probes that monitor the shaft displacement in turbines and compressors. The extended cable ensures that the probe is positioned at the optimal location for accurate measurements.
-
Electric Motors: In electric motor applications, the cable is used to extend the reach of proximity probes, allowing the probe to monitor motor shafts even in larger systems.
-
Pumps and Fans: The cable is ideal for pumps and fans, ensuring that the proximity probe can reach the necessary components to detect misalignments, wear, or imbalances.
-
Generators: In power generation systems, the extension cable allows the proximity probe to be positioned appropriately to monitor the generator shaft, improving overall system health monitoring.
-
Oil and Gas Industry: The extension cable is widely used in the oil and gas industry to connect probes in remote locations, providing flexibility in monitoring critical machinery in harsh environments.
-
Manufacturing Systems: In automated manufacturing processes, the extension cable allows for the flexible installation of proximity probes to monitor rotating equipment across larger factory layouts.
Product Advantages
-
Flexible Installation: With a cable length of 4.5 meters, this extension cable offers flexibility, allowing proximity probes to be positioned in optimal locations for accurate measurements.
-
Durability: The 3300 NSv Extension Cable is designed to withstand harsh industrial environments. It has a robust construction with IP67 protection, making it resistant to dust and water, ensuring reliable performance in challenging conditions.
-
Signal Integrity: The cable is designed to preserve signal integrity over long distances, ensuring that the proximity probe’s data is transmitted to monitoring systems without degradation in accuracy.
-
Wide Temperature Range: The cable operates in a broad temperature range of -40°C to +120°C, making it suitable for use in diverse environments, from freezing cold to high-temperature industrial settings.
-
Easy Integration: The cable is compatible with all 3300 NSv Proximity Probes, making it a seamless addition to your existing monitoring system.
-
Lightweight and Easy to Handle: Despite its robust design, the extension cable is lightweight (0.21 kg), making it easy to install and move as needed in industrial setups.
-
Cost-Effective Solution: By enabling the use of proximity probes in a wider variety of locations, the extension cable allows for more flexible system design, reducing the need for costly modifications to machinery or monitoring systems.
Frequently Asked Questions (FAQs)
Q1: What is the length of the 3300 NSv Extension Cable?
A1: The extension cable has a total length of 4.5 meters.
Q2: What is the weight of the extension cable?
A2: The shipping weight of the extension cable is 0.21 kg.
Q3: What is the protection rating of the 3300 NSv Extension Cable?
A3: The extension cable has an IP67 protection rating, meaning it is resistant to dust and can withstand immersion in water up to 1 meter.
Q4: What is the temperature range of the 3300 NSv Extension Cable?
A4: The cable operates within a temperature range of -40°C to +120°C, making it suitable for use in extreme environments.
Q5: Can the 3300 NSv Extension Cable be used with other brands of proximity probes?
A5: The extension cable is specifically designed to be used with 3300 NSv Proximity Probes and is not recommended for use with probes from other brands.
Q6: How is the 3300 NSv Extension Cable installed?
A6: The extension cable is easily integrated with the 3300 NSv Proximity Probe via standard connectors, allowing for quick and efficient installation.
Q7: Can the extension cable be used in high-vibration environments?
A7: Yes, the extension cable is compatible with the 3300 NSv Proximity Probe, which is designed to operate in high-vibration environments without losing signal integrity.
Q8: Is the 3300 NSv Extension Cable shielded?
A8: Yes, the cable is shielded to reduce the effects of electrical noise and ensure accurate signal transmission.
Q9: What is the primary function of the 3300 NSv Extension Cable?
A9: The extension cable is used to extend the reach of the 3300 NSv Proximity Probe, allowing the probe to be installed in hard-to-reach locations while maintaining signal integrity.
Q10: Is the 3300 NSv Extension Cable CE certified?
A10: Yes, the extension cable is CE certified, ensuring compliance with European safety standards.
Recommended Models
| Model | Description | Cable Length |
|---|---|---|
| 330930-045-00-CN | Standard extension cable for 3300 NSv probes | 4.5 meters |
| 330930-050-00-CN | Extension cable for 3300 NSv probes with enhanced shielding | 5 meters |
| 330930-075-00-CN | Long extension cable for 3300 NSv probes | 7.5 meters |
| 330930-100-00-CN | Heavy-duty extension cable for high-vibration environments | 10 meters |
| 330930-025-00-CN | Shorter extension cable for compact installations | 2.5 meters |
| 330930-150-00-CN | Extra-long extension cable for large systems | 15 meters |
