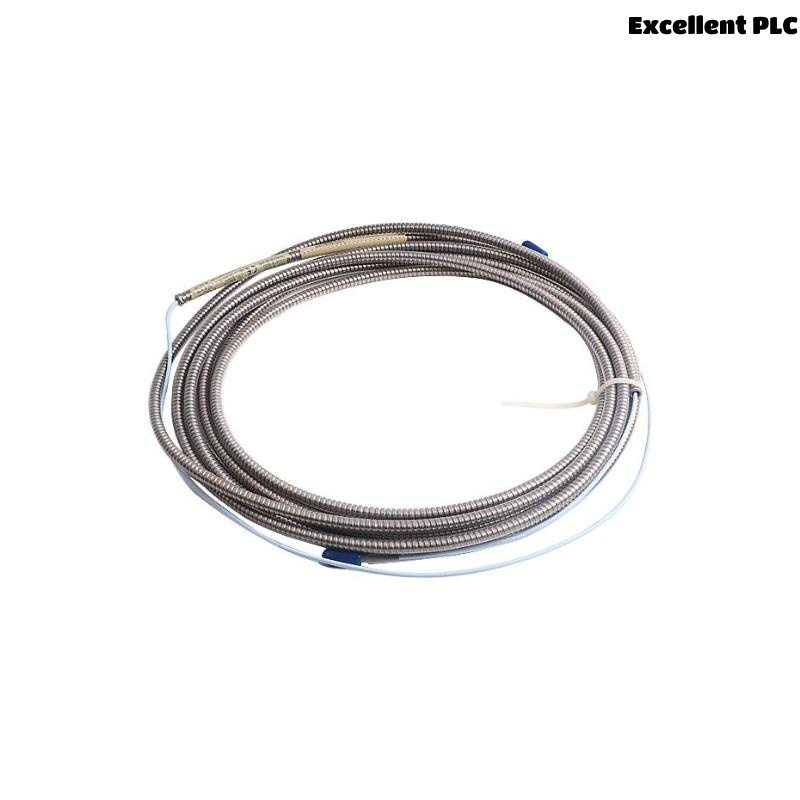

The Bently Nevada 330930-060-00-00 3300 NSv Extension Cable is designed to work seamlessly with the 3300 NSv Proximity Probes, providing flexibility for extending the reach of the probes in industrial monitoring systems. The extension cable allows for more versatility in the installation of proximity probes, which are commonly used to monitor the shaft displacement and health of rotating machinery. The 3300 NSv series is widely used for its precision in detecting early mechanical issues such as misalignments, wear, and imbalance in equipment like turbines, motors, compressors, and pumps.
This 6-meter extension cable ensures that the proximity probe can be positioned further away from the equipment being monitored without losing signal quality or measurement accuracy. Weighing just 0.27 kg, the cable is lightweight yet durable, making it suitable for both compact and large-scale installations. The 330930-060-00-00 cable is engineered to maintain high performance, even over longer distances, providing real-time, accurate data that is essential for predictive maintenance and reducing unplanned downtime.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 330930-060-00-00 |
| Cable Length | 6.0 meters |
| Weight | 0.27 kg |
| Connector Type | Standard 3300 NSv Probe Connector |
| Shielding | Yes, for noise reduction |
| Temperature Range | -40°C to +120°C |
| Maximum Vibration | Compatible with 3300 NSv Probes |
| Compatibility | 3300 NSv Proximity Probes |
| Protection Rating | IP67 |
| Compliance | CE, UL, UL60950 |
Product Applications
The 3300 NSv Extension Cable is used in industrial applications where proximity probes need to be extended to monitor the health of machinery that is located at a distance from the monitoring system. It provides flexibility in installation and ensures the probe can reach critical machinery components. Some key applications include:
-
Turbines and Compressors: The extension cable allows the proximity probe to be placed in optimal positions for measuring shaft displacement, preventing malfunctions in turbine and compressor systems.
-
Electric Motors: In electric motor applications, the extension cable ensures that the proximity probe can be positioned at a suitable distance from the motor for accurate monitoring of rotor shaft movement.
-
Pumps and Fans: The extension cable makes it possible to place proximity probes on large pumps and fans, enabling accurate monitoring of rotational displacement, vibration, and misalignments.
-
Generators: In power generation, the extension cable is used to monitor the shaft displacement of generators, ensuring they are functioning correctly and avoiding potential failures.
-
Automated Manufacturing Systems: The extension cable enables flexibility in factory setups, allowing the proximity probe to monitor rotating machinery in larger or more spread-out systems.
-
Oil and Gas Industry: For offshore and onshore facilities, the extension cable is used to extend the reach of proximity probes in hard-to-reach machinery in extreme environments.
Product Advantages
-
Extended Reach: With a cable length of 6.0 meters, this extension cable provides the flexibility needed to place proximity probes further from the machinery, ensuring that critical components are monitored from an ideal location.
-
High Durability: Designed for tough industrial environments, the 330930-060-00-00 extension cable comes with IP67 protection, making it resistant to dust, dirt, and moisture, ensuring that it performs well even in harsh conditions.
-
Signal Integrity: The extension cable maintains signal integrity over long distances, ensuring that the 3300 NSv Proximity Probe transmits accurate data back to the monitoring system without degradation, regardless of cable length.
-
Wide Temperature Range: The cable operates within a broad temperature range of -40°C to +120°C, making it suitable for use in extreme environments, from freezing cold to high-temperature industrial settings.
-
Lightweight and Easy to Install: Despite its extended length, the cable weighs only 0.27 kg, making it easy to handle, install, and integrate into various monitoring systems.
-
Seamless Integration: The extension cable is fully compatible with the 3300 NSv Proximity Probe and integrates easily with existing systems without requiring any modifications.
-
Cost-Effective Solution: The extension cable eliminates the need for costly alterations or additional equipment when machinery is located further from the monitoring system, offering a more affordable solution to extending probe reach.
Frequently Asked Questions (FAQs)
Q1: What is the total length of the 3300 NSv Extension Cable?
A1: The total length of the extension cable is 6.0 meters.
Q2: How much does the 3300 NSv Extension Cable weigh?
A2: The shipping weight of the extension cable is 0.27 kg.
Q3: What protection rating does the 3300 NSv Extension Cable have?
A3: The extension cable has an IP67 protection rating, making it resistant to dust and water ingress.
Q4: Can the 3300 NSv Extension Cable be used in high-temperature environments?
A4: Yes, the cable operates within a temperature range of -40°C to +120°C, making it suitable for both freezing and high-temperature environments.
Q5: Is the 3300 NSv Extension Cable compatible with other proximity probes?
A5: The extension cable is specifically designed for use with 3300 NSv Proximity Probes. It may not be compatible with other brands or series.
Q6: Does the 3300 NSv Extension Cable come with shielding?
A6: Yes, the extension cable is shielded to reduce the effects of electrical noise and ensure accurate data transmission.
Q7: How does the 3300 NSv Extension Cable improve the performance of the proximity probe?
A7: The extension cable allows for the proximity probe to be placed at optimal locations, ensuring precise measurements of shaft displacement and reducing the risk of mechanical failures.
Q8: Is the 3300 NSv Extension Cable suitable for use in hazardous locations?
A8: While the cable is durable and resistant to harsh environments, it is not explicitly rated for hazardous locations. However, it is suitable for most industrial settings.
Q9: What is the primary function of the 3300 NSv Extension Cable?
A9: The extension cable is used to extend the reach of 3300 NSv Proximity Probes, allowing the probes to be positioned at greater distances from the equipment being monitored.
Q10: Can the 3300 NSv Extension Cable be easily installed?
A10: Yes, the extension cable is easy to install and can be integrated into existing systems without requiring major changes or modifications.
Recommended Models
| Model | Description | Cable Length |
|---|---|---|
| 330930-065-00-00 | Extension cable for 3300 NSv probes with enhanced shielding | 6.5 meters |
| 330930-050-00-00 | Standard extension cable for 3300 NSv probes | 5 meters |
| 330930-070-00-00 | Heavy-duty extension cable for 3300 NSv probes | 7 meters |
| 330930-075-00-00 | Extended reach cable for 3300 NSv probes | 7.5 meters |
| 330930-080-00-00 | Extended high-temperature cable for 3300 NSv probes | 8 meters |
| 330930-090-00-00 | Extra-long extension cable for large systems | 9 meters |
