Product Overview

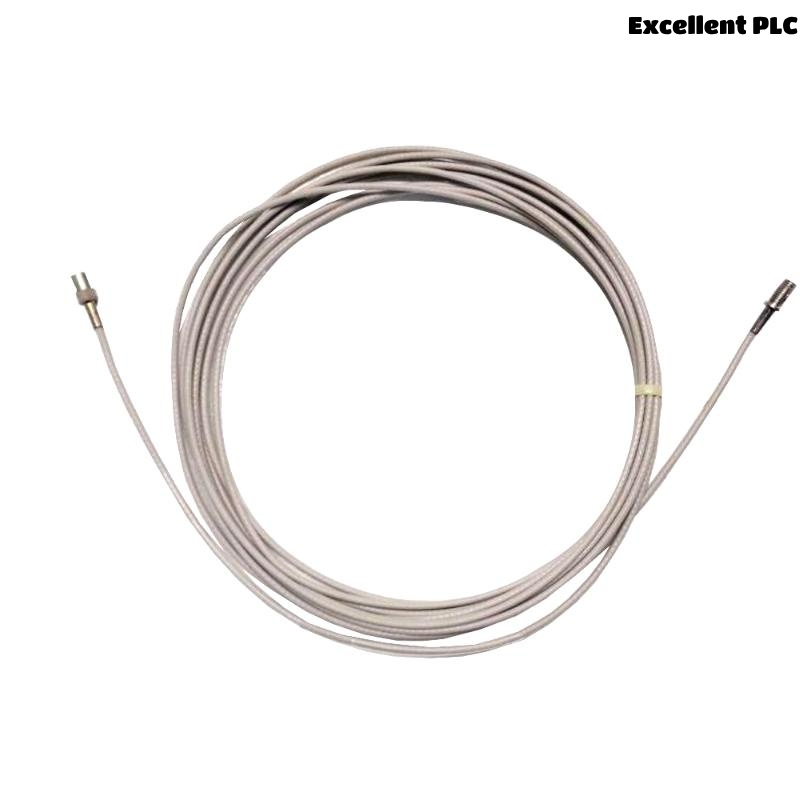

The Bently Nevada 330930-060-00-CN is a 6.0-meter extension cable for the 3300 XL NSv Proximity Transducer System. It connects the proximity probe to the Proximitor Sensor, ensuring signal integrity over distance. Designed with robust FEP insulation and optional stainless-steel armor, it provides reliable performance in harsh industrial environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 330930-060-00-CN |
| Product Type | Extension Cable |
| Cable Length | 6.0 meters |
| Weight | 0.27 kg |
| Cable Type | 75 Ω coaxial, FEP insulated |

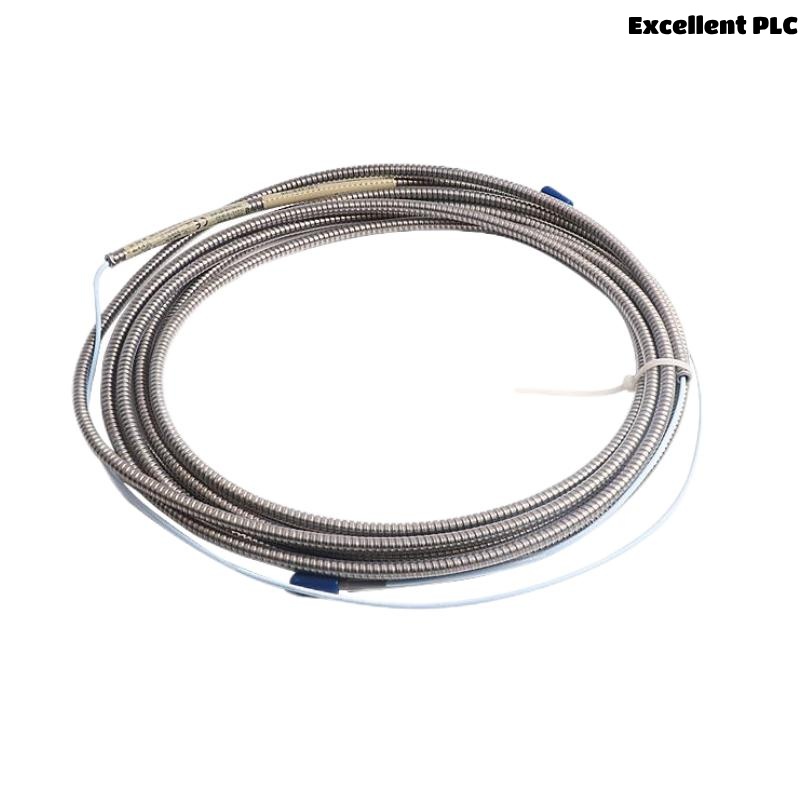

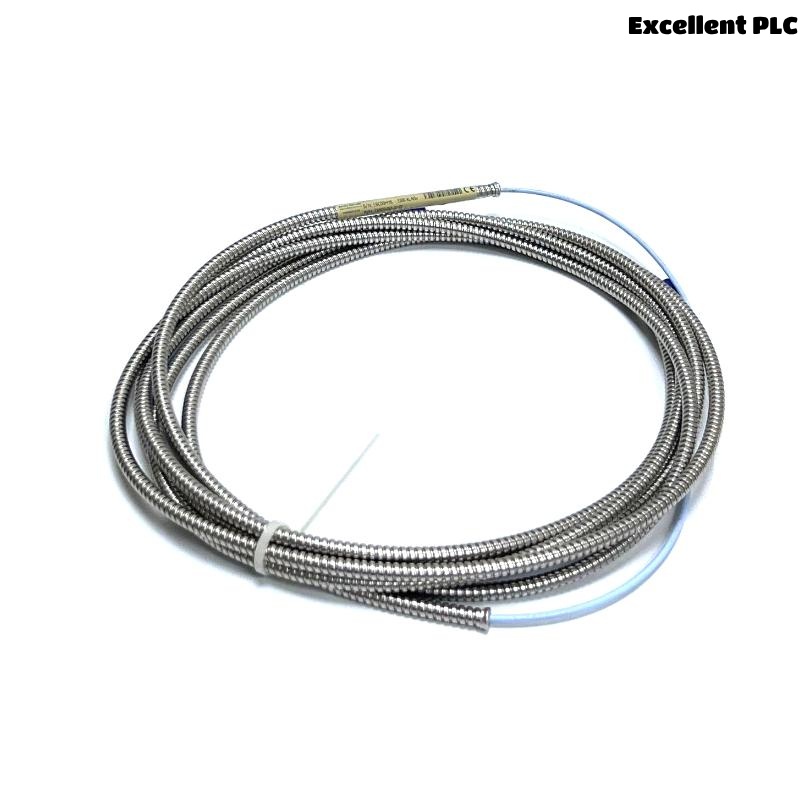

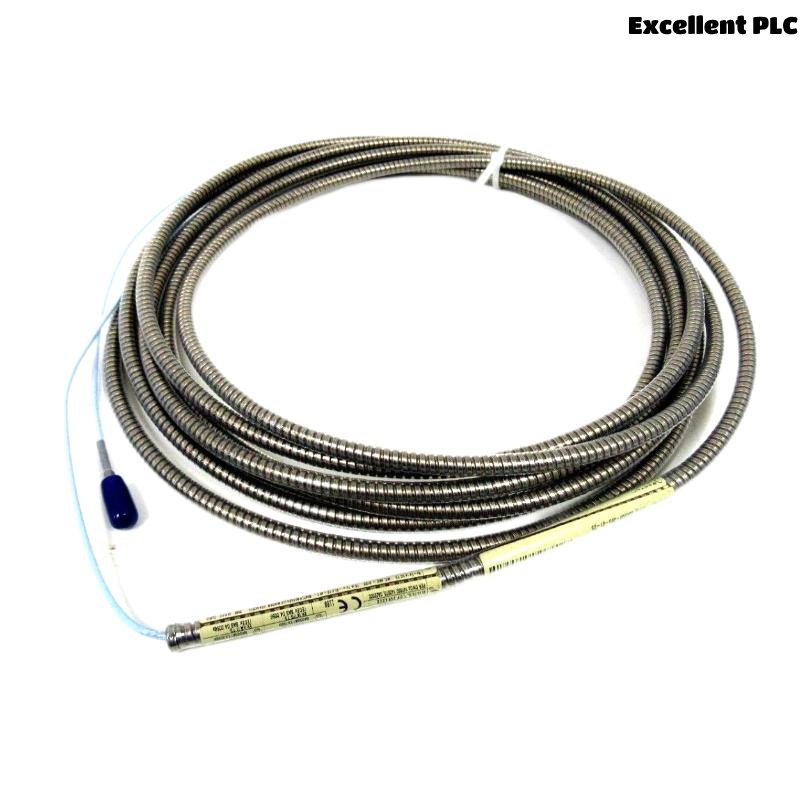

| Armor Option | With or without stainless steel armor |
| Connector Type | ClickLoc gold-plated brass connectors |
| Cable Capacitance | 69.9 pF/m |
| Cable Resistance | Center: 0.220 Ω/m, Shield: 0.066 Ω/m |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
Product Applications
-
Connects proximity probes to Proximitor Sensors
-
Used in tight-space installations on compressors and turbines
-
Ideal for environments with vibration, chemical exposure, and EMI/RFI interference
-
Supports radial/axial vibration monitoring and thrust measurements
Product Advantages
-
Robust Build: FEP insulation and optional armor for durability
-
ClickLoc Connectors: Ensure secure, vibration-resistant connection
-
High Temperature Rating: Operates up to 177°C
-
Flexible Design: Suitable for various mounting constraints
-
Interchangeable: Compatible with legacy 3300 RAM systems
-
Reliable Signal Transmission: Maintains signal quality across length
Frequently Asked Questions
Q1: What is the length of the 330930-060-00-CN cable?
A1: It is 6.0 meters (19.7 feet) long.
Q2: Is this cable compatible with legacy Bently Nevada systems?
A2: Yes, it is backward-compatible with 3300 RAM systems.
Q3: Can the cable be used in high-temperature environments?
A3: Yes, it supports up to +177°C operating temperature.
Q4: What type of insulation does the cable use?
A4: Fluoroethylene propylene (FEP) insulation.
Q5: What are the connectors made of?
A5: Gold-plated brass with ClickLoc locking design.
Q6: Is the cable shielded?
A6: Yes, it is a coaxial cable with a shield conductor.
Q7: Does it include armor protection?
A7: Armor is optional and specified at the time of order.
Q8: Can this extension cable be installed in corrosive environments?
A8: Yes, with its chemical-resistant design, it is suitable for such applications.
Q9: Is special tooling required for installation?
A9: No special tools are needed thanks to SpringLoc connections.
Q10: What is the minimum bend radius?
A10: 25.4 mm (1.0 inch), with or without armor.
Related Models (Same Series or Function)
| Model Number | Description | Cable Length | Weight |
|---|---|---|---|
| 330930-040-00-CN | 3300 XL Extension Cable | 4.0 m | 0.18 kg |
| 330930-045-00-CN | 3300 XL Extension Cable | 4.5 m | 0.205 kg |
| 330930-065-00-CN | 3300 XL Extension Cable | 6.5 m | 0.292 kg |
| 330930-060-01-CN | 3300 XL Cable with SST Armor | 6.0 m | 0.31 kg |
| 330930-060-04-CN | Cable with SST Armor and Connector Protector | 6.0 m | 0.33 kg |
| 330930-060-06-CN | FluidLoc Cable without Armor | 6.0 m | 0.27 kg |
