Product Introduction

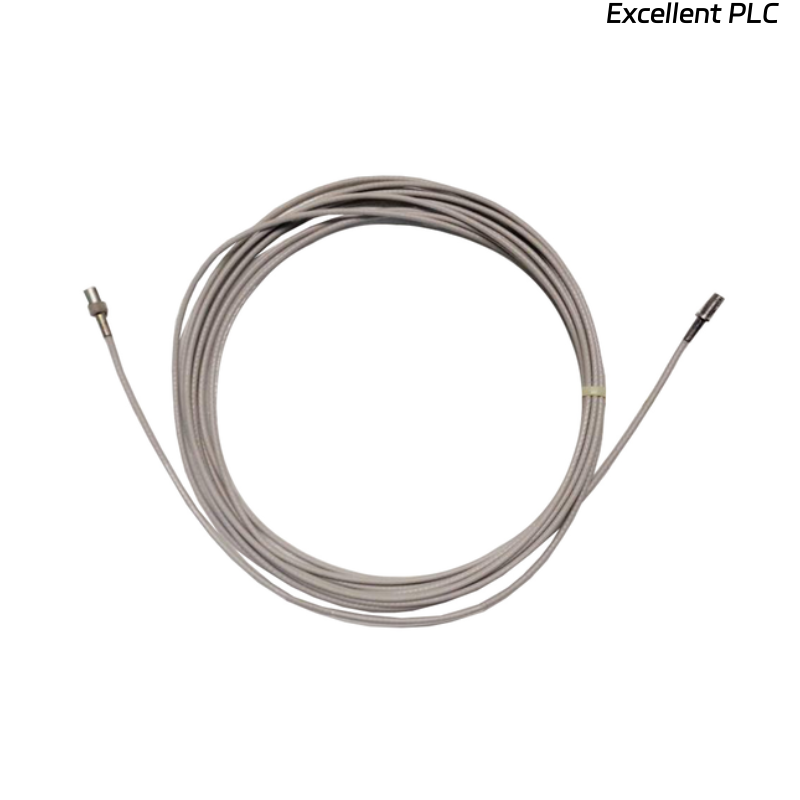

The Bently Nevada 330930-060-00-RU 3300 NSv Extension Cable is designed to extend the connection between 3300 NSv sensors and monitoring systems. It ensures high-fidelity signal transmission and reliable performance in industrial environments. This cable is widely used in machinery monitoring, vibration analysis, and critical rotating equipment applications. Its robust design allows it to withstand demanding operational conditions, ensuring consistent sensor communication and system accuracy.
Technical Specifications
Parameter | Specification |
---|---|
Model Number | 330930-060-00-RU |
Cable Type | NSv Extension Cable |
Cable Length | 6 m |
Weight | 0.27 kg |
Connector Type | 4-pin connector |
Compatibility | 3300 NSv Proximity Sensors |
Operating Temperature Range | -40°C to 125°C |
Shielding | Twisted pair, shielded |
Insulation Material | PTFE |
Maximum Voltage | 30 VDC |
Frequency Range | DC to 20 kHz |
Environmental Rating | IP67 |
Product Applications
-
Machinery vibration monitoring
-
Rotating equipment diagnostics
-
Turbine and generator monitoring
-
Critical asset protection systems
-
Industrial process monitoring
-
Integration with Bently Nevada 3300 Series sensor systems
Product Advantages
-
High Signal Integrity: Maintains accurate signal transmission over extended lengths.
-
Durable Construction: PTFE insulation and robust shielding provide protection against industrial environments.
-
Easy Integration: Designed for seamless connection with 3300 NSv proximity probes and monitoring systems.
-
Flexible Installation: 6-meter length provides adaptability for various machinery layouts.
-
Reliable Performance: Resistant to electrical noise, temperature extremes, and moisture ingress.
-
Reduced Downtime: Enhances system reliability and reduces maintenance frequency.
FAQ
Q1: What type of connectors does this cable use?
A1: It uses a 4-pin connector compatible with 3300 NSv sensors and monitoring modules.
Q2: Can this cable be used outdoors or in harsh industrial environments?
A2: Yes, the cable is IP67-rated and suitable for harsh industrial conditions.
Q3: What is the operating temperature range of this cable?
A3: The cable operates between -40°C and 125°C.
Q4: Is this cable shielded to prevent electrical noise?
A4: Yes, it features twisted pair shielding to minimize interference.
Q5: What is the maximum voltage this cable can safely carry?
A5: The cable supports up to 30 VDC.
Q6: Can this cable transmit high-frequency signals?
A6: Yes, it supports frequencies up to 20 kHz, suitable for proximity sensors.
Q7: Is this cable compatible with all 3300 NSv series sensors?
A7: It is compatible with 3300 NSv Proximity Sensors.
Q8: How flexible is the cable for installation in tight spaces?
A8: The PTFE insulation and flexible design allow installation in restricted areas without damage.
Q9: Can multiple extension cables be daisy-chained?
A9: Bently Nevada recommends verifying total length against system requirements to ensure signal integrity.
Q10: Does the cable have specific grounding requirements?
A10: The cable shield should be grounded at one end to maintain signal accuracy and reduce noise.
Related Models
Model Number | Cable Length | Weight | Connector Type |
---|---|---|---|
330930-040-05-05 | 3 m | 0.15 kg | 4-pin |
330930-045-05-05 | 5 m | 0.25 kg | 4-pin |
330930-045-09-05 | 9 m | 0.35 kg | 4-pin |
330930-065-02-AE | 2 m | 0.10 kg | 4-pin |
330930-045-03-RU | 3 m | 0.14 kg | 4-pin |
330930-045-03-05 | 3 m | 0.14 kg | 4-pin |
