Product Introduction

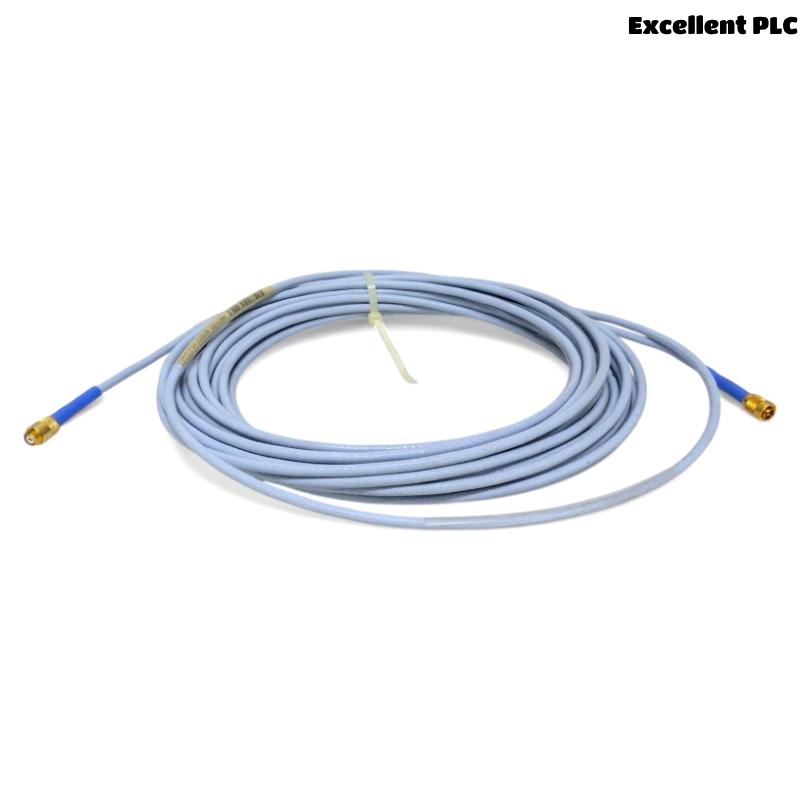

The Bently Nevada 330930-060-01-05 is a high-quality extension cable designed for use with the 3300 NSv Proximity Probes. This extension cable plays a vital role in expanding the reach of proximity probes, enabling them to be positioned farther away from the monitored equipment without compromising the integrity of the data transmission. The 3300 NSv series is renowned for its accuracy in monitoring shaft displacement and vibration in critical machinery like turbines, compressors, pumps, and motors.
With a cable length of 6.0 meters and a lightweight design (weighing only 0.384 kg), this extension cable is ideal for installations that require flexibility and adaptability. It ensures that the proximity probes can be installed in positions that provide optimal measurement accuracy, even in large industrial systems or machines that are far apart. Its robust construction and shielding capabilities make it suitable for use in environments with high levels of electromagnetic interference or vibration.
This 3300 NSv extension cable ensures continuous, high-fidelity signal transmission, maintaining the precision and reliability of the 3300 NSv Proximity Probe even at longer distances, making it an essential component of an industrial monitoring system.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 330930-060-01-05 |
| Cable Length | 6.0 meters |
| Weight | 0.384 kg |
| Connector Type | Standard 3300 NSv Probe Connector |
| Shielding | Yes, for noise reduction |
| Temperature Range | -40°C to +120°C |
| Maximum Vibration | Compatible with 3300 NSv Probes |
| Compatibility | 3300 NSv Proximity Probes |
| Protection Rating | IP67 |
| Compliance | CE, UL, UL60950 |
Product Applications
The 3300 NSv Extension Cable is an indispensable component in many industrial applications where proximity probes are used to monitor the health of machinery. It is designed to extend the reach of proximity probes to allow for more flexible installation options. Some of the key applications include:
-
Turbines and Compressors: The extension cable allows proximity probes to be positioned optimally for monitoring shaft displacement in turbines and compressors, where precise alignment is critical to operational performance.
-
Electric Motors: The extension cable enables proximity probes to reach motor shafts, providing essential data on displacement and vibration for accurate fault detection and maintenance planning.
-
Pumps and Fans: The cable is ideal for large pumps and fans, enabling the proximity probe to detect imbalance, misalignments, or other mechanical issues, preventing system downtime.
-
Generators: In power generation plants, the extension cable is used to monitor the shaft displacement of generators, ensuring smooth operation and preventing costly failures.
-
Manufacturing Systems: In industrial production lines, the extension cable enables the flexible positioning of proximity probes, ensuring that machinery and rotating components are continuously monitored for any signs of wear or malfunction.
-
Oil and Gas Industry: In the oil and gas sector, the extension cable is used to extend the range of proximity probes in harsh environments, providing accurate measurements from remote or difficult-to-access locations.
Product Advantages
-
Extended Reach: The 3300 NSv Extension Cable offers a 6.0-meter cable length, providing greater flexibility in positioning proximity probes further from the monitoring equipment while maintaining the quality of data transmission.
-
Durable Construction: Built with an IP67 protection rating, the cable is resistant to dust, dirt, and moisture, making it perfect for industrial environments where reliability is paramount.
-
Signal Integrity Over Long Distances: The cable ensures that the signal from the proximity probe is transmitted accurately over extended distances, preserving the integrity of the data even in large systems.
-
Temperature Resistance: The cable operates in a broad temperature range of -40°C to +120°C, making it suitable for use in a wide variety of industrial settings, from cold storage facilities to high-temperature processing plants.
-
Lightweight and Easy to Install: Despite its 6-meter length, the cable weighs just 0.384 kg, making it easy to handle and install, even in tight spaces or difficult-to-reach areas.
-
Shielded Design: The cable includes shielding to prevent interference from electrical noise, ensuring that data transmitted to monitoring systems is accurate and free from distortion.
-
Cost-Effective Flexibility: The extension cable offers a cost-effective solution for positioning proximity probes in challenging locations without needing to modify existing systems or equipment.
Frequently Asked Questions (FAQs)
Q1: What is the length of the 3300 NSv Extension Cable?
A1: The 3300 NSv Extension Cable has a length of 6.0 meters.
Q2: How much does the extension cable weigh?
A2: The extension cable weighs 0.384 kg, making it lightweight and easy to install.
Q3: What temperature range can the 3300 NSv Extension Cable handle?
A3: The cable operates within a temperature range of -40°C to +120°C, making it suitable for various industrial environments.
Q4: Is the extension cable shielded?
A4: Yes, the 3300 NSv Extension Cable comes with shielding to reduce electrical noise and ensure accurate signal transmission.
Q5: What protection rating does the extension cable have?
A5: The 3300 NSv Extension Cable has an IP67 protection rating, ensuring resistance to dust and water ingress.
Q6: Can the extension cable be used with probes from other manufacturers?
A6: The extension cable is specifically designed for use with 3300 NSv Proximity Probes. It may not be compatible with probes from other manufacturers.
Q7: How does the extension cable improve the installation process?
A7: The extension cable allows proximity probes to be installed further from the equipment being monitored, making it easier to position probes in hard-to-reach areas while maintaining data accuracy.
Q8: Can the extension cable be used in high-vibration environments?
A8: Yes, the 3300 NSv Extension Cable is designed to withstand high-vibration environments, ensuring reliable performance even under challenging conditions.
Q9: Is the 3300 NSv Extension Cable suitable for use in hazardous environments?
A9: The extension cable is built to withstand industrial environments, but it is not specifically rated for use in hazardous locations. It is suitable for most industrial settings.
Q10: What is the primary function of the extension cable?
A10: The 3300 NSv Extension Cable extends the reach of 3300 NSv Proximity Probes, enabling them to be positioned at optimal locations for monitoring shaft displacement and vibration.
Recommended Models
| Model | Description | Cable Length |
|---|---|---|
| 330930-070-00-00 | Extension cable for 3300 NSv probes with enhanced shielding | 7 meters |
| 330930-060-00-00 | Standard extension cable for 3300 NSv probes | 6 meters |
| 330930-050-00-00 | Extension cable for 3300 NSv probes with high-temperature resistance | 5 meters |
| 330930-065-00-00 | Heavy-duty extension cable for 3300 NSv probes | 6.5 meters |
| 330930-075-00-00 | Extended reach cable for 3300 NSv probes | 7.5 meters |
| 330930-100-00-00 | Extra-long extension cable for large systems | 10 meters |
