Product Overview

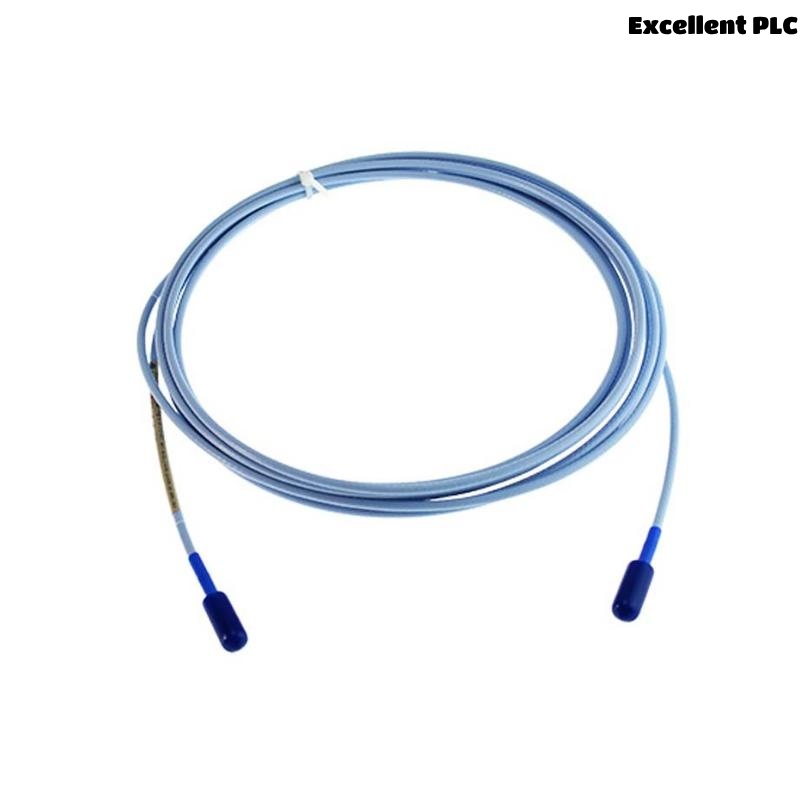

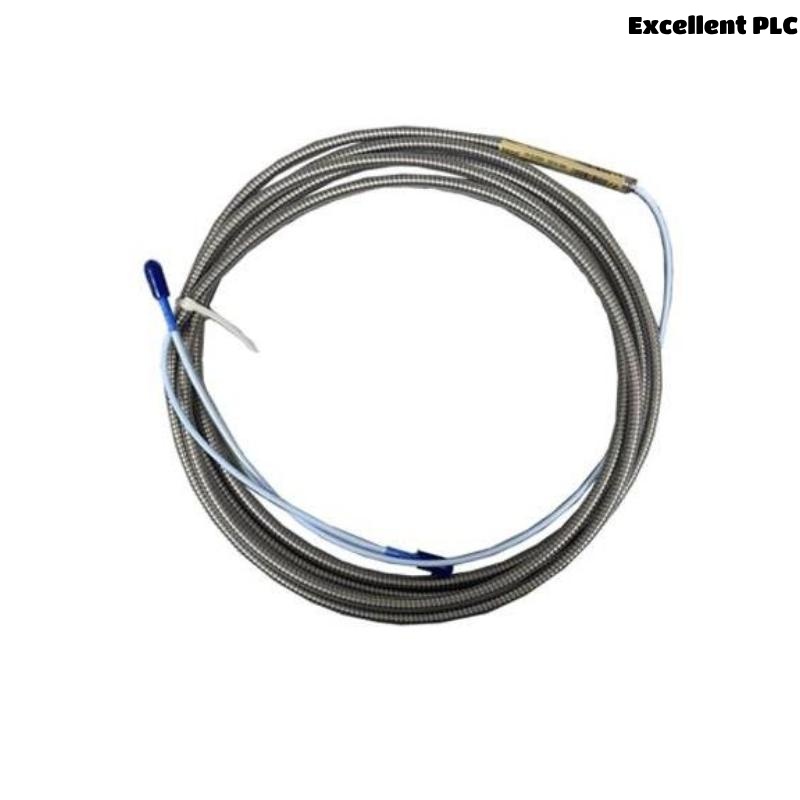

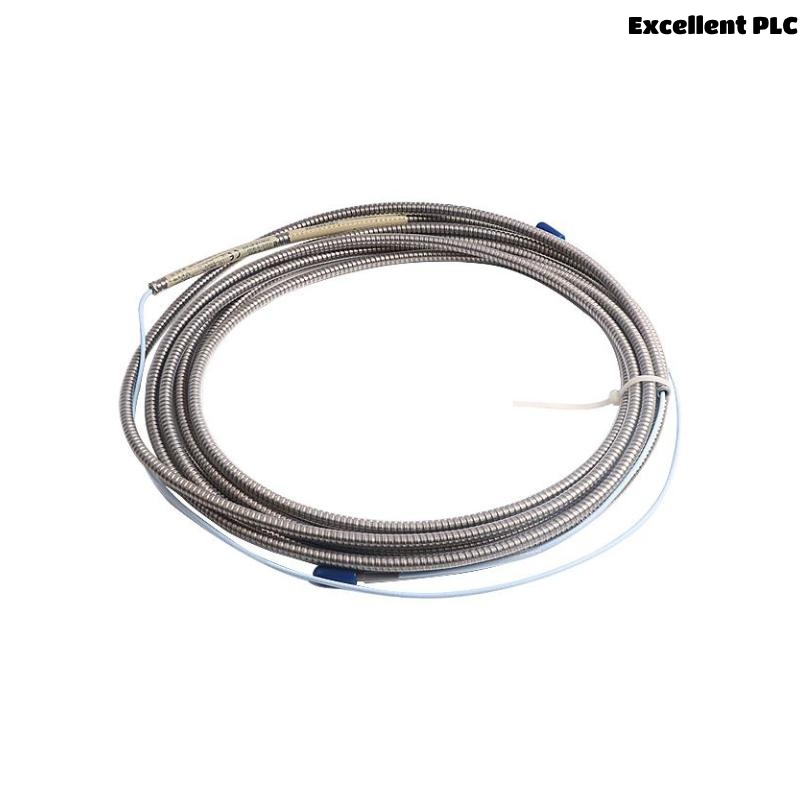

The Bently Nevada 330930-060-02-00 extension cable is an essential accessory for extending the reach of Bently Nevada’s 3300 NSv proximity probe systems. Designed with high-quality materials, this cable ensures optimal signal transmission between the proximity probe and the monitoring equipment, enhancing the reliability and accuracy of vibration and position measurement in machinery health monitoring systems.
With a length of 6 meters and a weight of 0.384 kg, this extension cable is built to withstand the challenges of industrial environments, including exposure to vibrations, temperature variations, and chemical exposure. The cable is compatible with various Bently Nevada vibration sensors and is engineered to maintain excellent signal integrity over extended distances.
The 330930-060-02-00 extension cable is an indispensable component in machinery protection and predictive maintenance applications, particularly for large machines and rotating equipment, where vibration analysis is critical for identifying early signs of mechanical faults. It is suitable for use in power plants, oil & gas, manufacturing, and other industries where reliable vibration monitoring is a key part of condition-based maintenance.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330930-060-02-00 |
| Brand | Bently Nevada |
| Product Type | Extension Cable for 3300 NSv Proximity Probe |
| Cable Length | 6.0 meters |
| Weight | 0.384 kg |
| Conductor Material | Copper (Stranded) |
| Insulation Material | PVC (Polyvinyl Chloride) |
| Temperature Range | -40°C to +85°C |
| Shielding | No Shielding |
| Voltage Rating | 300V |
| Outer Diameter | 7.5 mm |
| Application | Vibration and Position Measurement |
| Certifications | CE, UL, RoHS |
| Use | Industrial Vibration Monitoring |
Applications
-
Machinery Health Monitoring
The 330930-060-02-00 extension cable is used in machinery health monitoring systems to connect Bently Nevada 3300 NSv proximity probes to monitoring equipment, enabling the analysis of vibrations and position in rotating machinery. -
Predictive Maintenance
It is a crucial component in predictive maintenance strategies, as it allows for the continuous monitoring of machine conditions, helping to detect early signs of wear, imbalance, or misalignment. -
Power Plants and Energy Sector
The cable is widely used in power plants, where rotating machinery such as turbines and generators need to be continuously monitored for vibration. This helps to prevent equipment failures and costly downtime. -
Oil & Gas Industry
In the oil and gas sector, this extension cable is vital for monitoring critical equipment, such as pumps, compressors, and motors, ensuring smooth operation and minimizing downtime. -
Manufacturing and Production Facilities
In manufacturing environments, it helps monitor the condition of large motors, pumps, and gearboxes to prevent mechanical failure and ensure operational efficiency. -
Transportation Systems
The cable is also used in transportation industries, such as rail and aerospace, to monitor vibration levels in components like engines, gearboxes, and other moving parts.
Advantages
-
Signal Integrity
The Bently Nevada 330930-060-02-00 extension cable is designed to ensure minimal signal loss over long distances, guaranteeing accurate and reliable measurements for critical machinery analysis. -
Durability
Constructed with high-quality PVC insulation and copper conductors, this cable is built to withstand the harsh conditions of industrial environments, including temperature fluctuations, chemical exposure, and mechanical stress. -
Flexible and Easy Installation
The 6-meter length offers sufficient reach for most installations, while the flexible design ensures easy routing in confined spaces or along complex cable paths. -
Wide Temperature Range
The cable operates in environments with temperatures ranging from -40°C to +85°C, making it suitable for extreme industrial conditions. -
Compatibility
Specifically designed for use with Bently Nevada 3300 NSv proximity probes, this cable ensures seamless integration with the monitoring system, minimizing the risk of connection issues. -
Cost-Effective
The Bently Nevada 330930-060-02-00 extension cable offers an affordable solution for extending the reach of proximity probes without compromising on quality or performance.
FAQs
Q1: What is the maximum length of this extension cable?
A1: The cable length is 6.0 meters.
Q2: What is the weight of the 330930-060-02-00 extension cable?
A2: The extension cable weighs 0.384 kg.
Q3: What is the temperature range for this cable?
A3: The cable operates effectively within a temperature range of -40°C to +85°C.
Q4: What is the insulation material used in the cable?
A4: The cable uses PVC (Polyvinyl Chloride) insulation for durability and protection against environmental factors.
Q5: Is the cable compatible with other Bently Nevada products?
A5: Yes, the cable is specifically designed for use with Bently Nevada 3300 NSv proximity probes, ensuring reliable signal transmission.
Q6: Does the cable have shielding?
A6: No, the cable does not feature shielding.
Q7: What is the voltage rating for this cable?
A7: The cable is rated for 300V.
Q8: What industries typically use this extension cable?
A8: It is widely used in power plants, oil & gas, manufacturing, transportation, and other industrial sectors for vibration monitoring and predictive maintenance.
Q9: How flexible is this extension cable?
A9: The cable is flexible and can be easily installed in confined or complex spaces.
Q10: What are the key benefits of using this extension cable?
A10: The key benefits include reliable signal integrity, high durability, compatibility with Bently Nevada proximity probes, and the ability to extend the reach of monitoring systems in industrial environments.
Related Models (Same Series or Function)
| Model | Description | Cable Length | Weight | Temperature Range | Voltage Rating |
|---|---|---|---|---|---|
| 330930-060-01-00 | Extension cable for 3300 NSv with shorter length | 3.0 meters | 0.2 kg | -40°C to +85°C | 300V |
| 330930-060-03-00 | Longer extension cable for 3300 NSv system | 12.0 meters | 0.75 kg | -40°C to +85°C | 300V |
| 330930-060-04-00 | Heavy-duty extension cable for large industrial systems | 6.5 meters | 0.5 kg | -40°C to +85°C | 300V |
| 330930-060-05-00 | Extension cable with enhanced insulation properties | 10.0 meters | 0.6 kg | -40°C to +85°C | 300V |
| 330930-060-06-00 | Low-profile extension cable for tight installations | 5.0 meters | 0.35 kg | -40°C to +85°C | 300V |
| 330930-060-07-00 | Extension cable for high-vibration environments | 8.0 meters | 0.45 kg | -40°C to +85°C | 300V |
