Product Introduction

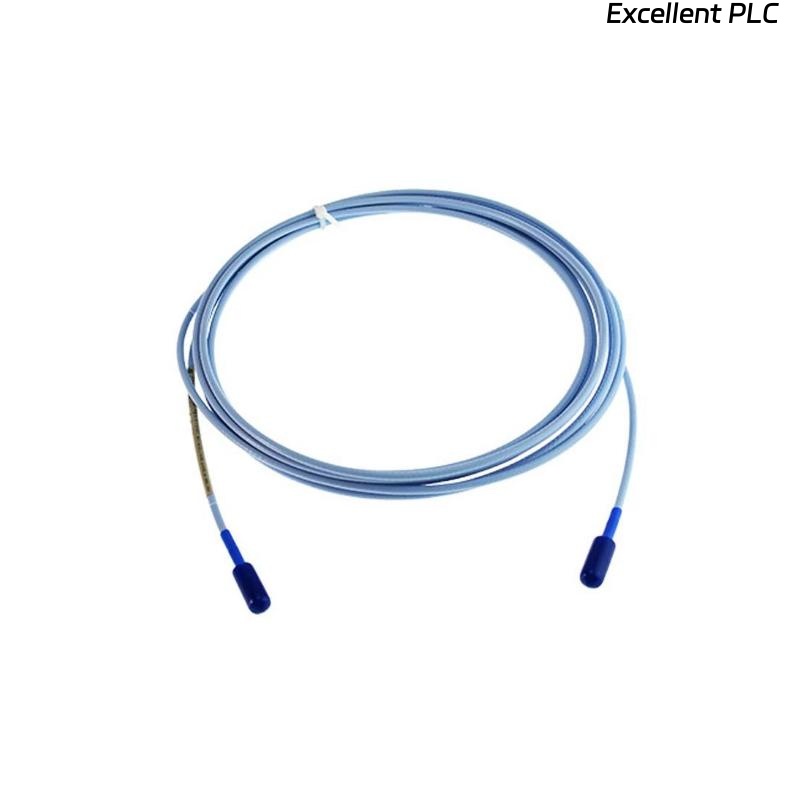

The Bently Nevada 330930-060-05-05 3300 NSv Extension Cable is a high-performance extension cable designed specifically for use with the 3300 NSv proximity probe system. It ensures reliable signal transmission from proximity probes to monitoring equipment in industrial environments. Engineered to withstand harsh operating conditions, this cable provides precise vibration monitoring for rotating machinery, enhancing equipment reliability and operational safety.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330930-060-05-05 |
| Cable Type | Extension Cable |
| Compatible System | 3300 NSv Proximity System |
| Cable Length | 6 m |
| Weight | 0.384 kg |
| Connector Type | Factory-terminated M12 |
| Operating Temperature | -40°C to 125°C |
| Insulation Material | PTFE / High-quality polymer |
| Shielding | Coaxial shield for EMI protection |
| Maximum Voltage | 30 V DC |
| Impedance | 50 Ω |
| Recommended Usage | Vibration and proximity monitoring systems |
Product Applications
-
Vibration monitoring of turbines, compressors, and pumps.
-
Rotating machinery condition monitoring in power generation plants.
-
Industrial process monitoring where reliable probe extension is required.
-
Integration with Bently Nevada 3300 NSv proximity probe systems for data acquisition.
-
Preventive maintenance programs to detect early signs of machinery issues.
Product Advantages
-
High Signal Integrity: Coaxial shielding minimizes electromagnetic interference for accurate readings.
-
Reliable Connectivity: Factory-terminated connectors ensure consistent connection and reduce installation errors.
-
Durability: Designed to resist extreme temperatures and industrial contaminants.
-
Flexibility: 6-meter cable length allows versatile installation in challenging environments.
-
Compatibility: Fully compatible with all 3300 NSv system modules and probes.
-
Lightweight: At only 0.384 kg, it simplifies installation without compromising performance.
FAQ
Q1: Can this cable support multiple proximity probes simultaneously?
A1: No, each cable is intended for connection with a single proximity probe to ensure accurate signal integrity.
Q2: What is the maximum voltage the cable can handle?
A2: The cable is rated for a maximum of 30 V DC.
Q3: Is the cable shielded against electromagnetic interference?
A3: Yes, it features a coaxial shield to minimize EMI and maintain signal accuracy.
Q4: Can this cable be used outdoors or in wet environments?
A4: The cable’s insulation is industrial-grade and can withstand humidity, but it should not be submerged in water.
Q5: What is the maximum operating temperature for this cable?
A5: The cable can safely operate between -40°C and 125°C.
Q6: Is the cable compatible with earlier versions of 3300 NS proximity systems?
A6: It is specifically designed for the 3300 NSv series; compatibility with older 3300 NS systems is not guaranteed.
Q7: What is the impedance of the cable?
A7: The cable has an impedance of 50 Ω, optimized for proximity probe signals.
Q8: Can the cable be cut or extended in the field?
A8: No, modifications are not recommended as it may compromise signal quality and EMI protection.
Q9: How should the cable be routed to avoid signal interference?
A9: Keep the cable away from high-power lines and rotating machinery to minimize electromagnetic interference.
Q10: Are replacement connectors available if damaged?
A10: Bently Nevada provides factory-terminated replacement cables; field termination is not supported.
Recommended Models
| Model Number | Description | Cable Length |
|---|---|---|
| 330930-060-04-05 | 3300 NSv Extension Cable | 4 m |
| 330930-060-03-05 | 3300 NSv Extension Cable | 3 m |
| 330930-060-10-05 | 3300 NSv Extension Cable | 10 m |
| 330930-060-02-05 | 3300 NSv Extension Cable | 2 m |
| 330930-060-01-05 | 3300 NSv Extension Cable | 1 m |
| 330930-060-05-RU | 3300 NSv Extension Cable Regional | 6 m |
