Product Overview

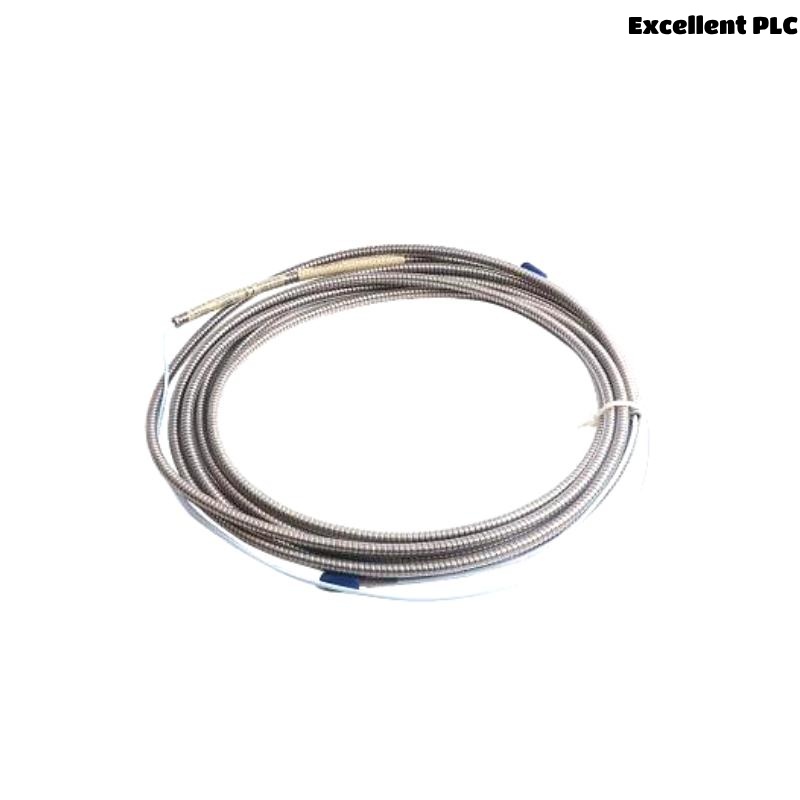

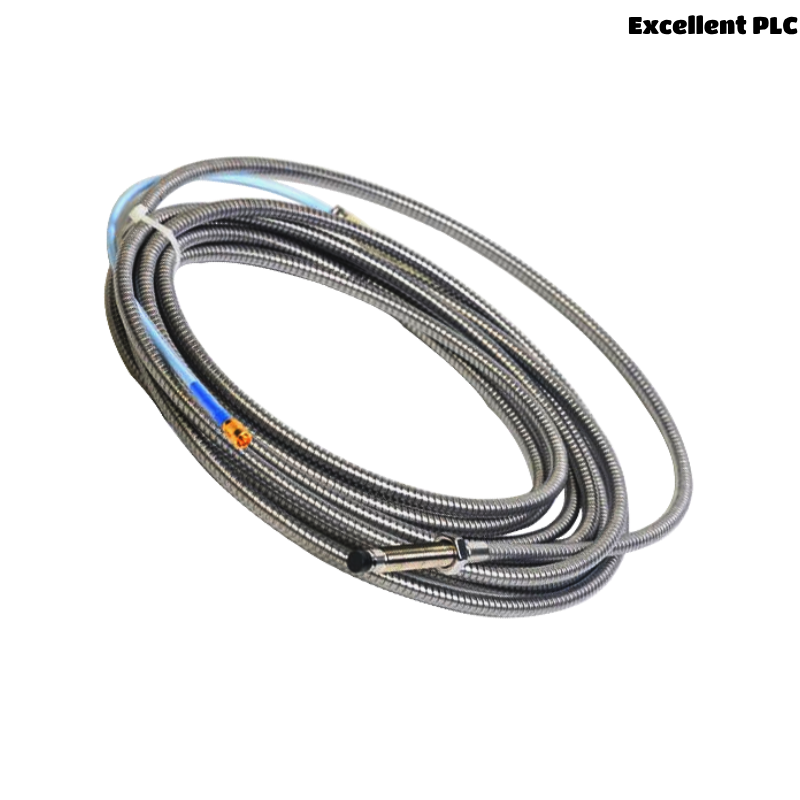

The Bently Nevada 330930-065-01-00 extension cable is an integral part of the 3300 NSv series, designed to extend the connection distance between Bently Nevada’s proximity probes and the monitoring system. This extension cable is engineered to ensure optimal signal transmission for vibration monitoring in various industrial environments. With a length of 6.5 meters and a weight of 0.416 kg, this cable is perfect for connecting vibration sensors, such as the 3300 NSv, to machinery protection systems and condition monitoring setups.
Manufactured to the highest standards, this cable is durable, flexible, and resistant to mechanical and environmental stresses. It is built to handle high temperature variations, exposure to chemicals, and mechanical wear, making it suitable for industrial applications across multiple sectors, including power generation, manufacturing, and oil & gas industries.
This extension cable helps maintain signal integrity over long distances, ensuring that the data from proximity probes reaches monitoring systems with minimal loss or interference. As a result, it becomes an essential component for ensuring accurate and reliable vibration measurements, which are crucial for machinery health and predictive maintenance.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330930-065-01-00 |
| Brand | Bently Nevada |
| Product Type | Extension Cable for 3300 NSv Proximity Probe |
| Cable Length | 6.5 meters |
| Weight | 0.416 kg |
| Conductor Material | Copper (Stranded) |
| Insulation Material | PVC (Polyvinyl Chloride) |
| Temperature Range | -40°C to +85°C |
| Shielding | No Shielding |
| Voltage Rating | 300V |
| Outer Diameter | 7.5 mm |
| Application | Vibration and Position Measurement |
| Certifications | CE, UL, RoHS |
| Use | Industrial Vibration Monitoring |
Applications
-
Vibration Monitoring Systems
The primary use of the 330930-065-01-00 extension cable is for connecting Bently Nevada 3300 NSv proximity probes to machinery monitoring systems. The extension cable ensures uninterrupted signal transmission over extended distances, which is critical in vibration analysis for large machines. -
Predictive Maintenance
By enabling vibration monitoring, the cable helps identify early signs of wear, imbalance, and misalignment in machinery. This contributes to a predictive maintenance strategy, minimizing the risk of unexpected breakdowns. -
Power Plants
In power plants, rotating equipment like turbines, pumps, and compressors must be continuously monitored for vibration. The extension cable ensures reliable data transmission from the vibration sensors to the condition monitoring system, improving the reliability of these critical assets. -
Oil & Gas Industry
In the oil and gas industry, this extension cable is used to extend the reach of vibration probes, providing data that ensures machinery such as pumps, compressors, and motors are operating optimally, preventing failure and enhancing safety. -
Manufacturing and Production
The cable is utilized in manufacturing plants to monitor the health of machinery, helping prevent breakdowns and enhancing the operational efficiency of production lines. -
Transportation
The cable also plays a vital role in transportation sectors (e.g., aerospace, rail, and automotive industries), where vibration monitoring of engines, turbines, and other critical systems is necessary for ensuring performance and safety.
Advantages
-
Signal Integrity
The Bently Nevada 330930-065-01-00 extension cable is designed to maintain signal integrity even over longer distances. It ensures that the data collected by proximity probes is transmitted with minimal loss or interference, providing accurate and reliable vibration measurements. -
Durability
The cable is built to withstand the harshest industrial environments. It is resistant to abrasion, extreme temperatures, and chemical exposure, making it durable and long-lasting in various industrial sectors. -
Temperature Range
With a wide operational temperature range from -40°C to +85°C, this extension cable is suitable for use in extreme environmental conditions, from freezing cold to high heat. -
High Flexibility
Despite its rugged construction, the cable is flexible and easy to install, allowing it to be routed through tight spaces and complex machinery layouts with ease. -
Cost-Effective Solution
Offering a cost-effective way to extend the reach of vibration sensors, this extension cable ensures high performance and reliability without breaking the budget. -
No Shielding Required
Designed for environments with minimal electromagnetic interference (EMI), the cable does not require shielding, simplifying installation and reducing overall costs.
FAQs
Q1: What is the length of the Bently Nevada 330930-065-01-00 extension cable?
A1: The cable is 6.5 meters long, providing ample reach for connecting proximity probes to monitoring systems.
Q2: What is the weight of the extension cable?
A2: The extension cable weighs 0.416 kg.
Q3: What is the temperature range of the 330930-065-01-00 cable?
A3: The cable operates in temperatures ranging from -40°C to +85°C.
Q4: What materials are used for the insulation and conductors?
A4: The cable uses PVC (Polyvinyl Chloride) insulation and stranded copper conductors for high electrical conductivity and durability.
Q5: Is this extension cable compatible with all Bently Nevada proximity probes?
A5: Yes, the extension cable is designed specifically for use with the 3300 NSv proximity probes, ensuring reliable signal transmission.
Q6: Does the cable have shielding?
A6: No, the 330930-065-01-00 extension cable does not include shielding, making it suitable for environments with low electromagnetic interference (EMI).
Q7: What industries use this extension cable?
A7: The extension cable is used across multiple industries, including power generation, oil and gas, manufacturing, transportation, and aerospace.
Q8: Can the cable be used outdoors?
A8: While the cable is durable and resistant to environmental factors, it is not specifically rated for outdoor use without additional protective housing.
Q9: What is the voltage rating of the cable?
A9: The cable is rated for 300V, suitable for low to moderate voltage applications.
Q10: How flexible is the cable?
A10: The 330930-065-01-00 extension cable is highly flexible, making it easy to install in confined spaces or along complex cable routes.
Related Models (Same Series or Function)
| Model | Description | Cable Length | Weight | Temperature Range | Voltage Rating |
|---|---|---|---|---|---|
| 330930-065-01-01 | Extension cable for 3300 NSv with shorter length | 3.0 meters | 0.2 kg | -40°C to +85°C | 300V |
| 330930-065-01-02 | Longer extension cable for 3300 NSv system | 10.0 meters | 0.55 kg | -40°C to +85°C | 300V |
| 330930-065-01-03 | Heavy-duty extension cable for large industrial systems | 15.0 meters | 0.75 kg | -40°C to +85°C | 300V |
| 330930-065-01-04 | Extension cable for use in high-vibration environments | 7.5 meters | 0.45 kg | -40°C to +85°C | 300V |
| 330930-065-01-05 | Low-profile extension cable for confined installations | 4.0 meters | 0.3 kg | -40°C to +85°C | 300V |
| 330930-065-01-06 | Specialized extension cable for rotating equipment | 8.0 meters | 0.5 kg | -40°C to +85°C | 300V |
