Product Introduction

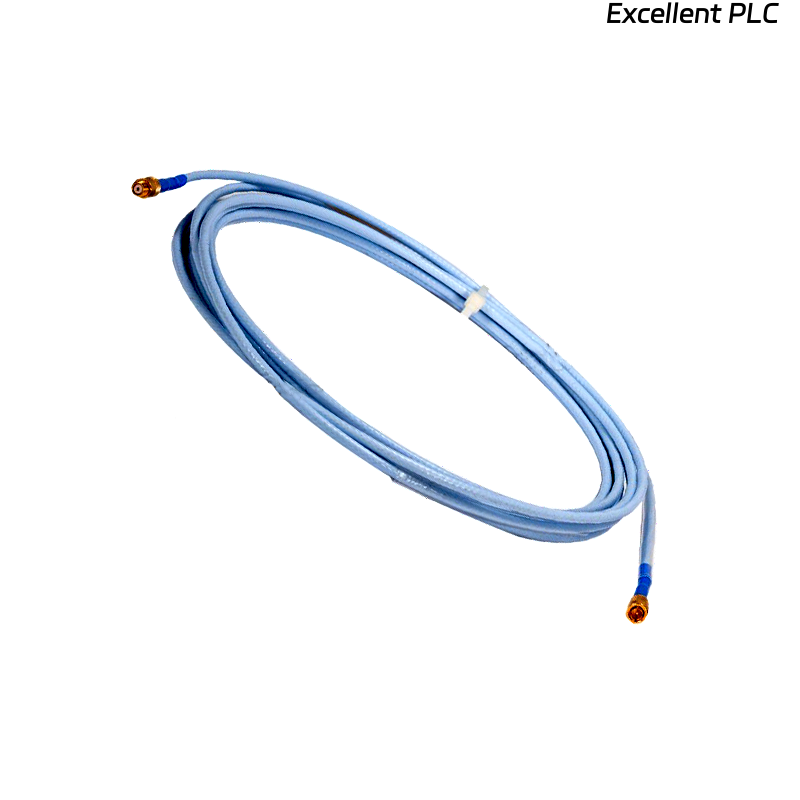

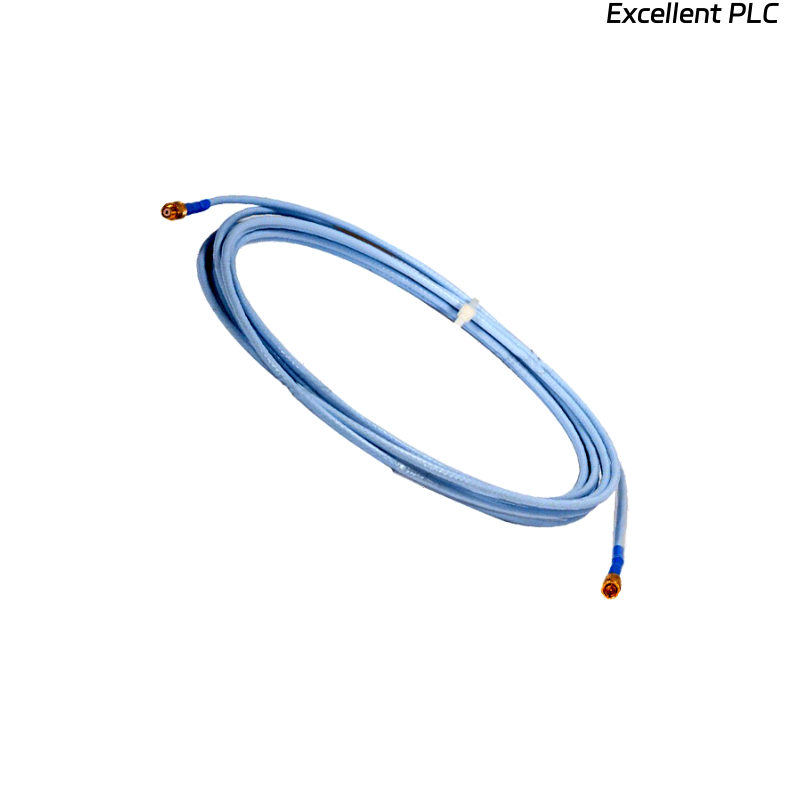

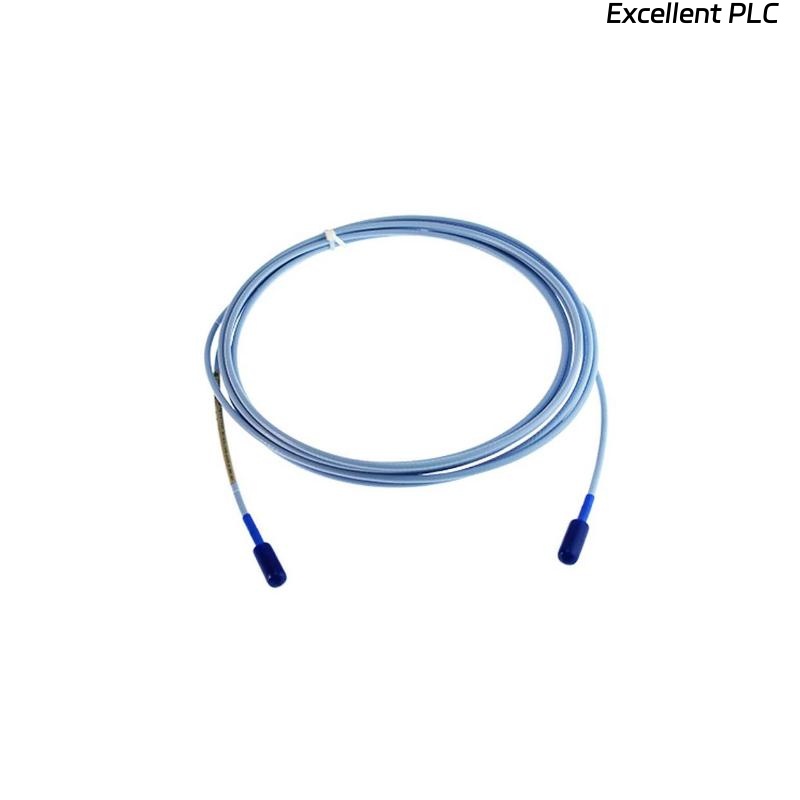

The Bently Nevada 330930-065-02-AE 3300 NSv Extension Cable is designed as a high-performance accessory for the 3300 NSv vibration monitoring system. This extension cable provides reliable, low-noise transmission of sensor signals, ensuring accurate condition monitoring of critical rotating machinery. It is engineered to maintain signal integrity over long distances, supporting preventive maintenance and enhancing operational safety.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330930-065-02-AE |
| System Compatibility | 3300 NSv Vibration Monitoring System |
| Cable Type | Shielded Twisted Pair Extension Cable |
| Connector Type | M12 / 4-pin (compatible with NSv proximity probes) |
| Cable Length | 6.5 m |
| Weight | 0.416 kg |
| Operating Temperature | -40°C to 125°C |
| Voltage Rating | 30 VDC maximum |
| Impedance | 100 Ω ± 5% |
| Shielding | Braided shield for EMI/RFI protection |
| Environmental Rating | IP67 (when properly connected) |
Applications
-
Extending the reach of 3300 NSv proximity probes in turbines, compressors, and generators
-
Integration with machinery monitoring racks for continuous vibration analysis
-
Suitable for high-vibration and electrically noisy environments
-
Used in critical rotating equipment monitoring in power generation, petrochemical, and industrial plants
Product Advantages
-
Reliable Signal Transmission: Maintains low-noise signal integrity over 6.5 meters
-
Compatibility: Designed specifically for the 3300 NSv system for seamless integration
-
Robust Construction: Resistant to vibration, temperature extremes, and industrial contaminants
-
Ease of Installation: Plug-and-play M12 connectors reduce setup time
-
EMI/RFI Protection: Braided shielding prevents interference from surrounding equipment
-
Lightweight Design: Minimal impact on probe positioning and machinery operation
FAQ
Q1: Can this cable be used outdoors in direct sunlight?
A1: Yes, it can be used outdoors, but prolonged UV exposure may require additional protective conduit for extended service life.
Q2: Is the cable compatible with all 3300 NSv probes?
A2: It is compatible with standard 3300 NSv proximity probes equipped with M12 connectors.
Q3: Does the cable support high-frequency vibration signals?
A3: Yes, the cable maintains signal integrity across the frequency range used by 3300 NSv systems.
Q4: Can the cable handle continuous operation at 125°C?
A4: Yes, the cable is rated up to 125°C continuous operation.
Q5: Is the shield grounded at both ends?
A5: The cable is designed with a grounded shield at one end to prevent ground loop interference.
Q6: Can multiple extension cables be connected in series?
A6: Yes, but signal attenuation may occur if more than two extensions are connected; consult system guidelines.
Q7: Does the cable require special installation procedures to prevent EMI?
A7: Standard installation practices are sufficient, including routing away from high-power lines.
Q8: Can the cable be used in hazardous environments?
A8: It is suitable for standard industrial environments; for classified hazardous areas, additional certification is required.
Q9: What is the maximum voltage the cable can safely carry?
A9: Maximum voltage rating is 30 VDC.
Q10: Is the cable resistant to chemical exposure in petrochemical plants?
A10: The outer jacket offers moderate chemical resistance; avoid prolonged contact with strong acids or solvents.
Related / Same-Series Models
| Model Number | Cable Length | Weight | Notes |
|---|---|---|---|
| 330930-065-01-AE | 3 m | 0.25 kg | Shorter extension version |
| 330930-065-03-AE | 10 m | 0.65 kg | Longer extension for distant probes |
| 330930-065-04-AE | 15 m | 0.9 kg | Heavy-duty industrial version |
| 330930-065-05-AE | 20 m | 1.2 kg | Extra-long extension cable |
| 330930-065-06-AE | 5 m | 0.32 kg | Standard field extension |
| 330930-065-07-AE | 8 m | 0.5 kg | Mid-range extension cable |
