Product Overview

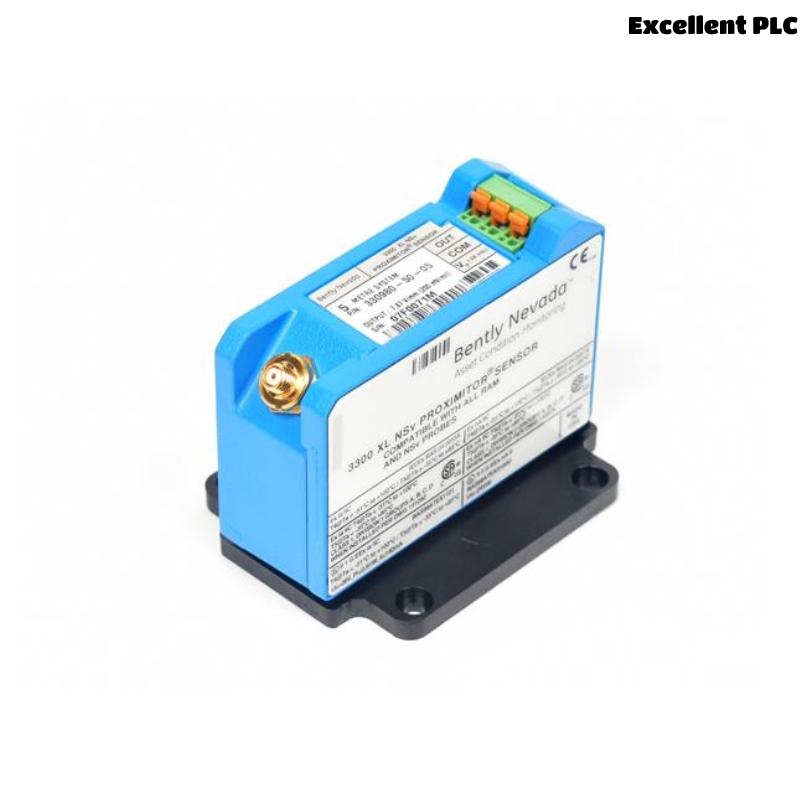

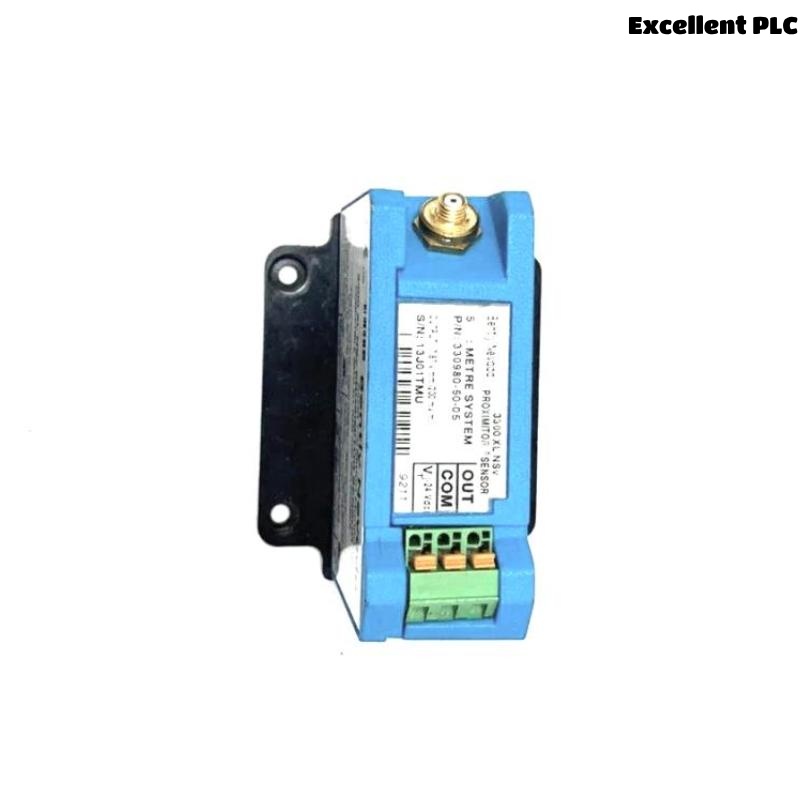

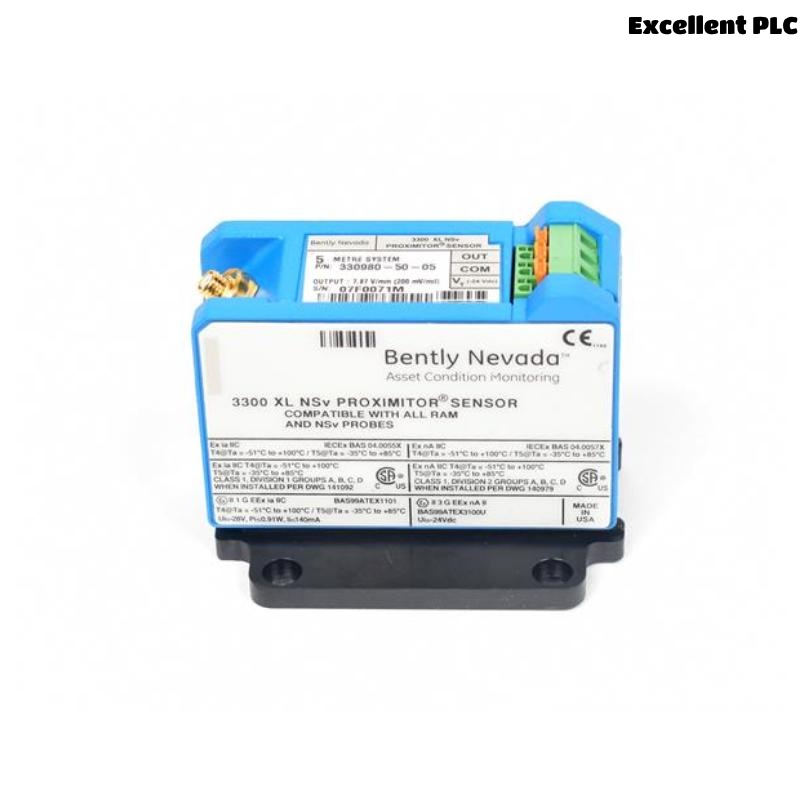

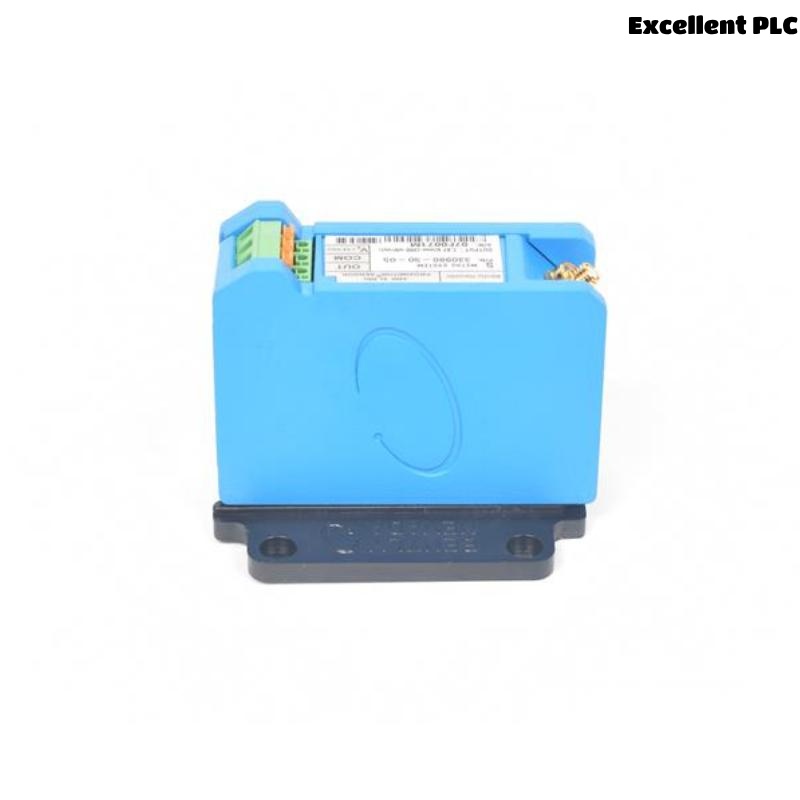

The Bently Nevada 330980-50-05 is part of the 3300 XL NSv Proximity Transducer System, specifically designed for monitoring radial vibration, axial position, and speed in compact or tight installation environments such as centrifugal compressors, refrigeration compressors, and process gas compressors. It is ideal for small target measurements, especially where traditional 5 mm or 8 mm systems are too large.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 330980-50-05 |
| System Type | 3300 XL NSv Proximity Transducer System |
| Linear Range | 1.5 mm (60 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Recommended Gap | 1.0 mm (40 mils) |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | -52°C to +100°C (Proximitor Sensor) |
| Storage Temperature | -52°C to +105°C (Proximitor Sensor) |
| Probe Material | AISI 304 stainless steel, PPS tip |
| Cable Material | FEP-insulated 75 Ω coaxial |
| Sensor Material | A380 Aluminum |
| Total Length | 5.0 meters |
| Weight | 0.255 kg |
| Compliance | CE, RoHS, FCC Part 15, SIL2/SIL3, ATEX, IECEx, cNRTLus |
| Mounting | Panel Mount |
| Protection | IP54 when installed with mounting pad |
Applications
-
Radial vibration and position monitoring for small diameter shafts
-
Axial (thrust) position measurements in turbines and compressors
-
Zero-speed and tachometer signal detection
-
Keyphasor (phase reference) measurements in confined spaces
-
Upgrade paths for 3300 RAM, 3000-series, and 7000-series transducer systems
Advantages
-
Compact design suitable for tight installation spaces
-
Superior side-view performance for small shafts and reduced clearances
-
Chemical-resistant probe and robust construction
-
EMI/RFI shielding for reliable performance in industrial environments
-
SpringLoc terminals for easy wiring and maintenance
-
Fully compatible with DIN rail and panel mounting options
-
Gold-plated ClickLoc connectors ensure secure, durable connectivity
-
Supports long cable runs (up to 305 meters between sensor and monitor)
Frequently Asked Questions (FAQ)
Q1: What is the ideal application for the 330980-50-05 Proximitor Sensor?
A1: It’s best used in compressors or turbines with small shaft diameters or tight mounting spaces.
Q2: What target material is the sensor calibrated to?
A2: AISI 4140 steel is the default calibration material.
Q3: Can it be used in hazardous environments?
A3: Yes, it complies with ATEX, IECEx, and North American hazardous area standards.
Q4: What is the linear measuring range?
A4: The linear range is 1.5 mm (60 mils).
Q5: Is the Proximitor Sensor resistant to EMI and RFI?
A5: Yes, it offers enhanced immunity and CE certification without special mounting.
Q6: How is the wiring done?
A6: It uses SpringLoc terminals with no special tools required, and supports triad shielded cables.
Q7: What is the weight of the complete 5.0-meter system?
A7: Approximately 0.255 kg.
Q8: Are the probe and extension cable interchangeable with older systems?
A8: Yes, with 3300 RAM systems. Not with 3000/7000 series—those require full replacement.
Q9: Does it support panel and DIN rail mounting?
A9: Yes, both options are available.
Q10: What torque should be used on the probe connectors?
A10: Maximum recommended torque is 5 in-lb for sensor connectors.
Recommended Related Models (Same Series or Related)
| Model Number | Description | Linear Range | Total Length | Mounting |
|---|---|---|---|---|
| 330980-51-05 | NSv Proximitor Sensor, DIN mount | 1.5 mm | 5.0 m | DIN rail |
| 330980-70-05 | NSv Proximitor Sensor, panel mount, 7.0 m length | 1.5 mm | 7.0 m | Panel mount |
| 330980-71-05 | NSv Proximitor Sensor, DIN mount, 7.0 m length | 1.5 mm | 7.0 m | DIN rail |
| 330901-00-50-05 | NSv Probe, 1/4-28 UNF, without armor | 1.5 mm | 5.0 m | Thread mount |
| 330902-00-50-05 | NSv Probe, 1/4-28 UNF, with armor | 1.5 mm | 5.0 m | Thread mount |
| 330930-050-00-00 | NSv Extension Cable, 5.0 m, standard, unarmored | — | 5.0 m | — |
