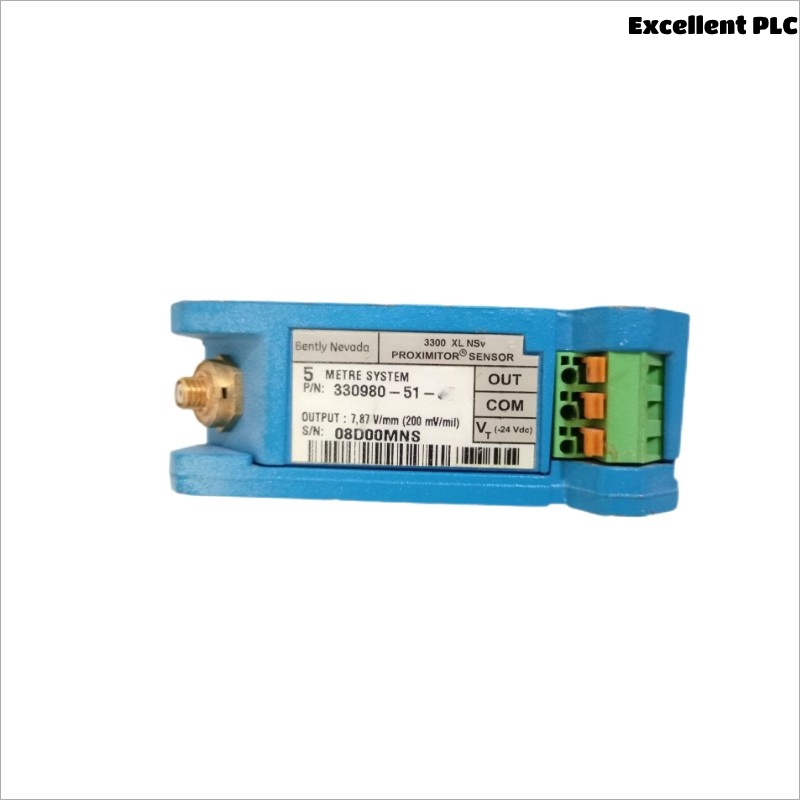

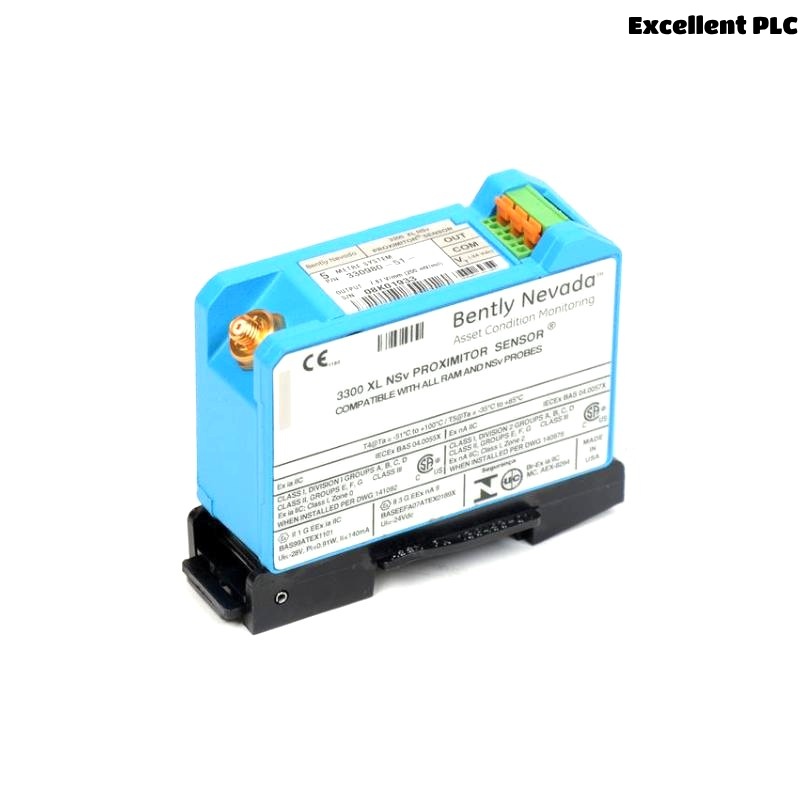

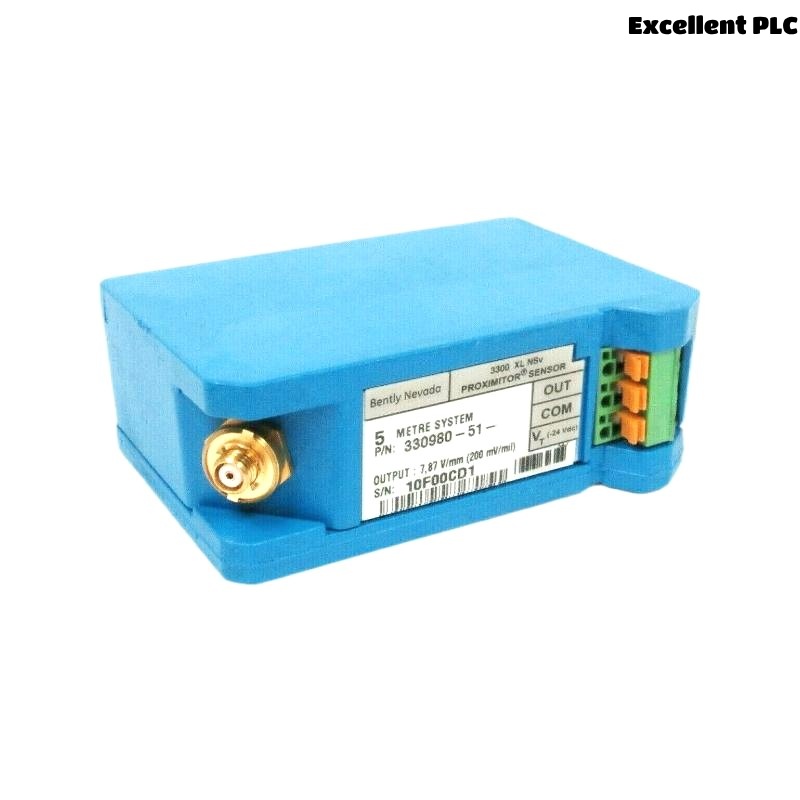

Bently Nevada 330980-51-00 3300 XL NSv Proximitor Sensor
Product Description
The Bently Nevada 330980-51-00 is part of the 3300 XL NSv Proximity Transducer System, engineered for machinery where space constraints exist—such as centrifugal compressors and small shaft applications. It integrates a probe, extension cable, and this Proximitor Sensor for accurate non-contact displacement, vibration, and position measurements.
Applications
-
Radial vibration and position monitoring on small shafts
-
Axial (thrust) position measurement
-
Phase reference detection (Keyphasor)
-
Zero-speed and tachometer measurements
-
Retrofits for 3300 RAM and 190 series systems
Advantages
-
Compact DIN-rail or panel mount form factor
-
Enhanced immunity to RFI/EMI
-
Fast installation with SpringLoc terminals
-
Compatible with legacy Bently Nevada systems
-
Sealed PPS tip and Viton O-ring for chemical and pressure resistance
Technical Specifications
| Parameter | Specification |
|---|---|
| System Type | 3300 XL NSv Proximitor Sensor |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 mm to 1.75 mm (10–70 mils) |
| Recommended Gap | 1.0 mm (40 mils) |
| Frequency Response | 0–10 kHz ±3 dB |
| Operating Temperature | -52°C to +100°C (Sensor), up to +177°C (Probe) |
| Storage Temperature | -52°C to +105°C |
| Humidity | 100% condensing (non-submersible when protected) |
| Power Supply | -17.5 Vdc to -26 Vdc, 12 mA max |
| Material (Sensor Housing) | A380 Aluminum |
| Material (Probe Tip/Case) | PPS / AISI 304 Stainless Steel |
| Total Length | 5.0 meters |
| Weight | 0.255 kg (255 g) |
| Probe Cable | 75 Ω FEP-insulated coaxial |
| Connector Type | ClickLoc gold-plated brass |
| Mounting Options | DIN-rail or panel mount |
| Approvals | SIL 2/3, CE, ATEX/IECEx, RoHS, cNRTLus |
FAQ
Q1: What is the output scale factor of the 330980-51-00?
A1: It is 7.87 V/mm (200 mV/mil), suitable for typical eddy current transducer applications.
Q2: Can this model be used for small shaft monitoring?
A2: Yes, it is specifically designed for shafts smaller than 51 mm in diameter.
Q3: Is it backward compatible with older Bently Nevada systems?
A3: Yes, it can replace 3300 RAM and 190 series systems with some component upgrades.
Q4: What mounting options are available?
A4: It supports both DIN rail and panel mounting.
Q5: Does the sensor come pre-calibrated?
A5: Yes, it is factory calibrated for AISI 4140 steel. Calibration for other materials is available.
Q6: What is the operating temperature range for the sensor?
A6: -52°C to +100°C for the sensor, and up to +177°C for the probe.
Q7: Is the system resistant to EMI/RFI interference?
A7: Yes, it is designed for strong electromagnetic immunity.
Q8: Can it be used in hazardous areas?
A8: Yes, it holds certifications including ATEX/IECEx for hazardous environments.
Q9: What is the weight of the complete sensor system?
A9: Total weight is approximately 0.255 kg.
Q10: What is the total length of this system?
A10: The system length is 5.0 meters.
Recommended Related Models (Same Series or Functionally Related)
| Model Number | Description | Total Length | Weight | Output Scale Factor |
|---|---|---|---|---|
| 330980-70-00 | 3300 XL NSv Proximitor Sensor, 7.0 m, panel | 7.0 m | ~0.26 kg | 200 mV/mil |
| 330901-00-24-05 | NSv Probe, 1/4-28 UNF, 2.4″ case, 5 m cable | 5.0 m | ~0.20 kg | 200 mV/mil |
| 330902-00-50-05 | NSv Probe with armor, 5.0 m | 5.0 m | ~0.22 kg | 200 mV/mil |
| 330930-060-00-00 | NSv Extension Cable, 6 m, unarmored | 6.0 m | ~0.27 kg | – |
| 330906-02-12-05 | NSv Reverse Mount Probe, 3/8-24, 5.0 m | 5.0 m | ~0.23 kg | 200 mV/mil |
| 330910-00-50-05 | NSv Probe, M10x1 thread, armored, 5.0 m | 5.0 m | ~0.25 kg | 200 mV/mil |
