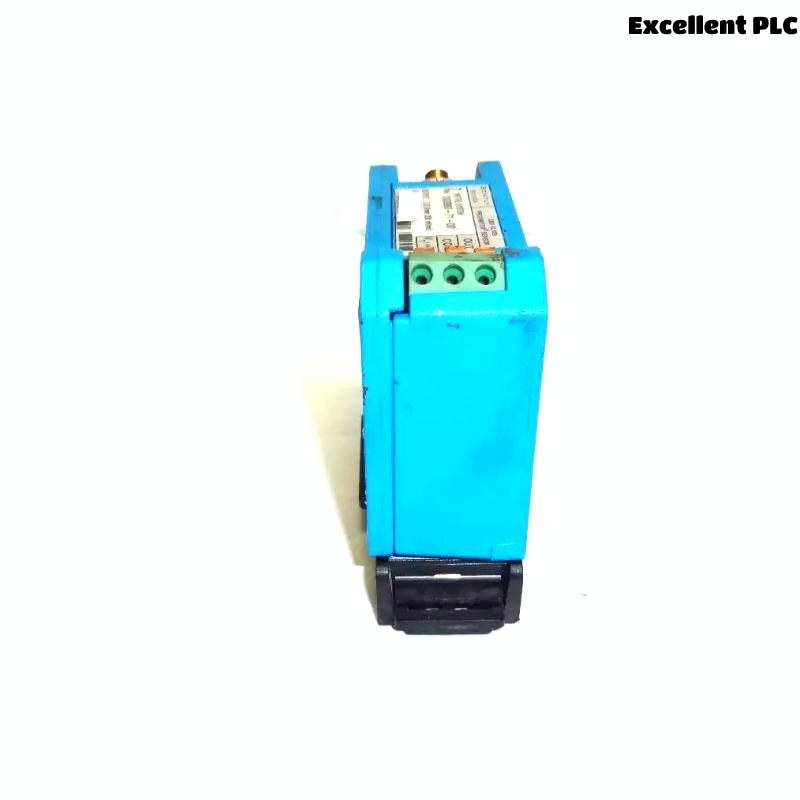

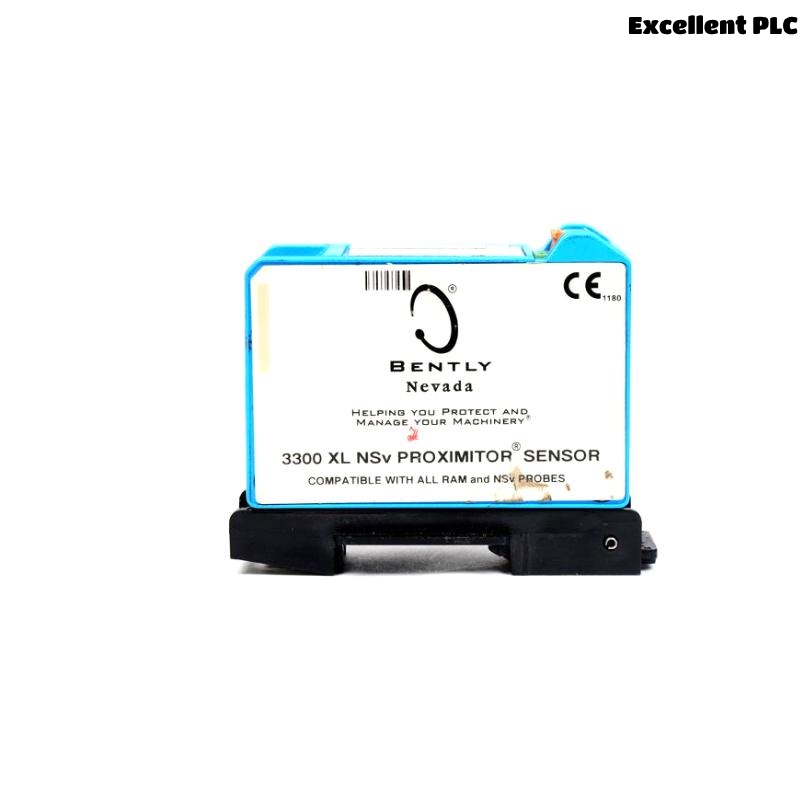

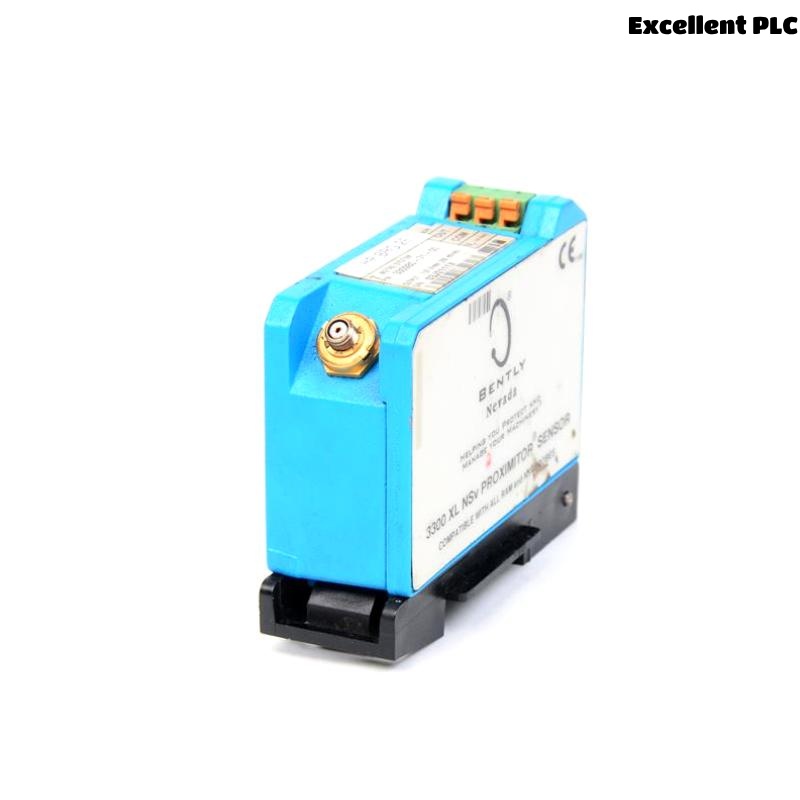

The Bently Nevada 330980-71-00 3300 XL NSv Front Sensor is a specialized component of the Bently Nevada 3300 XL NSv (Narrow Side-view) Series, designed to provide accurate, non-contact vibration and displacement measurement for small, high-speed rotating machinery where space limitations prevent the use of standard proximity probes.
Ideal for compact equipment with limited radial clearance, the 330980-71-00 features a narrow-profile front-mount design, delivering reliable, continuous monitoring of shaft vibration, position, and displacement. It integrates seamlessly with Bently Nevada’s 3300 XL NSv Proximitor® Sensors and is trusted in industries where machinery protection is essential.
Key Features
-
Narrow, Front-Mount Design: Optimized for machinery with restricted radial installation space
-
High-Precision Non-Contact Measurement: Eddy current technology for shaft vibration, displacement, and position monitoring
-
Compatible with 3300 XL NSv System: Integrates with NSv Probes, Cables, and Proximitor® Sensors
-
Ideal for Small, High-Speed Shafts: Provides accurate measurements for compact, fast-rotating equipment
-
Factory-Calibrated Performance: Ensures consistent, repeatable monitoring results
-
Rugged Industrial Construction: Operates reliably in harsh environments including oil, chemicals, dust, and extreme temperatures
-
Reliable Signal Stability: Maintains measurement accuracy even in electrically noisy environments
-
Designed for Critical Machinery Protection: Early fault detection to prevent unplanned downtime
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | 3300 XL NSv Front Sensor |
| Model Number | 330980-71-00 |
| System Compatibility | Bently Nevada 3300 XL NSv Proximity Transducer System |
| Sensing Technology | Eddy Current Non-Contact Displacement Measurement |
| Recommended Shaft Material | 4140 Steel or equivalent conductive materials |
| Linear Measurement Range | 0.25 mm to 2.0 mm (0.010 to 0.080 in) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) typical |
| Frequency Response | Up to 10 kHz for high-speed machinery applications |
| Sensor Mounting Style | Narrow Front-Mount Design |
| Probe Tip Diameter | 5 mm |
| Thread Size | M8 x 1.0 Metric |
| Environmental Resistance | Resistant to oil, moisture, chemicals, and mechanical wear |
| Operating Temperature Range | -35°C to +177°C |
| Storage Temperature Range | -51°C to +200°C |
| Electrical Isolation | Provided per system specifications |
| Certifications | CE, RoHS, ATEX, IECEx compliant (installation dependent) |
| Dimensions | Total Length: 7.0 meters |
| Weight | 0.255 kg |
Product Advantages
-
Space-Efficient Design: Enables installation in equipment with minimal clearance
-
Accurate Vibration and Displacement Monitoring: Supports early fault detection for improved machine reliability
-
High-Speed Shaft Capability: Suitable for small, fast-rotating machinery requiring precise monitoring
-
Industrial Durability: Withstands exposure to oil, chemicals, dust, and harsh process environments
-
Minimal Maintenance Requirement: Non-contact operation reduces sensor wear and prolongs service life
-
Seamless System Integration: Fully compatible with the Bently Nevada 3300 XL NSv monitoring system
-
Trusted Reliability: Industry-proven technology for condition monitoring and machinery protection
Industry Applications
The Bently Nevada 330980-71-00 3300 XL NSv Front Sensor is ideal for industries requiring compact, reliable proximity measurement on critical, space-constrained equipment:
-
Oil & Gas: Compressors, small pumps, and high-speed rotating auxiliary equipment
-
Power Generation: Small turbines, pumps, and motors in space-restricted installations
-
Petrochemical and Chemical Processing: Compact process machinery in hazardous environments
-
Marine and Offshore Platforms: Space-limited equipment on vessels or offshore installations
-
Mining and Metals: Conveyor drives, crushers, and small rotating components
-
Pulp & Paper: High-speed machinery in limited space applications
-
General Industrial OEM Applications: Integrated monitoring for compact rotating machinery
Frequently Asked Questions (FAQ)
Q1: What is the function of the 330980-71-00 sensor?
It provides non-contact measurement of shaft vibration, displacement, and position in small, high-speed machines.
Q2: How is the NSv series different from standard probes?
The NSv series features a narrow design optimized for machinery with minimal radial space.
Q3: Is this sensor suitable for high-speed shaft monitoring?
Yes, with frequency response up to 10 kHz, it is designed for fast-rotating, small-diameter shafts.
Q4: What is the typical measurement range?
It offers a linear range of approximately 0.25 mm to 2.0 mm, depending on shaft material and installation.
Q5: Can this sensor operate in harsh industrial environments?
Yes, it is resistant to oil, chemicals, moisture, dust, and operates in temperatures up to +177°C.
Q6: Does it require a specific Proximitor® Sensor?
Yes, it must be used with the corresponding 3300 XL NSv Proximitor® Sensor for correct system operation.
Q7: Is the sensor compatible with standard 3300 XL systems?
It is part of the NSv subset within the 3300 XL series, specifically for space-restricted, small machinery applications.
Q8: What materials are compatible with this sensor?
It is calibrated for conductive shaft materials such as 4140 Steel.
Q9: Is electrical isolation provided?
Yes, electrical isolation is integrated to ensure signal stability and system integrity.
Q10: What maintenance is required?
Minimal maintenance beyond regular inspections and proper installation is needed for reliable operation.
