Description

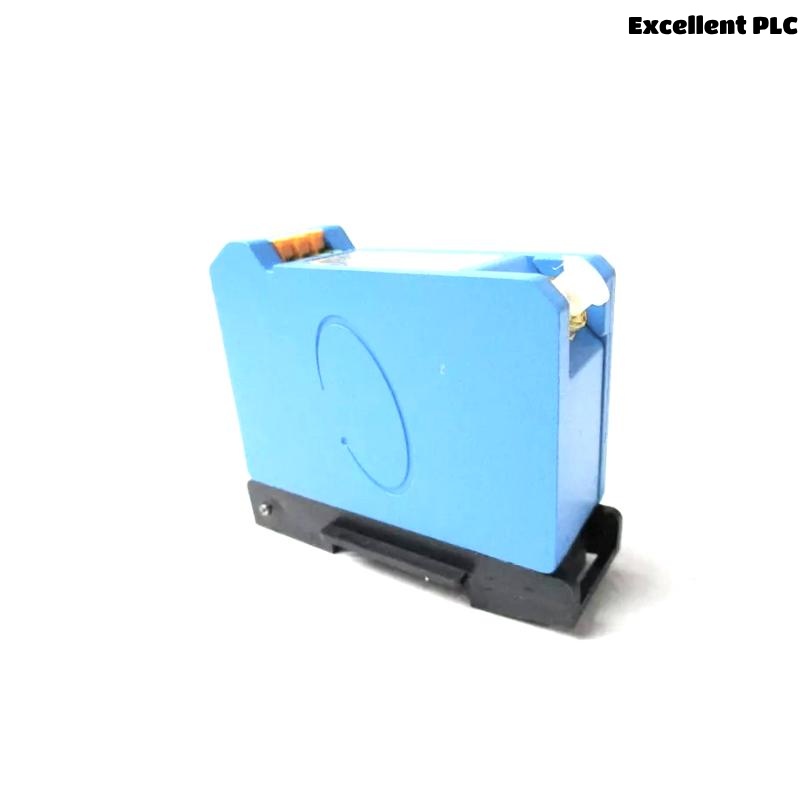

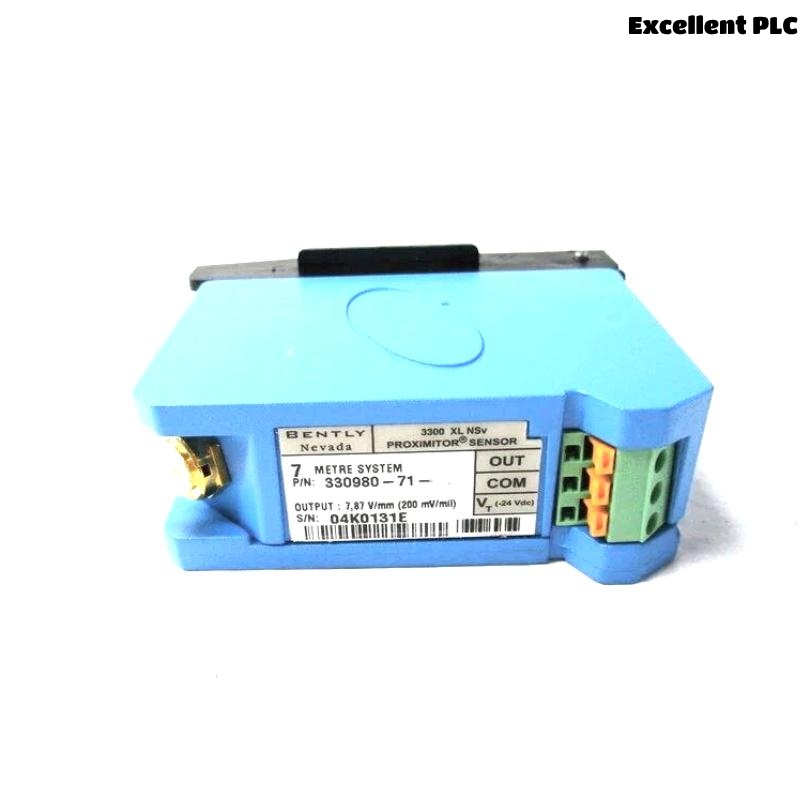

The Bently Nevada 330980-71-CN is part of the 3300 XL NSv Proximity Transducer System, specifically engineered for machinery with space constraints such as centrifugal compressors, small shaft turbines, and process gas compressors. This system includes a proximity probe, extension cable, and Proximitor sensor optimized for measuring vibration, position, and speed in applications where standard 5 mm or 8 mm systems are impractical.
The 330980-71-CN model features a 7.0-meter system length with DIN mounting. Its compact form factor, enhanced EMI/RFI immunity, and rugged mechanical design make it suitable for harsh industrial environments, including high humidity and corrosive conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| System Length | 7.0 meters |
| Weight | 0.255 kg (Proximitor Sensor only) |
| Linear Range | 1.5 mm (60 mils), from 0.25 mm to 1.75 mm |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) ±20% |
| Frequency Response | 0 to 10 kHz (+0, -3 dB typical) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 304 Stainless Steel |
| Sensor Case Material | A380 Aluminum |
| Cable Type | 75 Ω coaxial FEP insulated |
| Operating Temperature (Probe) | -52°C to +177°C |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Humidity | 100% condensing (non-submersible) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Target Size Compatibility | Flat target: min. 8.9 mm (0.35 in); Shaft: min. 30 mm (1.2 in) |
| Approvals | CE, RoHS, SIL2/SIL3, ATEX/IECEx, FCC, Maritime ABS |
Applications
-
Radial vibration monitoring on shafts < 51 mm in diameter
-
Axial (thrust) position measurements on targets < 15 mm
-
Speed and phase (Keyphasor) reference detection
-
Compact installations with rear/side view limitations
-
Upgrades for legacy systems (3300 RAM, 3000/7000 series)
Advantages
-
Compact design – Ideal for tight space constraints
-
High precision – Output of 200 mV/mil with short linear range for small target accuracy
-
Robust EMI/RFI protection – Complies with CE standards without special enclosures
-
Flexible mounting – Suitable for both DIN rail and panel mount configurations
-
Backward compatibility – Supports upgrades with existing probes and cables in many cases
-
Improved chemical resistance – Probe materials withstand corrosive process environments
FAQ
Q1: What does the “NSv” stand for in 3300 XL NSv?
A1: “NSv” refers to “Narrow Side view,” indicating it’s optimized for small target and restricted view applications.
Q2: Is this model compatible with older 3300 RAM probes?
A2: Yes, the 3300 NSv probe and cable are mechanically/electrically compatible with 3300 RAM components.
Q3: Can this system be used for axial position measurements?
A3: Yes, it supports both axial (thrust) and radial vibration/position measurements.
Q4: What is the output voltage scale factor?
A4: The average scale factor is 7.87 V/mm (200 mV/mil).
Q5: What is the environmental temperature limit of the sensor?
A5: The Proximitor sensor operates between -52°C to +100°C.
Q6: Is the sensor suitable for high-vibration environments?
A6: Yes, the sensor is designed to operate in harsh conditions including vibration and chemical exposure.
Q7: What mounting options are available for 330980-71-CN?
A7: It comes with DIN rail mounting hardware.
Q8: Does it meet hazardous area certifications?
A8: Yes, it meets ATEX, IECEx, and other global hazardous area requirements.
Q9: Can the sensor be installed without mounting hardware?
A9: Version 72 (330980-72) comes without mounting pads, intended as a spare.
Q10: Is the Proximitor sensor waterproof?
A10: It is not submersible, but can withstand 100% condensing humidity if connectors are protected.
Related Models (Same Series)
| Model Number | Description | System Length | Mount Type | Weight |
|---|---|---|---|---|
| 330980-70-CN | 3300 XL NSv Proximitor Sensor, Panel Mount | 7.0 m | Panel | 0.255 kg |
| 330980-50-CN | 3300 XL NSv Proximitor Sensor, Panel Mount | 5.0 m | Panel | 0.255 kg |
| 330980-51-CN | 3300 XL NSv Proximitor Sensor, DIN Mount | 5.0 m | DIN | 0.255 kg |
| 330980-52-CN | 3300 XL NSv Proximitor Sensor, No Mount | 5.0 m | None | 0.255 kg |
| 330980-71-CN | 3300 XL NSv Proximitor Sensor, DIN Mount | 7.0 m | DIN | 0.255 kg |
| 330980-72-CN | 3300 XL NSv Proximitor Sensor, No Mount | 7.0 m | None | 0.255 kg |
Popular Models from Bently Nevada
| Model Number | Description | Application | Output | Weight |
|---|---|---|---|---|
| 330104-00-10-10-02 | 3300 XL 8mm Proximity Probe | General purpose vibration/position | 200 mV/mil | ~0.14 kg |
| 330130-040-00-00 | 3300 XL Extension Cable, 4.0 m | Extension for probe to proximitor | N/A | ~0.18 kg |
| 330180-91-CN | 3300 XL Proximitor Sensor | Standard 8 mm sensor | 200 mV/mil | ~0.26 kg |
| 330730-040-00-00 | 3300 XL Extension Cable, armored, 4.0 m | Harsh environments | N/A | ~0.22 kg |
| 330950-01-05 | NSv Probe, 1/4-28 thread, armored | Compact compressors | 200 mV/mil | ~0.15 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor Module | Shaft vibration/seismic integration | N/A | ~0.50 kg |
