Product Introduction

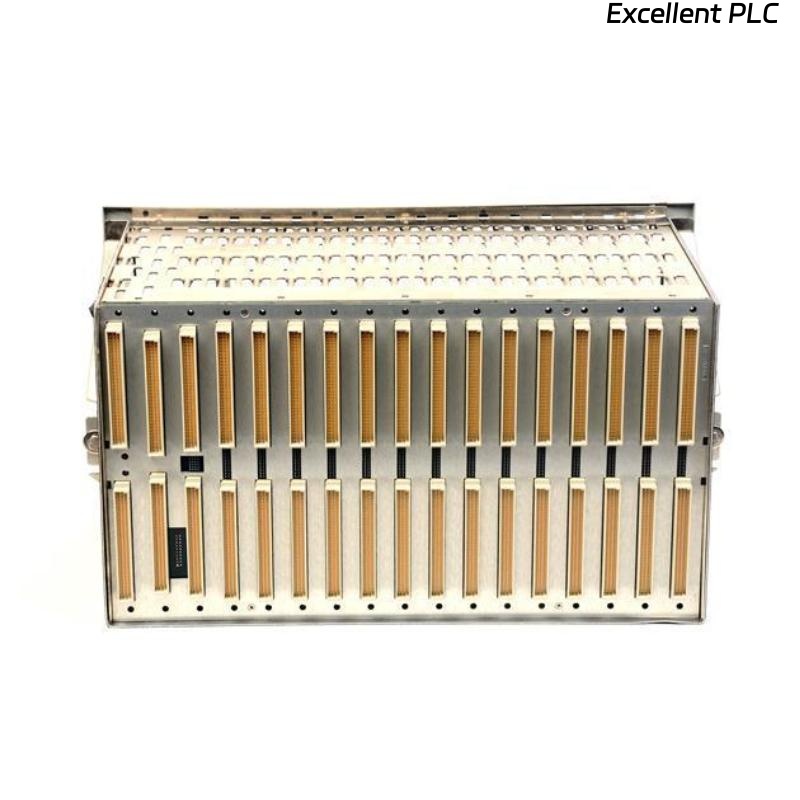

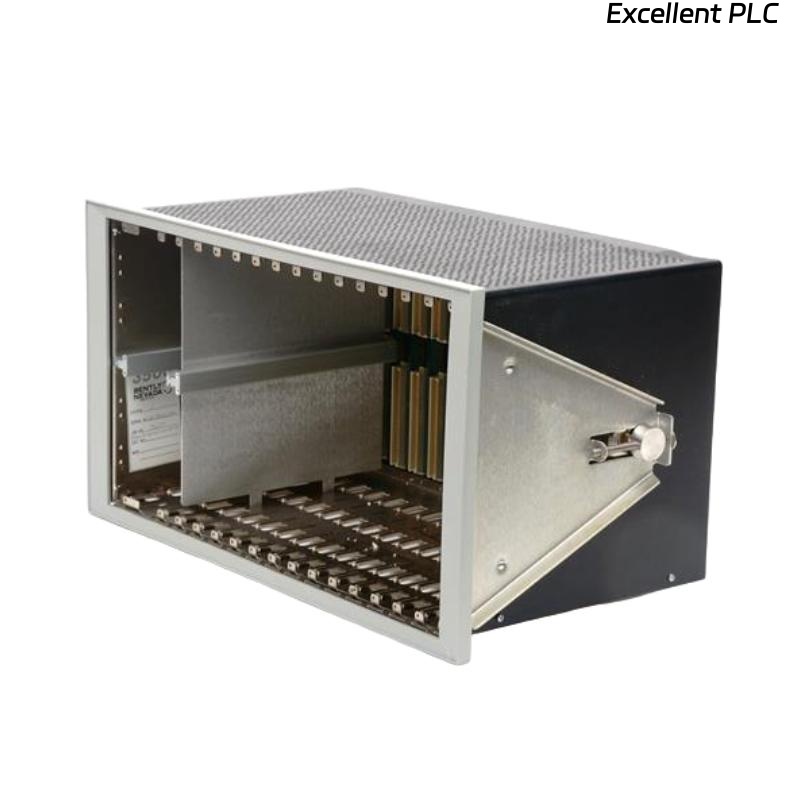

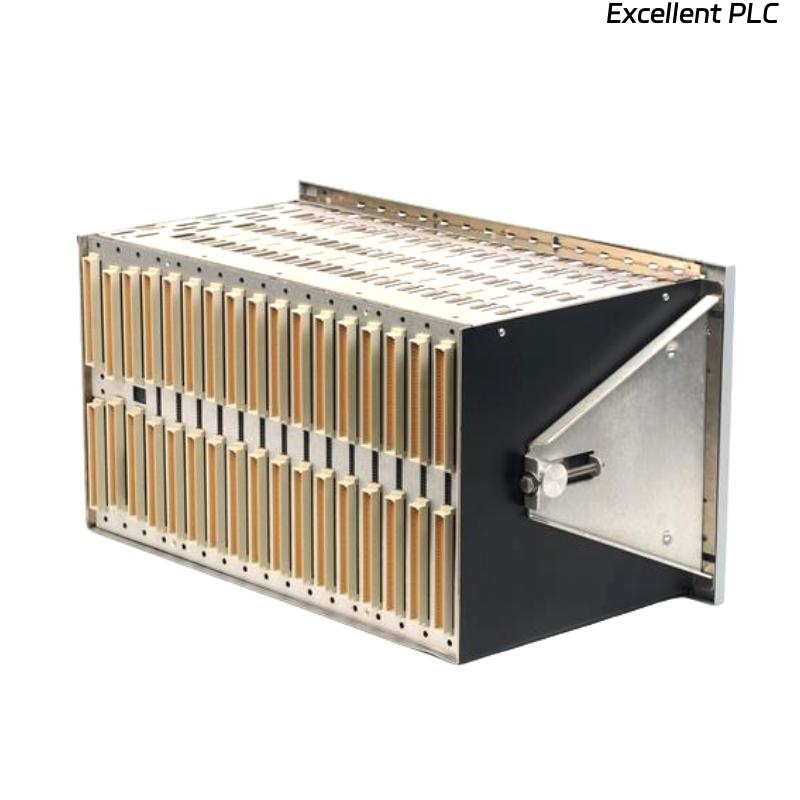

The Bently Nevada 3500/05-01-00-00-01 System Rack is a fundamental structural component designed specifically for housing and organizing the 3500 series monitoring modules. This system rack serves as the backbone of the Bently Nevada Machinery Protection System, providing the physical framework that accommodates various modules, including I/O, power supply, signal conditioning, and relay cards.
Engineered to stringent industrial standards, the rack ensures secure mechanical mounting, reliable electrical connections through its backplane, and efficient heat dissipation. Its rugged design withstands harsh operational environments typical in power generation, petrochemical, oil and gas, and heavy industrial sectors. The rack simplifies system assembly and maintenance with clear labeling, standardized slot arrangements, and modular construction, enabling easy expansion or replacement of individual components without system downtime.
This system rack facilitates organized cable management and enhances overall system reliability by minimizing connection errors and providing robust grounding and shielding. It is essential for ensuring the high-performance operation and longevity of the 3500 Machinery Protection System.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 3500/05-01-00-00-01 |
| Function | System rack for 3500 series modules |
| Compatible Modules | Bently Nevada 3500 series modules |
| Number of Slots | Typically 12 full or half-height slots |
| Material | Industrial-grade steel with powder coating |
| Rack Size | 19-inch (14 module slots) |
| Weight | 4.5 kg |
| Mounting Type | Rack-mount, cabinet or panel installation capable |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Environmental Rating | Designed for industrial environments with dust and moisture resistance |
| Cooling | Passive airflow with optional fan accessories |
Product Applications
The 3500/05 System Rack is widely used in industrial environments where machinery condition monitoring is critical, including:
-
Power Generation Plants – Hosting modules for turbine vibration and speed monitoring.
-
Oil & Gas Industry – Rack system for condition monitoring in refineries and offshore platforms.
-
Petrochemical Facilities – Organizing modules for critical rotating equipment protection.
-
Mining Operations – Supporting vibration monitoring systems in harsh underground environments.
-
Heavy Manufacturing – Protecting critical rotating machinery through reliable condition monitoring.
Product Advantages
-
Robust Construction – Durable steel frame designed for long-term industrial use.
-
Modular Design – Supports easy insertion and removal of various 3500 modules without system interruption.
-
Excellent Connectivity – Integrated backplane ensures reliable electrical contacts and signal integrity.
-
Effective Cooling – Passive airflow design minimizes overheating risks; fan kits available for enhanced cooling.
-
Simplified Maintenance – Standardized slot layout and clear labeling speed up module replacement and troubleshooting.
-
Environmental Protection – Powder-coated finish and sealed design protect against dust and moisture ingress.
FAQ
-
What types of modules does the 3500/05 rack support?
It supports all standard Bently Nevada 3500 series modules, including I/O, power supply, and relay cards. -
How many slots does the rack provide?
Typically 12 slots, configurable for full or half-height modules. -
What is the material of the rack?
Industrial-grade steel with a protective powder coating. -
Can the rack be installed in cabinets?
Yes, it is designed for rack-mount installation in cabinets or panels. -
Does the rack provide cooling for installed modules?
Yes, it uses passive airflow; optional fan kits can be installed for additional cooling. -
How is the rack grounded?
It includes integrated grounding points to ensure system safety and reduce electrical noise. -
Is the rack compatible with hazardous area installations?
Yes, when used with certified modules and accessories, it can be part of hazardous area systems. -
What are the rack’s operating temperature limits?
It operates safely between -30°C and +65°C (-22°F to +149°F). -
Can modules be hot-swapped in this rack?
Certain modules support hot-swap capability; consult module specifications. -
Is cable management supported within the rack?
Yes, the design allows organized cable routing to maintain clean and reliable connections.
