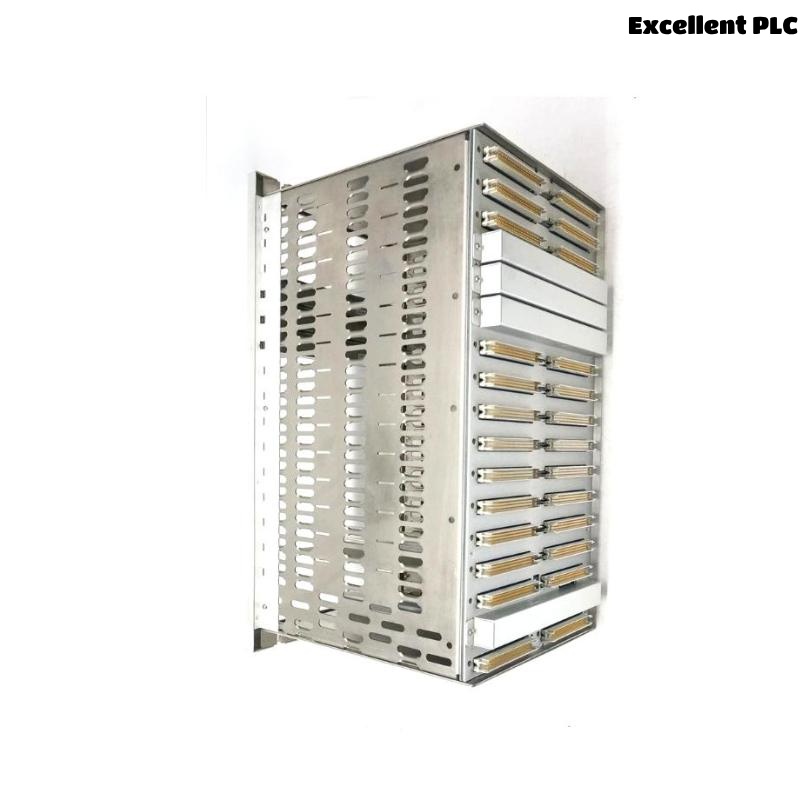

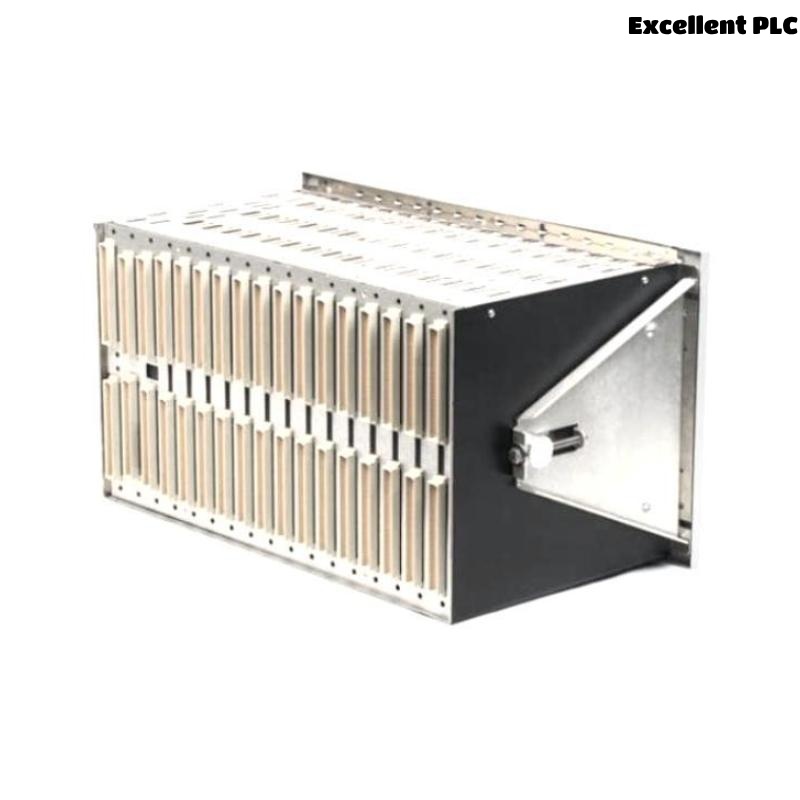

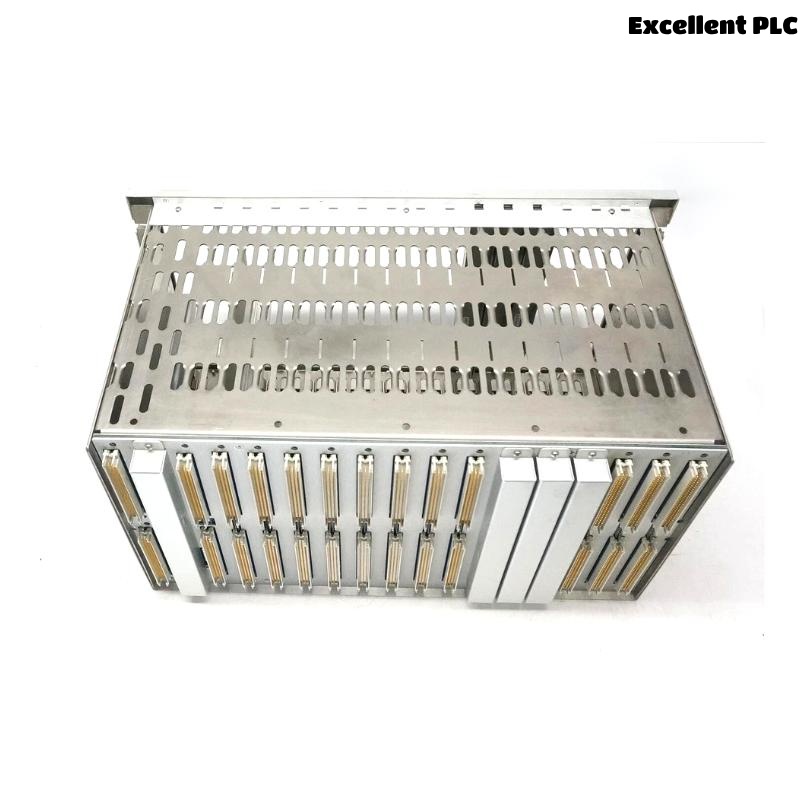

The Bently Nevada 3500/05-01-01-01-00-00 system rack is an integral component of the Bently Nevada 3500 series machinery monitoring systems. This rack serves as the central housing for up to 14 modules, providing the necessary power, interconnection, and secure mounting for critical monitoring devices in industrial environments. Designed with robustness and flexibility in mind, the 3500/05 system rack supports a wide range of modules, from vibration sensors to proximity probes, and is used in applications where machinery health monitoring and predictive maintenance are paramount.
This rack is engineered to meet the needs of industries that require high availability, reliability, and performance, including power generation, oil and gas, mining, and manufacturing. It plays a crucial role in reducing downtime, increasing efficiency, and prolonging the lifespan of machinery by enabling real-time monitoring of equipment performance.
The 3500/05 rack ensures seamless integration with other Bently Nevada products and offers a scalable solution that can grow with your system’s needs. Its durable construction, compatibility with various communication protocols, and ease of maintenance make it an ideal choice for industrial environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 3500/05-01-01-01-00-00 |
| Rack Size | 19-inch (14 module slots) |
| Weight | 4.5 kg |
| Power Supply | 24V DC |
| Module Slots | 14 |
| Mounting | 19-inch rack mountable |
| Communication Ports | RS-485, Modbus, Ethernet |
| Operating Temperature Range | -20°C to 60°C |
| Material | Aluminum and steel panels |
| Rack Dimensions | 483 mm (W) x 266 mm (H) x 250 mm (D) |
Product Applications
The 3500/05 system rack is used in various industrial applications where machinery monitoring and predictive maintenance are essential. Below are some key industries where this system rack excels:
-
Power Generation: In power plants, the 3500/05 system rack is used to monitor the condition of turbines, generators, and other critical rotating equipment. It helps detect early signs of failure, allowing for proactive maintenance and minimizing unscheduled downtime.
-
Oil and Gas: For oil and gas operations, this system rack is vital for monitoring pumps, compressors, turbines, and other essential equipment. It ensures safe and efficient operation by identifying potential problems before they escalate.
-
Mining: The 3500/05 system rack plays a critical role in mining operations by monitoring heavy machinery like crushers, mills, and conveyors. It helps ensure that these machines operate efficiently and without unexpected failures that could cause costly delays.
-
Manufacturing: In manufacturing plants, the rack is used for monitoring equipment such as motors, pumps, and compressors. It enables companies to track the health of their equipment and take preventive measures to avoid downtime.
-
Chemical Processing: The 3500/05 system rack helps chemical plants monitor reactors, pumps, and compressors, ensuring that these critical components operate smoothly and efficiently. By providing real-time diagnostics, it minimizes the risk of breakdowns and production halts.
The system rack can be used to monitor a wide range of machinery and can be adapted for various industries, making it an indispensable tool for machinery protection and predictive maintenance.
Product Advantages
-
Compact and Space-Saving Design: The 3500/05 system rack features a 19-inch design, allowing it to fit easily into standard industrial racks. Despite its compact size, it accommodates up to 14 modules, making it highly efficient for monitoring multiple pieces of equipment in a limited space.
-
High Modular Capacity: With 14 available slots, the 3500/05 system rack offers scalability, enabling users to monitor numerous devices without needing to invest in additional racks or hardware.
-
Reliable and Durable Construction: Built with a rugged aluminum and steel frame, this system rack can withstand the harsh conditions found in industrial environments. It is engineered for long-term reliability, ensuring that the monitoring system remains operational even under challenging circumstances.
-
Flexible Communication Options: The 3500/05 system rack supports several communication protocols, including RS-485, Modbus, and Ethernet, making it easy to integrate with other control systems and monitoring devices. This ensures seamless data transfer and real-time diagnostics.
-
Wide Operating Temperature Range: Capable of operating in temperatures ranging from -20°C to 60°C, the 3500/05 system rack is well-suited for both hot and cold environments, offering flexibility for use in a variety of climates and industrial settings.
-
Ease of Maintenance: The 3500/05 system rack’s modular design allows for easy maintenance. Modules can be replaced or upgraded without disrupting the entire system, minimizing downtime and reducing operational disruptions.
-
Centralized Monitoring: The rack provides a centralized location for monitoring all critical machinery, helping operators quickly detect faults and take appropriate action. This centralized approach simplifies system management and improves the speed of troubleshooting.
-
Cost-Effective: By reducing the need for frequent downtime, repairs, and replacements, the 3500/05 system rack helps reduce overall maintenance costs. Additionally, its long lifespan and easy integration into existing systems make it a cost-effective solution for industrial facilities.
-
Compatibility with Bently Nevada Products: The 3500/05 system rack is fully compatible with other Bently Nevada monitoring modules, providing a unified and efficient solution for comprehensive machinery health monitoring.
-
Scalability: As industries grow and their machinery needs increase, the 3500/05 system rack can be expanded by adding more modules, making it an adaptable solution for growing facilities.
Frequently Asked Questions (FAQs)
-
What is the size of the Bently Nevada 3500/05 system rack?
-
The system rack has a 19-inch size and can accommodate 14 modules.
-
-
How much does the Bently Nevada 3500/05 system rack weigh?
-
The rack weighs 4.5 kg.
-
-
What temperature range can the Bently Nevada 3500/05 system rack operate in?
-
It operates in temperatures ranging from -20°C to 60°C.
-
-
How many modules can the Bently Nevada 3500/05 system rack hold?
-
The rack has 14 module slots, allowing for multiple devices to be mounted.
-
-
What communication protocols are supported by the Bently Nevada 3500/05 system rack?
-
It supports RS-485, Modbus, and Ethernet communication protocols.
-
-
What is the power supply requirement for the Bently Nevada 3500/05 system rack?
-
The system rack requires a 24V DC power supply.
-
-
What industries use the Bently Nevada 3500/05 system rack?
-
The rack is widely used in industries such as power generation, oil & gas, mining, manufacturing, and chemical processing.
-
-
Is the Bently Nevada 3500/05 system rack suitable for harsh industrial environments?
-
Yes, the rack is designed with a rugged aluminum and steel construction to withstand harsh industrial conditions.
-
-
Can I use the Bently Nevada 3500/05 system rack with other Bently Nevada products?
-
Yes, the system rack is fully compatible with other Bently Nevada 3500 series monitoring modules.
-
-
How do I install the Bently Nevada 3500/05 system rack?
-
The system rack is designed to be mounted in a 19-inch industrial rack for easy integration into existing monitoring systems.
-
