Product Overview

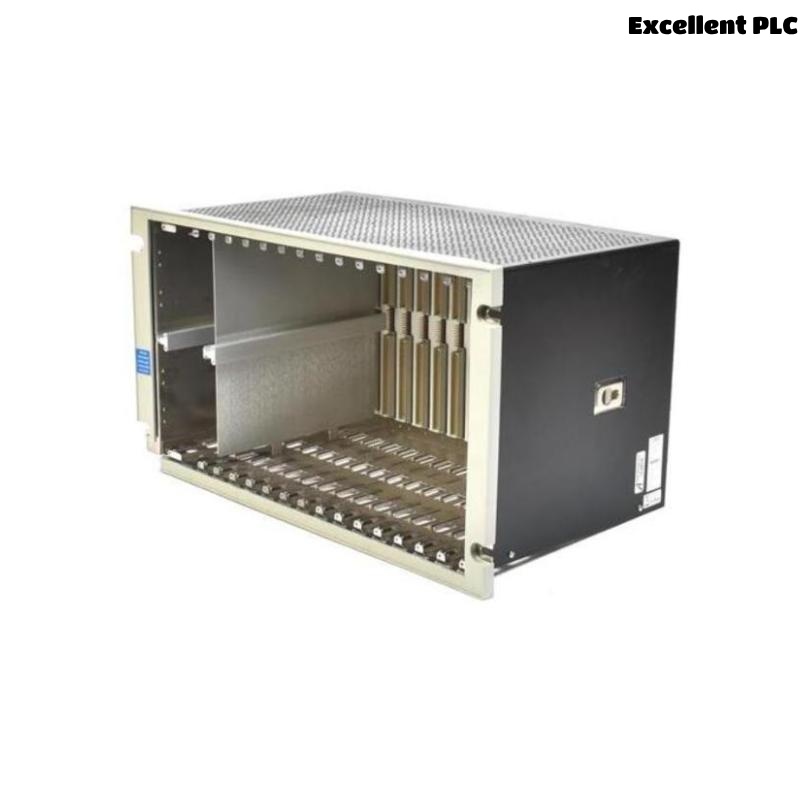

The Bently Nevada 3500/05-01-01-01-00-01 system rack is an integral component of the 3500 Series machinery protection system. This model is designed to house and interconnect up to 14 modules including monitoring, relay, communication, and power supply units, providing a flexible and modular framework for continuous machinery monitoring in critical industrial applications.

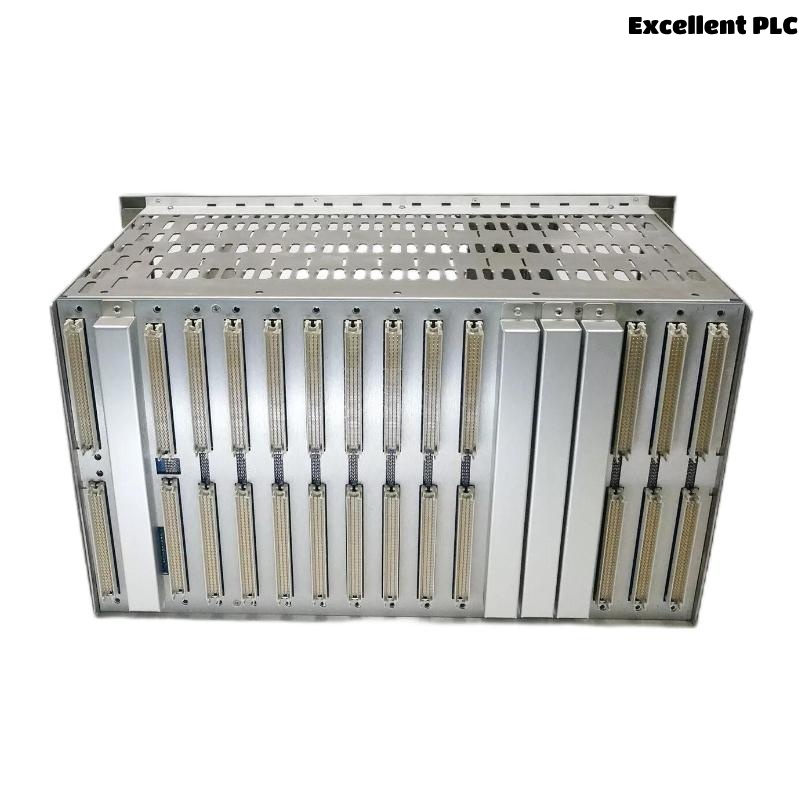

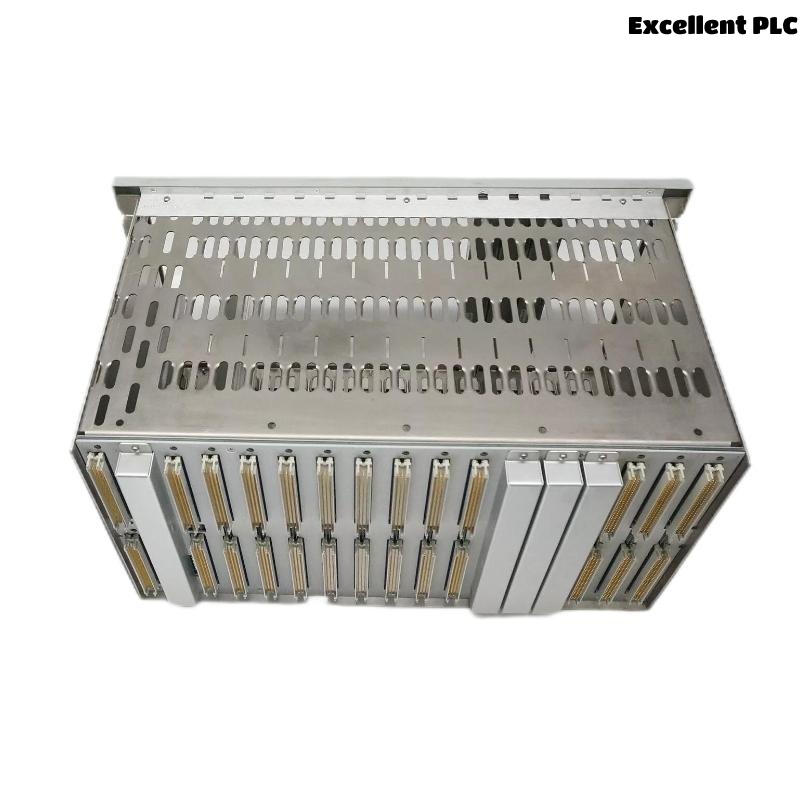

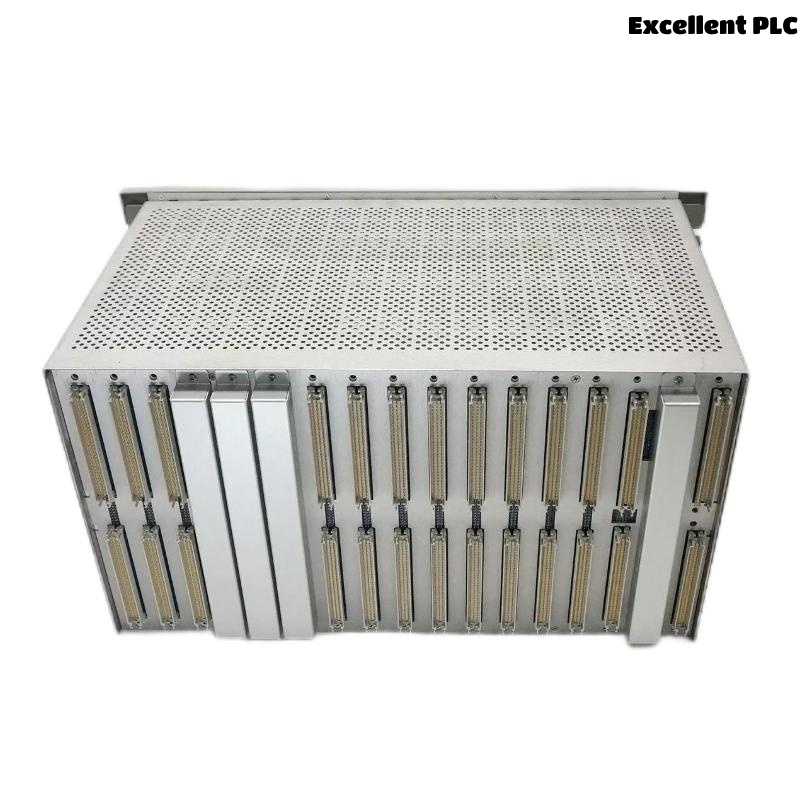

As a 19-inch standard rack with rear I/O access, this configuration supports optimized cabling and enhanced serviceability. It features robust construction, passive cooling, and reliable electrical backplane connectivity, ensuring stable operation in demanding environments such as oil & gas production, power plants, and chemical processing facilities. The rack’s design simplifies installation, minimizes footprint, and ensures system longevity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/05-01-01-01-00-01 |
| Brand | Bently Nevada |
| Product Type | 3500 Series System Rack |
| Rack Size | 19-inch (14 module slots) |
| Weight | 4.5 kg |
| Mounting Style | 19-inch standard rack-mount |
| Module Compatibility | All 3500 Series modules |
| Backplane | Integrated signal and power backplane |
| Rear I/O Access | Yes |
| Cooling Method | Passive (fanless) |
| Construction Material | Anodized aluminum with stainless steel hardware |
| Grounding | Built-in system grounding plane |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 0% to 95% RH (non-condensing) |
| Compliance | CE, UL, CSA (as part of full system) |
Applications
The 3500/05-01-01-01-00-01 system rack is essential for advanced machine condition monitoring and is widely used in:
-
Turbomachinery Monitoring
Supports vibration and position sensors for turbines and compressors. -
Rotating Equipment Protection
Integrates with proximity probes and temperature sensors on motors, pumps, and fans. -
Oil & Gas Facilities
Enables real-time diagnostics and protection for critical rotating assets. -
Power Generation Plants
Deployed in gas, steam, and hydroelectric plants for continuous equipment assessment. -
Petrochemical Plants
Supports hazardous area installations for compressors, blowers, and expanders. -
Industrial Manufacturing
Applied in automated production systems to monitor and protect mechanical components.
Advantages
-
Modular and Scalable Architecture
Accommodates up to 14 monitoring and communication modules with easy expansion. -
Rear I/O Configuration
Allows cleaner cable routing and simplified system serviceability. -
Durable Industrial Design
Constructed with corrosion-resistant metals for harsh environments. -
Fanless Cooling Design
Enhances reliability by reducing moving parts that require maintenance. -
Integrated Grounding Bus
Protects against electrical interference and ensures system safety. -
Standard 19-inch Rack Compatibility
Easily mounts into common cabinet enclosures and panels. -
Low Footprint and Lightweight
Weighs only 4.5 kg, minimizing structural support requirements. -
Universal Module Support
Fully supports all 3500 Series cards for monitoring, diagnostics, and control.
Frequently Asked Questions (FAQ)
Q1: How many slots are available in this system rack?
A1: This rack provides 14 module slots.
Q2: Does this rack support rear I/O access?
A2: Yes, it is designed with rear I/O access for improved cable organization.
Q3: What kind of modules can be installed?
A3: It supports all 3500 Series modules, including monitors, relays, TDI, and power supplies.
Q4: Is active cooling required?
A4: No, the rack uses passive cooling and does not require fans.
Q5: What is the rack’s construction material?
A5: It is built from anodized aluminum with stainless steel fasteners.
Q6: Can it be mounted in standard control cabinets?
A6: Yes, it is a 19-inch standard rack-mount design.
Q7: How much does the rack weigh?
A7: Approximately 4.5 kg.
Q8: Is grounding integrated into the rack design?
A8: Yes, it features a built-in grounding plane.
Q9: Is this model CE certified?
A9: Yes, when configured as part of a complete certified 3500 system.
Q10: Can the rack be used in high-vibration environments?
A10: Yes, when installed properly, it is suitable for high-vibration industrial settings.
Related Models (Same Series)
| Model | Description | Function | Weight | Rack Size |
|---|---|---|---|---|
| 3500/05-01-01-00-00 | Standard rack, front I/O only | Base model system rack | 4.5 kg | 19-inch (14 slots) |
| 3500/05-02-01-00-00 | Rack with dual TDI support | Enhanced communication redundancy | 4.8 kg | 19-inch |
| 3500/05-01-02-01-00 | Rear I/O + redundant power support | Redundancy & service access | 5.0 kg | 19-inch |
| 3500/05-03-01-00-00 | High-temp rugged rack | Harsh environment compatibility | 4.9 kg | 19-inch |
| 3500/05-04-01-00-00 | Rack with field enclosure capability | Outdoor or field-ready applications | 6.0 kg | 19-inch |
| 3500/05-01-01-01-01 | Rear access with EMI shielding | Ideal for noise-sensitive installs | 4.6 kg | 19-inch |
Popular Bently Nevada Models (Same Brand)
| Model | Description | Dimensions (mm) |
|---|---|---|
| 3500/05-01-02-00-00-01 | 3500 System Rack, 19″, basic model with standard backplane | 483 x 266 x 249 |
| 3500/05-01-02-01-00-00 | 3500 System Rack, standard version, full-height slots | 483 x 266 x 249 |
| 3500/05-01-02-01-00-01 | 3500 System Rack, standard version with revision ID | 483 x 266 x 249 |
| 3500/05-01-02-00-00-00 | 3500 System Rack, basic version, no revision mark | 483 x 266 x 249 |
| 3500/05-01-02-02-00-00 | 3500 System Rack, extended airflow support, standard layout | 483 x 266 x 249 |
| 3500/05-01-02-02-00-01 | 3500 System Rack, same as above with configuration ID | 483 x 266 x 249 |
