Product Overview

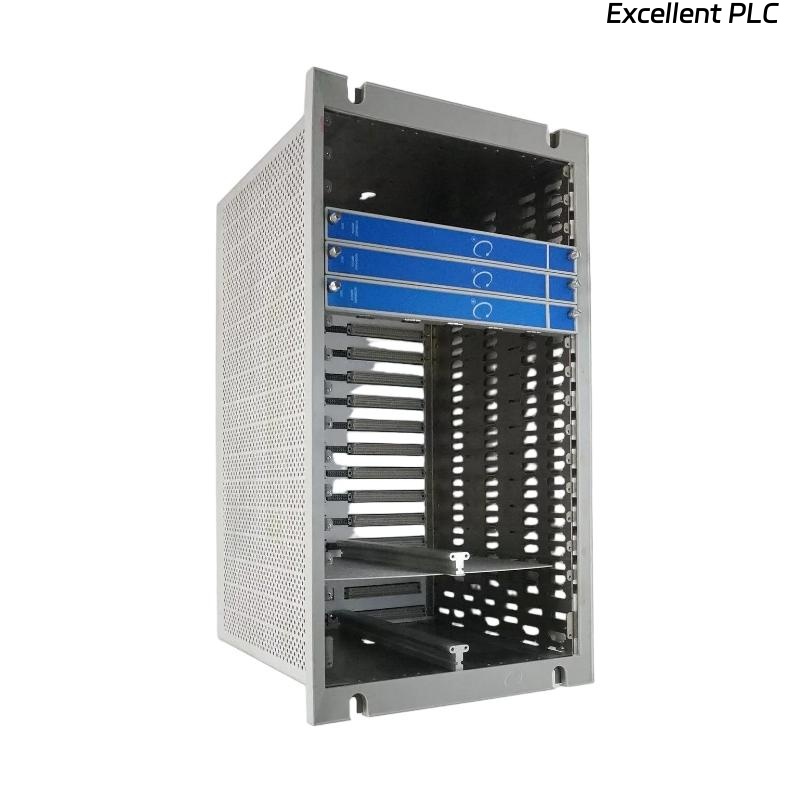

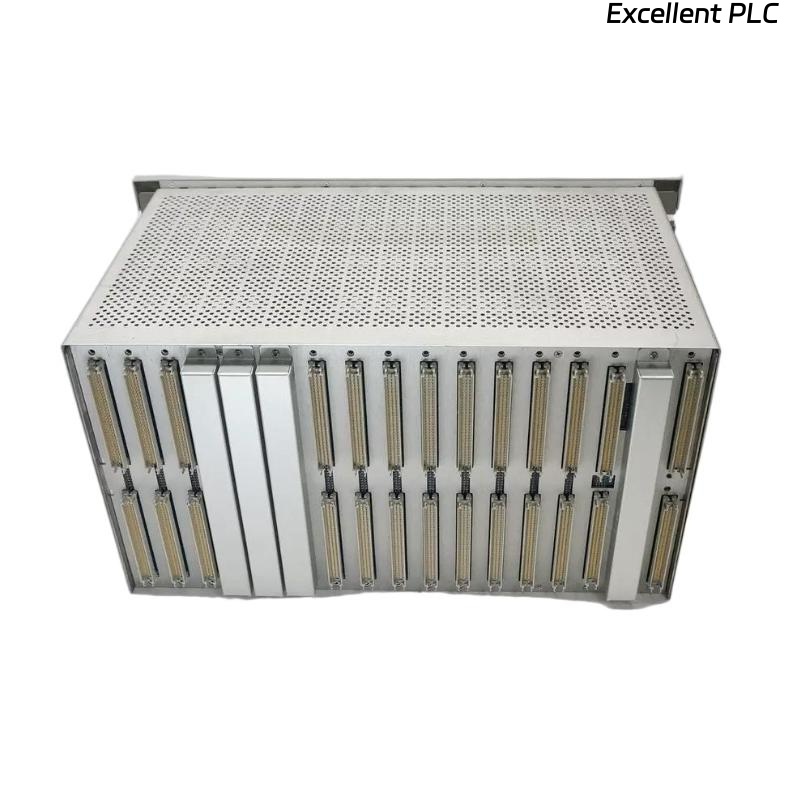

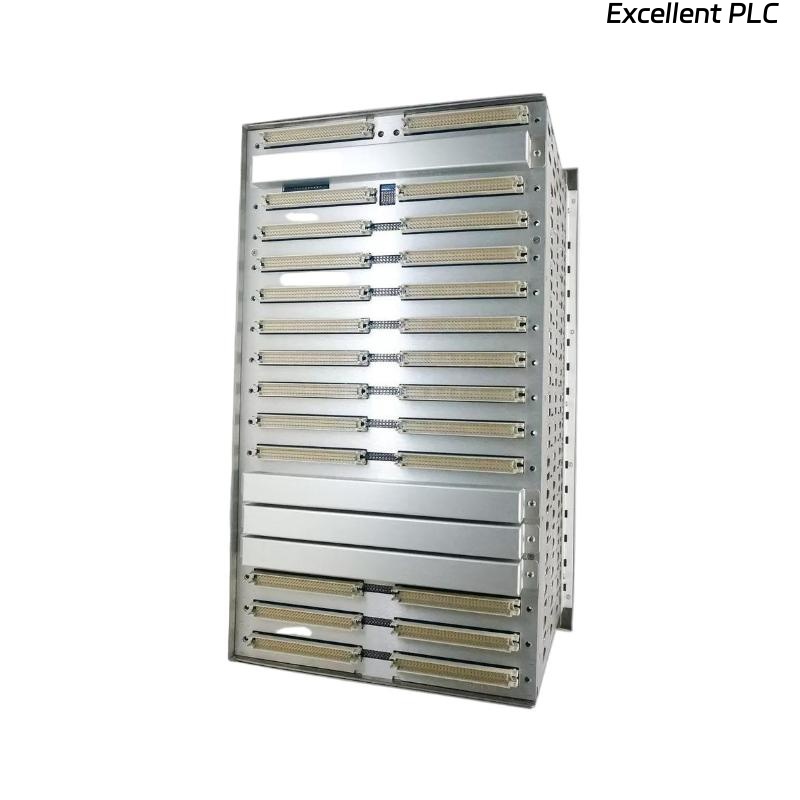

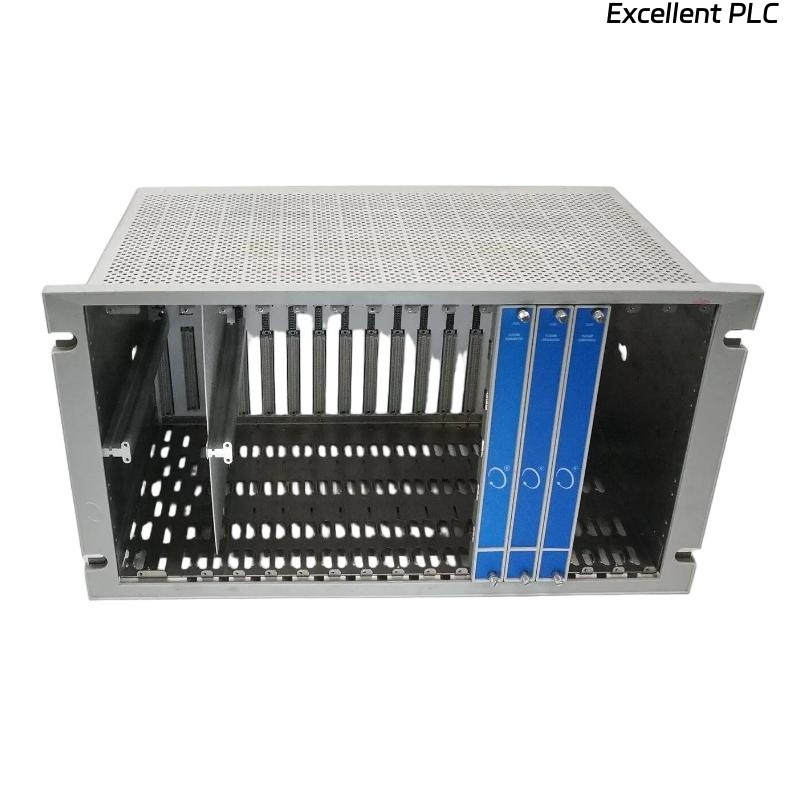

The Bently Nevada 3500/05-01-01-02-00-01 System Rack is a high-quality, modular rack designed to house Bently Nevada 3500 series machinery protection and monitoring modules. It offers flexibility in system configuration with support for redundant power supplies, ensuring continuous operation in critical machinery monitoring applications. Engineered for durability, this system rack supports complex monitoring systems in industries such as power generation, oil and gas, petrochemicals, and manufacturing.
Key Features
-
Modular design supporting multiple module slots
-
Supports up to two redundant power supplies for increased system reliability
-
Rugged construction suitable for harsh industrial environments
-
Compatible with all Bently Nevada 3500 series modules
-
Provides efficient cooling and easy access for maintenance
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 3500/05-01-01-02-00-01 |
| Product Type | System Rack |
| Number of Slots | Up to 14 module positions |
| Power Supply Slots | 2 redundant power supply slots |
| Mounting Type | 19-inch rack mount or panel mount |
| Dimensions | Rack Size : 19-inch (14 module slots) |
| Weight | 4.5 kg |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Construction | Aluminum frame with durable coating |
| Compatibility | Bently Nevada 3500 Series modules |
Industry Applications
-
Power generation machinery protection
-
Oil and gas rotating equipment monitoring
-
Petrochemical process equipment reliability
-
Pulp and paper industry machinery monitoring
-
Mining and metals equipment protection
-
Marine and offshore rotating machinery systems
Frequently Asked Questions (FAQ)
Q1: How many modules does the rack support?
It supports up to 14 monitoring and communication modules.
Q2: Does it support redundant power supplies?
Yes, it supports up to two redundant power supply slots.
Q3: What is the operating temperature range?
-30°C to +65°C (-22°F to +149°F).
Q4: Can it be mounted in a standard 19-inch rack?
Yes, it supports standard 19-inch rack and panel mounting.
Q5: Is the rack compatible with all 3500 series modules?
Yes, it is compatible with all Bently Nevada 3500 series modules.
Q6: What is the weight of the rack?
Approximately 4.5 kg .
Q7: Is it designed for harsh industrial environments?
Yes, it features rugged construction for reliable performance.
Q8: Can modules be replaced without system shutdown?
Yes, the design supports hot-swappable modules.
Q9: Does the rack include power supplies?
No, power supplies are sold separately.
Q10: Is the rack suitable for hazardous locations?
The rack itself is not rated for hazardous locations but can be used with certified modules.
Related Models
| Model Number | Description |
|---|---|
| 3500/05-01-01-00-00-00 | Standard 3500/05 System Rack |
| 3500/05-02-01-00-00-00 | Dual power supply 3500/05 System Rack |
| 3500/05-02-02-00-00-00 | Extended 3500/05 System Rack |
| 3500/15-01-01-00 | AC Power Supply Module |
| 3500/22M-01-01-00 | Transient Data Interface Module |
| 3500/40-01-01-00 | Vibration Monitoring Module |
