Product Overview

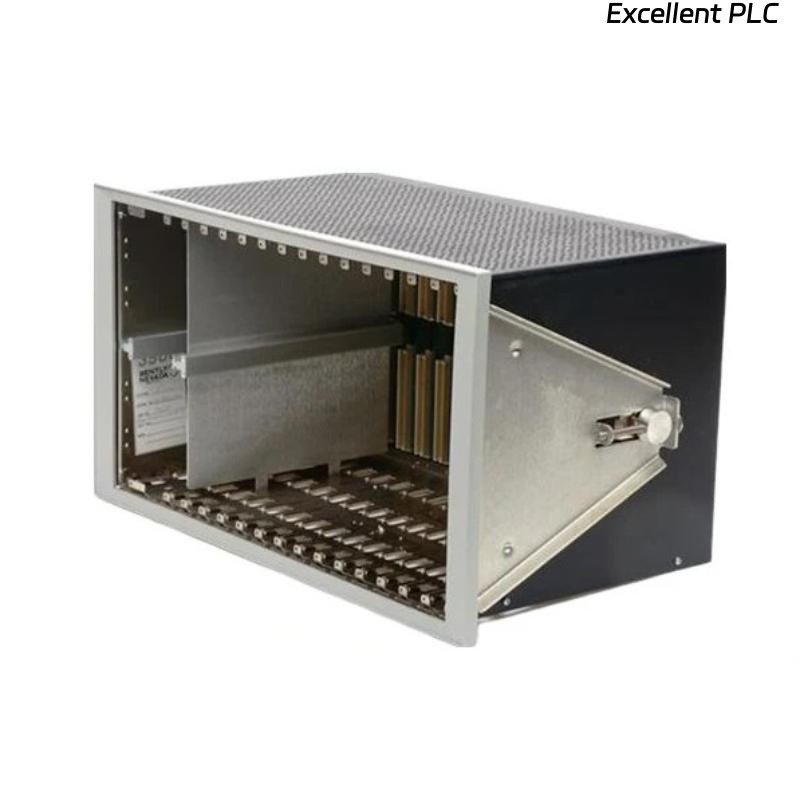

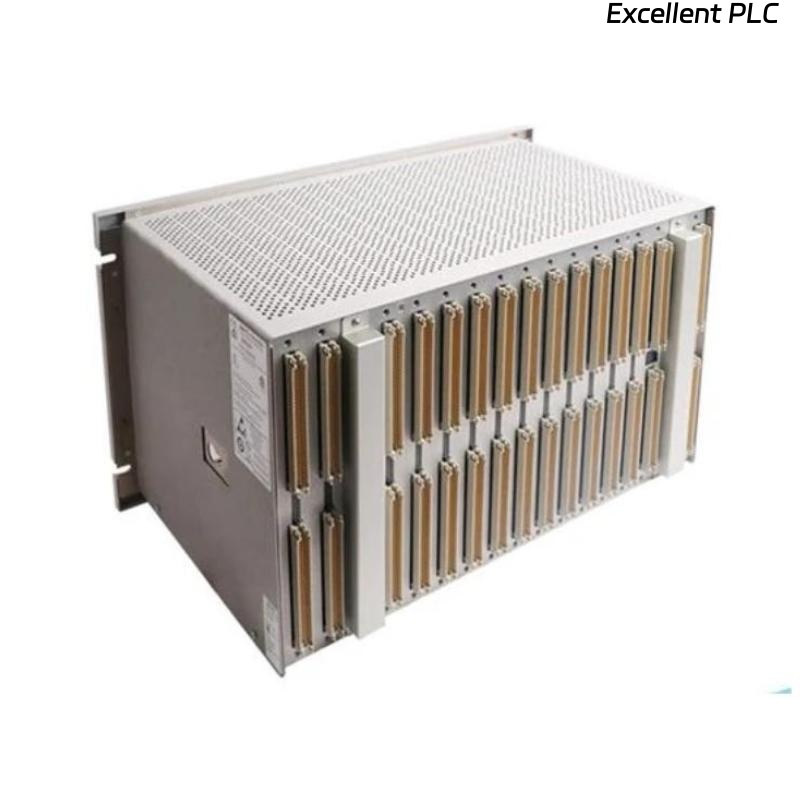

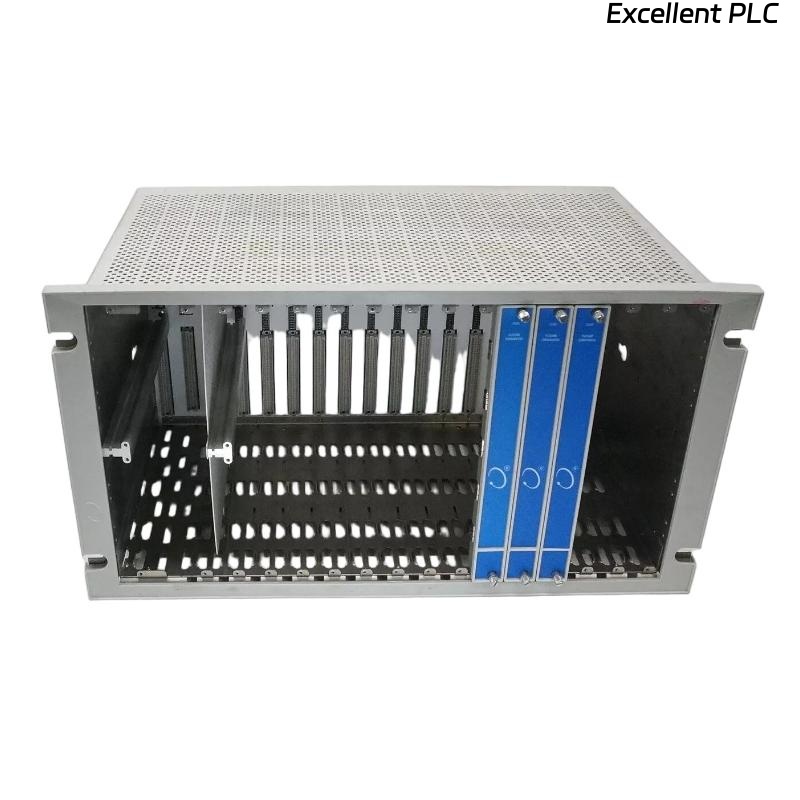

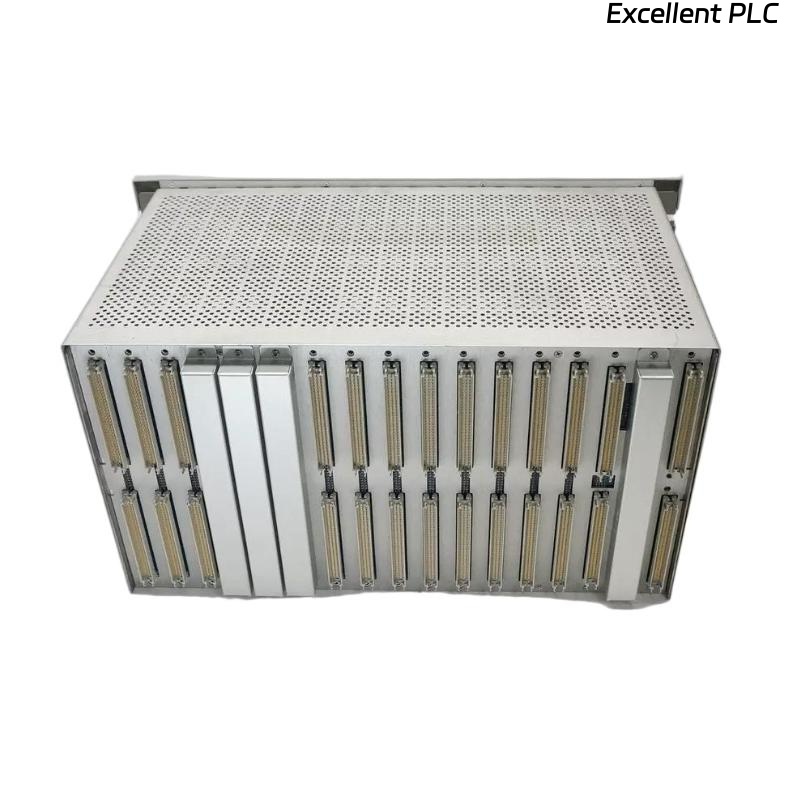

The Bently Nevada 3500/05-01-02-00-00 System Rack is a robust, modular platform designed to house Bently Nevada 3500 series machinery protection and monitoring modules. This system rack is built to provide high reliability and flexibility, supporting up to 14 module slots with the option for redundant power supplies. Designed for operation in harsh industrial environments, it ensures stable and secure power distribution and interconnectivity for critical machinery monitoring systems in industries such as power generation, petrochemical, and oil & gas.
Key Features
-
Modular Design – Supports flexible configurations with up to 14 monitoring and protection modules.
-
Redundant Power Supply Slots – Accommodates up to two redundant power supplies for enhanced system reliability.
-
Rugged Construction – Built with durable aluminum for long-term use in industrial environments.
-
Compatibility – Fully compatible with all Bently Nevada 3500 series modules.
-
Cooling and Maintenance – Designed for efficient cooling and ease of module replacement.
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 3500/05-01-02-00-00 |
| Product Type | System Rack |
| Number of Slots | Up to 14 module positions |
| Power Supply Slots | 2 redundant power supply slots |
| Mounting Type | 19-inch rack mount or panel mount |
| Dimensions | Rack Size : 19-inch (14 module slots) |
| Weight | 4.5 kg |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Construction | Aluminum frame with durable coating |
| Compatibility | Bently Nevada 3500 Series modules |
Industry Applications
-
Power Generation – Protecting turbines, generators, and auxiliary systems.
-
Oil & Gas – Monitoring equipment across upstream and downstream processes.
-
Petrochemical – Machinery protection in chemical processing facilities.
-
Pulp and Paper – Monitoring large-scale machinery used in paper mills.
-
Mining & Metals – Ensuring the reliability of critical machinery in mining operations.
-
Marine – Condition monitoring for rotating machinery on offshore platforms and vessels.
Frequently Asked Questions (FAQ)
Q1: How many modules can the system rack hold?
It can accommodate up to 14 modules, depending on the configuration.
Q2: Does the rack support redundant power supplies?
Yes, the rack supports up to two redundant power supply modules.
Q3: What is the operating temperature range of the rack?
The operating range is from -30°C to +65°C (-22°F to +149°F).
Q4: Can the system rack be mounted in a standard 19-inch rack?
Yes, it supports 19-inch rack and panel mounting.
Q5: Is the rack compatible with all Bently Nevada 3500 series modules?
Yes, it is compatible with all standard Bently Nevada 3500 series modules.
Q6: What is the weight of the 3500/05 System Rack?
The rack weighs approximately 4.5 kg.
Q7: Is the rack designed for rugged industrial conditions?
Yes, it is built to withstand tough industrial environments with its durable aluminum frame.
Q8: Can modules be replaced without powering down the system?
Yes, the modules are hot-swappable for easy maintenance.
Q9: Does the rack come with power supplies?
No, power supplies are sold separately.
Q10: Is the rack suitable for hazardous locations?
While the rack is not rated for hazardous locations, it can be paired with certified Bently Nevada modules for such environments.
Related Models
| Model Number | Description |
|---|---|
| 3500/05-01-01-00-00-00 | Standard 3500/05 System Rack |
| 3500/05-01-02-02-00-00 | Extended Configuration 3500/05 System Rack |
| 3500/15-01-01-00 | AC Power Supply Module |
| 3500/22M-01-01-00 | Transient Data Interface Module |
| 3500/40-01-01-00 | Vibration Monitoring Module |
| 3500/50-01-01-00 | Tachometer Module |
