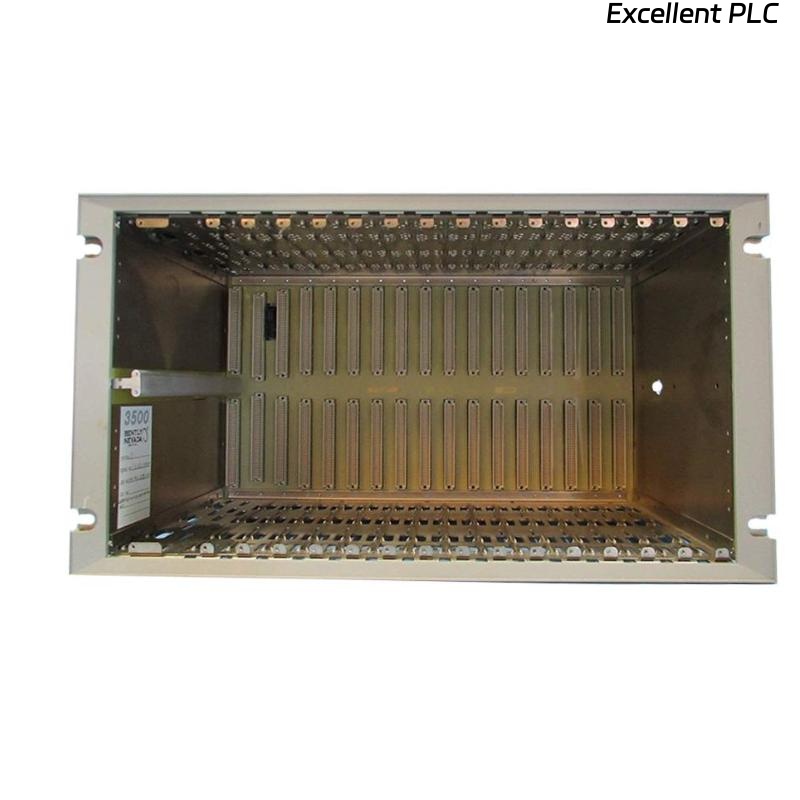

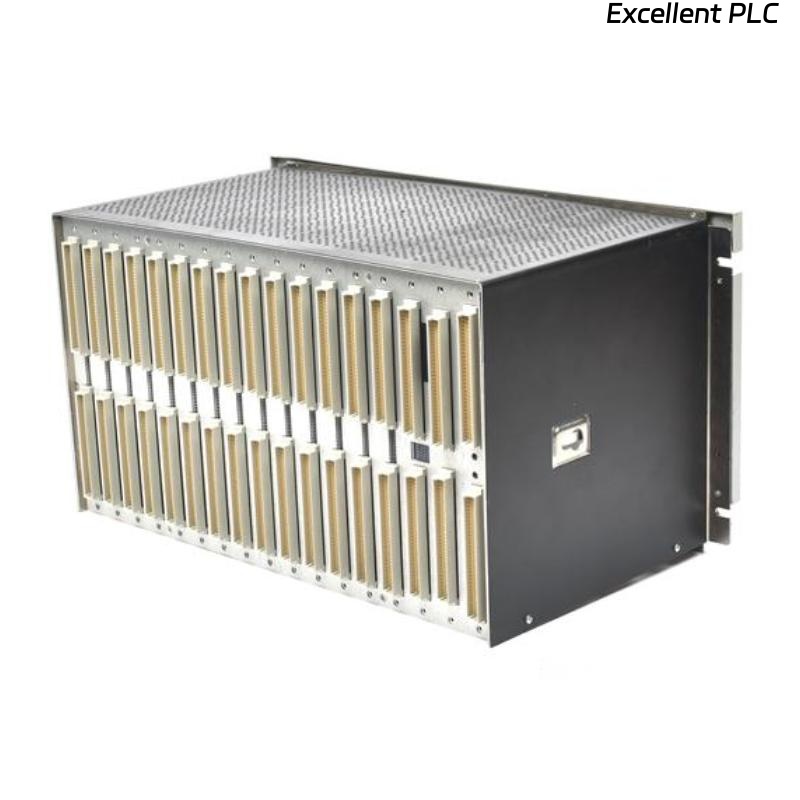

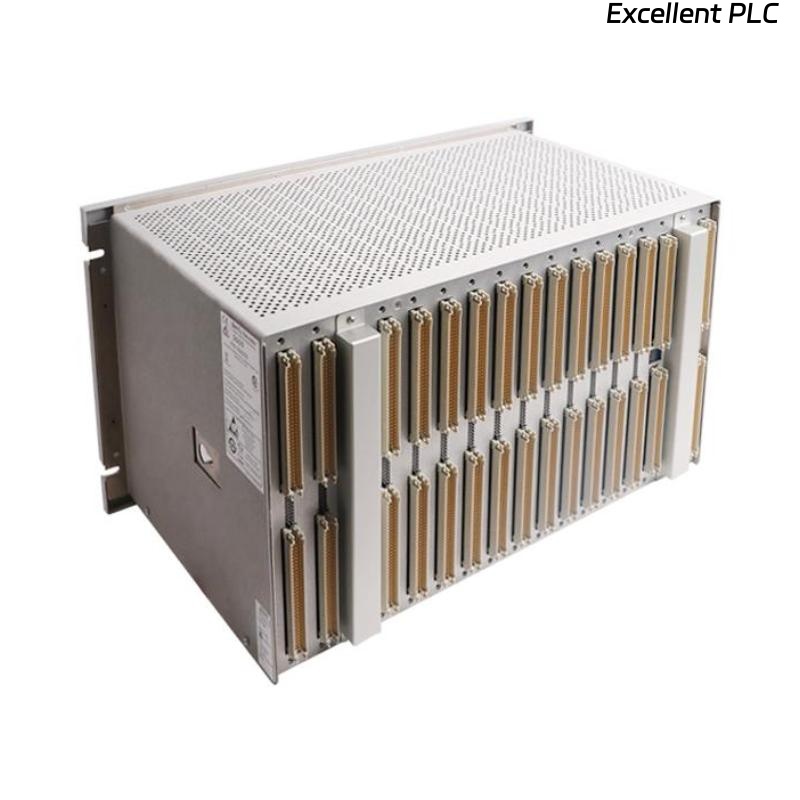

Bently Nevada 3500/05-01-02-01-00-00 Product Introduction
The Bently Nevada 3500/05-01-02-01-00-00 is a high-performance monitoring module designed for critical machinery protection and condition monitoring. It is part of the renowned Bently Nevada 3500 series, which is widely used in industries such as oil and gas, power generation, and chemical processing. This module ensures reliable detection of machinery faults, enabling proactive maintenance and reducing downtime.
Product Parameters
The following table provides detailed specifications for the Bently Nevada 3500/05-01-02-01-00-00:
| Parameter | Specification |
|---|---|
| Model Number | 3500/05-01-02-01-00-00 |
| Input Channels | 2 (Dual-channel) |
| Input Signal | 4–20 mA, ±1 VDC, or other compatible signals |
| Power Supply | 18–30 VDC |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Rack Size | 19-inch (14 module slots) |
| Weight | 4.5 kg |
| Communication | RS-485, Modbus protocol |
| Housing Material | Aluminum alloy |
| Certifications | ATEX, IECEx, UL, CE |
Product Applications
The Bently Nevada 3500/05-01-02-01-00-00 is used in various industrial applications, including:
-
Oil & Gas: Monitoring pumps, compressors, and turbines to prevent failures.
-
Power Generation: Protecting generators, steam turbines, and gas turbines.
-
Chemical Processing: Ensuring safe operation of rotating equipment.
-
Water Treatment: Monitoring pumps and motors in critical water systems.
-
Mining: Protecting heavy machinery from vibration and temperature-related issues.
Product Advantages
-
High Reliability: Designed for 24/7 operation in harsh environments.
-
Dual-Channel Redundancy: Ensures continuous monitoring even if one channel fails.
-
Wide Compatibility: Supports multiple input signals for flexible integration.
-
Robust Construction: Aluminum housing provides durability and EMI shielding.
-
Easy Integration: Compatible with existing Bently Nevada 3500 systems.
-
Certified Safety: Meets ATEX, IECEx, and UL standards for hazardous areas.
Frequently Asked Questions (FAQ)
-
What is the purpose of the Bently Nevada 3500/05-01-02-01-00-00?
It is used for machinery protection and condition monitoring in industrial applications. -
What input signals does this module support?
It supports 4–20 mA, ±1 VDC, and other compatible signals. -
Is this module suitable for hazardous environments?
Yes, it is ATEX and IECEx certified for use in explosive atmospheres. -
What are the Rack Size and weight of the module?
Rack Size: 19-inch (14 module slots); Weight: 4.5 kg. -
Can it be integrated with existing Bently Nevada systems?
Yes, it is fully compatible with the Bently Nevada 3500 series. -
What is the operating temperature range?
-30°C to +65°C (-22°F to +149°F). -
Does it support communication protocols?
Yes, it uses RS-485 with Modbus protocol. -
How many channels does this module have?
It has two independent monitoring channels. -
What industries commonly use this module?
Oil & gas, power generation, chemical processing, and water treatment. -
Is the module easy to install?
Yes, it is designed for quick installation and integration.
Recommended Related Models
The following table lists six related or similar models in the Bently Nevada 3500 series:
| Model Number | Description |
|---|---|
| 3500/22M-01-00-00 | Transient Data Interface Module |
| 3500/42M-01-00-00 | Vibration Monitor Module |
| 3500/32-01-00-00 | Proximitor® Seismic Monitor Module |
| 3500/15-01-02-00-00 | Dual-Channel Temperature Monitor |
| 3500/25-01-02-00-00 | Speed Monitor Module |
| 3500/92-01-00-00 | Communication Gateway Module |
