Product Overview

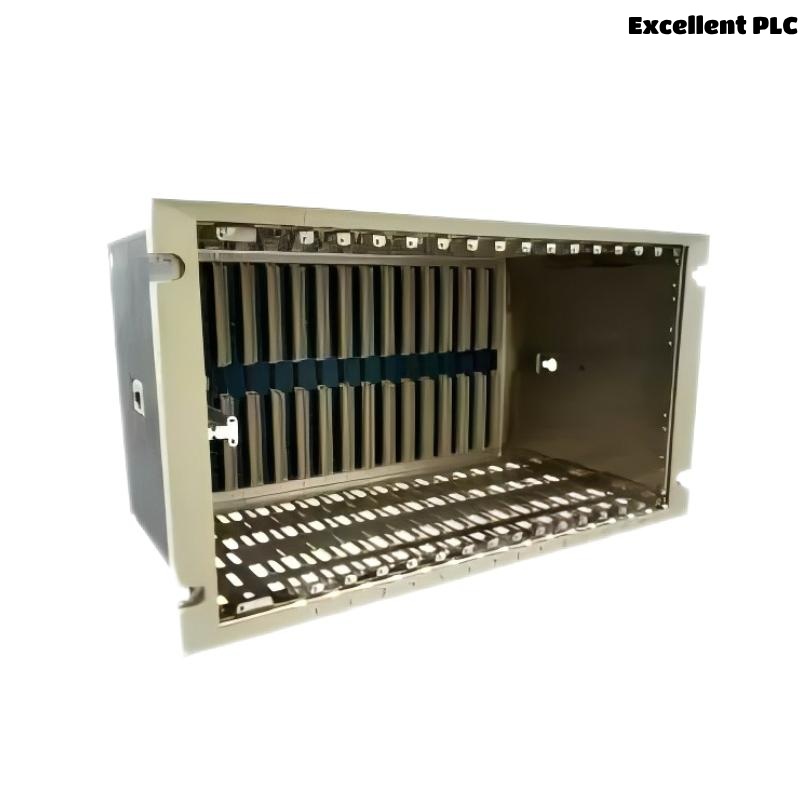

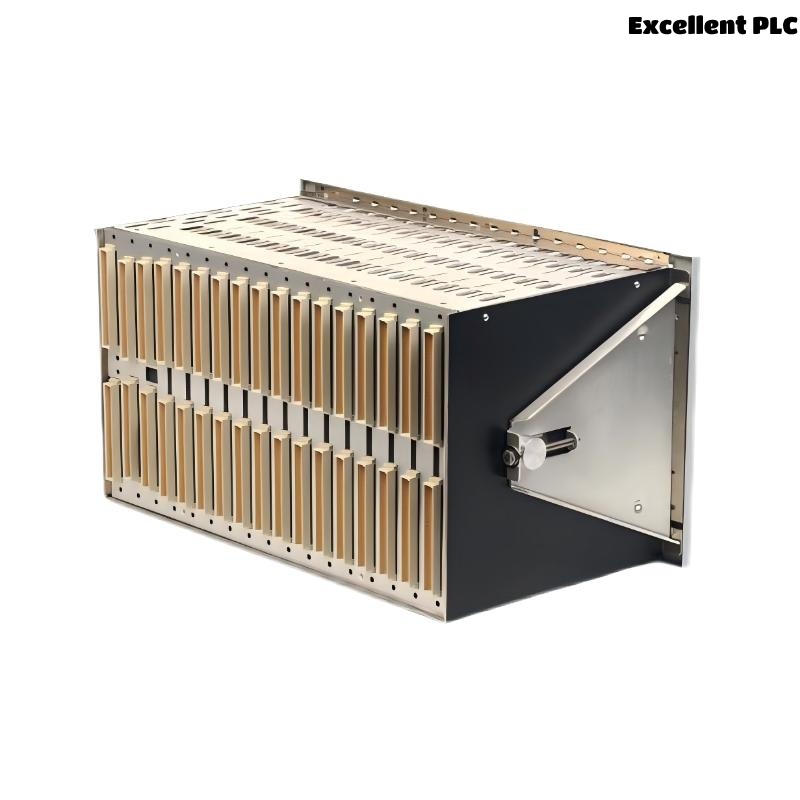

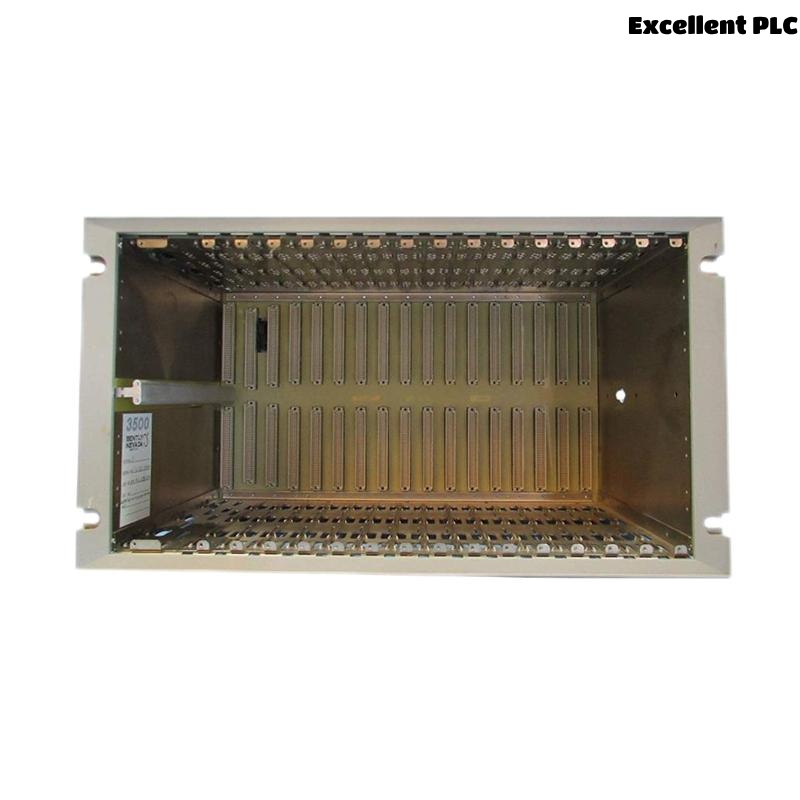

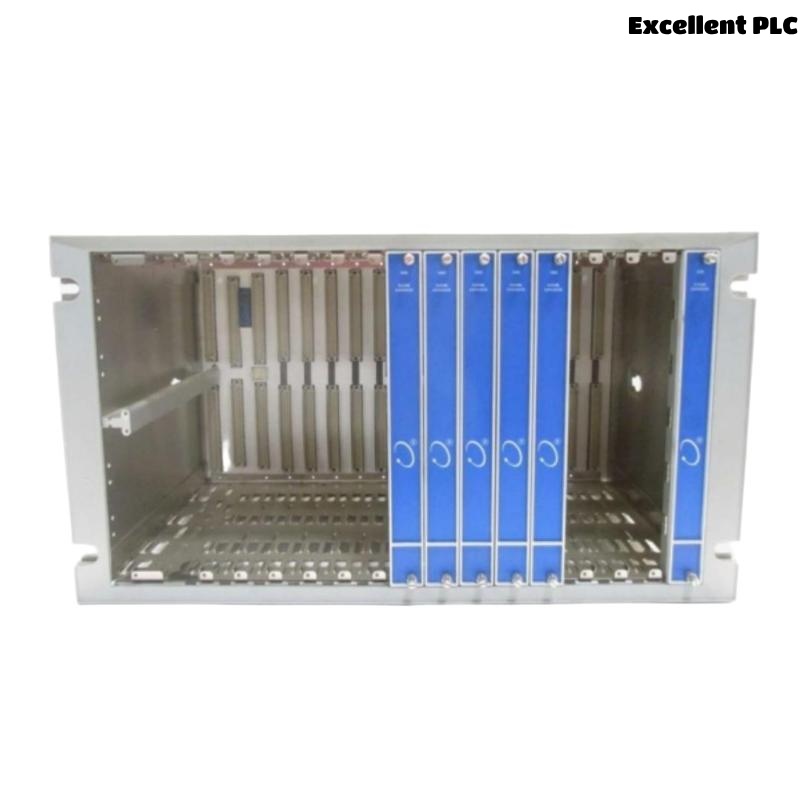

The Bently Nevada 3500/05-01-02-01-00-01 system rack is a rugged and versatile 19-inch chassis designed to house up to 14 modules from the 3500 Series family. This particular model supports rear input/output connections and is configured to accommodate redundant power supplies, ensuring high availability and system reliability in critical machinery protection applications.
Constructed with durable anodized aluminum and stainless steel hardware, this rack is engineered to withstand demanding industrial environments. The passive cooling design eliminates fans, reducing maintenance needs and enhancing long-term reliability. This rack is a core component in the 3500 system platform widely used for continuous machinery condition monitoring and fault diagnostics.
The ability to support redundant power supply modules makes this rack particularly suitable for installations where uninterrupted operation is essential, such as power plants, petrochemical facilities, and heavy manufacturing industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/05-01-02-01-00-01 |
| Brand | Bently Nevada |
| Product Type | Machinery Monitoring System Rack |
| Rack Size | 19-inch (14 module slots) |
| Weight | 4.5 kg |
| Module Capacity | 14 modules |
| Backplane | Integrated signal and power bus |
| I/O Configuration | Rear input/output |
| Power Supply Support | Dual redundant power supply slots |
| Mounting Style | 19-inch rack mount |
| Cooling Method | Passive cooling (fanless) |
| Material | Anodized aluminum chassis with stainless steel fasteners |
| Grounding | Integrated system grounding rail |
| Operating Temperature | -20°C to +60°C |
| Humidity Range | 0–95% RH, non-condensing |
| Certifications | CE, UL, CSA (part of complete 3500 system) |
Applications
The 3500/05-01-02-01-00-01 rack is suited for a variety of demanding industrial environments where continuous equipment monitoring and protection are critical:
-
Power Generation
Used to house modules monitoring turbines, generators, and auxiliaries, enabling uninterrupted power delivery. -
Oil and Gas Industry
Protects rotating equipment in upstream, midstream, and downstream facilities including offshore platforms. -
Petrochemical Plants
Supports condition monitoring of pumps, compressors, and other critical rotating assets in harsh environments. -
Mining and Metals
Applied to protect crushers, mills, and conveyors from catastrophic failures. -
Water and Wastewater Treatment
Facilitates reliable equipment condition monitoring to optimize maintenance and reduce downtime. -
Heavy Manufacturing
Enables continuous machinery health monitoring in processes requiring high uptime.
Advantages
-
Redundant Power Supply Support
Dual slots for power supplies increase system availability and fault tolerance. -
Rear I/O Access
Simplifies wiring and improves serviceability by routing all connections from the back. -
Robust Construction
Anodized aluminum frame and stainless steel hardware provide durability in harsh conditions. -
Passive Cooling Design
Fanless operation reduces maintenance requirements and enhances reliability. -
Standard 19-Inch Rack Format
Easily integrates into standard control room cabinets. -
Modular Flexibility
Accommodates a wide range of 3500 Series modules for tailored monitoring solutions. -
Integrated Grounding
Enhances safety and reduces electromagnetic interference. -
Easy Installation and Maintenance
Tool-less module mounting and accessible connectors reduce downtime during servicing.
Frequently Asked Questions (FAQ)
Q1: How many modules can this rack hold?
A1: It supports up to 14 modules.
Q2: Does this rack support redundant power supplies?
A2: Yes, it supports dual power supply slots for redundancy.
Q3: Where are the I/O connections located?
A3: All input/output connections are accessible at the rear of the rack.
Q4: What cooling method is used?
A4: The rack uses passive cooling with no fans.
Q5: What is the weight of the rack?
A5: Approximately 4.5 kg.
Q6: Is the rack compatible with all 3500 Series modules?
A6: Yes, it supports all standard 3500 Series modules.
Q7: What are the rack’s dimensions?
A7: Standard 19-inch width with 14 module slots.
Q8: What materials are used in the rack’s construction?
A8: Anodized aluminum chassis with stainless steel fasteners.
Q9: What temperature range can it operate in?
A9: From -20°C to +60°C.
Q10: Does the rack have integrated grounding?
A10: Yes, it includes a built-in grounding rail.
Related Models (Same Series)
| Model | Description | Function | Weight | Rack Size |
|---|---|---|---|---|
| 3500/05-01-02-00-00-01 | Rear I/O rack, single power supply | Standard rear I/O rack configuration | 4.5 kg | 19-inch (14 module slots) |
| 3500/05-01-01-00-00 | Front I/O rack | Basic rack with front input/output | 4.5 kg | 19-inch |
| 3500/05-01-01-01-00 | Rear I/O with EMI shielding | Enhanced EMI protection | 4.5 kg | 19-inch |
| 3500/05-01-02-01-00 | Rear I/O with redundant power slots | Supports dual power supplies | 5.0 kg | 19-inch |
| 3500/05-02-01-00-00 | Rack with dual TDI capability | Communication redundancy support | 4.8 kg | 19-inch |
| 3500/05-04-01-00-00 | Ruggedized rack for field environments | Suitable for harsh outdoor applications | 6.0 kg | 19-inch |
