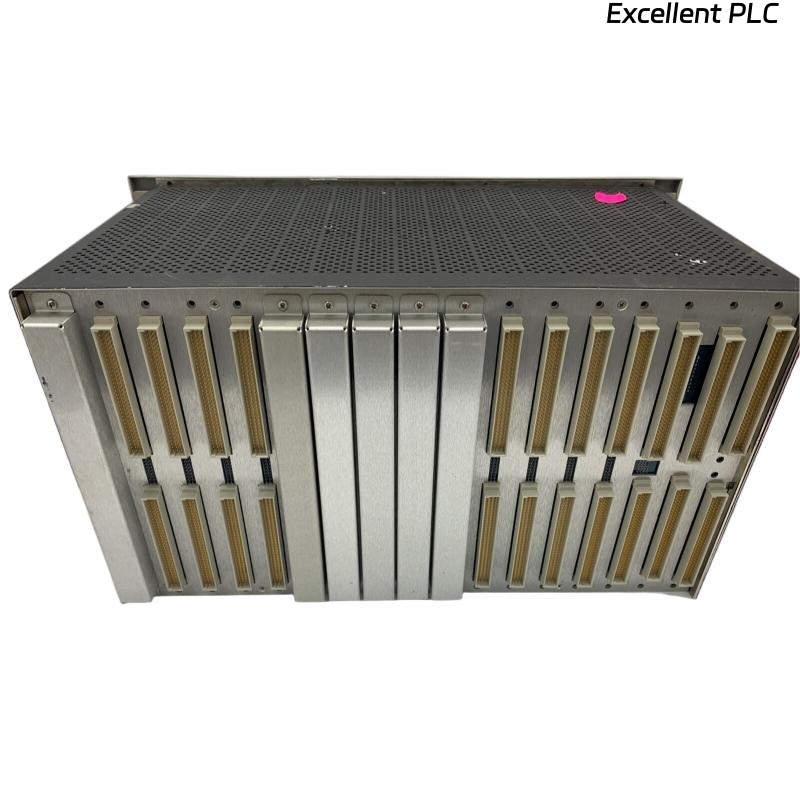

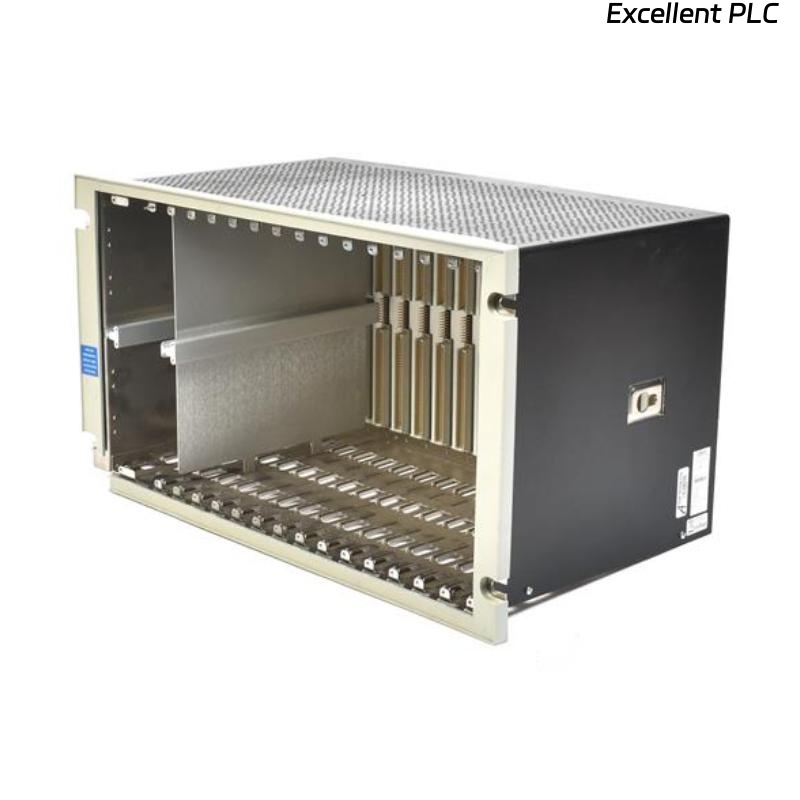

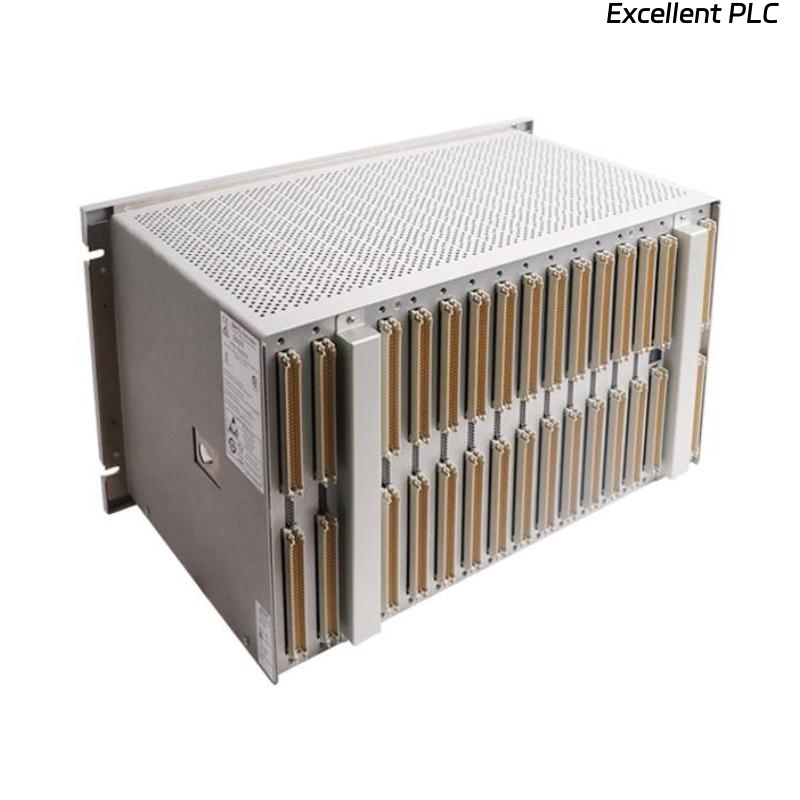

Bently Nevada 3500/05-01-02-05-00-01 Product Introduction
The Bently Nevada 3500/05-01-02-05-00-01 is a high-performance vibration monitoring module designed for critical machinery protection and condition monitoring. It is part of the renowned Bently Nevada 3500 series, which is widely used in industries such as oil and gas, power generation, and manufacturing. This module provides reliable and accurate vibration measurements, ensuring the safe and efficient operation of rotating equipment.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 3500/05-01-02-05-00-01 |
| Input Channels | 2 channels (for vibration or speed signals) |
| Input Signal Range | 0 to 20 mA, ±10 VDC (configurable) |
| Frequency Range | 0.5 Hz to 10 kHz |
| Accuracy | ±1% of full scale |
| Power Supply | 18 to 32 VDC |
| Operating Temperature | -30°C to +70°C |
| Rack Size | 19-inch (14 module slots) |
| Weight | 4.5 kg |
| Communication | RS-232, RS-485 (optional) |
| Certifications | ATEX, IECEx, CSA, UL |
Product Applications
The Bently Nevada 3500/05-01-02-05-00-01 is ideal for:
-
Oil & Gas: Monitoring compressors, turbines, and pumps to prevent unplanned downtime.
-
Power Generation: Protecting generators, steam turbines, and gas turbines.
-
Manufacturing: Ensuring the reliability of motors, fans, and gearboxes.
-
Chemical & Petrochemical: Safeguarding critical rotating equipment in hazardous environments.
-
Water & Wastewater: Monitoring pumps and blowers for early fault detection.
Product Advantages
-
High Accuracy: Provides precise vibration measurements for early fault detection.
-
Robust Design: Built to withstand harsh industrial environments.
-
Flexible Configuration: Supports multiple input signal types and ranges.
-
Easy Integration: Compatible with existing Bently Nevada 3500 systems.
-
Certified Safety: Meets global standards for hazardous area applications.
-
Low Maintenance: Designed for long-term reliability with minimal upkeep.
Frequently Asked Questions (FAQ)
-
What is the purpose of the Bently Nevada 3500/05-01-02-05-00-01 module?
It is used for vibration monitoring and machinery protection in industrial applications. -
How many input channels does this module have?
It has 2 input channels for vibration or speed signals. -
What is the operating temperature range?
It operates between -30°C to +70°C. -
Can this module be used in hazardous areas?
Yes, it is certified for use in hazardous environments (ATEX, IECEx). -
What communication protocols are supported?
RS-232 and RS-485 (optional). -
What is the weight of the module?
It weighs 4.5 kg. -
Is this module compatible with other Bently Nevada 3500 systems?
Yes, it is designed for seamless integration with the 3500 series. -
What industries commonly use this module?
Oil & gas, power generation, manufacturing, and chemical industries. -
What is the frequency range of the module?
0.5 Hz to 10 kHz. -
Does this module require regular calibration?
Yes, periodic calibration is recommended for optimal performance.
