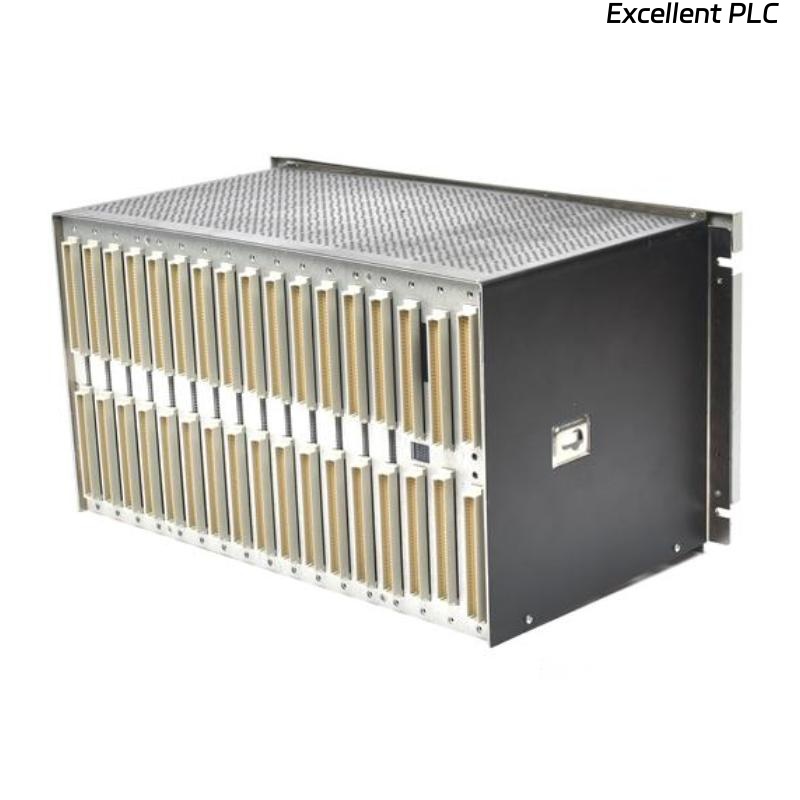

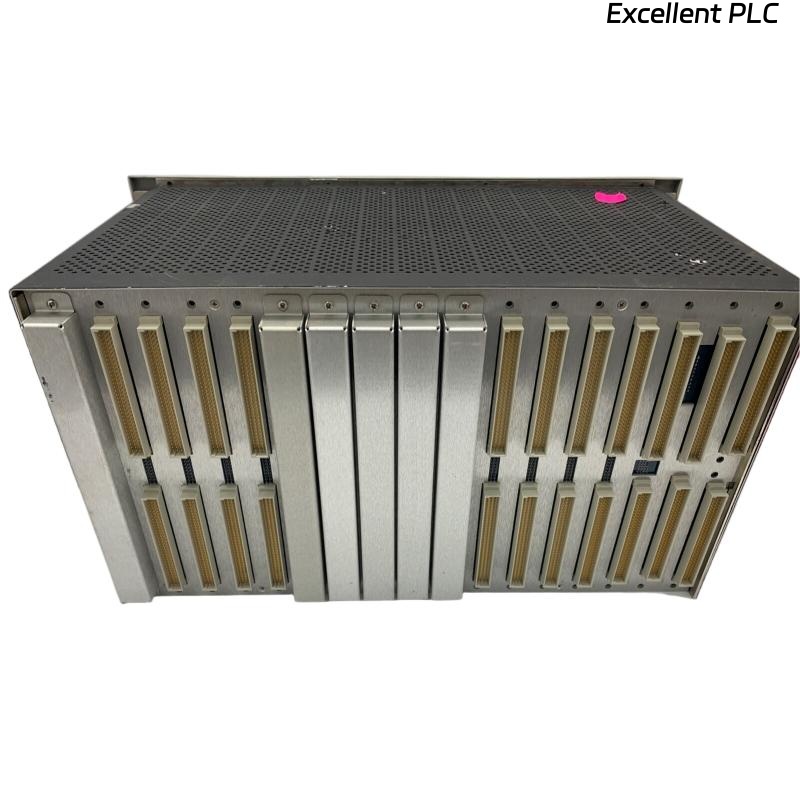

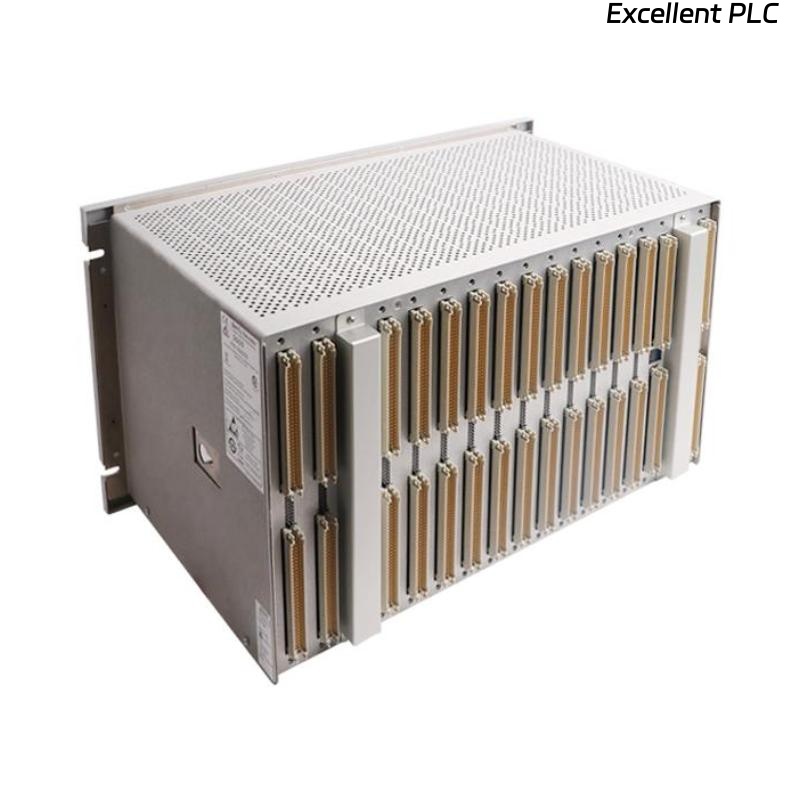

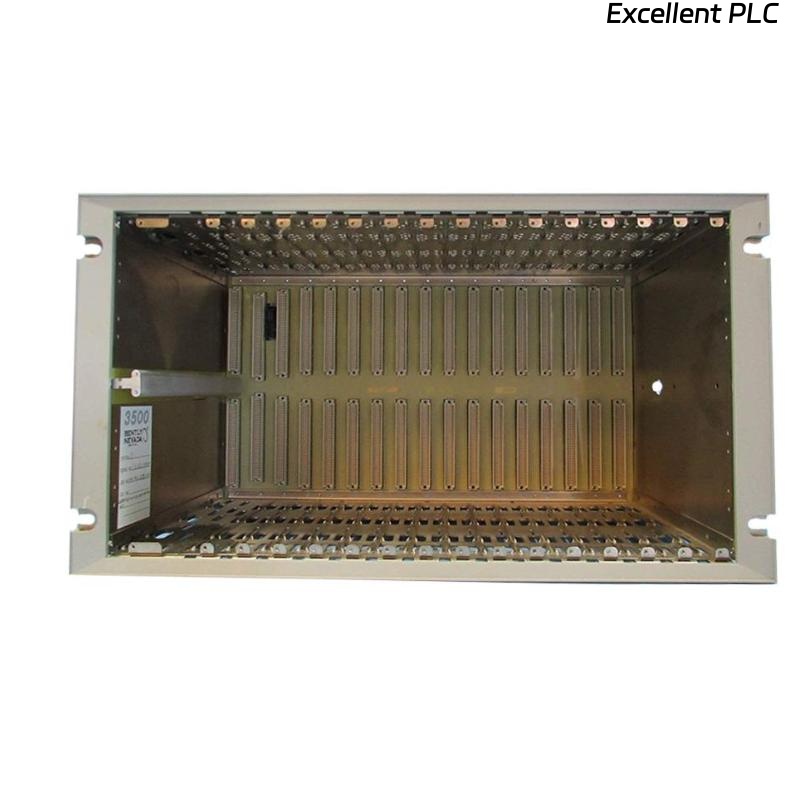

Bently Nevada 3500/05-01-03-01-00-01 Product Introduction
The Bently Nevada 3500/05-01-03-01-00-01 is a high-performance monitoring module from the renowned 3500 series, designed for critical machinery protection and condition monitoring. This module is part of the 3500/05 Rack Interface Module (RIM), which serves as the communication hub between the 3500 monitoring system and external devices or control systems. It ensures seamless integration, real-time data transmission, and robust reliability in industrial environments.
Product Parameters
The technical specifications of the Bently Nevada 3500/05-01-03-01-00-01 are as follows:
| Parameter | Specification |
|---|---|
| Model Number | 3500/05-01-03-01-00-01 |
| Function | Rack Interface Module (RIM) |
| Communication | Supports Modbus, Ethernet, and other protocols |
| Input Voltage | 24V DC (±10%) |
| Operating Temperature | -30°C to +70°C |
| Rack Size | 19-inch (14 module slots) |
| Weight | 4.5 kg |
| Mounting | 19-inch rack mountable |
| Certifications | ATEX, IECEx, UL, CE |
Product Applications
The Bently Nevada 3500/05-01-03-01-00-01 is widely used in industries requiring high-precision machinery monitoring, including:
-
Oil & Gas: For compressor, turbine, and pump monitoring.
-
Power Generation: In gas turbines, steam turbines, and generators.
-
Chemical & Petrochemical: For rotating equipment protection.
-
Water Treatment: Monitoring pumps and motors.
-
Mining: Ensuring reliability of heavy machinery.
Product Advantages
-
High Reliability: Designed for 24/7 operation in harsh environments.
-
Seamless Integration: Compatible with existing control systems (DCS, PLC).
-
Real-Time Monitoring: Provides instant alerts for machinery faults.
-
Modular Design: Easy to install and replace.
-
Global Certifications: Meets ATEX, UL, and CE standards for safety.
Frequently Asked Questions (FAQ)
-
What is the primary function of the 3500/05-01-03-01-00-01?
It acts as a Rack Interface Module (RIM) for the Bently Nevada 3500 system, enabling communication between the monitoring system and external devices. -
What communication protocols does it support?
It supports Modbus, Ethernet, and other industrial protocols. -
Is it suitable for hazardous environments?
Yes, it is ATEX and IECEx certified for use in explosive atmospheres. -
What is the operating temperature range?
-30°C to +70°C. -
Can it be mounted in a standard 19-inch rack?
Yes, it is designed for 19-inch rack mounting. -
What is the weight of the module?
4.5 kg. -
Does it require external power?
Yes, it operates on 24V DC. -
Is it compatible with legacy Bently Nevada systems?
Yes, it is backward-compatible with older 3500 series systems. -
How does it enhance machinery protection?
It provides real-time data and alarms for vibration, temperature, and other critical parameters. -
How long is the warranty period?
The standard warranty is 1 years, subject to proper usage and conditions.
