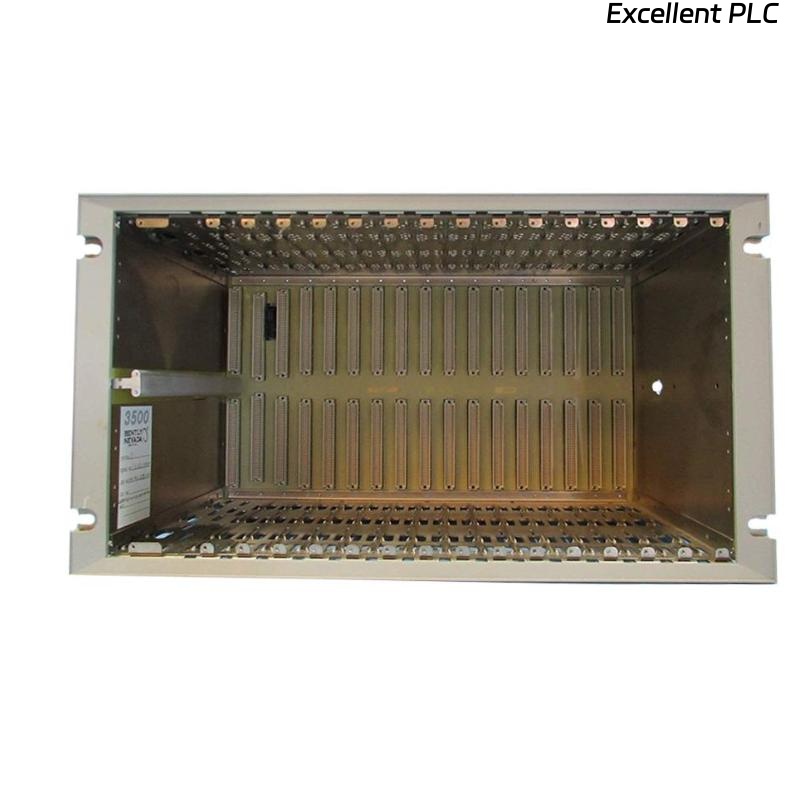

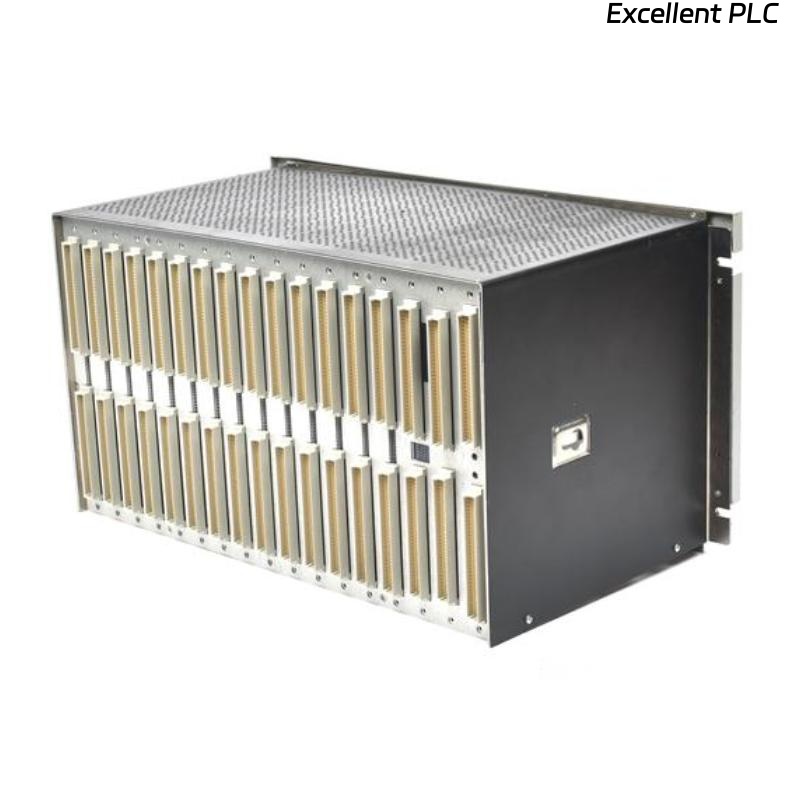

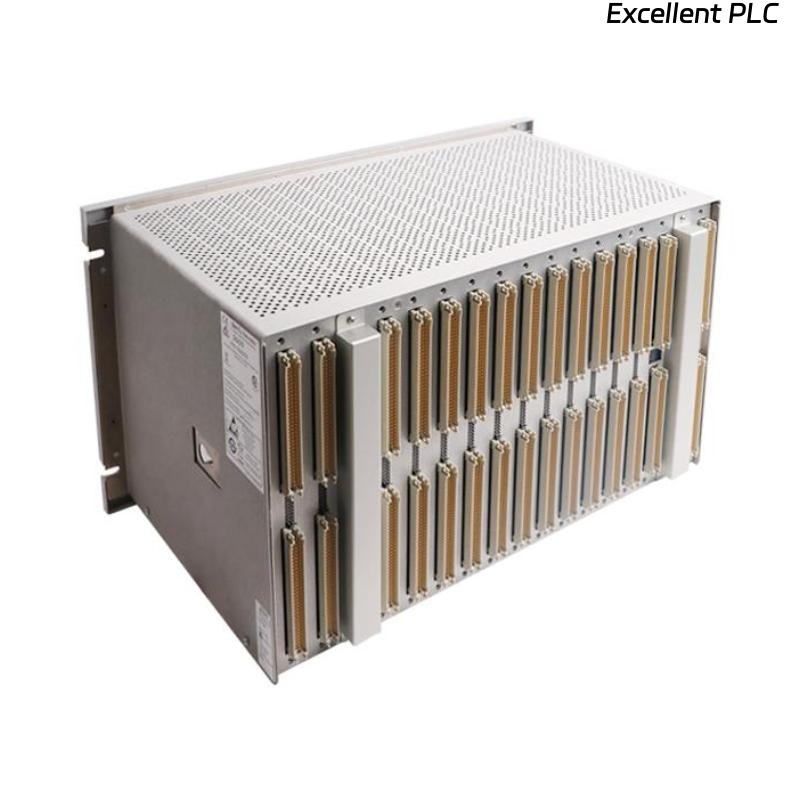

Bently Nevada 3500/05-01-03-02-00-01 Product Introduction
The Bently Nevada 3500/05-01-03-02-00-01 is a high-performance monitoring module designed for critical machinery protection and condition monitoring. It is part of the renowned Bently Nevada 3500 series, which is widely used in industries such as oil and gas, power generation, and chemical processing. This module provides reliable and accurate monitoring of vibration, speed, and other parameters to ensure the safe and efficient operation of rotating equipment.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 3500/05-01-03-02-00-01 |
| Input Channels | 2 (for vibration or speed monitoring) |
| Input Signal Range | 0–10 Vdc, 4–20 mA, or other industry-standard signals |
| Frequency Range | 0.5 Hz to 10 kHz (dependent on configuration) |
| Accuracy | ±1% of full scale |
| Operating Temperature | -30°C to +70°C |
| Power Supply | 18–32 Vdc (typical 24 Vdc) |
| Rack Size | 19-inch (14 module slots) |
| Weight | 4.5 kg |
| Communication | RS-232, RS-485, or Ethernet (optional) |
| Certifications | ATEX, IECEx, CSA, UL (varies by configuration) |
Product Applications
The Bently Nevada 3500/05-01-03-02-00-01 is designed for use in a wide range of industrial applications, including:
-
Oil & Gas: Monitoring compressors, pumps, and turbines to prevent unplanned downtime.
-
Power Generation: Protecting steam and gas turbines, generators, and auxiliary equipment.
-
Chemical Processing: Ensuring the reliability of critical rotating machinery.
-
Water & Wastewater: Monitoring pumps and motors to optimize performance.
-
Mining & Metals: Safeguarding heavy-duty equipment such as crushers and conveyors.
Product Advantages
-
High Reliability: Engineered for 24/7 operation in harsh environments.
-
Modular Design: Easy to install, replace, or upgrade without system downtime.
-
Advanced Diagnostics: Provides real-time data for predictive maintenance.
-
Wide Compatibility: Integrates seamlessly with existing Bently Nevada 3500 systems.
-
Certified Safety: Meets global standards for hazardous area operation.
-
Customizable Configurations: Supports various input signals and communication protocols.
Frequently Asked Questions (FAQ)
-
What is the purpose of the Bently Nevada 3500/05-01-03-02-00-01 module?
It is used for machinery protection and condition monitoring, focusing on vibration and speed measurements. -
How many input channels does this module have?
It has 2 input channels, configurable for vibration or speed monitoring. -
What is the operating temperature range?
It operates between -30°C and +70°C. -
Can this module be used in hazardous areas?
Yes, it is available with ATEX, IECEx, and other certifications for hazardous environments. -
What power supply is required?
It typically operates on 24 Vdc, with a range of 18–32 Vdc. -
What communication protocols are supported?
RS-232, RS-485, or Ethernet (depending on configuration). -
How do I integrate this module into an existing 3500 system?
It is plug-and-play compatible with other Bently Nevada 3500 series components. -
What is the weight of the module?
4.5 kg. -
Is calibration required?
Yes, periodic calibration is recommended for optimal performance. -
How long is the warranty period?
The standard warranty is 1 years, subject to proper usage and conditions.
