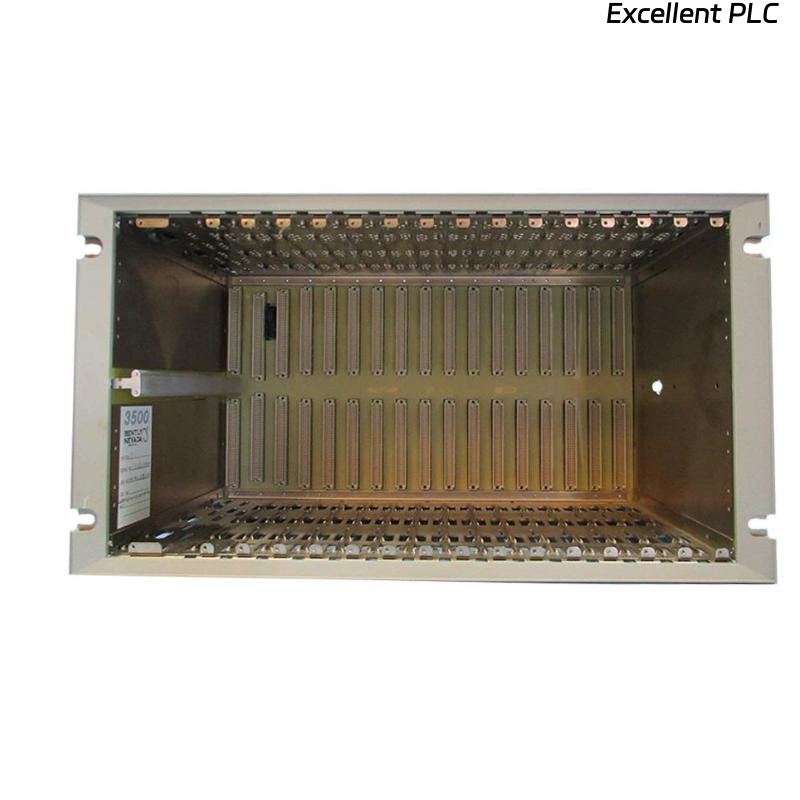

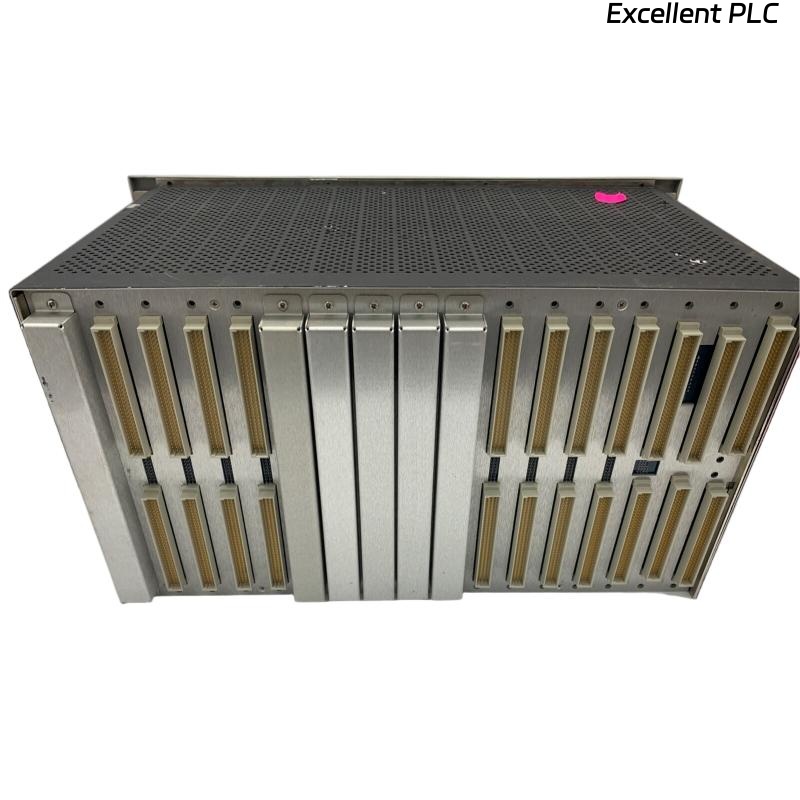

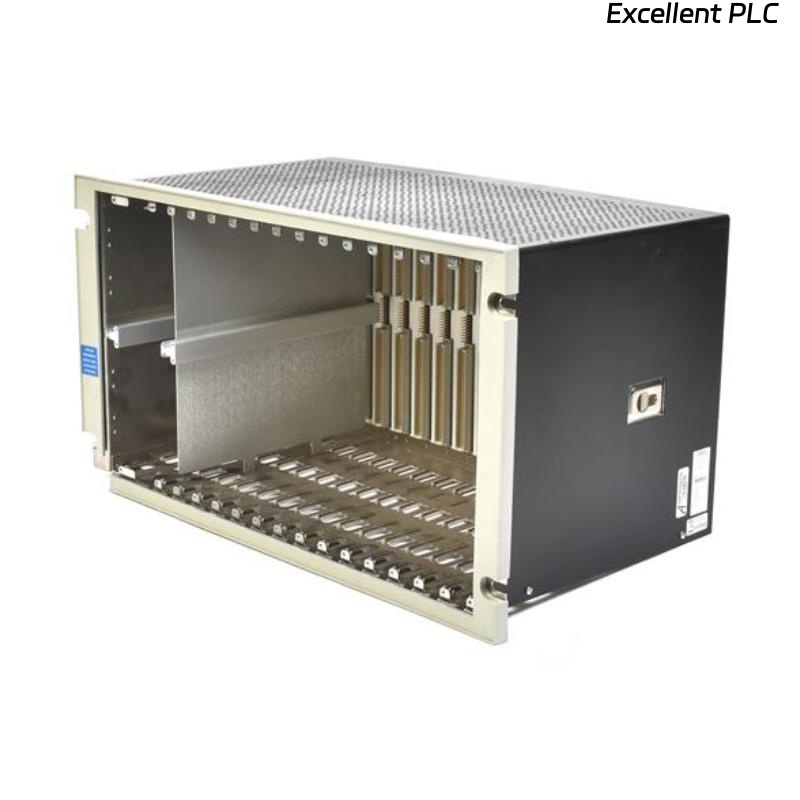

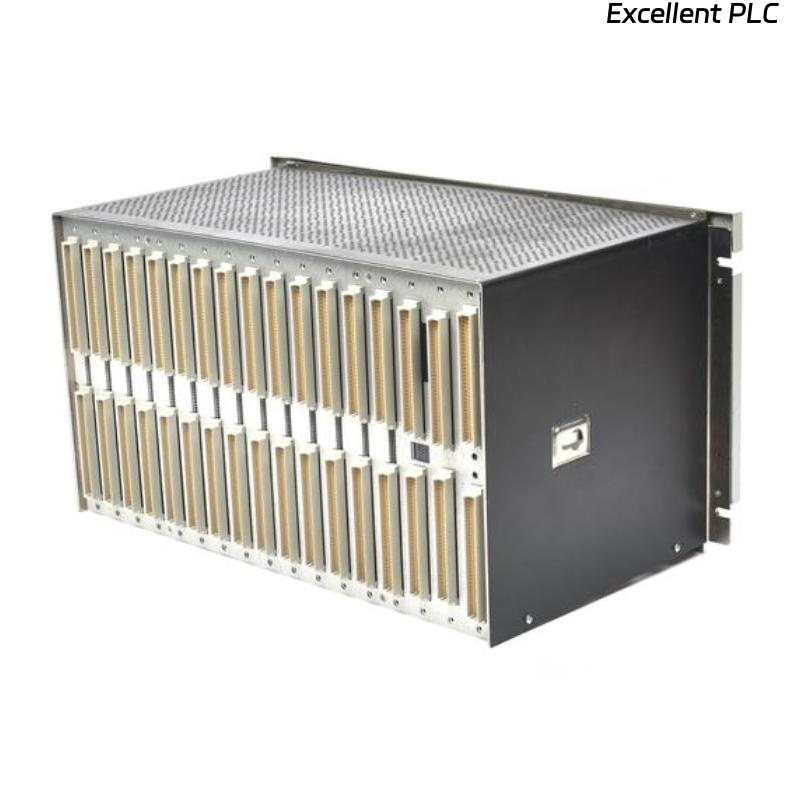

Bently Nevada 3500/05-02-01-00-00-00 Product Introduction
The Bently Nevada 3500/05-02-01-00-00-00 is a high-performance monitoring module designed for critical machinery protection and condition monitoring. It is part of the renowned Bently Nevada 3500 series, which is widely used in industries such as oil and gas, power generation, and chemical processing. This module ensures reliable and accurate monitoring of vibration, temperature, and other parameters to prevent equipment failure and optimize operational efficiency.
Product Parameters
Parameter | Specification |
---|---|
Model Number | 3500/05-02-01-00-00-00 |
Input Channels | 2 (Dual-channel) |
Input Signal Type | Dynamic vibration (e.g., accelerometer, proximity probe) |
Frequency Range | 10 Hz to 10 kHz |
Measurement Range | ±1 V to ±20 V (configurable) |
Accuracy | ±1% of full scale |
Power Supply | 18-32 VDC |
Operating Temperature | -30°C to +70°C |
Rack Size | 12-inch (7 module slots) |
Weight | 4.5 kg |
Communication | RS-485, Modbus protocol |
Certifications | ATEX, IECEx, SIL 2 (as applicable) |
Product Applications
The Bently Nevada 3500/05-02-01-00-00-00 is designed for use in:
-
Oil & Gas: Monitoring compressors, turbines, and pumps to prevent unplanned downtime.
-
Power Generation: Protecting generators, steam turbines, and gas turbines from mechanical failures.
-
Chemical Processing: Ensuring safe operation of rotating equipment in hazardous environments.
-
Water Treatment: Monitoring pumps and motors to maintain efficiency.
-
Mining: Protecting heavy-duty machinery from excessive vibration and wear.
Product Advantages
-
High Reliability: Engineered for 24/7 operation in harsh industrial environments.
-
Dual-Channel Design: Allows simultaneous monitoring of two critical parameters.
-
Wide Frequency Range: Captures both low and high-frequency vibrations for comprehensive analysis.
-
Easy Integration: Compatible with existing Bently Nevada 3500 systems and third-party platforms.
-
Robust Construction: Designed to withstand extreme temperatures and vibrations.
-
Advanced Diagnostics: Provides real-time alerts and trend analysis for predictive maintenance.
Frequently Asked Questions (FAQ)
-
Q: What is the purpose of the 3500/05-02-01-00-00-00 module?
A: It is used for monitoring vibration and dynamic signals in rotating machinery to prevent failures. -
Q: Can this module be used in hazardous areas?
A: Yes, it is available with ATEX and IECEx certifications for hazardous environments. -
Q: What is the maximum number of modules that can be connected in a single rack?
A: Up to 16 modules can be installed in a standard 3500 rack. -
Q: How is the module configured?
A: Configuration is done via the Bently Nevada 3500 Configuration Software. -
Q: What is the lifespan of this module?
A: With proper maintenance, it can operate reliably for 5+ years. -
Q: Does it support remote monitoring?
A: Yes, it can be integrated with SCADA or DCS systems via Modbus. -
Q: What is the warranty period?
A: Standard warranty is 12 months from the date of shipment. -
Q: Can it monitor both velocity and acceleration signals?
A: Yes, it supports multiple sensor types with appropriate configuration. -
Q: Is calibration required periodically?
A: Yes, annual calibration is recommended for optimal performance. -
Q: What is the lead time for ordering this module?
A: Typically 4-6 weeks, depending on stock availability.
Recommended Related Models
Model Number | Description |
---|---|
3500/15-02-01-00-00-00 | Dual-channel displacement monitor |
3500/20-01-01-00-00-00 | Single-channel temperature monitor |
3500/25-01-01-00-00-00 | Single-channel speed monitor |
3500/32-01-01-00-00-00 | Single-channel pressure monitor |
3500/40-01-01-00-00-00 | Single-channel differential expansion monitor |
3500/42-01-01-00-00-00 | Single-channel valve position monitor |
