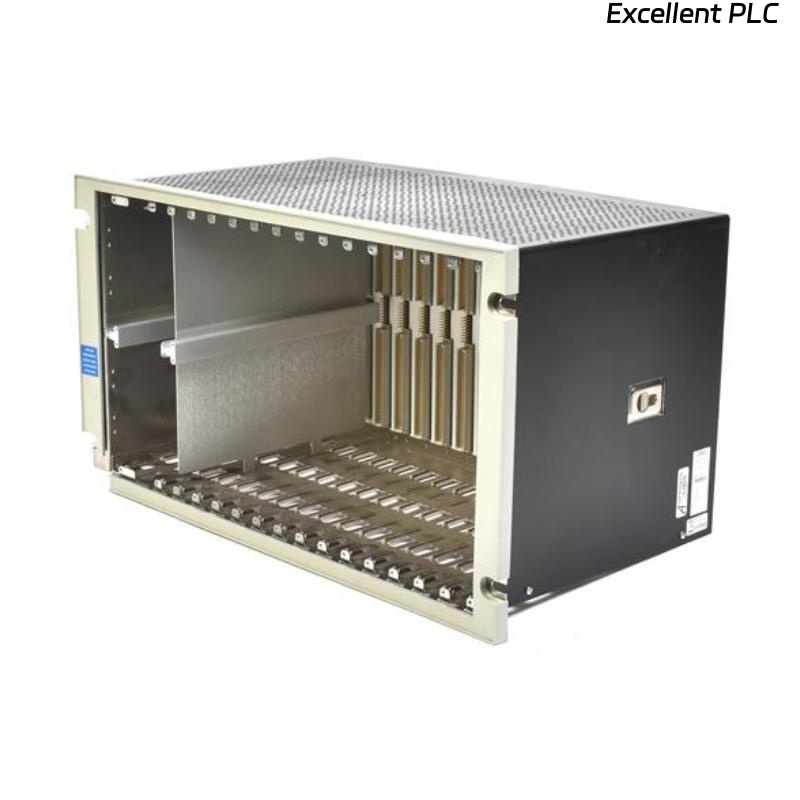

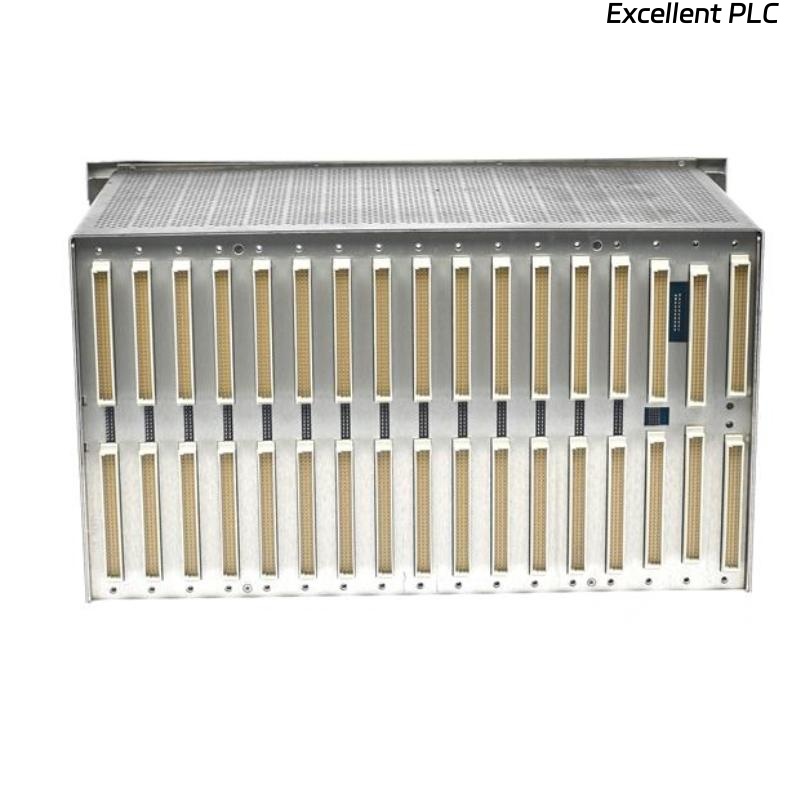

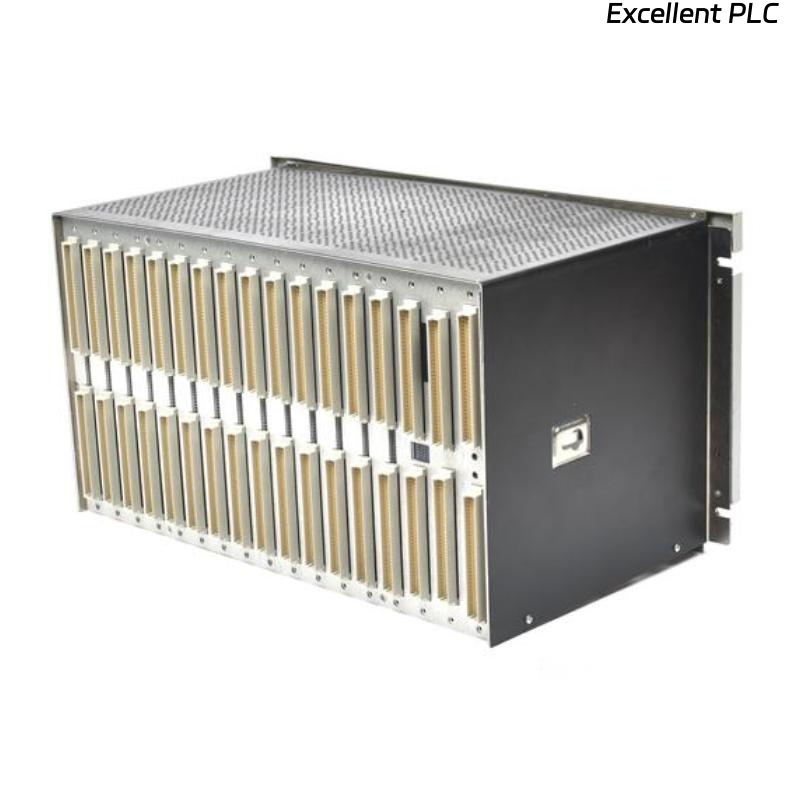

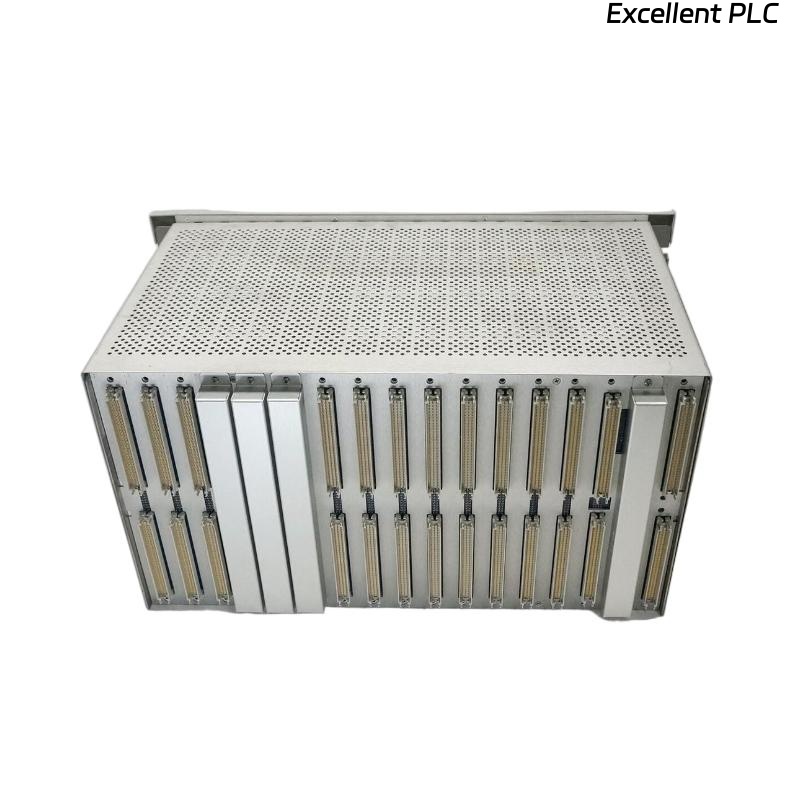

Bently Nevada 3500/05-02-04-00-00-00 System Rack
Product Introduction
The Bently Nevada 3500/05-02-04-00-00-00 is an industrial-grade system rack engineered as part of the Bently Nevada 3500 Series Machinery Protection System. Designed to house and interconnect the full range of 3500 modules, this model offers high reliability, modularity, and scalability, enabling robust monitoring of critical rotating machinery across various industries. It acts as the physical and electrical foundation of the 3500 system, accommodating up to 14 modules including power supplies, communication interfaces, and monitoring modules.
With an integrated backplane design, the 3500/05-02-04-00-00-00 facilitates seamless signal transmission and reliable communication between system components. It is particularly suited for deployment in high-availability environments such as petrochemical plants, power generation facilities, and offshore platforms, where real-time monitoring and fast response to anomalies are mission-critical.
Product Advantages
-
High Capacity Modular Design: Accommodates up to 14 slots for various monitoring, communication, and power modules.
-
Flexible Mounting: Standard 19-inch rack-mount design ensures compatibility with control room and field installations.
-
Enhanced System Integrity: Backplane-based connectivity minimizes wiring complexity and improves signal integrity.
-
Redundant Power Supply Support: Offers dual power input capability for enhanced system uptime.
-
Part of a Complete Ecosystem: Seamless integration with all 3500 Series modules ensures complete system cohesion and operational safety.
-
Designed for Harsh Environments: Robust metal construction ensures durability under demanding industrial conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 3500/05-02-04-00-00-00 |
| Product Type | System Rack |
| Rack Type | Full-Size 19” EIA Rack Mount |
| Mounting | Panel Mount / Rack Mount (Standard 19-inch rack) |
| Power Supply Compatibility | Single or Dual Redundant Power Modules |
| Material | Anodized Aluminum |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 95% non-condensing |
| Shock and Vibration Resistance | Compliant with IEC 60068-2-6 and 60068-2-27 |
| Rack Size | 12-inch (7 module slots) |
| Weight | 4.5 kg |
| Communication Options | TDI (Transient Data Interface), RIM, etc. |
| Certifications | CE, CSA, ATEX, IECEx, and others depending on configuration |
Applications
-
Petrochemical and Refining Facilities: For continuous vibration monitoring of turbines, compressors, and pumps.
-
Power Generation Plants: Applied in steam turbines and gas turbine machinery protection systems.
-
Oil & Gas Platforms: Offshore platforms and drilling systems utilize 3500 racks for reliable monitoring in extreme environments.
-
Industrial Manufacturing: High-speed rotating equipment in steel, cement, and paper mills.
-
Water Treatment Facilities: Monitoring of pumps and motor-driven assets.
-
Aerospace Ground Equipment: Applied in testing stations for turbines and engines.
Installation Guidelines
-
Mounting: Secure the rack in a standard 19-inch cabinet or control panel using appropriate screws.
-
Power Configuration: Install single or dual power supply modules (leftmost slot). Confirm voltage input settings as per site requirement.
-
Communication Modules: Install a TDI module in the designated communication slot to handle configuration and data interface.
-
Monitoring Modules: Install vibration, temperature, or other input modules in the available monitoring slots (up to 11).
-
Wiring: Use shielded twisted-pair cables for sensor inputs and BNC connectors where needed.
-
Grounding: Ensure proper chassis grounding in accordance with the site grounding policy.
-
Verification: Perform system self-check through the configuration software (e.g., System 1) after assembly.
FAQ (Frequently Asked Questions)
Q1: What is the maximum number of monitoring modules the 3500/05-02-04-00-00-00 rack can support?
A1: It supports up to 11 monitoring modules, with additional slots for power and communication modules.
Q2: Does this rack support redundant power supply configuration?
A2: Yes, it supports dual power modules for redundancy, increasing system reliability.
Q3: Can I install the rack in a non-standard enclosure?
A3: While possible, it is highly recommended to use standard 19-inch enclosures for optimal fit and airflow.
Q4: What software is required to configure modules within this rack?
A4: Bently Nevada’s System 1 software is used for configuration and diagnostics.
Q5: Is this rack backward compatible with older 3300 series modules?
A5: No, the 3500 system is not backward compatible with the older 3300 series.
Q6: What environmental certifications does the rack comply with?
A6: It complies with CE, CSA, ATEX, and IECEx standards depending on system configuration.
Q7: How is signal integrity maintained across modules?
A7: The system uses a backplane design for interconnection, which enhances reliability and signal clarity.
Q8: Can the system be remotely monitored?
A8: Yes, with TDI modules and appropriate network configuration, remote monitoring is fully supported.
Q9: How often should the system rack be inspected?
A9: Visual inspection should be done quarterly, with full system diagnostics semi-annually.
Q10: Is this rack compatible with condition-based maintenance (CBM) systems?
A10: Yes, it integrates seamlessly with CBM platforms via System 1 and OPC data connections.
6 Recommended Models from the Same Series
| Model Number | Description |
|---|---|
| 3500/05-01-01-00-00-01 | Full-size rack with standard mounting |
| 3500/05-02-04-00-00-01 | Enhanced rack with rear I/O connectors |
| 3500/15-05-01-00 | Power Supply Module (AC) |
| 3500/15-01-01-00 | Power Supply Module (DC) |
| 3500/22M-01-01-00 | TDI Module with Ethernet Interface |
| 3500/42M-01-00 | Proximitor / Seismic Monitor Module |
6 Popular Bently Nevada Models
| Model Number | Description | Dimensions (mm) | Weight (kg) | Voltage |
|---|---|---|---|---|
| 3500/22M-01-01-00 | Transient Data Interface (TDI) Module | 241 x 24 x 190 | 0.45 | 24 VDC |
| 3500/15-01-01-00 | Power Supply Module (DC) | 241 x 24 x 190 | 0.50 | 24 VDC |
| 3500/32M-01-00 | 4-20 mA Output Module | 241 x 24 x 190 | 0.42 | 24 VDC |
| 3500/42M-01-00 | Vibration/Position Monitor | 241 x 24 x 190 | 0.43 | 24 VDC |
| 330104-00-20-10-02-00 | Proximitor Sensor | 76 x 22 x 22 | 0.13 | Passive |
| 3500/93-01-00-02 | Display Interface Module | 241 x 24 x 190 | 0.48 | 24 VDC |
