Product Overview

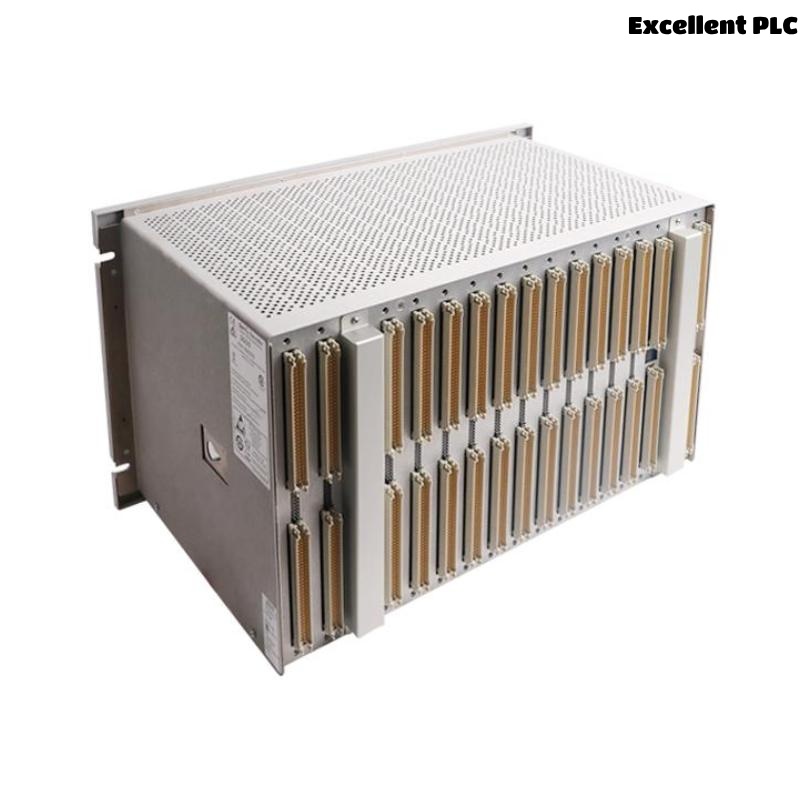

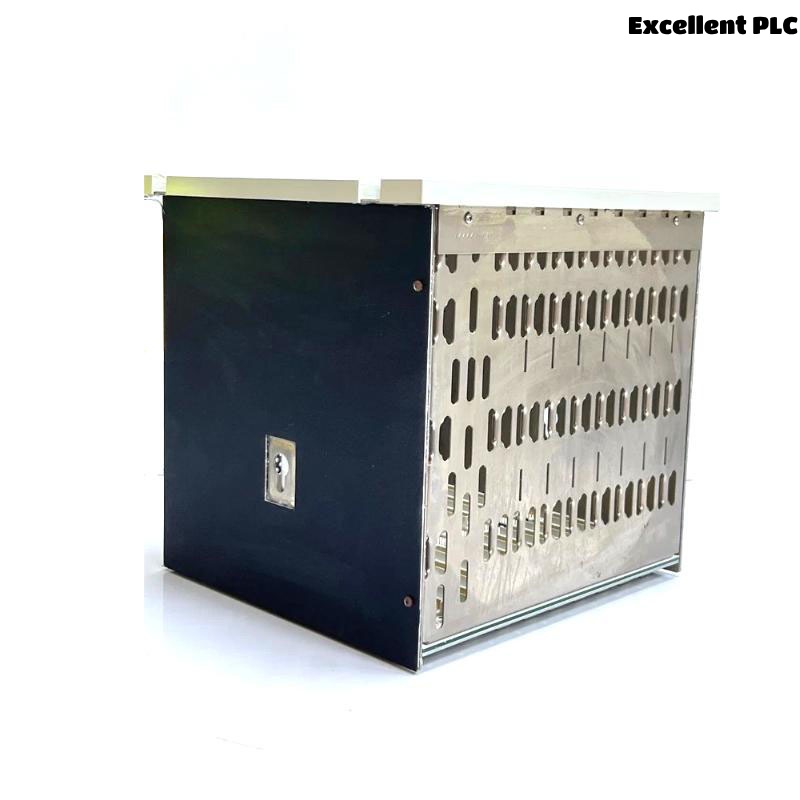

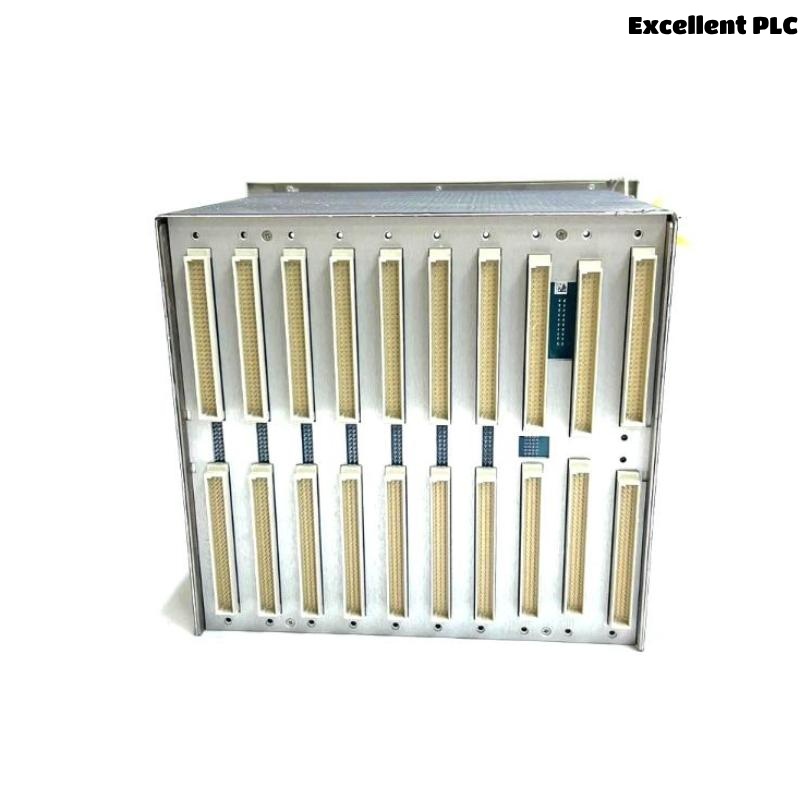

The Bently Nevada 3500/05-02-04-00-00-01 is a high-quality, compact system rack developed for the 3500 Series Machinery Protection System, one of the industry’s most trusted platforms for monitoring and protecting critical rotating machinery. This 12-inch rack version is designed with 7 module slots, providing a flexible and space-efficient mounting platform for a variety of monitoring and relay modules used in complex asset protection systems.
This rack serves as the central housing for power supplies, communication interfaces, and condition monitoring modules in the 3500 system. Its robust metal construction, integrated backplane, and compatibility with all 3500 series components make it ideal for small-to-medium scale industrial applications. The -01 suffix may refer to specific rack configurations or wiring options tailored for unique operational environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 3500/05-02-04-00-00-01 |
| Rack Size | 12-inch (7 module slots) |
| Module Capacity | 7 full-height 3500 Series modules |
| Weight | 4.5 kg |
| Dimensions (W x H x D)** | Approx. 305 mm × 267 mm × 280 mm |
| Mounting Type | Rack-mounted (panel or cabinet) |
| Backplane Integration | Included – for module power and communication |
| Material | Industrial-grade coated metal chassis |
| Cooling Method | Passive air ventilation |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Relative Humidity | 0% to 95% non-condensing |
| Certifications | CE, UL, CSA, and other industrial safety ratings |
| Compatibility | All Bently Nevada 3500 monitoring modules |
| Hot-swappable Modules | Yes |
Applications
The 3500/05-02-04-00-00-01 rack is designed for use in critical machine protection environments where reliability, modularity, and compact design are essential. It is commonly used in industries such as:
-
Power Generation – Protecting turbines, gearboxes, and generators from mechanical faults.
-
Oil & Gas – Monitoring compressors, pumps, and motors across upstream and downstream facilities.
-
Petrochemical – Safeguarding high-speed rotating machinery in continuous chemical processing lines.
-
Marine & Offshore – Installed on ships or offshore platforms to monitor engine rooms and critical rotating equipment.
-
Water Utilities – Used in pump and motor rooms in water and wastewater treatment facilities.
-
Mining & Heavy Industry – Protects large mechanical systems like mills and crushers in harsh industrial conditions.
Key Advantages
-
Compact Size for Tight Installations: The 12-inch frame fits into space-constrained control cabinets or remote locations.
-
Modular and Scalable: Supports up to 7 modules, including vibration monitors, relay modules, and communication interfaces.
-
Integrated Power and Signal Distribution: Ensures clean and efficient backplane connectivity for all installed modules.
-
High-Temperature Tolerance: Operates reliably in demanding industrial conditions.
-
Hot-Swap Capable: Enables safe replacement of modules without system shutdown, minimizing operational downtime.
-
Long-Term Reliability: Built with industrial-grade materials to resist corrosion, shock, and vibration.
-
Ease of Integration: Standardized dimensions and plug-in design simplify system expansion and commissioning.
-
Certified for Industrial Use: Meets international safety and performance standards for mission-critical operations.
Frequently Asked Questions (FAQ)
-
What is the primary function of the 3500/05-02-04-00-00-01 rack?
It serves as a housing and connection platform for Bently Nevada 3500 Series monitoring modules. -
How many modules can it accommodate?
This version holds up to 7 full-height 3500 Series modules. -
Is it compatible with all 3500 Series modules?
Yes, it supports all standard modules such as 3500/22M, 3500/40M, 3500/15, etc. -
Can modules be hot-swapped in this rack?
Yes, modules can be safely inserted or removed while the system is powered on. -
Does the rack include power distribution?
Yes, the backplane distributes both power and signal communications to installed modules. -
What are the environmental limits for this rack?
It operates between -40°C and +70°C, with storage capability down to -55°C. -
Is passive cooling sufficient for this rack?
Yes, the design allows for efficient air circulation, especially in indoor enclosures. -
What mounting options are available?
The rack can be mounted in a standard panel or industrial cabinet. -
What is the material used for the chassis?
It is constructed from industrial-grade coated metal for durability and EMC shielding. -
What distinguishes this model (-01 suffix)?
The “-01” typically denotes wiring or grounding configurations specific to customer or application requirements.
