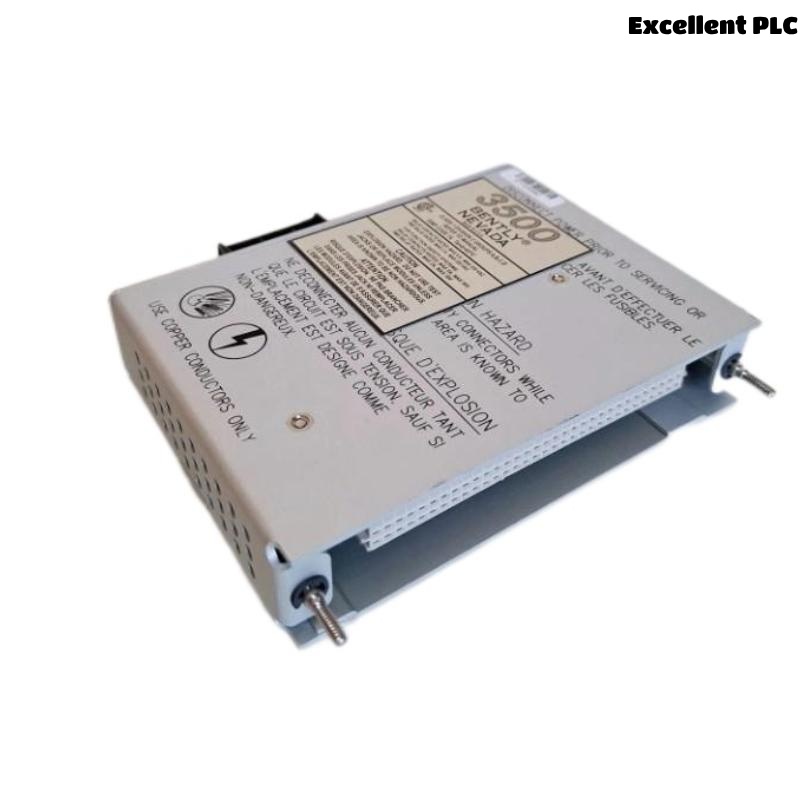

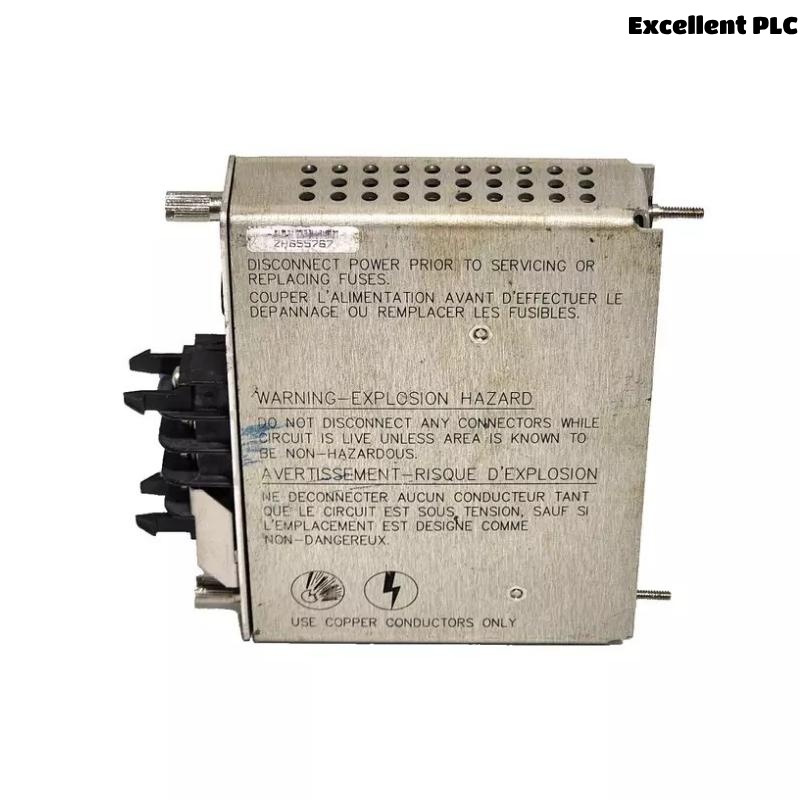

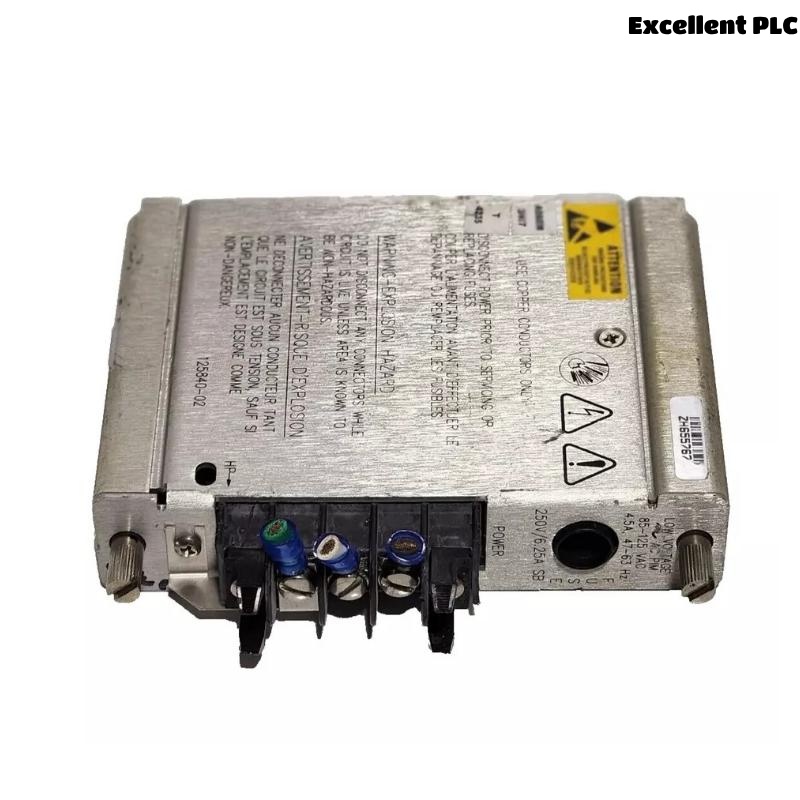

Bently Nevada 3500/15-01-01-00 125840-02 Product Introduction
The Bently Nevada 3500/15-01-01-00 125840-02 is a high-performance vibration monitoring module designed for critical machinery protection and condition monitoring. It is part of the renowned Bently Nevada 3500 series, which is widely used in industries such as oil and gas, power generation, and chemical processing. This module ensures reliable detection of machinery faults, enabling proactive maintenance and reducing downtime.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 3500/15-01-01-00 125840-02 |
| Input Channels | 2 (Dual-channel) |
| Input Signal | Accepts dynamic signals from proximity probes |
| Frequency Range | 10 Hz to 10 kHz |
| Power Supply | 18-30 VDC |
| Operating Temperature | -30°C to +70°C |
| Dimensions | 120.7 x 25.4 x 114.3 mm |
| Weight | 0.34 kg |
| Communication | RS-485, Modbus protocol |
| Certifications | ATEX, IECEx, UL, CE |
Product Applications
The Bently Nevada 3500/15-01-01-00 125840-02 is primarily used for:
-
Rotating Machinery Monitoring: Detects vibration, eccentricity, and other mechanical faults in turbines, compressors, and pumps.
-
Predictive Maintenance: Provides real-time data to prevent unexpected failures.
-
Industrial Automation: Integrates with control systems for seamless machinery management.
-
Power Plants: Ensures safe operation of generators and auxiliary equipment.
-
Oil & Gas: Monitors critical equipment in refineries and pipelines.
Product Advantages
-
High Accuracy: Precise measurement of vibration and positional changes.
-
Robust Design: Built to withstand harsh industrial environments.
-
Easy Integration: Compatible with existing Bently Nevada 3500 systems.
-
Advanced Diagnostics: Alerts for early fault detection.
-
Global Certifications: Meets international safety and performance standards.
Frequently Asked Questions (FAQ)
-
What is the purpose of the Bently Nevada 3500/15-01-01-00 125840-02?
It is a vibration monitoring module for machinery protection and condition monitoring. -
How many input channels does it support?
It supports 2 input channels. -
What is the operating voltage range?
18-30 VDC. -
Can it be used in hazardous environments?
Yes, it is ATEX and IECEx certified. -
What communication protocols are supported?
RS-485 with Modbus protocol. -
What is the weight of the module?
Approximately 0.5 kg. -
What industries commonly use this module?
Oil & gas, power generation, chemical processing, and more. -
Is it compatible with other Bently Nevada 3500 series modules?
Yes, it integrates seamlessly with the 3500 series. -
What is the frequency range for vibration detection?
10 Hz to 10 kHz. -
Does it support real-time monitoring?
Yes, it provides real-time data for predictive maintenance.
Recommended Related Models
| Model Number | Description |
|---|---|
| 3500/22M-01-01-00 | Transient Data Interface Module |
| 3500/42M-01-01-00 | Vibration Monitor Module |
| 3500/32-01-01-00 | Speed Monitor Module |
| 3500/92-01-01-00 | Communication Gateway Module |
| 3500/25-01-01-00 | Keyphasor Module |
| 3500/15-02-01-00 | Dual-Channel Vibration Monitor (Alternative) |
