Product Introduction

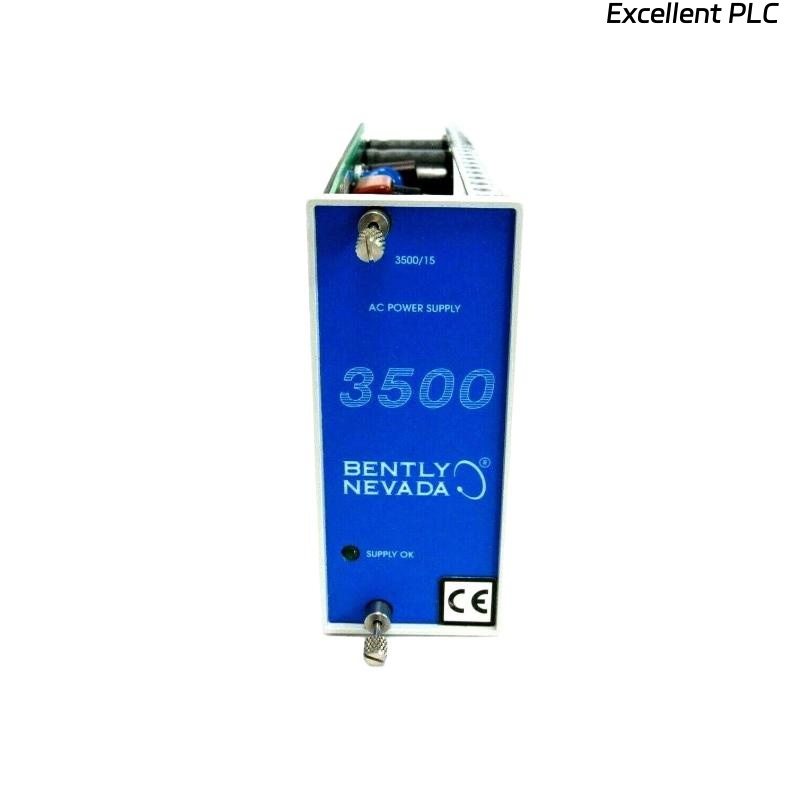

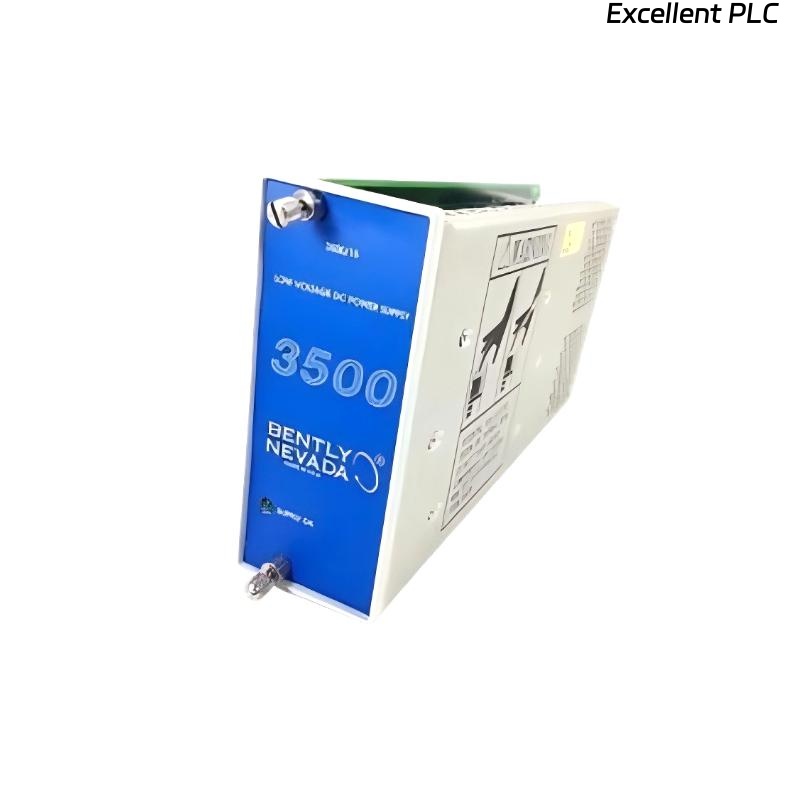

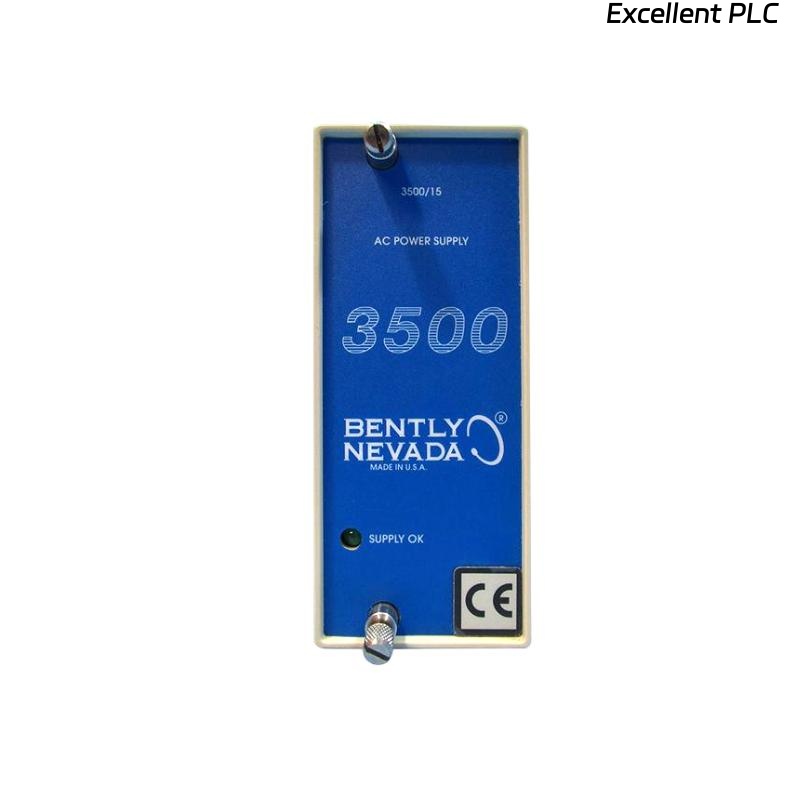

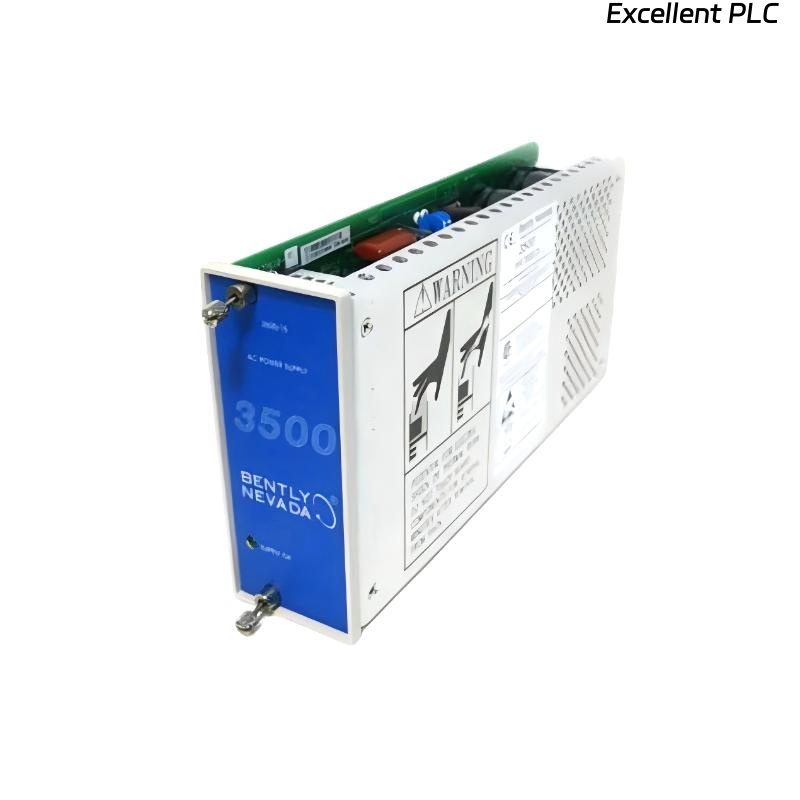

The Bently Nevada 3500/15-01-01-01 power supply module is a key component of the 3500 Series monitoring systems designed for industrial applications. It is engineered to provide high-reliability power to the 3500 series rack and associated modules. As an integral part of the system, this power supply ensures uninterrupted operation in harsh and demanding environments, such as power plants, chemical facilities, and manufacturing industries.
With its compact size, high efficiency, and robust performance, the 3500/15-01-01-01 is ideal for ensuring your monitoring system functions without compromise. It is built for ease of integration into existing installations, supporting both legacy and modern monitoring systems. This model is designed to work in extreme temperature ranges and can handle variations in power supply conditions, making it suitable for worldwide applications.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | 3500/15-01-01-01 |
| Dimensions (L x W x H) | 120.7 x 50.8 x 251.5 mm |
| Weight | 1.39 kg |
| Input Voltage | 85–264 VAC, 50/60 Hz |
| Output Voltage | 24 VDC ± 1% |
| Output Current | 3.5 A |
| Power Consumption | 90 W |
| Operating Temperature | 0°C to +70°C |
| Relative Humidity | 5% to 95% (Non-condensing) |
| MTBF (Mean Time Between Failures) | 200,000 hours |
Applications
The 3500/15-01-01-01 power supply module is essential in applications where continuous and reliable power is needed to support sophisticated machinery and control systems. Its uses span across several industries, including:
-
Power Generation: The module powers monitoring systems critical for the safe and efficient operation of power plants.
-
Oil & Gas: It provides stable power to essential equipment in harsh and remote oil and gas fields.
-
Chemical Processing: The 3500 series power supply ensures uninterrupted operation of monitoring and safety systems in chemical plants.
-
Manufacturing Automation: In factories and automated systems, this power supply supports real-time data processing and machinery control.
Advantages
-
Reliable and Durable: With an MTBF of 200,000 hours, this power supply is built to provide long-lasting performance with minimal maintenance.
-
Wide Input Voltage Range: It supports input voltages from 85–264 VAC, making it adaptable to various global electrical standards.
-
Compact and Lightweight: Despite its robust performance, it is lightweight (1.39 kg) and has compact dimensions (120.7 x 50.8 x 251.5 mm), ensuring ease of installation and space efficiency.
-
Versatility: Suitable for various industrial sectors including power generation, oil & gas, chemical, and manufacturing, offering flexibility in deployment.
-
Energy-Efficient: With a power consumption of just 90 W, it provides efficient power management, minimizing operational costs.
FAQ
Q1: What is the input voltage range for the Bently Nevada 3500/15-01-01-01 power supply?
A1: The input voltage range for the module is 85–264 VAC, 50/60 Hz, ensuring it can operate in various global environments.
Q2: What is the output voltage of the 3500/15-01-01-01 module?
A2: The output voltage is 24 VDC ± 1%, providing stable and reliable power to the monitoring system.
Q3: How much current can the power supply module deliver?
A3: The module can deliver up to 3.5 A of output current.
Q4: What are the physical dimensions of the Bently Nevada 3500/15-01-01-01 power supply?
A4: The dimensions of the module are 120.7 x 50.8 x 251.5 mm, which makes it compact and easy to integrate into existing setups.
Q5: How much does the power supply module weigh?
A5: The weight of the module is 1.39 kg, ensuring ease of handling and installation.
Q6: What is the operating temperature range for this module?
A6: The module can operate within a temperature range of 0°C to +70°C, making it suitable for use in both mild and harsh environmental conditions.
Q7: What is the relative humidity tolerance of the 3500/15-01-01-01 module?
A7: The module can function effectively within a relative humidity range of 5% to 95% (Non-condensing), ensuring stability in varying environmental conditions.
Q8: What is the Mean Time Between Failures (MTBF) for the module?
A8: The MTBF is 200,000 hours, which indicates the reliability and longevity of the power supply module.
Q9: Can the power supply module be used in hazardous environments?
A9: While the module is highly durable, it is not specifically rated for hazardous locations. Ensure that environmental conditions align with the product specifications before installation.
Q10: How long can the 3500/15-01-01-01 power supply function without failure?
A10: With a high MTBF of 200,000 hours, this power supply can function for years without the need for significant maintenance, ensuring reliability over long-term use.
