Introduction

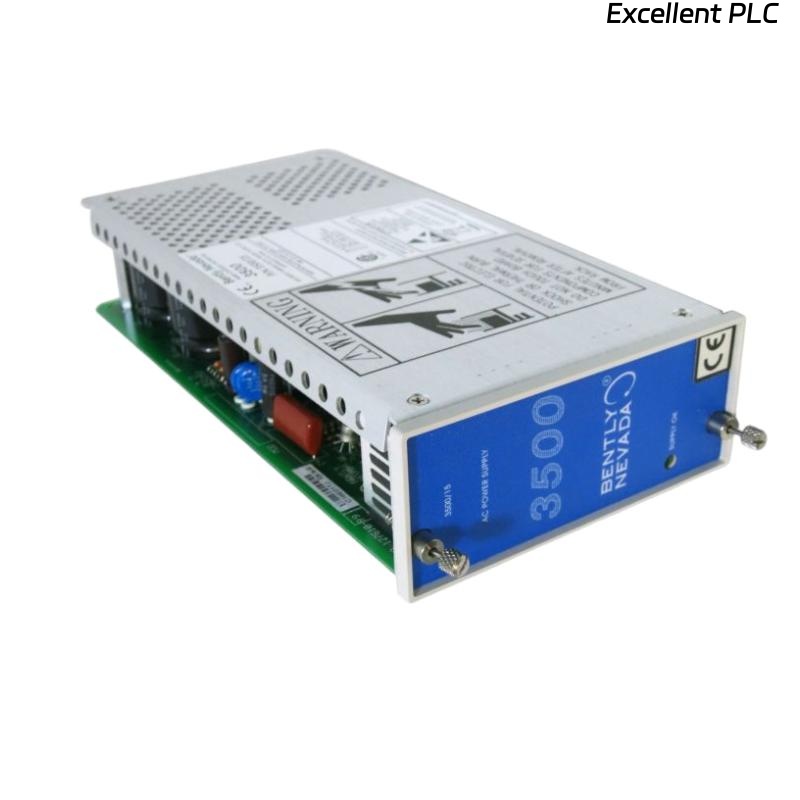

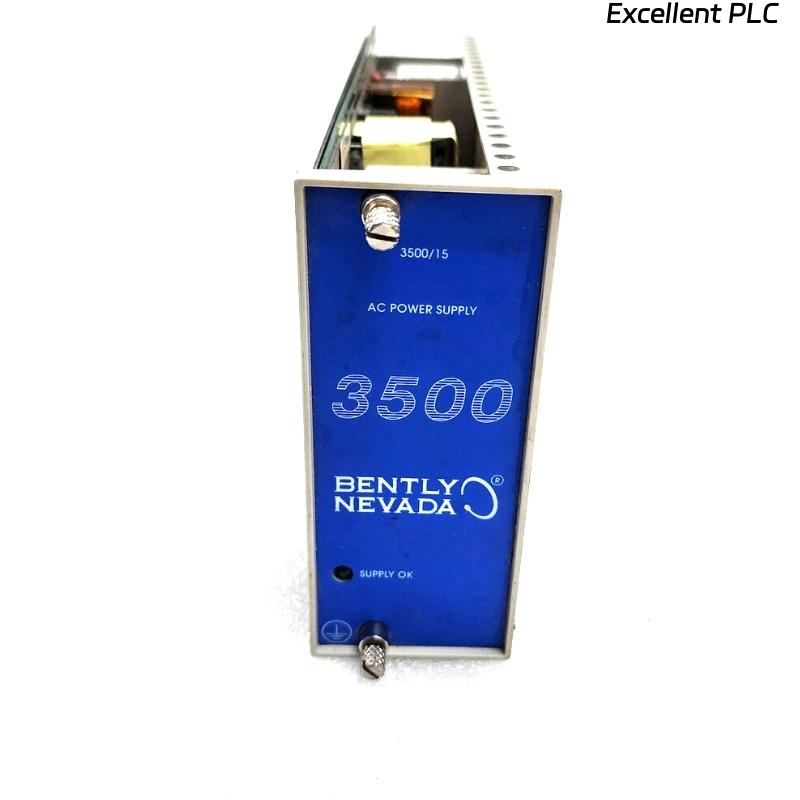

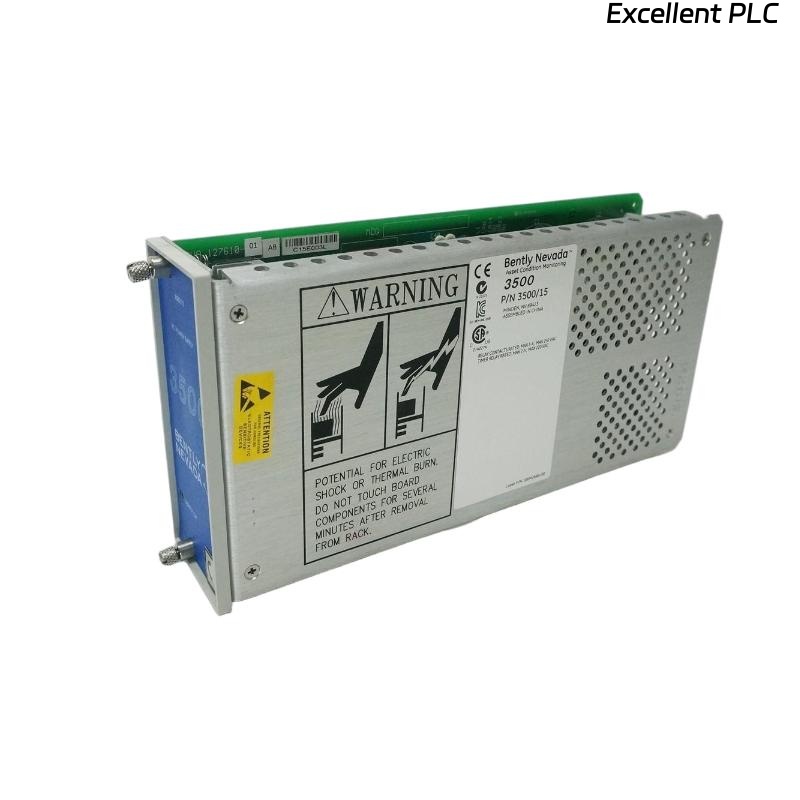

The Bently Nevada 3500/15-02-02-02 is a highly reliable power supply module designed for the 3500 Series Machinery Protection System. This module provides stable and continuous power to ensure the optimal performance of the overall monitoring system. Known for its robustness and longevity, it plays a crucial role in maintaining uninterrupted machinery condition monitoring, which is essential for industrial plants and critical rotating equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 3500/15-02-02-02 |
| Function | Power Supply Module |
| Input Voltage | 115/230 VAC ±10% |
| Output Voltage | +15 V DC nominal |
| Output Current | 2 Amps maximum |
| Dimensions | 120.7 x 50.8 x 251.5mm |
| Weight | 1.39 kg |
| Mounting | 19-inch Rack Mount |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95%, non-condensing |
| Cooling | Convection cooled |
| Certifications | UL, CE |
Applications
The 3500/15-02-02-02 power supply is engineered specifically for use within Bently Nevada’s 3500 Series Protection System, which is widely deployed in:
-
Turbines (steam, gas, hydro)
-
Compressors
-
Pumps
-
Generators
-
Motors
-
Other critical rotating machinery
It supports continuous operation in demanding environments such as power generation plants, oil and gas facilities, petrochemical plants, and heavy industrial manufacturing. The power supply ensures that vibration and position sensors and the monitoring system remain operational without interruption, preventing costly downtime.
Advantages
-
Reliable Power Delivery: Provides a consistent, regulated output voltage ensuring system stability.
-
Robust Design: Built to withstand harsh industrial environments including temperature extremes and humidity.
-
Easy Installation: Fits standard 19-inch rack systems and integrates seamlessly with other 3500 Series modules.
-
Compact Size: Saves valuable panel space while delivering high output power.
-
Long Service Life: Designed for continuous operation with minimal maintenance.
-
Safety Compliant: Meets major international safety standards for industrial power supplies.
-
Redundancy Friendly: Can be paired with other power modules for backup power configurations.
-
Thermal Management: Convection cooling allows silent and maintenance-free operation.
FAQ
Q1: What is the input voltage range for the 3500/15-02-02-02?
A1: It accepts an input voltage of 115/230 VAC with a tolerance of ±10%.
Q2: How much output current can the power supply provide?
A2: It can deliver up to 2 Amps of DC output current.
Q3: Can this power supply operate in extreme temperatures?
A3: Yes, it operates safely between -20°C and +70°C.
Q4: Is the power supply compatible with all 3500 Series modules?
A4: Yes, it is designed to support the entire 3500 Series protection system.
Q5: How is the module cooled during operation?
A5: It uses convection cooling, so no fans are required.
Q6: What are the physical dimensions of the unit?
A6: The dimensions are 120.7 x 50.8 x 251.5mm.
Q7: Is the power supply hot-swappable?
A7: No, it is not designed for hot swapping and should be installed or removed with the system powered down.
Q8: What kind of mounting does this power supply use?
A8: It mounts on a standard 19-inch rack.
Q9: What certifications does the 3500/15-02-02-02 have?
A9: It meets UL and CE safety standards.
Q10: Can multiple power supplies be used together for redundancy?
A10: Yes, the design supports redundant power supply configurations to increase system reliability.
