Product Introduction

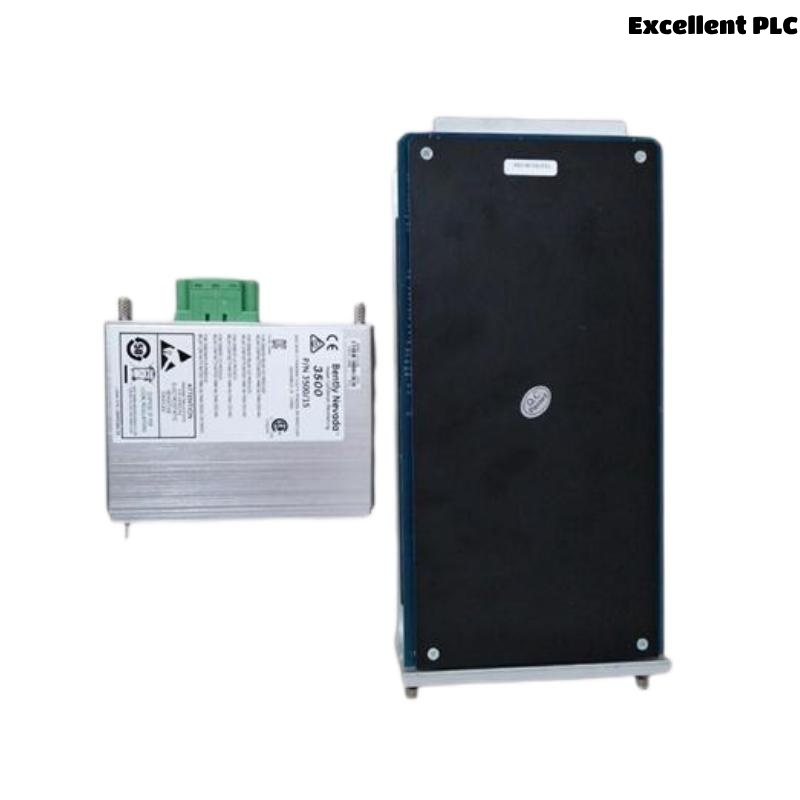

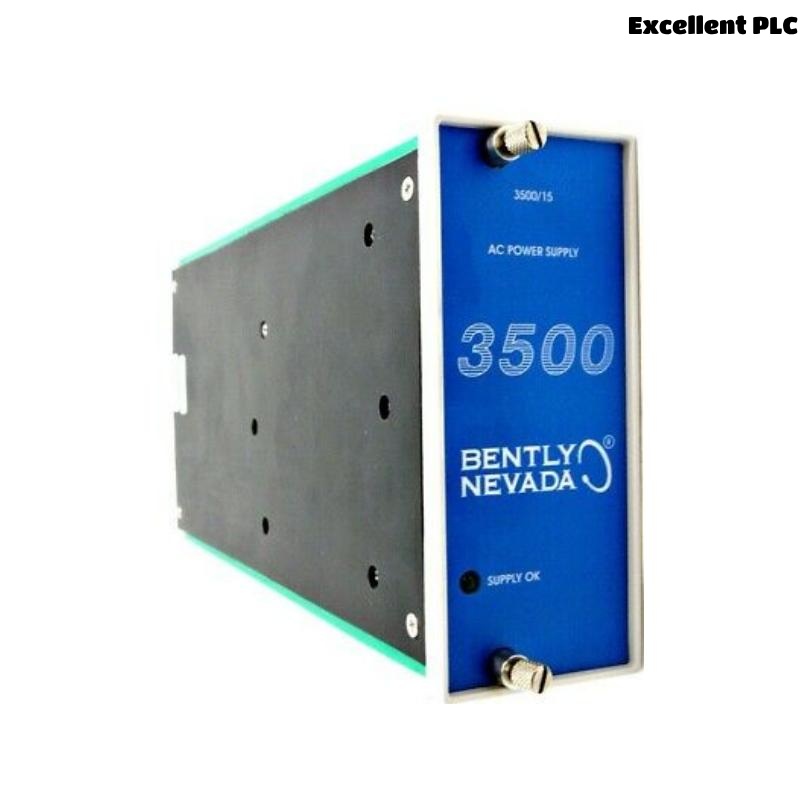

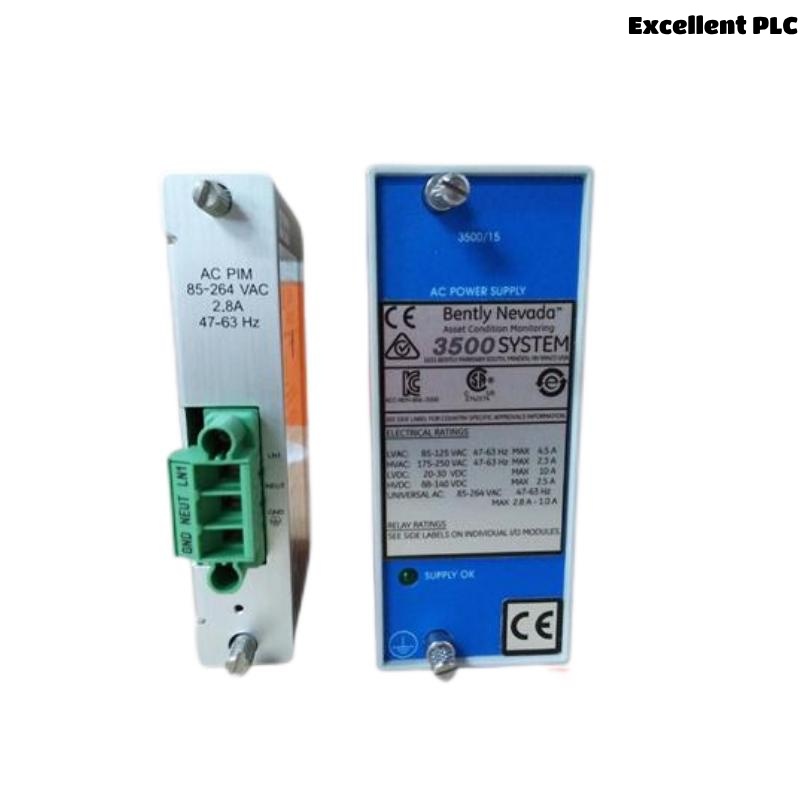

The Bently Nevada 3500/15-02-02 is a high-performance rack interface module used within the Bently Nevada 3500 Series Machinery Protection System. As a key component of this trusted condition monitoring platform, the 3500/15-02-02 provides reliable and robust communication capabilities between the system and external devices. This module is essential for delivering high-speed, real-time data transmission and system configuration across the network, enabling predictive maintenance and rapid fault detection in rotating machinery.
Designed for compatibility with various industrial protocols and communication networks, the 3500/15-02-02 excels in monitoring turbines, compressors, pumps, and motors in industries such as oil & gas, power generation, petrochemicals, and manufacturing.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 3500/15-02-02 |
| Product Type | Communication Gateway Module |
| System Compatibility | Bently Nevada 3500 Monitoring System |
| Communication Port | Ethernet and RS232/RS485 (via configuration) |
| Data Transmission | Real-time Modbus and TCP/IP |
| Power Supply | 24 VDC (typical, from rack) |
| Temperature Range | -30°C to +65°C |
| Humidity Range | 0–95% RH non-condensing |
| Enclosure Type | Installed in 3500 rack |
| Dimensions | 120.7 x 50.8 x 251.5 mm |
| Weight | 1.39 kg |
| Mounting | Rack-based (3500 Series Rack) |
| Firmware Upgradeable | Yes (via configuration utility) |
Product Applications
The 3500/15-02-02 is primarily used in environments where rotating equipment requires continuous protection and diagnostics. Its typical applications include:
-
Gas and steam turbines
-
Centrifugal and axial compressors
-
Industrial fans and blowers
-
Electric motors and generators
-
High-speed pumps
-
Critical asset monitoring in oil refineries, power plants, chemical facilities
This module acts as a bridge for collecting and forwarding vibration, temperature, speed, and displacement data from transducers to control systems and HMIs.
Product Advantages
-
High-Speed Communication: Real-time, reliable data sharing across Ethernet and serial ports.
-
System Integration: Seamless compatibility with SCADA, DCS, and third-party HMIs using Modbus/TCP.
-
Diagnostic Precision: Enables predictive maintenance strategies to reduce downtime.
-
Flexible Configuration: Multiple protocol support allows tailored integration into diverse control architectures.
-
Compact Design: Space-saving module easily fits into the standard 3500 rack system.
-
Secure Data Access: Built-in firmware features for authenticated and protected communication.
Frequently Asked Questions (FAQ)
Q1: What is the primary role of the 3500/15-02-02 module?
A1: It serves as a communication interface that allows the 3500 system to exchange data with external control or monitoring systems.
Q2: Can the 3500/15-02-02 be configured remotely?
A2: Yes, configuration can be done using Bently Nevada’s configuration software via network connection.
Q3: What communication protocols are supported?
A3: It supports Ethernet-based Modbus TCP and RS232/RS485 for serial Modbus.
Q4: Is it hot-swappable?
A4: No, the module must be inserted or removed with power off to prevent system disruption.
Q5: How is the module powered?
A5: It draws power from the 3500 rack’s backplane, no external power source is needed.
Q6: What is the typical data rate?
A6: Data rate depends on the network setup but is optimized for high-speed, real-time monitoring.
Q7: What kind of maintenance does it require?
A7: Very low maintenance; periodic firmware checks and network integrity tests are sufficient.
Q8: Can this module be used with older 3300 series systems?
A8: No, it is specifically designed for use with the 3500 Series only.
Q9: How do I know if the module is operating correctly?
A9: Status LEDs on the front panel indicate communication status and errors.
Q10: Can multiple 3500/15-02-02 modules be used in one rack?
A10: Typically, only one communication module is used per rack, but system-specific configurations can vary.
Recommended Related Models (Same Series)
| Model Number | Description |
|---|---|
| 3500/15-01-01 | Basic Communication Gateway Module |
| 3500/22M | TDI Module with Ethernet |
| 3500/20 | Rack Interface Module |
| 3500/60 | Temperature Monitoring Module |
| 3500/42M | Dynamic Vibration Monitoring Module |
| 3500/32M | Relay Module |
Recommended Popular Bently Nevada Models
| Model Number | Function | Dimensions (mm) | Weight |
|---|---|---|---|
| 330103-00-05-10-02-00 | Proximity Probe | 70 x 12 (diameter) | 120 g |
| 330130-080-00-00 | Extension Cable for Probes | 8 m length | 300 g |
| 3500/22M | Transient Data Interface Module | 241 x 24.1 x 95.3 | 420 g |
| 3500/60 | Temperature Monitor Module | 241 x 24.1 x 95.3 | 450 g |
| 3500/42M | Vibration Monitor Module | 241 x 24.1 x 95.3 | 460 g |
| 3500/32M | Relay Output Module | 241 x 24.1 x 95.3 | 470 g |
