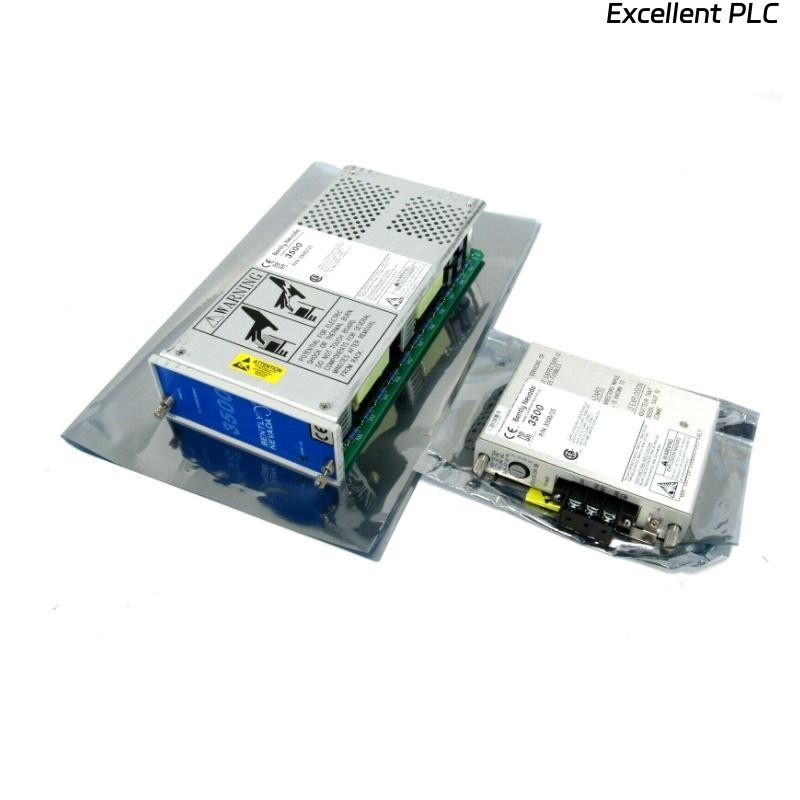

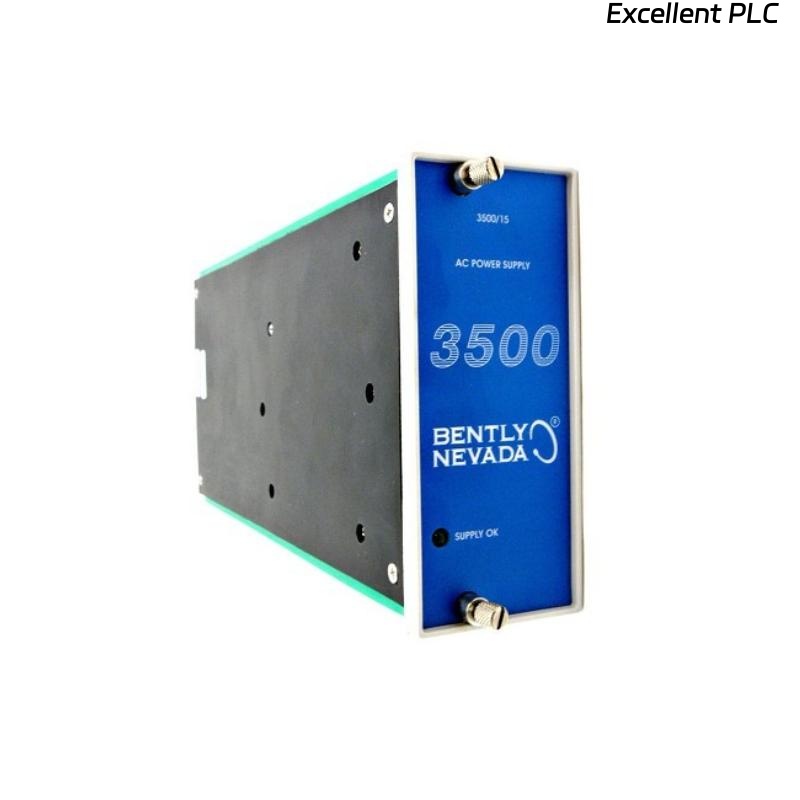

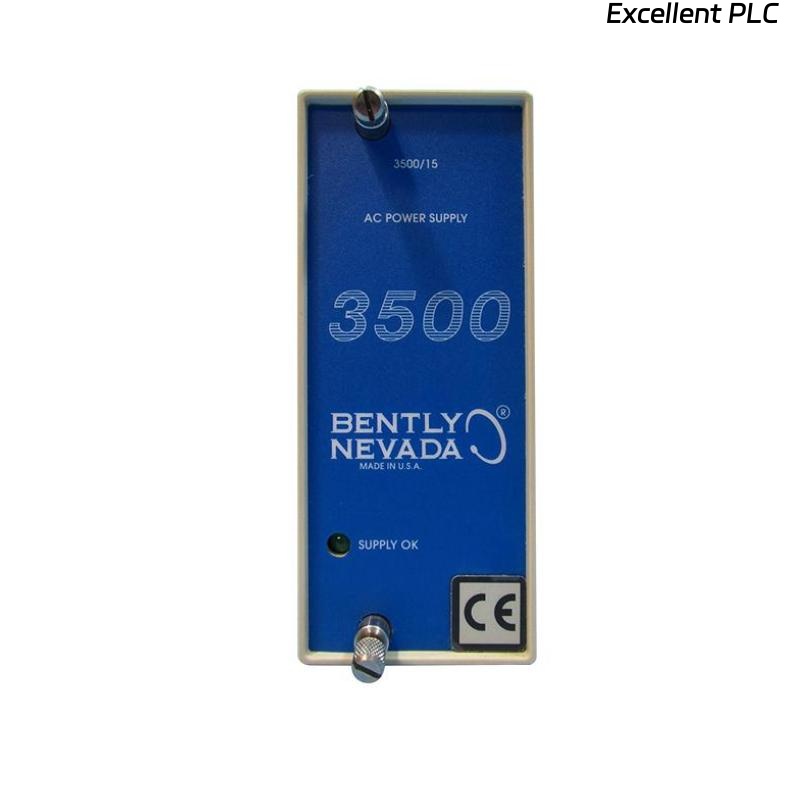

Bently Nevada 3500/15-02-02-RU Product Overview
The Bently Nevada 3500/15-02-02-RU is a critical component of the 3500 Series machinery protection system, designed for high-reliability monitoring of industrial rotating equipment. This product functions as a power supply unit specifically engineered to ensure stable and continuous power delivery to the 3500 Series monitoring racks and modules. It is built with robust engineering standards to meet the demanding environments found in industries such as power generation, oil and gas, petrochemical, and heavy manufacturing.
This unit supports operational reliability and system longevity by delivering clean and regulated power, reducing the risk of unexpected downtime caused by power instability. The 3500/15-02-02-RU is commonly integrated into large-scale machinery protection setups where precision, safety, and fault tolerance are paramount.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 3500/15-02-02-RU |
| Function | Power Supply Unit |
| Input Voltage | 115/230 VAC, 50/60 Hz |
| Output Voltage | +5 VDC, +15 VDC |
| Output Current | 10 A (max) |
| Dimensions | 120.7 x 50.8 x 251.5mm |
| Weight | 1.39 kg |
| Operating Temperature | -20°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting | Rack-mounted |
| Cooling | Convection cooled |
Applications
-
Machinery protection systems in power plants to monitor turbines, generators, and compressors
-
Oil and gas installations for safeguarding critical rotating equipment
-
Petrochemical plants where equipment reliability is critical to safety and production
-
Heavy manufacturing industries requiring continuous machinery monitoring
-
Any industrial setup requiring high-availability power supplies for protection and control modules
Advantages
-
High Reliability: Designed for continuous 24/7 operation with minimal downtime risk.
-
Stable Power Output: Provides regulated DC power to critical monitoring modules ensuring accurate readings.
-
Wide Input Voltage Range: Supports international power standards, allowing flexible installation worldwide.
-
Compact Size: Rack-mount design optimizes panel space and facilitates easy integration.
-
Robust Environmental Tolerance: Operates effectively in harsh industrial environments with wide temperature and humidity tolerance.
-
Safety Compliance: Meets industry standards for electrical safety and EMI/EMC compatibility.
-
Easy Maintenance: Modular design allows quick replacement without system downtime.
FAQ (Frequently Asked Questions)
Q1: What type of power input does the 3500/15-02-02-RU require?
A1: It requires 115/230 VAC at 50 or 60 Hz, accommodating both common power standards.
Q2: Can this power supply be used in outdoor installations?
A2: It is designed primarily for indoor use within controlled environments but has a wide temperature and humidity tolerance. For outdoor use, appropriate enclosures are recommended.
Q3: What is the expected lifespan of the power supply?
A3: Under normal operating conditions, the lifespan typically exceeds 5+ years, depending on environmental factors and maintenance.
Q4: Is the unit hot-swappable in a running rack?
A4: Yes, the power supply supports hot-swapping to allow maintenance without shutting down the monitoring system.
Q5: How is cooling handled in this unit?
A5: Cooling is convection-based, so adequate rack ventilation is necessary to prevent overheating.
Q6: What protections are included against electrical faults?
A6: The unit has built-in over-voltage, over-current, and short-circuit protections to safeguard both the supply and connected equipment.
Q7: Are spare parts and replacements readily available?
A7: Yes, Bently Nevada ensures availability of spare power supplies and modules for maintenance and upgrades.
Q8: Can this unit power all modules in the 3500 Series rack?
A8: It is designed to power typical 3500 Series modules, but power budgeting should be verified for racks with high module counts.
Q9: How is the unit monitored during operation?
A9: The 3500 system typically monitors power supply status, and alarms can be configured to alert on failures or anomalies.
Q10: Is installation complicated for this power supply?
A10: Installation follows standard rack-mounted equipment procedures; it is straightforward when following the provided manual.
