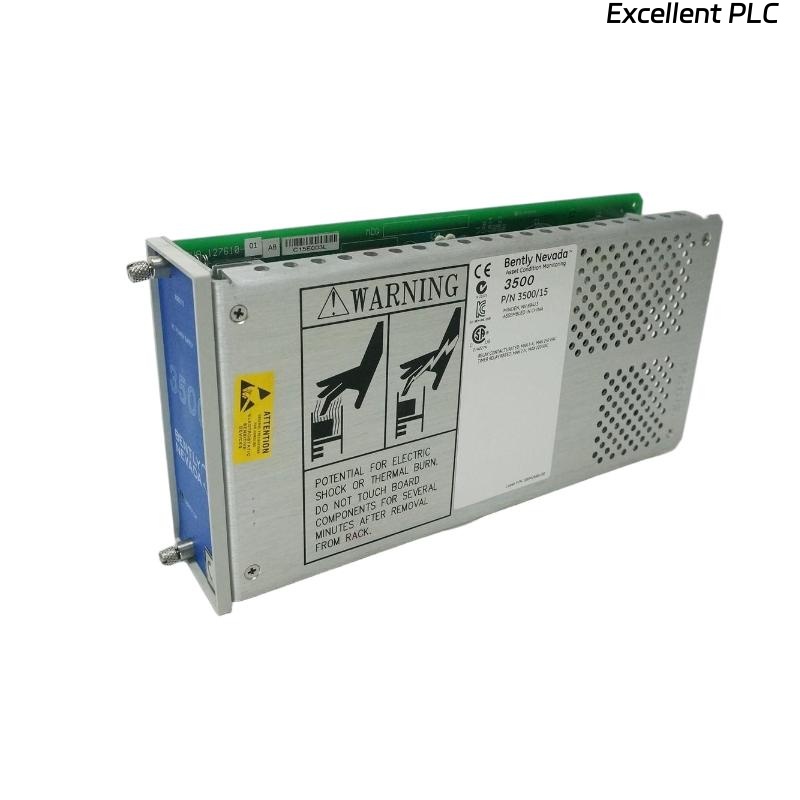

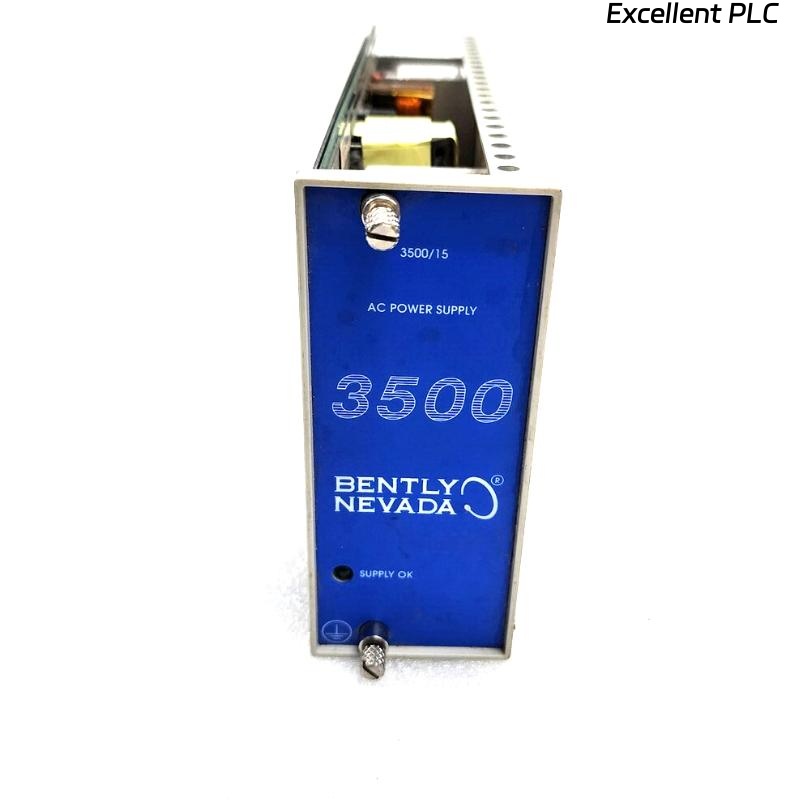

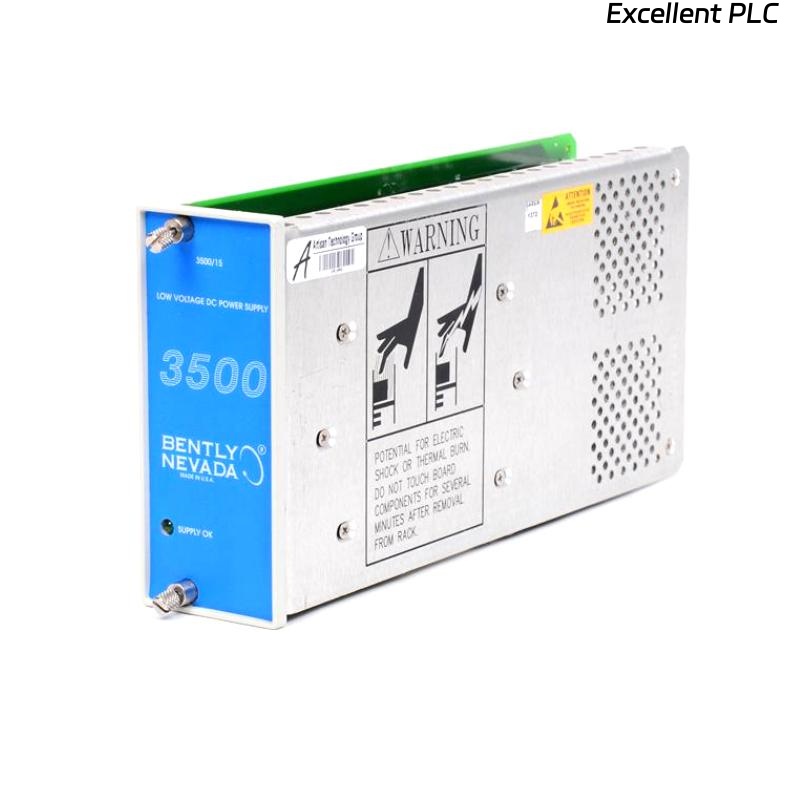

Bently Nevada 3500/15-03-05-00 Product Introduction
The Bently Nevada 3500/15-03-05-00 is a critical component of the 3500 Series Machinery Protection System, designed to ensure reliable and accurate monitoring of industrial machinery. This module is engineered to provide continuous protection for rotating equipment by detecting vibration, speed, and other key parameters to prevent machinery failures and unscheduled downtime. Built with precision and durability in mind, the 3500/15-03-05-00 integrates seamlessly into a wide range of industrial environments, delivering robust performance in challenging conditions.
Developed with advanced signal processing capabilities, the module supports a variety of sensor inputs and offers extensive diagnostic features that allow operators to maintain optimal machine health. Its modular design facilitates easy installation, maintenance, and scalability for expanding plant operations.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 3500/15-03-05-00 |
| Function | Power Supply Module |
| Dimensions | 120.7 x 50.8 x 251.5mm |
| Weight | 1.39 kg |
| Input Voltage | 120/240 VAC, 50/60 Hz |
| Output Voltage | +5 V DC, +15 V DC, -15 V DC |
| Power Consumption | Approx. 40 Watts |
| Operating Temperature | -20°C to +70°C |
| Humidity | 5% to 95%, non-condensing |
| Mounting Type | Rack-mounted |
Product Applications
The 3500/15-03-05-00 module is primarily used within the 3500 Series system in industries where reliable machinery protection is paramount. Typical applications include:
-
Power Generation Plants: Turbine vibration monitoring and protection
-
Oil & Gas Industry: Compressor and pump machinery protection
-
Petrochemical Plants: Critical rotating equipment monitoring
-
Manufacturing Facilities: Motors and gearboxes protection in heavy-duty machinery
-
Mining Operations: Crushers and conveyors vibration analysis
-
Aerospace and Defense: Test stands and rotating machinery monitoring
This product ensures continuous operational safety by providing reliable power and supporting other modules critical for machine health diagnostics.
Product Advantages
-
High Reliability: Designed for 24/7 operation in harsh industrial environments, minimizing failure risks.
-
Modular Design: Easily integrates with other 3500 series modules, facilitating system expansion and maintenance.
-
Stable Power Supply: Provides consistent and clean power to all connected components ensuring system stability.
-
Wide Operating Temperature Range: Suitable for extreme environmental conditions.
-
User-Friendly Installation: Rack-mountable form factor with standardized connectors enables quick installation.
-
Robust Diagnostics: Supports detailed status monitoring and fault detection.
-
Industry Proven: Backed by decades of Bently Nevada engineering expertise in machinery protection.
FAQ
Q1: What is the primary function of the 3500/15-03-05-00 module?
A1: It serves as the power supply module for the 3500 Series Machinery Protection System, delivering stable voltages needed by other modules.
Q2: Can this power supply module operate on both 120V and 240V AC inputs?
A2: Yes, it supports both 120V and 240V AC input voltages at 50 or 60 Hz.
Q3: What kind of environments can this module operate in?
A3: It is designed to work reliably between -20°C and +70°C and withstands humidity levels from 5% to 95% non-condensing.
Q4: Is the module compatible with other 3500 Series components?
A4: Yes, it is fully compatible and designed to work seamlessly within the 3500 Series rack system.
Q5: How does the module contribute to machinery protection?
A5: By providing stable and clean power, it ensures the continuous operation of monitoring modules that detect machinery abnormalities.
Q6: What are the physical dimensions of the power supply module?
A6: The module measures 120.7 x 50.8 x 251.5mm.
Q7: How heavy is the 3500/15-03-05-00 module?
A7: It weighs 1.39 kg.
Q8: What type of mounting does this module use?
A8: It is designed for rack mounting within the 3500 Series system.
Q9: What is the typical power consumption of the module?
A9: The power consumption is approximately 40 Watts during normal operation.
Q10: Are there any diagnostic features included with this power supply module?
A10: Yes, it supports monitoring of its operational status to detect faults and ensure system integrity.
