Product Introduction

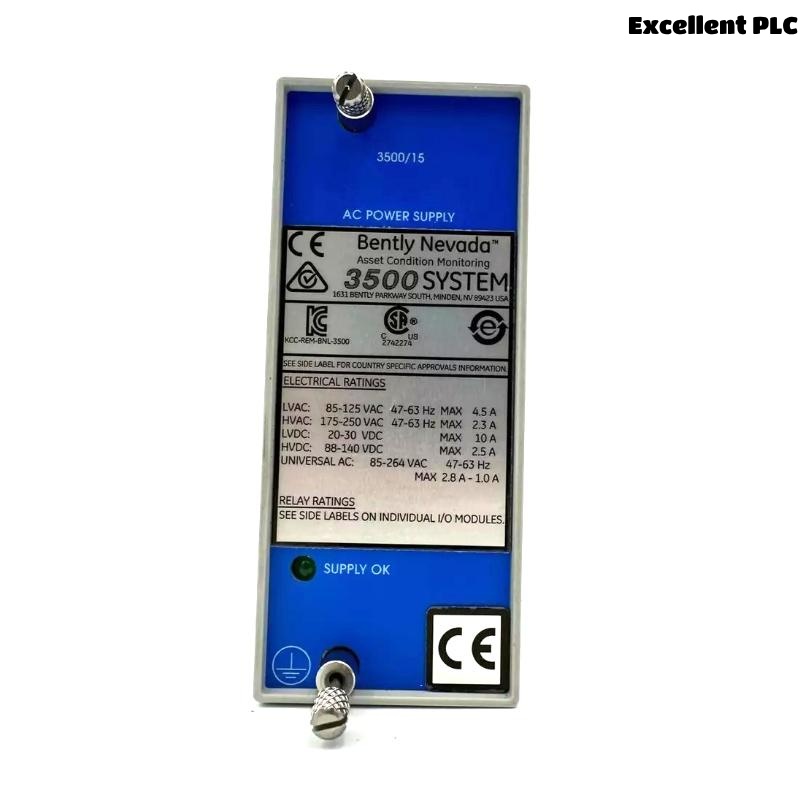

The Bently Nevada 3500/15-05-05-00 106M1079-01 Power Supply Module is a dual-output AC and DC power supply designed to support the reliable and continuous operation of the 3500 monitoring system. This unit delivers multiple regulated voltages required by rack components such as monitoring modules, display interfaces, and communication devices. The module’s robust performance ensures optimal power delivery in demanding industrial environments, including machinery protection, power generation, oil and gas, and marine applications.
The module fits directly into the 3500 rack, supports redundancy configurations, and allows for hot-swapping without interrupting the system, enhancing maintainability and uptime.
Product Parameters
| Parameter | Value |
|---|---|
| Model | 3500/15-05-05-00 |
| Dimensions | 120.7 x 50.8 x 251.5 mm |
| Weight | 1.39 kg |
| Input Voltage Range | 85–264 VAC (47–63 Hz) |
| Output Voltage (DC) | +5 V @ 5 A; +15 V @ 1 A |
| Output Voltage (AC) | +24 VAC @ 2 A |
| Efficiency | ≥ 85% |
| Ripple & Noise | ≤ 50 mVp-p |
| Operating Temp Range | –40 °C to +70 °C |
| Mounting Type | Rack or DIN rail |
| Redundancy Support | Yes (N+1 power configuration) |
Product Applications
The 3500/15-05-05-00 power module is purpose-built to ensure uninterrupted operation of machinery protection and condition monitoring systems in a variety of mission-critical applications, such as:
-
Rotating Machinery Monitoring: Powers the 3500 rack used to monitor turbines, pumps, compressors, and motors.
-
Oil & Gas Facilities: Supplies power for condition monitoring systems across upstream, midstream, and downstream operations.
-
Power Generation: Maintains consistent power for monitoring systems in thermal, hydro, and nuclear plants.
-
Marine and Offshore Systems: Withstands harsh conditions, powering vibration monitoring systems on ships and rigs.
-
Process Industries: Integrated into petrochemical, refining, and manufacturing environments to maintain control system reliability.
-
Redundant Safety Systems: Used in dual power configurations for critical protection systems requiring zero downtime.
Product Advantages
-
Dual Output Design – Supplies both AC and DC voltages (+5V, +15V DC and +24VAC) to accommodate a range of modules within the 3500 system.
-
High Reliability – Designed for continuous industrial operation with wide input voltage and extended temperature support.
-
Redundancy Ready – Easily integrates into a redundant power configuration to eliminate single points of failure.
-
Compact & Rack-Mountable – Slim 120.7 mm width fits neatly into 3500 racks, minimizing control cabinet space requirements.
-
Hot-Swappable – Enables maintenance and module replacement without powering down the rack, improving system availability.
-
Noise Suppression – Low ripple design (<50 mVpp) ensures clean, stable power for sensitive monitoring electronics.
-
High Efficiency – Reduces energy consumption and thermal load with ≥85% power conversion efficiency.
-
Wide Temperature Range – Operates from –40 °C to +70 °C for compatibility with extreme environments.
FAQs
Q1: What types of output does this power module provide?
A1: It delivers both AC (+24 VAC) and DC (+5 V and +15 V) outputs.
Q2: Is this power supply compatible with redundancy?
A2: Yes, it is designed to operate in redundant configurations for uninterrupted operation.
Q3: Can the power module be hot-swapped?
A3: Yes, it supports hot-swapping, allowing removal or replacement without system shutdown.
Q4: What industries commonly use this module?
A4: It’s used in oil & gas, power generation, marine, manufacturing, and heavy industrial sectors.
Q5: Does it support wide voltage inputs?
A5: Yes, it accepts 85–264 VAC across a frequency of 47–63 Hz.
Q6: What kind of efficiency does it offer?
A6: It achieves a power conversion efficiency of 85% or greater.
Q7: What is the ripple and noise level?
A7: Ripple and noise levels are ≤ 50 mV peak-to-peak, ensuring clean power delivery.
Q8: Can it be mounted on a DIN rail?
A8: Yes, in addition to rack mounting, it supports DIN rail installation.
Q9: What’s the operating temperature range?
A9: –40 °C to +70 °C, enabling use in harsh and variable environments.
Q10: How much does the unit weigh?
A10: The module weighs approximately 1.39 kg.
Related Series Models
| Model | Description | Key Features |
|---|---|---|
| 3500/15-02-02-00 | AC Power Supply, Standard Output | Lower output current, rack-compatible |
| 3500/15-01-01-00 | DC-Only Power Supply | Pure DC output, suitable for DC-only systems |
| 3500/15-05-10-00 | High Current AC/DC Power Supply | Higher output capacity for larger systems |
| 3500/15-05-05-01 | Enhanced Redundant Power Module | Integrated redundancy support |
| 3500/15-08-05-00 | Compact Power Supply Unit | Optimized for space-constrained racks |
| 3500/15-10-10-00 | Premium Performance Power Supply | Industrial-grade performance and temperature resilience |
Popular Bently Nevada Models
| Model | Description | Key Features |
|---|---|---|
| 3500/15-04-04-02 | 3500 Series Power Supply Module, High Voltage, Redundant | High-voltage input, redundant configuration |
| 3500/15-05-00 | 3500 Series Universal AC Power Supply Module | Wide-range AC input, standard performance |
| 3500/15-05-00-00 | 3500 Series Universal Power Supply with Baseplate | Baseplate included, universal AC input |
| 3500/15-01-01-00 | Low Voltage DC Power Supply Module | 24 VDC input, standard configuration |
| 3500/15-02-02-00 | High Voltage DC Power Supply Module | 125 VDC input, high reliability |
| 3500/15-06-01-00 | High Output AC Power Supply with Advanced Diagnostics | Enhanced power output, integrated diagnostics system |
