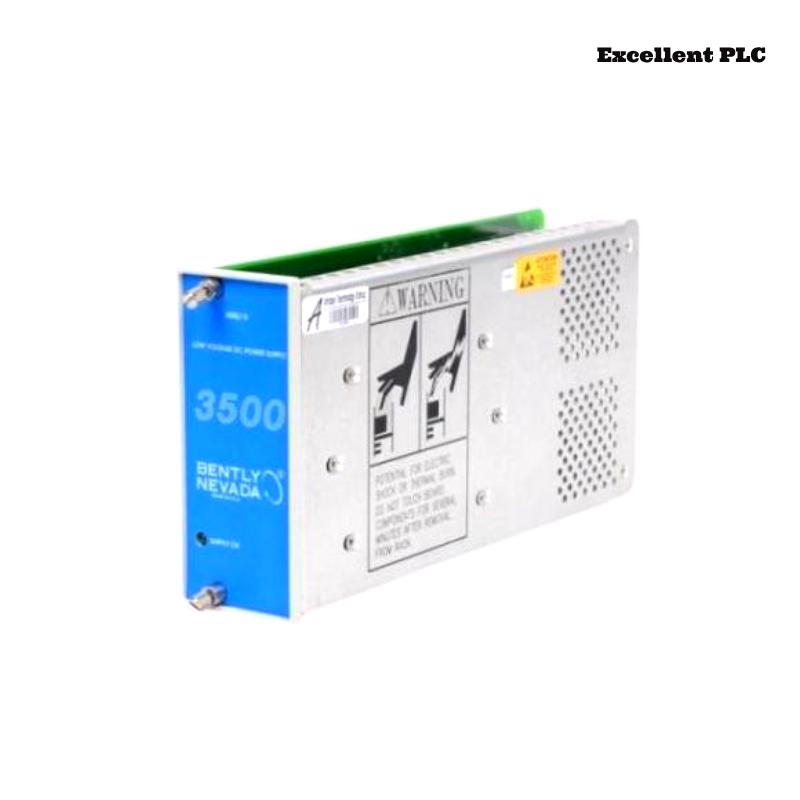

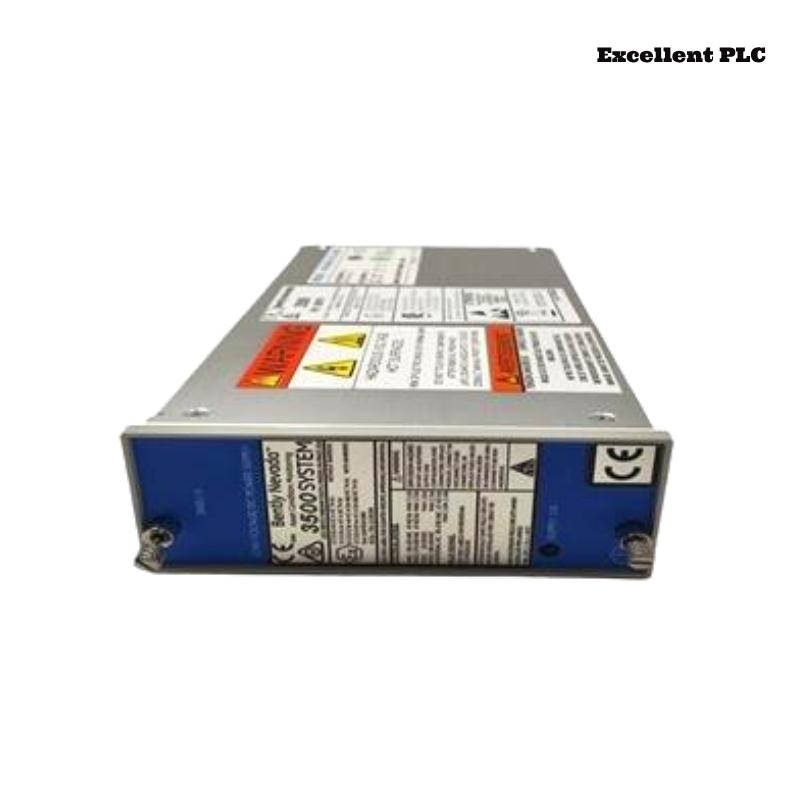

Bently Nevada 3500/15 106M1079-01 Product Overview
The Bently Nevada 3500/15 106M1079-01 is part of the 3500 Series, a leading vibration monitoring and protection solution from Bently Nevada. This specific model is designed to provide real-time, continuous monitoring of vibration conditions in machinery to prevent failures, reduce downtime, and ensure safe and efficient operation. The 3500/15 system integrates advanced vibration analysis technology and predictive maintenance capabilities, which helps industries such as power generation, oil & gas, and manufacturing avoid costly repairs and extend the operational life of critical equipment.
The 3500/15 is particularly suitable for monitoring critical machinery like turbines, compressors, and motors, offering early detection of issues such as imbalance, misalignment, and bearing faults. By analyzing vibration signals and providing actionable data, it helps operators take preemptive measures to prevent system failures before they escalate.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Name | Bently Nevada 3500/15 106M1079-01 |
| Product Type | Vibration Monitoring and Protection System |
| Input Type | Vibration (Accelerometer) |
| Output Type | Analog (4-20 mA) / Digital (Modbus, TCP/IP) |
| Measuring Range | ±50 g |
| Frequency Response | 0.1 Hz to 10 kHz |
| Sensitivity | 100 mV/g |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (HxWxD) | 120.7 x 50.8 x 251.5 mm |
| Weight | 1.39 kg |
| Mounting Type | Permanent installation via screws |
| Power Supply | 24V DC |
| Protection Class | IP67 (Dust-tight and waterproof) |
| Signal Output | 4-20 mA, Modbus, TCP/IP |
| Mounting Method | Screw-mounted |
| Certification | CE, RoHS |
Product Description
The Bently Nevada 3500/15 106M1079-01 is a state-of-the-art vibration monitoring sensor designed to operate as part of the comprehensive Bently Nevada 3500 Series. It plays a pivotal role in machinery protection by continuously monitoring vibration levels and providing diagnostic feedback on the health of critical rotating machinery.
Engineered for reliability and durability, the 3500/15 utilizes advanced vibration measurement technology to detect even minor changes in vibration patterns, which often serve as early indicators of problems such as imbalance, misalignment, or bearing failure. The device provides both analog and digital outputs (4-20 mA, Modbus, TCP/IP), making it versatile and adaptable to various monitoring systems and control platforms.
The 3500/15 series is designed with a focus on ease of installation and integration, offering a user-friendly interface and a compact form factor. The system is highly resistant to environmental factors such as dust, moisture, and temperature extremes, which allows it to function reliably in even the harshest industrial environments.
It is ideal for use in critical applications such as power plants, oil and gas refineries, and manufacturing plants, where the health of rotating machinery is crucial to operational efficiency and safety. By providing actionable insights into machinery condition, the 3500/15 helps operators take proactive maintenance actions, significantly reducing the risk of unplanned downtime.
Applications
The Bently Nevada 3500/15 106M1079-01 is widely used across various industries for monitoring and protecting critical machinery. Its applications include:
- Turbine Monitoring: Prevents turbine failures by detecting issues like imbalance or bearing wear.
- Compressor Monitoring: Ensures compressors run smoothly, preventing issues that could lead to equipment failure.
- Pump Monitoring: Helps detect early signs of failure in pumps, preventing costly repairs.
- Motor Protection: Detects issues such as misalignment or imbalance in motors.
- Gearbox Monitoring: Monitors gearbox health to prevent catastrophic failures.
- Rotating Machinery Protection: Protects other types of rotating machinery from damage due to excessive vibration.
- Power Generation: Provides continuous monitoring in power plants to ensure the health of critical machinery.
- Oil & Gas Industry: Helps protect machinery in oil rigs, refineries, and pipelines.
- Manufacturing: Used in factories to monitor critical production equipment.
- HVAC Systems: Ensures efficient and reliable operation of large HVAC systems in commercial buildings.
Product Advantages
- Advanced Signal Processing: The 3500/15 utilizes cutting-edge signal processing technology to provide precise and reliable data on machinery vibration.
- Early Fault Detection: It offers early detection of problems like imbalance, misalignment, and bearing failure, which can prevent catastrophic breakdowns.
- Multiple Output Options: The system supports both analog (4-20 mA) and digital (Modbus, TCP/IP) outputs for easy integration into various monitoring systems.
- Rugged and Reliable: With an IP67 protection rating, the 3500/15 can operate in harsh environments, withstanding dust, moisture, and extreme temperatures.
- Predictive Maintenance: Enables proactive maintenance strategies, helping reduce downtime and extend the operational life of equipment.
- Compact Design: The sensor is designed to be space-efficient and easy to install in confined spaces.
- Wide Frequency Range: The 3500/15 can monitor a broad spectrum of vibration frequencies, making it suitable for a wide range of machinery.
- Real-Time Data: Provides continuous, real-time data on machinery health, allowing for immediate action in case of abnormalities.
- Versatility: Suitable for use in a wide range of industries, including oil & gas, power generation, and manufacturing.
- Easy Integration: The system integrates easily with existing monitoring systems and offers comprehensive diagnostic capabilities.
Latest Reports and News
- Title: “Bently Nevada 3500/15 106M1079-01: Setting New Standards in Industrial Vibration Monitoring”
- Title: “Bently Nevada Expands Vibration Protection Capabilities with the 3500/15 106M1079-01”
- Title: “Preventing Equipment Failure with Bently Nevada 3500/15: A Game-Changer in Predictive Maintenance”
- Title: “How the Bently Nevada 3500/15 Vibration Monitoring System Enhances Operational Efficiency”
- Title: “Bently Nevada 3500/15: Essential Protection for Critical Rotating Machinery”
Frequently Asked Questions (FAQ)
-
What is the main purpose of the Bently Nevada 3500/15 106M1079-01?
- The 3500/15 is designed for vibration monitoring and protection of critical machinery, helping to prevent equipment failures through early detection of mechanical issues.
-
How is the 3500/15 installed?
- The sensor is permanently mounted using screws, making installation straightforward and secure.
-
What outputs are available with the 3500/15?
- The 3500/15 provides both analog (4-20 mA) and digital outputs (Modbus, TCP/IP), allowing for flexible integration into various monitoring systems.
-
What is the measuring range of the sensor?
- The sensor has a measuring range of ±50 g, suitable for most industrial machinery applications.
-
Can the Bently Nevada 3500/15 operate in harsh environments?
- Yes, the sensor is rated IP67, making it dust-tight and waterproof, capable of operating in extreme environments.
-
What is the temperature range for this sensor?
- The operating temperature range is -40°C to +85°C, which makes it ideal for both hot and cold environments.
-
What is the frequency response of the 3500/15?
- The sensor offers a wide frequency range of 0.1 Hz to 10 kHz, covering a broad spectrum of vibration frequencies.
-
Is this sensor suitable for continuous monitoring?
- Yes, the 3500/15 provides real-time, continuous monitoring of vibration conditions.
-
In which industries can the 3500/15 be used?
- It can be used in industries such as power generation, oil & gas, manufacturing, and many others.
-
How does the 3500/15 help with predictive maintenance?
- The sensor detects early signs of wear and potential failures, allowing operators to take preventive action before failures occur.
Recommended Related Models
| Model | Description |
|---|---|
| Bently Nevada 3500/22 | A more advanced model with additional sensors for multi-channel monitoring. |
| Bently Nevada 3500/40 | A protection system designed specifically for turbine applications. |
| Bently Nevada 3500/42 | A system with extended capabilities for gearbox monitoring. |
| Bently Nevada 3500/53 | A high-performance vibration system designed for large motors. |
| Bently Nevada 3300/02 | A lower-cost alternative for general vibration monitoring. |
| Bently Nevada 3300/04 | A more compact sensor ideal for smaller machinery applications. |
