Product Overview

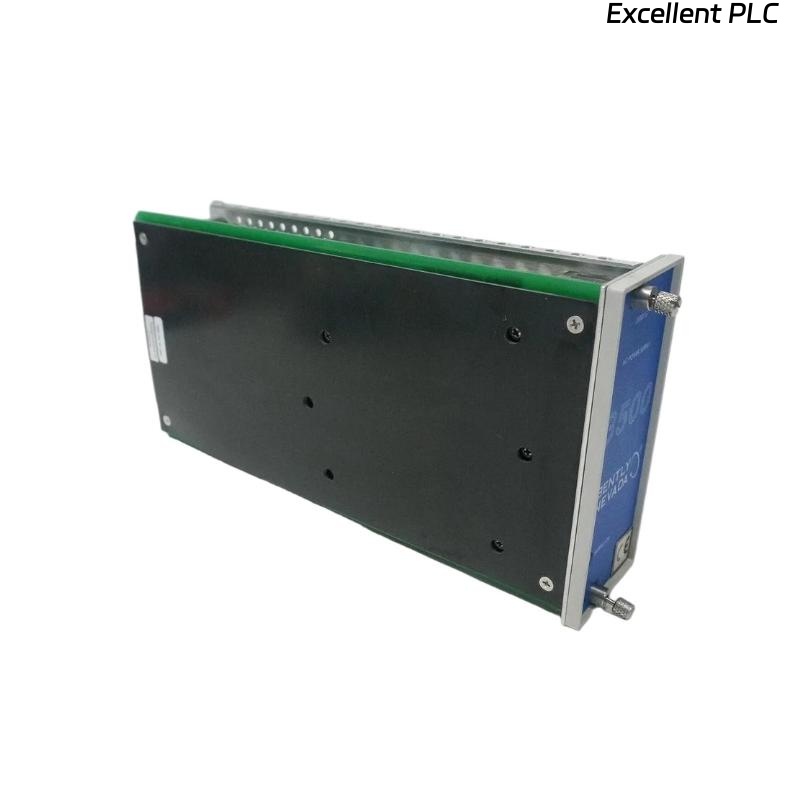

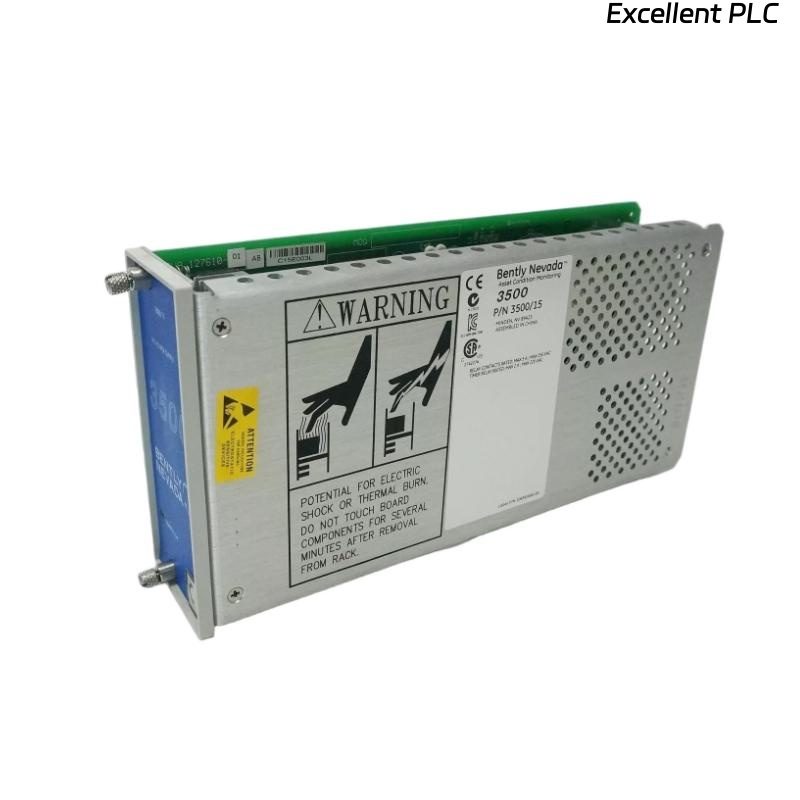

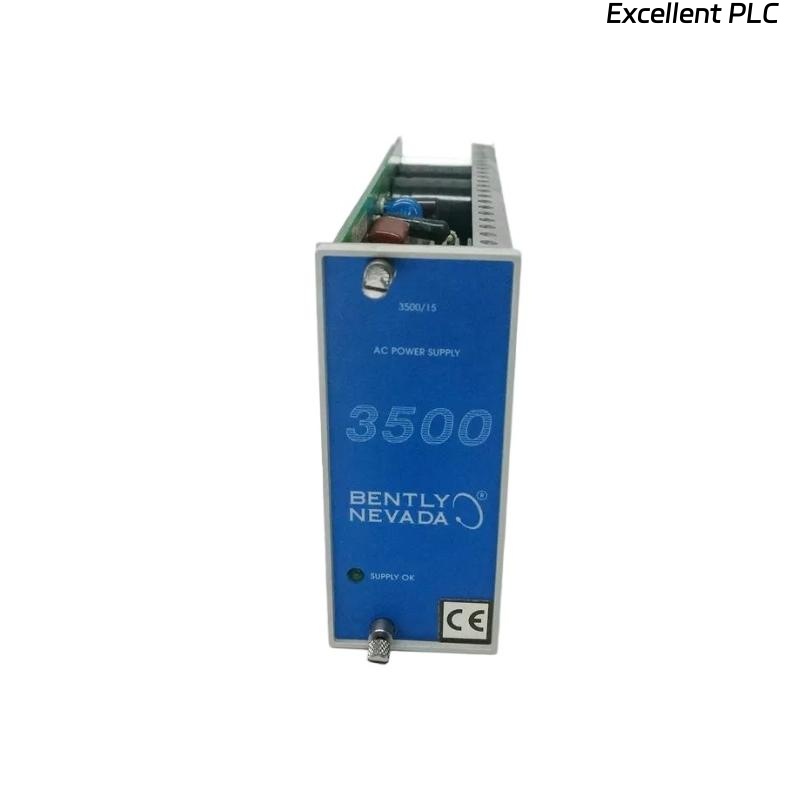

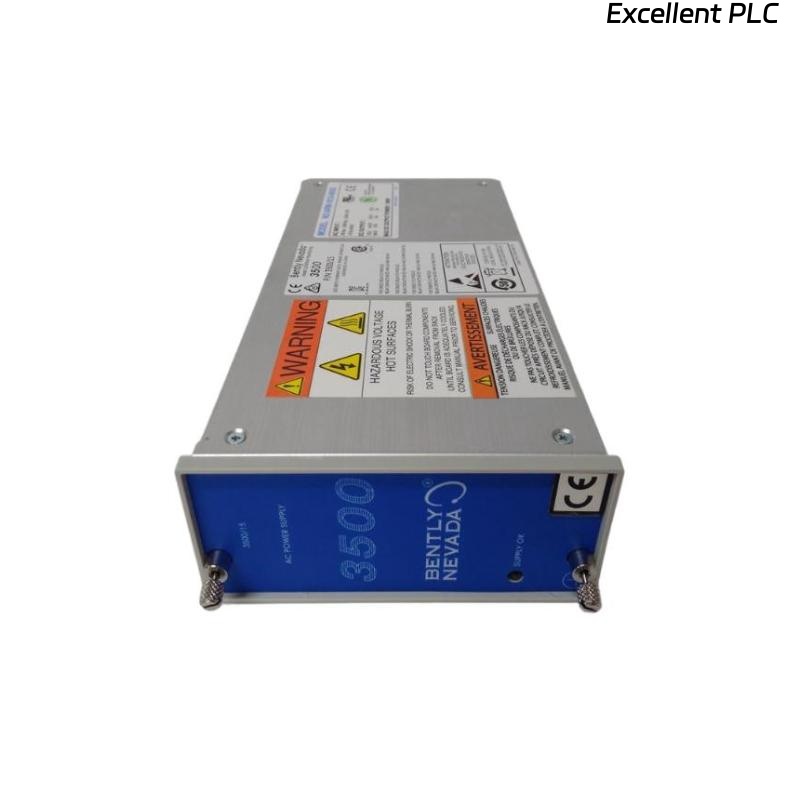

The Bently Nevada 3500/15 114M5335-01 Low Voltage DC PIM is a vital power supply module designed for the 3500 Machinery Protection System. This module provides both AC and DC power options, ensuring stable and reliable power delivery to various 3500 series monitoring modules. Engineered to meet rigorous industrial standards, the 3500/15 power supply module supports continuous operation in harsh environments, making it an essential component for protecting critical rotating machinery.
Key Features
-
Provides regulated AC and low voltage DC power for 3500 series modules
-
Supports redundant configurations for increased system reliability
-
Robust design for industrial environments
-
Efficient power conversion with low heat dissipation
-
Easy installation and integration with 3500 system racks
-
Meets industrial safety and electromagnetic compatibility standards
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 3500/15 114M5335-01 |
| Module Type | AC and DC Power Supply Module |
| Input Voltage | 85 to 264 VAC, 47 to 63 Hz |
| Output Voltage (DC) | 24 VDC nominal |
| Output Current | Up to 5 A |
| Power Rating | Typically 120 W |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Dimensions | 120.7 x 50.8 x 251.5 mm |
| Weight | 1.39 kg |
| Safety Certifications | UL, CE, cUL |
Industry Applications
-
Power generation machinery monitoring systems
-
Oil & gas rotating equipment protection
-
Petrochemical and chemical plant machinery monitoring
-
Mining and metals equipment condition monitoring
-
Pulp and paper industry machinery protection
-
Marine and offshore rotating machinery systems
Frequently Asked Questions (FAQ)
Q1: What input voltage range does the 3500/15 power supply module support?
It supports an input range of 85 to 264 VAC, 47 to 63 Hz.
Q2: What output voltage and current does the module provide?
It provides 24 VDC nominal output voltage with up to 5 A current.
Q3: Is the power supply module designed for harsh industrial environments?
Yes, it is built to operate reliably from -30°C to +65°C and withstand industrial conditions.
Q4: Can the module be used in redundant power supply configurations?
Yes, it supports redundant setups for increased system reliability.
Q5: What are the module dimensions and weight?
Dimensions are approximately 120.7mm x 50.8mm x 251.5 mm, weighing about 1.39 kg.
Q6: Does the module have safety certifications?
Yes, it holds UL, CE, and cUL certifications.
Q7: Is the module compatible with all 3500 series racks?
Yes, it is designed to integrate seamlessly with Bently Nevada 3500 system racks.
Q8: Does the power supply generate significant heat?
No, it features efficient power conversion with low heat dissipation.
Q9: Can the module be easily replaced or serviced?
Yes, it is designed for easy installation and maintenance.
Q10: What is the expected lifespan of this power supply?
When used according to specifications, it offers long-term reliable service typical of Bently Nevada products.
