Product Overview

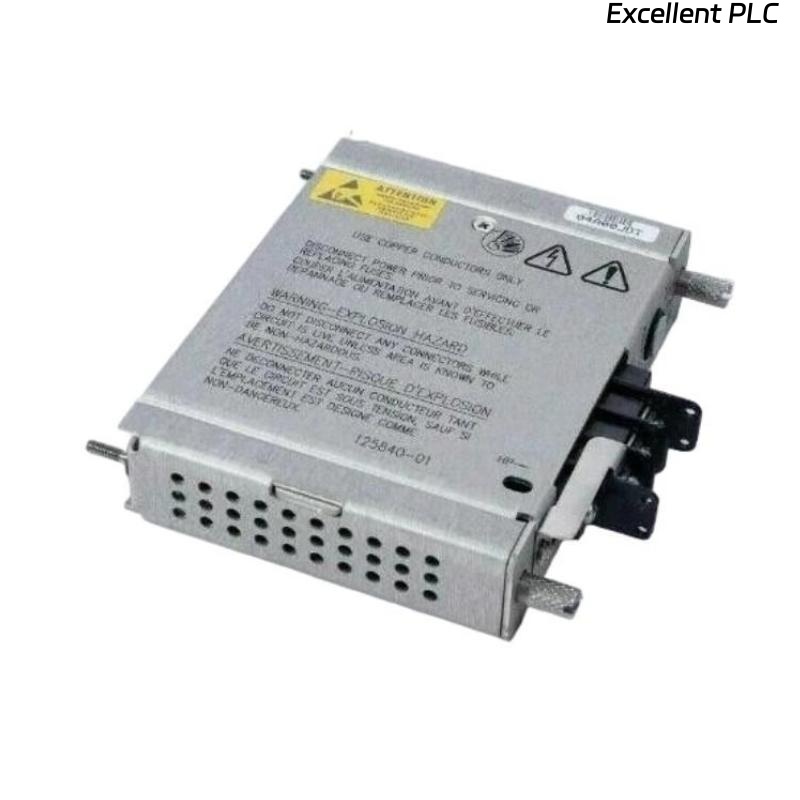

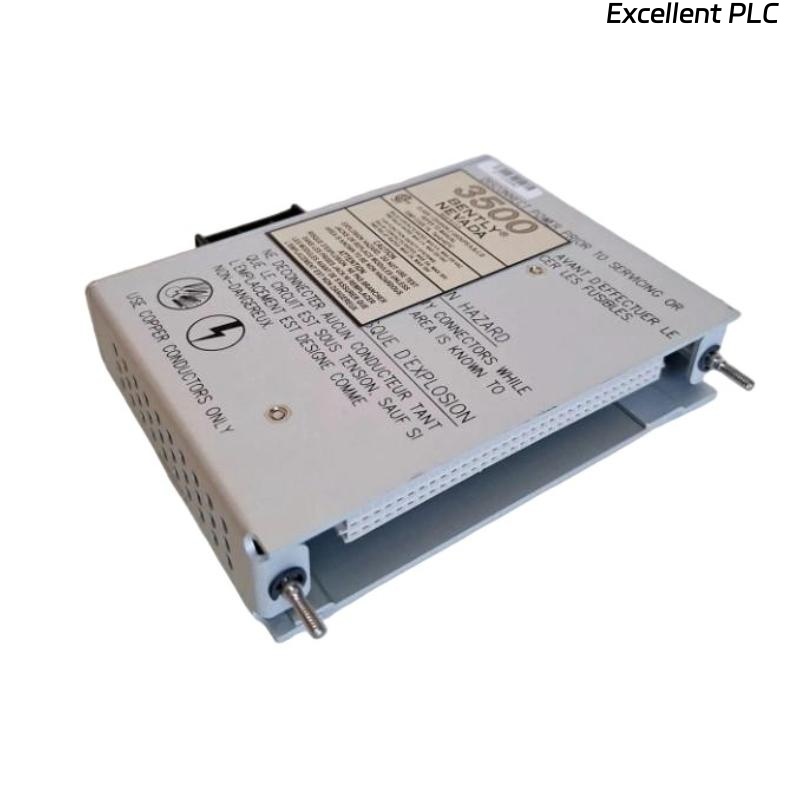

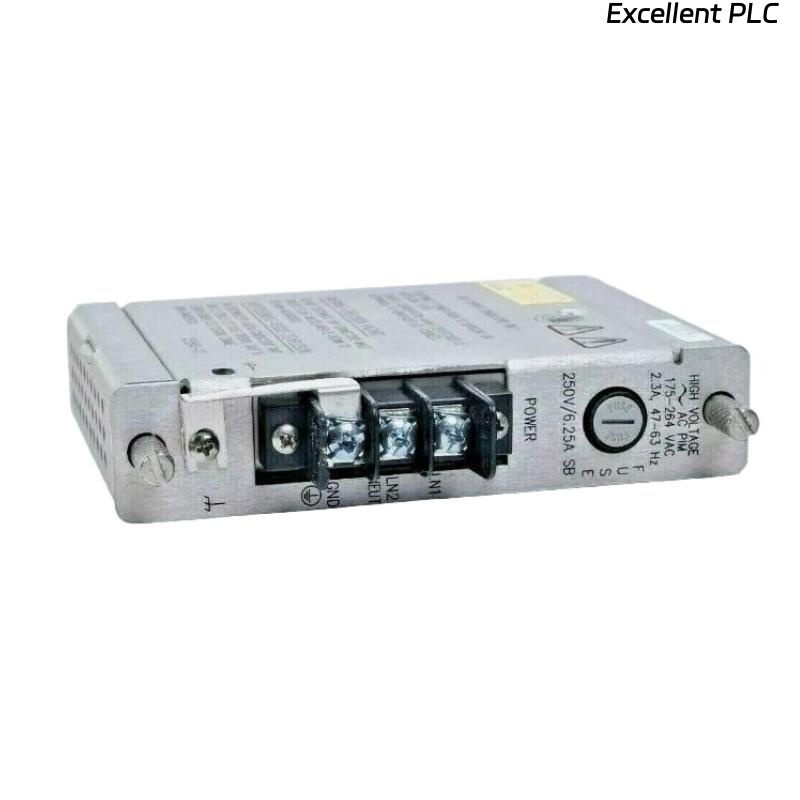

The Bently Nevada 3500/15 125840-01 High Voltage AC Power Input Module is designed to provide reliable high-voltage AC power input for the 3500 Machinery Protection System. This module ensures safe and stable power conversion and distribution to protect critical machinery monitoring equipment. Built for robust industrial environments, it supports continuous operation with high efficiency and durability.
Key Features
-
Provides high voltage AC power input for the 3500 system
-
Converts and regulates high voltage input to stable system power
-
Designed for harsh industrial conditions and environments
-
High efficiency with low power loss and heat generation
-
Compact size for easy integration into 3500 system racks
-
Meets industrial safety and electromagnetic compatibility standards
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 3500/15 125840-01 |
| Module Type | High Voltage AC Power Input Module |
| Input Voltage Range | 240 to 480 VAC |
| Output Voltage | Regulated for 3500 system modules |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Dimensions | 120.7 x 25.4 x 114.3 mm |
| Weight | 0.34 kg |
| Safety Certifications | UL, CE, cUL |
Industry Applications
-
Power generation machinery protection
-
Oil and gas industrial equipment monitoring
-
Petrochemical and chemical plant machinery protection
-
Mining and metals equipment condition monitoring
-
Pulp and paper industry machinery monitoring
-
Marine and offshore rotating machinery systems
Frequently Asked Questions (FAQ)
Q1: What input voltage range does the module support?
Supports high voltage AC input from 240 to 480 VAC.
Q2: What is the output voltage of the module?
The module provides regulated power suitable for Bently Nevada 3500 system modules.
Q3: Can it operate in harsh industrial environments?
Yes, it is designed for reliable operation between -30°C to +65°C.
Q4: Is the module compatible with all 3500 series racks?
Yes, it integrates fully with Bently Nevada 3500 system racks.
Q5: What are the module’s dimensions and weight?
Dimensions approximately 120.7 x 25.4 x 114.3 mm; weight about 0.34 kg.
Q6: Does the module have safety certifications?
Yes, it holds UL, CE, and cUL certifications.
Q7: Is it efficient in power conversion?
Yes, it offers high efficiency with low heat generation.
Q8: Is the module easy to install and maintain?
Yes, designed for straightforward installation and maintenance.
Q9: Can this module be used in redundant power configurations?
Yes, it can be used as part of redundant power supply setups.
Q10: What is the expected service life?
It provides reliable long-term service consistent with Bently Nevada products.
Related Models
| Model Number | Description |
|---|---|
| 3500/15 127610-01 | AC Power Module |
| 3500/15 114M5335-01 | Low Voltage DC PIM Power Supply Module |
| 3500/15-02 | Redundant Power Supply Module |
| 3500/22M | Transient Data Interface Module |
| 3500/32M | Dynamic Motion & Speed Module |
| 3500/42M | Proximitor/Seismic Monitor Module |
