Product Introduction

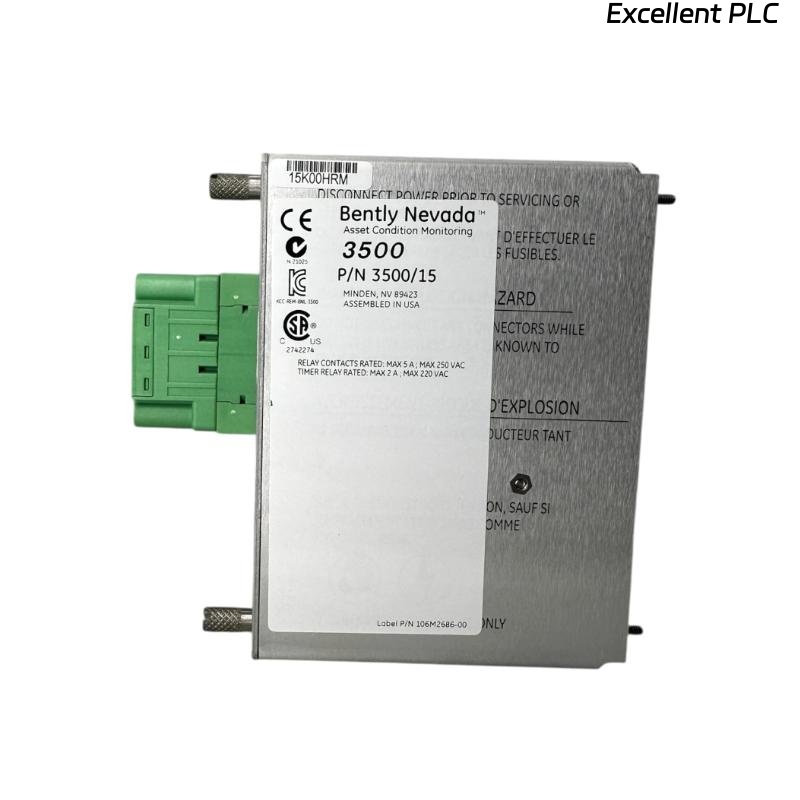

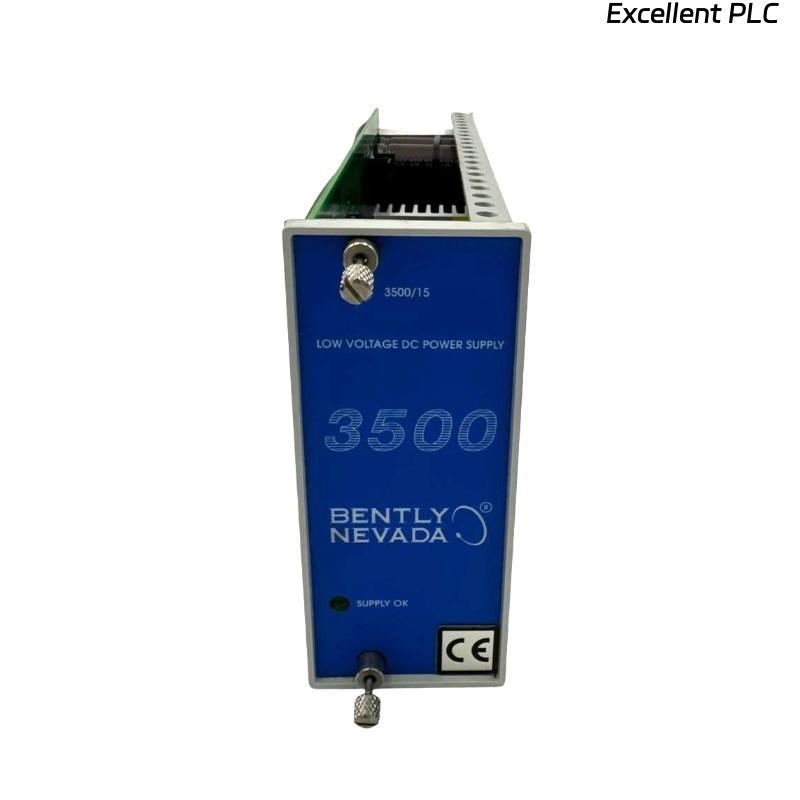

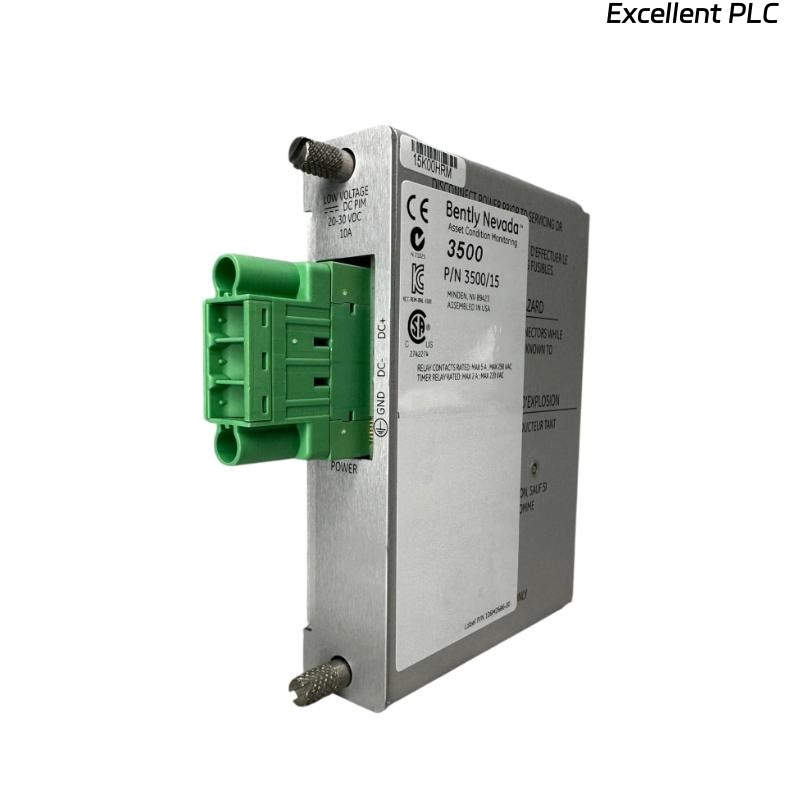

The Bently Nevada 3500/15 133292-01+133300-01 AC/DC Power Supply Module is a critical component designed to provide reliable and stable power to Bently Nevada’s 3500 series monitoring systems. Engineered for both AC and DC inputs, this module ensures continuous and efficient power conversion, safeguarding the performance and accuracy of vibration and machinery protection instrumentation. This power supply module is built with high-quality components and rigorous testing, delivering exceptional durability and operational reliability in industrial environments.
Product Specifications
| Specification | Details |
|---|---|
| Model Number | 3500/15 133292-01+133300-01 |
| Power Input | AC/DC compatible |
| Input Voltage Range | 85 to 265 VAC / 90 to 300 VDC |
| Output Voltage | +5 VDC, +24 VDC (regulated) |
| Output Current | Up to 5 A |
| Frequency Range | 47 to 63 Hz |
| Efficiency | >85% |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (HxWxD) | 120.7 x 50.8 x 251.5 mm |
| Weight | 1.39 kg |
| Certifications | CE, UL, CSA |
Applications
The Bently Nevada 3500/15 Power Supply Module is primarily used in industrial machinery monitoring and protection systems. Typical applications include:
-
Turbomachinery monitoring in power plants
-
Compressors and pumps in oil and gas industries
-
Rotating equipment in chemical and petrochemical plants
-
Critical machinery protection in manufacturing facilities
-
Continuous condition monitoring for early fault detection
Product Advantages
-
Dual AC/DC Input Compatibility: Enables versatile deployment across different power infrastructures, supporting both AC mains and DC power sources.
-
High Efficiency: Reduces heat generation and power losses, contributing to system longevity and lower operational costs.
-
Robust Construction: Designed to withstand harsh industrial environments with wide temperature and humidity tolerances.
-
Compact Design: Fits into standard 3500 series racks without occupying excessive space, facilitating system integration.
-
Reliable Regulation: Provides stable voltage output, ensuring the accuracy of sensitive monitoring instruments.
-
Safety Certifications: Complies with international standards for safety and electromagnetic compatibility, ensuring dependable operation.
-
Easy Maintenance: Modular design allows quick replacement, minimizing downtime during maintenance cycles.
FAQ
-
What is the maximum input voltage tolerance for this power supply module?
The module supports AC input from 85 to 265 VAC and DC input from 90 to 300 VDC. -
Can the power supply module operate continuously at its maximum rated current?
Yes, it is rated to provide up to 5 A output continuously under specified environmental conditions. -
What type of protection does the module offer against voltage spikes?
It includes built-in surge protection and overvoltage protection to prevent damage from transient voltage spikes. -
Is the output voltage isolated from the input?
Yes, the power supply provides galvanic isolation between input and output circuits for safety and noise reduction. -
How does the module handle power fluctuations or interruptions?
It has built-in voltage regulation and filtering to maintain stable output during input voltage fluctuations and brief interruptions. -
What cooling methods are used for this power supply module?
The module uses convection cooling enhanced by its metal housing design; no fans are required, reducing maintenance needs. -
Does the power supply support remote monitoring or diagnostics?
The module itself does not provide remote diagnostics but integrates with the 3500 series system that can monitor power status. -
What are the electromagnetic compatibility (EMC) standards met by this product?
The module meets CE, UL, and CSA EMC requirements, ensuring minimal interference with other equipment. -
Are there any special considerations for wiring or installation?
Installation should follow Bently Nevada’s guidelines for grounding, wiring, and rack integration to ensure optimal performance. -
Can this power supply module be used in hazardous or explosive environments?
The module itself is not certified for hazardous locations; however, it can be installed in safe areas feeding monitoring devices in hazardous zones.
