Product Overview

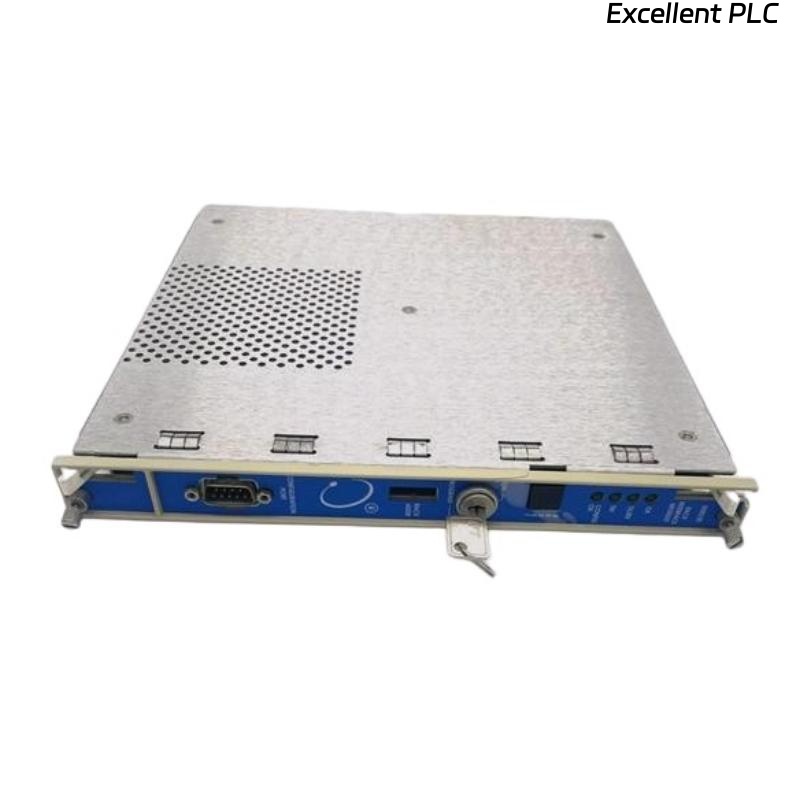

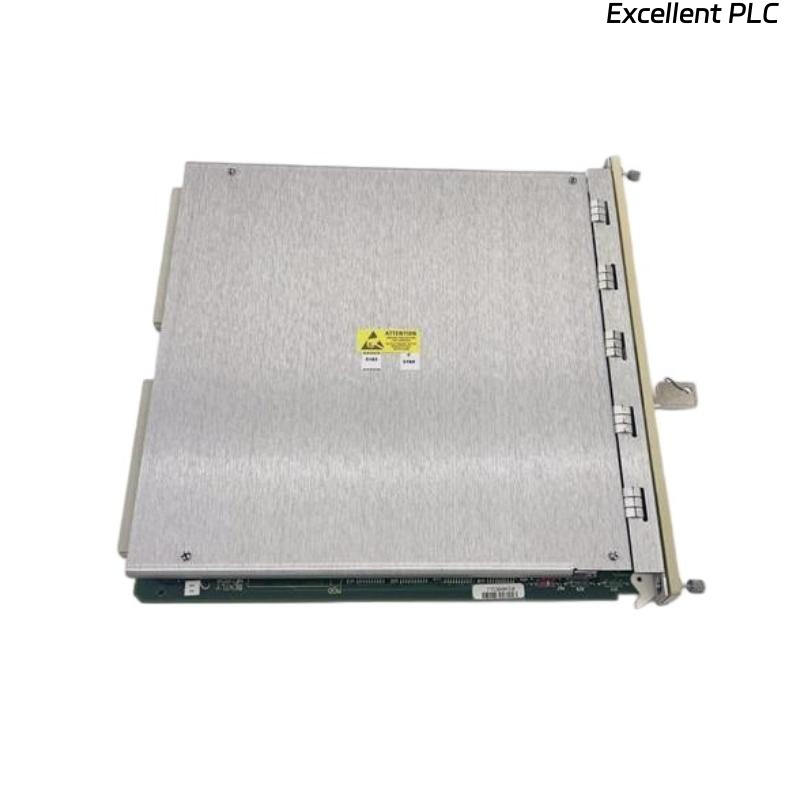

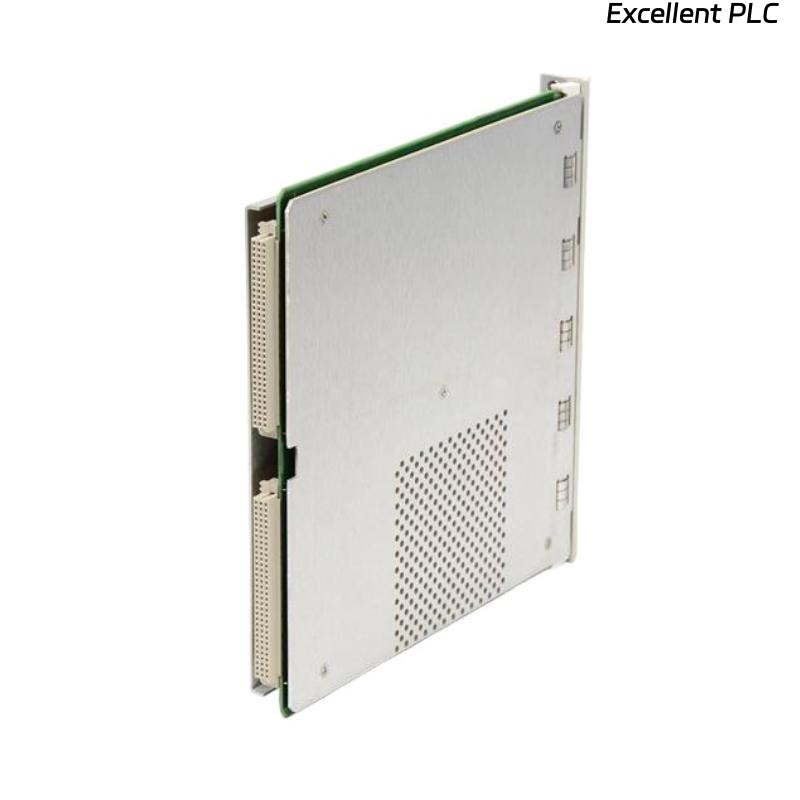

The Bently Nevada 3500/20-01-01-00 Rack Interface Module is a key component of the 3500 Machinery Protection System, designed to manage and facilitate communication between the monitoring rack and external systems. It provides the essential interface for transmitting vibration and condition monitoring data, ensuring that operators receive accurate and timely information for critical machinery health decisions. Built with industrial-grade reliability, the module supports continuous operation in demanding environments.
Key Features
-
Centralized communication link between the 3500 rack and external systems
-
Supports multiple industrial communication protocols
-
High-speed data transfer for real-time monitoring
-
Redundant configuration options for maximum availability
-
Rack-mounted design for easy installation and integration
-
Certified for use in hazardous industrial environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 3500/20-01-01-00 |
| Module Type | Rack Interface Module |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Compatible Systems | Bently Nevada 3500 Machinery Protection System |
| Communication Protocols | Modbus, Ethernet, and other protocols |
| Data Processing Rate | High-speed data handling and transfer |
| Redundancy Support | Yes, with paired modules |
| Mounting Type | Rack-mounted (3500 rack) |
| Power Supply | Provided by 3500 rack backplane |
| Operating Temperature | 0°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 0% to 95% non-condensing |
| Dimensions | 241.3 x 24.4 x 99.1 mm |
| Weight | 0.45 kg |
| Certifications | CE, CSA, ATEX, IECEx |
Industry Applications
-
Turbomachinery condition monitoring
-
Oil and gas facilities
-
Power generation plants
-
Chemical and petrochemical industries
-
Industrial manufacturing and reliability programs
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the 3500/20-01-01-00 module?
It provides the interface between the 3500 monitoring rack and external control or monitoring systems.
Q2: Can this module be used with all 3500 racks?
Yes, it is compatible with the full range of 3500 racks.
Q3: Does it support redundancy?
Yes, it supports redundant configurations for high availability.
Q4: Which communication protocols are supported?
It supports Modbus, Ethernet, and other industrial protocols.
Q5: Can the module be replaced while the system is running?
Yes, it supports hot-swapping in supported configurations.
Q6: What is the operating temperature range?
It operates between 0°C and 65°C.
Q7: Does it require an external power supply?
No, it is powered through the 3500 rack backplane.
Q8: Is it certified for hazardous locations?
Yes, it meets ATEX and IECEx standards.
Q9: How does it improve machinery protection?
It ensures real-time data delivery for predictive maintenance and fault prevention.
Q10: Can it integrate with plant-wide monitoring systems?
Yes, it is designed for seamless integration with plant control networks.
