Product Introduction

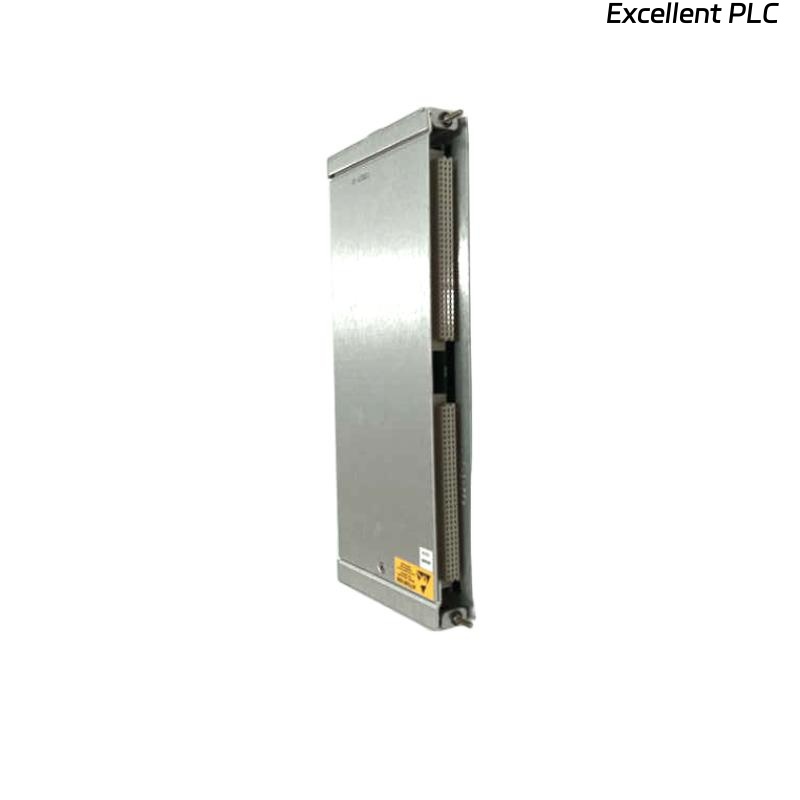

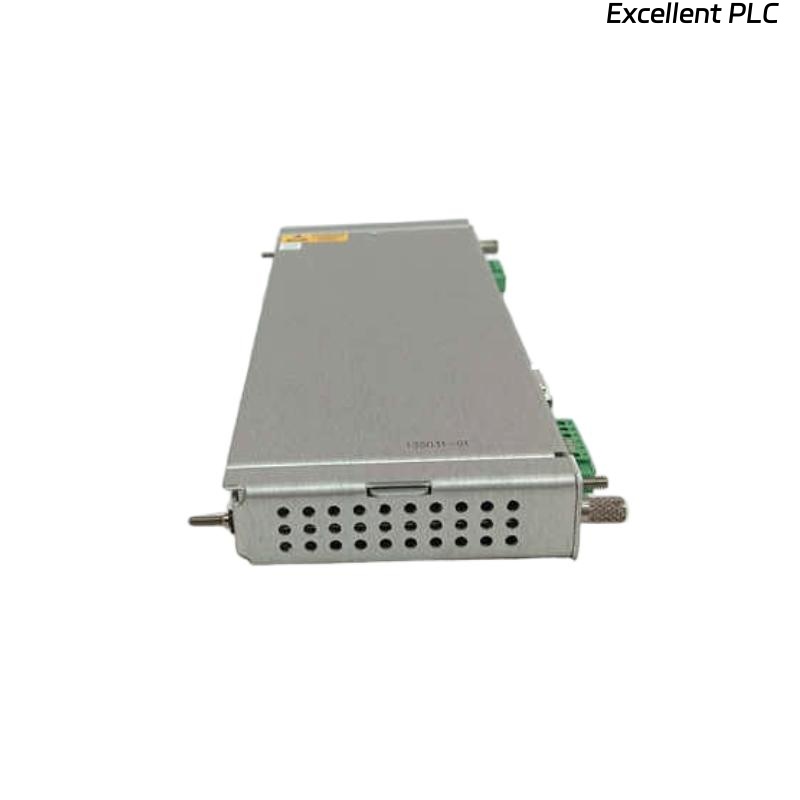

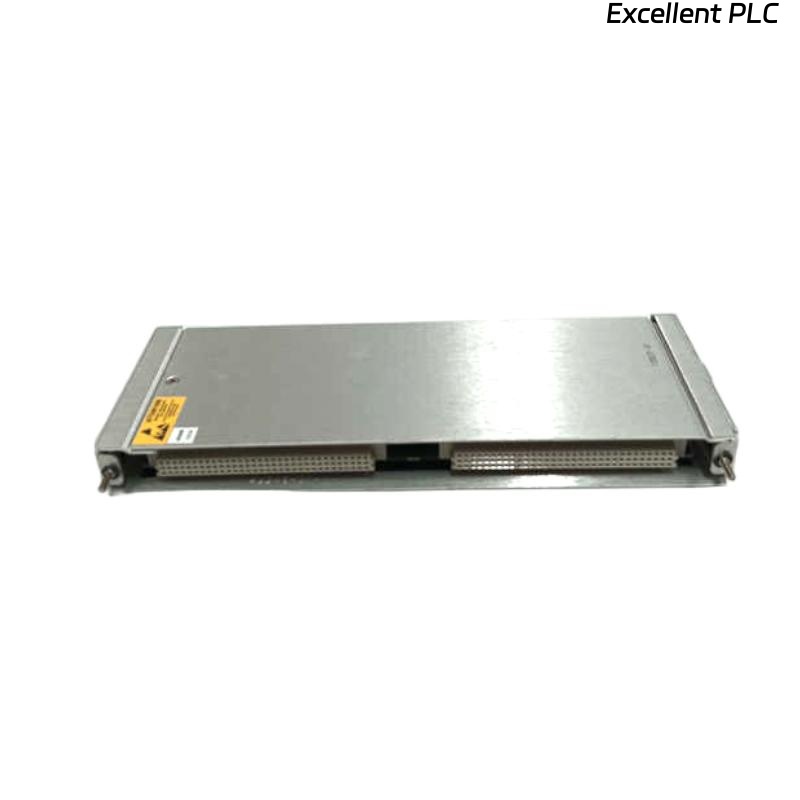

The Bently Nevada 3500/20 135031-01 is a Rack Interface I/O Module used in the 3500 Machinery Monitoring System. This module is designed to facilitate the communication between the machinery monitoring system and external sensors or devices. It serves as the central point for integrating various field devices into the monitoring system, allowing real-time data collection from vibration, temperature, pressure, and displacement sensors, among others.
As part of the 3500 Series, this I/O Module is capable of handling the input and output from multiple sensors, processing the signals, and transferring the relevant data to the central 3500 Rack system. The 3500/20 I/O Module is integral in providing accurate, real-time monitoring and diagnostics, which are crucial for predictive maintenance and ensuring the health of critical industrial machinery.
Built for flexibility and scalability, the 3500/20 I/O Module supports the expansion of the monitoring system by enabling additional channels for data input/output. It can be used in a variety of industries, including power generation, oil & gas, manufacturing, and chemical processing.
Product Parameters
| Parameter | Value |
|---|---|
| Model | Bently Nevada 3500/20 135031-01 |
| Type | Rack Interface I/O Module |
| Input/Output Channels | 8-16 Channels per Module |
| Communication Protocol | Peer-to-Peer (System Link) |
| Operating Voltage | 24 V DC |
| Protection Rating | IP20 |
| Mounting Type | Rack Mount |
| Dimensions | 241.3 x 24.4 x 99.1 mm |
| Weight | 0.45 kg |
Product Applications
The Bently Nevada 3500/20 I/O Module is used in industries where continuous monitoring of critical machinery is essential. It is suitable for:
-
Power Generation: In power plants, ensuring the smooth operation of turbines, generators, and motors is critical. The 3500/20 I/O Module helps connect sensors monitoring vibrations, temperature, and pressure, providing accurate data for machinery health monitoring.
-
Oil and Gas: The oil and gas industry uses a range of critical equipment like compressors, pumps, and turbines that require constant monitoring. The 3500/20 I/O Module is key in linking sensors to the monitoring system, ensuring that potential issues can be identified early to avoid downtime and catastrophic failures.
-
Petrochemical and Chemical Processing: For chemical plants, continuous data from various sensors is crucial for ensuring the safe and efficient operation of reactors, mixers, and pumps. This module allows for smooth integration of all sensors into the centralized monitoring system.
-
Heavy Manufacturing: In manufacturing facilities where heavy machinery operates continuously, the 3500/20 I/O Module facilitates the real-time monitoring of equipment such as motors, conveyors, and mixers. This helps identify issues early, reducing unplanned downtime.
-
Predictive Maintenance Systems: The 3500/20 module is an integral part of predictive maintenance systems, enabling users to collect real-time data and use it for decision-making, thus preventing unexpected failures and extending equipment life.
-
Automated Industrial Systems: This module is ideal for connecting multiple monitoring sensors in automated industrial environments, ensuring seamless data flow and processing.
Product Advantages
-
Centralized Data Management: The 3500/20 I/O Module allows for seamless integration of field sensors into the 3500 Machinery Monitoring System, providing a centralized hub for data acquisition, management, and analysis.
-
Scalability: This module can support 8-16 input/output channels, making it highly scalable. It can accommodate additional sensors as the system grows, ensuring that it adapts to changing needs in industrial environments.
-
Real-Time Data Processing: By processing and transmitting real-time data from multiple sensors, the 3500/20 I/O Module enables operators to identify problems early and make data-driven decisions.
-
Rugged Design for Harsh Environments: Built for industrial applications, the 3500/20 module has an IP20 protection rating, ensuring reliable operation even in challenging environments with dust and other contaminants.
-
Peer-to-Peer Communication: The 3500/20 I/O Module uses a peer-to-peer communication protocol, allowing for seamless interaction with other modules in the system and enhancing overall reliability.
-
Ease of Integration: This module is designed for easy installation into the 3500 Rack system and is compatible with a wide variety of field devices and sensors. It also simplifies the configuration and maintenance processes for users.
-
Cost-Effective: By enabling centralized data collection and real-time diagnostics, the 3500/20 module supports predictive maintenance, leading to cost savings through the reduction of unscheduled downtimes and extending the operational life of critical machinery.
FAQ
1. What is the primary function of the Bently Nevada 3500/20 I/O Module?
The 3500/20 I/O Module serves as an interface between sensors and the 3500 Machinery Monitoring System, enabling real-time data collection and transmission to monitor the health of industrial machinery.
2. How many input/output channels does the Bently Nevada 3500/20 I/O Module support?
The 3500/20 I/O Module supports 8-16 channels per module, allowing for the connection of multiple sensors to the system for comprehensive machinery monitoring.
3. What is the communication protocol used by the Bently Nevada 3500/20 I/O Module?
The module uses a peer-to-peer communication protocol, which enables seamless data transfer and communication between modules in the 3500 Machinery Monitoring System.
4. What type of sensors can be connected to the Bently Nevada 3500/20 I/O Module?
The 3500/20 I/O Module is compatible with a wide range of sensors, including vibration sensors, temperature sensors, pressure sensors, and displacement sensors.
5. What voltage does the Bently Nevada 3500/20 I/O Module operate on?
The module operates on 24 V DC, which is a standard voltage for industrial control systems and machinery monitoring equipment.
6. What is the protection rating of the Bently Nevada 3500/20 I/O Module?
The 3500/20 I/O Module has an IP20 protection rating, providing protection against dust and other solid objects larger than 12mm but not protection from water.
7. How is the Bently Nevada 3500/20 I/O Module mounted?
The module is designed for rack mounting and can be easily installed into the 3500 Rack system.
8. Can the Bently Nevada 3500/20 I/O Module be used for predictive maintenance?
Yes, the 3500/20 I/O Module supports predictive maintenance by continuously collecting and transmitting sensor data, helping to identify issues before they lead to failure.
9. What industries can benefit from the Bently Nevada 3500/20 I/O Module?
The module is ideal for industries such as power generation, oil & gas, petrochemical processing, manufacturing, and any other industry that requires continuous monitoring of critical machinery.
10. What is the weight of the Bently Nevada 3500/20 I/O Module?
The 3500/20 I/O Module weighs 0.45 kg, making it lightweight and easy to handle during installation.
